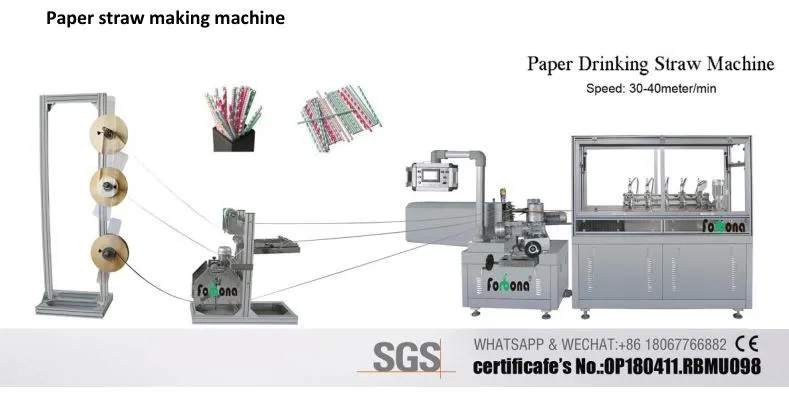

High speed paper product drinking straw making machine

Product Name: High-speed paper straw making machine
Product Model: AC-12

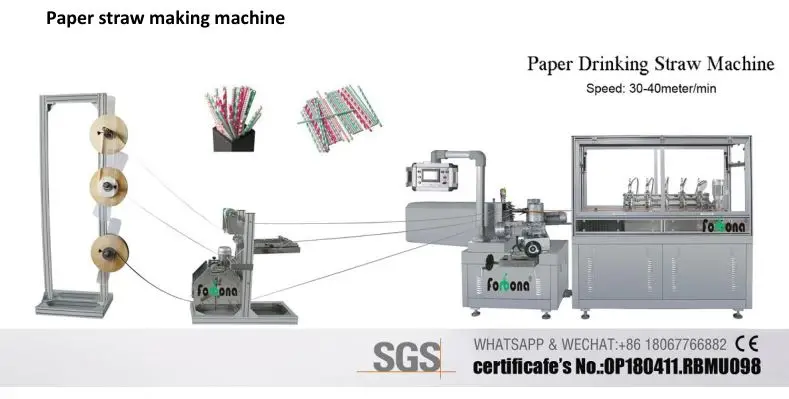

The high-speed paper straw making machine integrates paper feeding, gluing, winding and cutting.

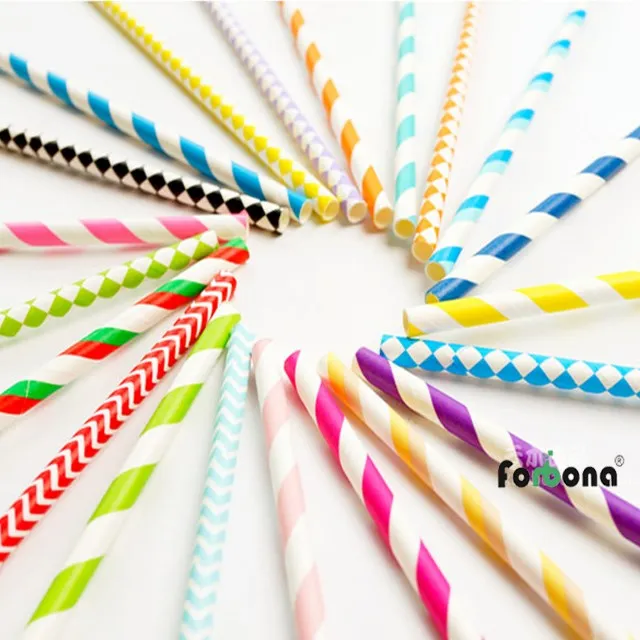

It equipped with CNC multi-knife cutting system, the finished paper tube can be cut automatically. It is suitable for producing paper straw with diameters of 5 to 15 mm(different diameter need to change machine parts, the length of straw is adjustable).

Features:

1. Controlled by schneider PLC, the main engine is equipped with frequency conversion speed regulation
2. Adopt man-machine operation interface, convenient for operation;

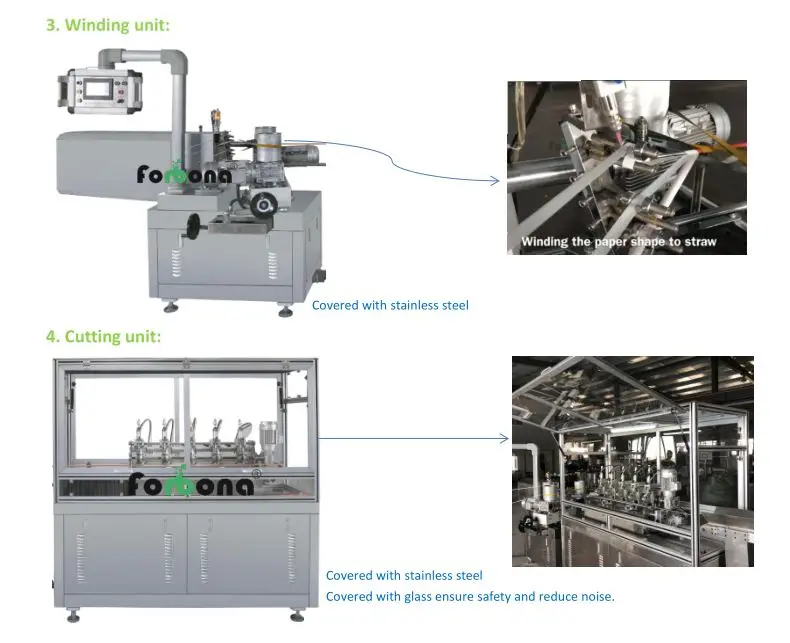

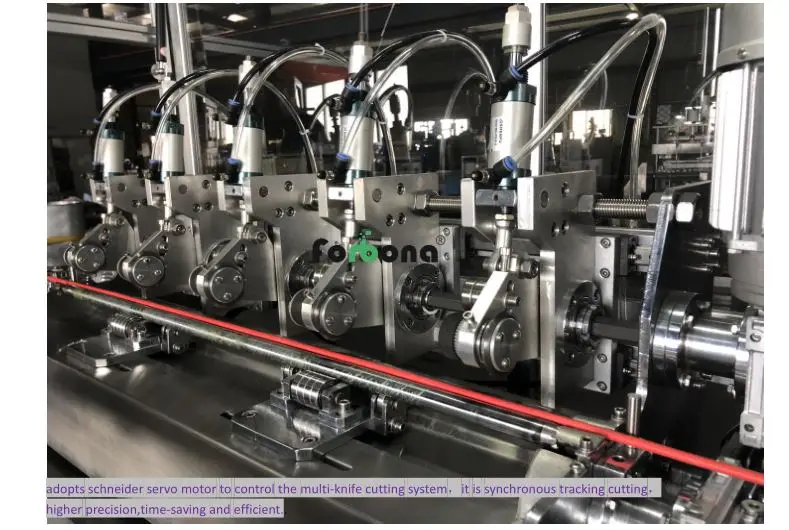

3. The cutting unit adopts schneider servo motor to control the multi-knife cutting system,the servo motor synchronous tracking cutting,higher precision,time-saving and efficient.

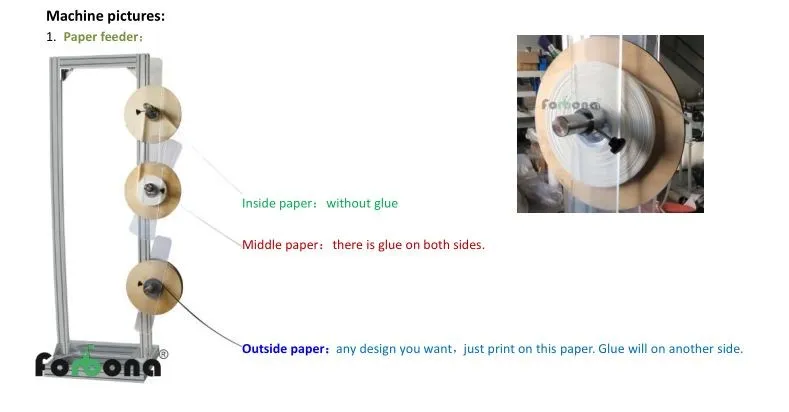

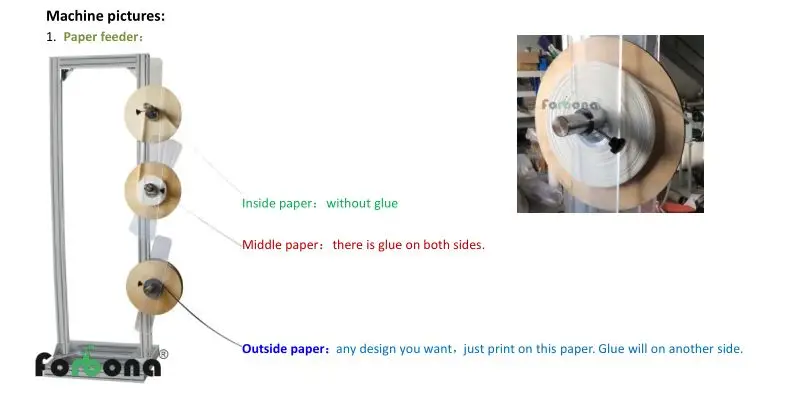

4. T-shaped paper rack, split scrolls can be easily placed in T-frame.

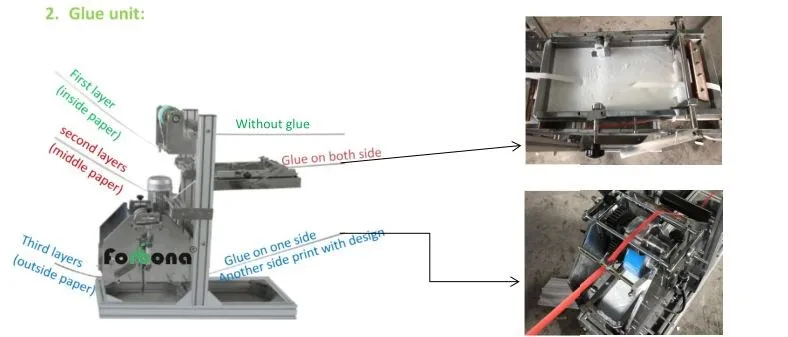

5. Single or double sided glue unit can be selected.
6. The fuselage and main accessories are made of stainless steel to ensure product hygiene and environmental protection.

Specifications:

Max.speed	30-40meter/min( 150-200pcs)
Power support	380v 50hz 3phase
Total power	7kw
Producible straw inner diameter	5-12mm (need to change components)
Thickness of straw	0.5-2mm
Material of paper	Environmentally paper
Layers of paper	3 layers
Material of glue	10% PVA 40% PVAC 50% water
Glue feeding type	Single or double side
Cutting system	Control by Schneider servo motor
Overall dimension	3500*1500*1200mm
Total weight	1300kg
Operator	1-2 persons

Detailed Images

Packing & Delivery

Packaging: Packed with seaworthy wooden cases.
Port: Ningbo.

Lead Time:
1 - 50sets, 30days;
 >50 sets need to be negotiated.
