Basic Q15 Cheap Water Purifier Portable Water Purification System

Product Overview

Description

Basic series water purification system

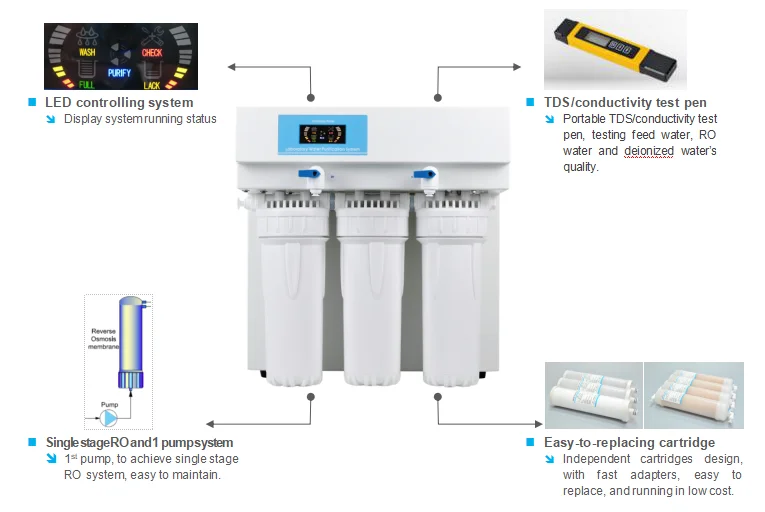

 Features and Advantages

§ Automatic microcomputer controlling system, LED real-time animation mode display.

§ Running status is showed in the LED display, such as flushing, producing water, full tank, water shortage, leakage and service.

§ Power on self-test, power reset, alarm when work more than 6 hours continuously, water shortage, leakage, low and high pressure.

§ 3 procedure of the reverse osmosis membrane’s self-flushing: power on, water shortage reset and work more than 2 hours continuously, extend the life of RO membrane.

§ 2 kind of installation type, Desk and wall-mounted (except for 45 series and built-in tank model).

§ High-strength metal shell with powder painting technics, achieve elegant appearance and meeting GLP standard

§ Pretreatment cartridges, RO module, deionized cartridges, all designed to modularization independently, easy for maintenance and replacement.

§ Built-in 12 liters pressure water tank (IT series), save laboratory space, easier for installation and maintenance.

§ External water tanks is optional to meet different need and assure ample water-supply.

§ Tube and adapter with NSF authorization and top quality, reduce TOC level and assure ultrapure water’s quality.

§ Standard pretreatment (including PP fiber, and active carbon cartridge), effectively protect RO membrane and run in low cost.

§ RO module with DOW’s membrane, ensure long life, stable operation and high desalinization rate.

§ Precision mixed resin cartridge, combine high pure water quality and low running cost.

§ Portable TDS/conductivity test pen, convenient to test feed water, RO water and deionized water’s quality.

Basic-Q (-IT) series deionized water system (Tap water inlet)

With LED controlling system, single stage RO system, 1 pump, Portable TDS/conductivity test pen, and built-in 12 liters tank(IT series), Basic-Q series deionized water system is basic choice of deionized water for general grade experiments. And Basic-Q-IT series is added built-in 12 liters tank on the basis of Basic-Q.

With tap water inlet, its output ranges from 15 to 45 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 13MΩ.cm, near to17.5MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water. And it is perfect upgraded replacement for water distiller.

Flow Schematic

Specifications

Remarks:

*The value will be influenced by temperature and feed water’s quality.
