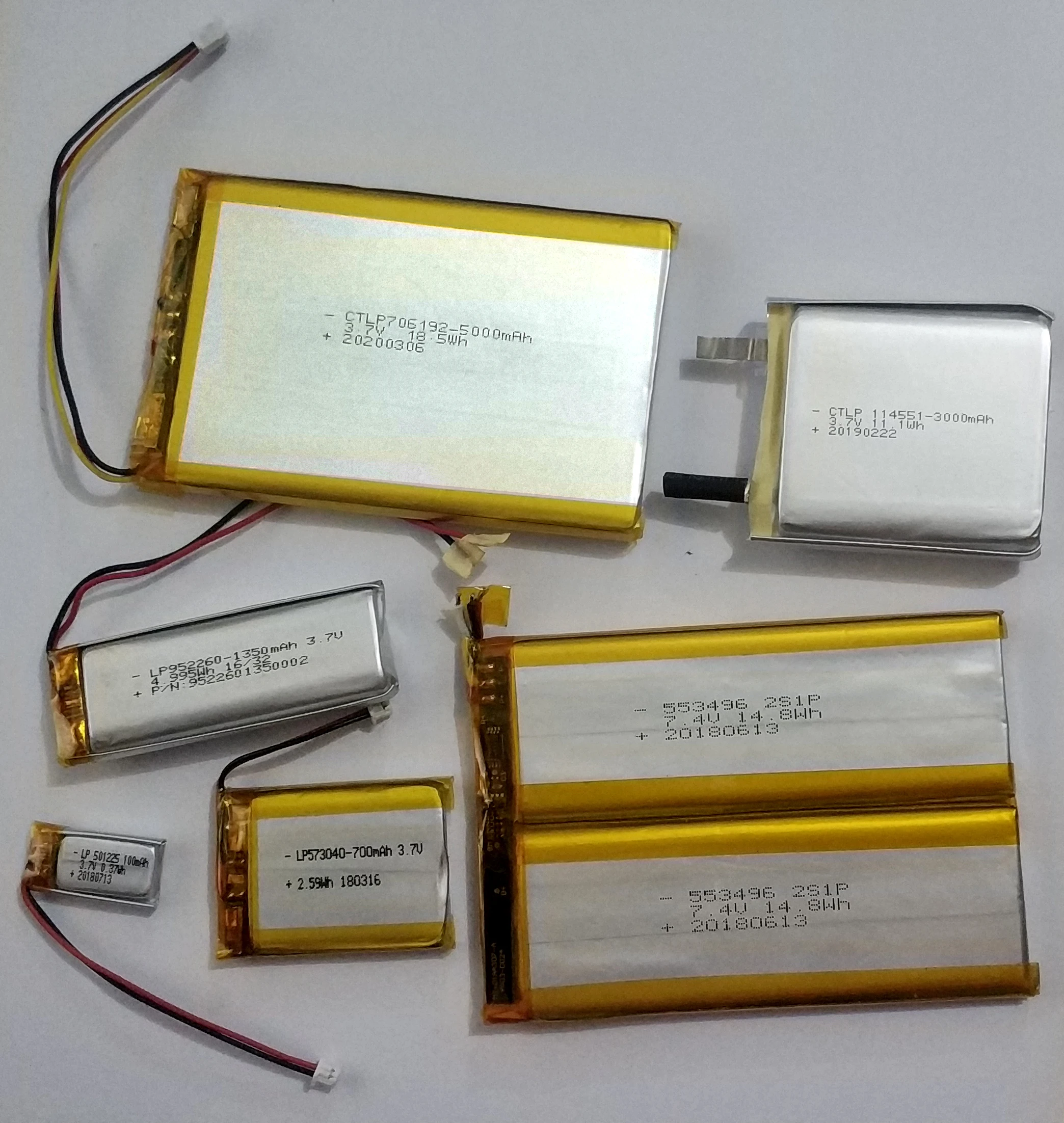

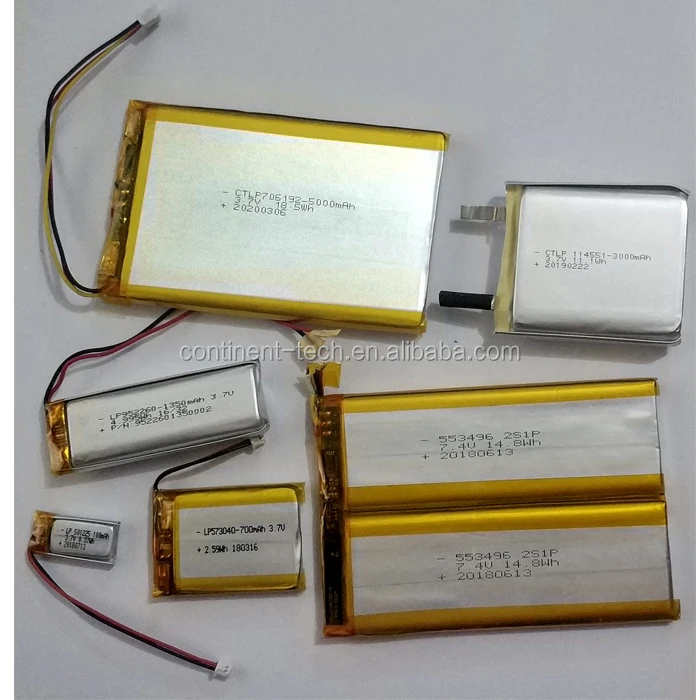

3.7V 700mAh 602060 Li ion Batteries OEM Lipo Electrical Battery 4.2V Charging Voltage 2.59Wh

Product Overview

Description

Wholesale Rechargeable lipo 3.7 Volt 602060 700mAh li-ion polymer battery

Lipo battery Specification:



Product Name	CTLP602060-700
Battery Type	Lithium polymer battery
PCM	Available
Accembly Composed Type	1S1p/ 1 cell
Nominal Capacity	700 mAh	@0.2C discharge
Nominal Voltage	3.7 V
Charge Voltage	4.2±0.12 V
Cut-off Voltage	3.0 V
Standard charge Current	140mA	@0.2C charge
Max. charge current	700 mA	@1C charge
Standard Discharge Current	140 mA	@0.2C discharge
Max. Discharge Current	700 mA	@1C discharge
Resistance
Cycle Life:	Over 500 times
Weight (Approx.)	15 g
Dimensions(T.W.L.)	6.0*20*60 (mm)
Charge Temperature	0 ~ 45℃
Discharge Temperature	-20 ~ 60℃
Storage Temperature	-10~40℃	Less than one month
	0~30℃	More than one month
Protection Function(PCM)	Over charge, Over discharge, Over load, Short Circuit
Warranty	12 Months



1.MOQ

(1) Battery sample orders for testing are welcome.

(2) MOQ is lower, please feel free contact our staff if you need.

(3) It is our honor to provide service for you, no matter how many you order.

2. OEM & ODM

OEM and ODM orders are welcome, just send us your design and we can make

your ideas into reality.

3. Quality

(1)100% tested in production. Test one by one before shipping. All the products will go through 4 checks.

(2) Mass production will only start after we get your confirmation of samples.

4. Manufacture

(1) We have our own factory.

(2) Provide you “customized products” along with the best price.
