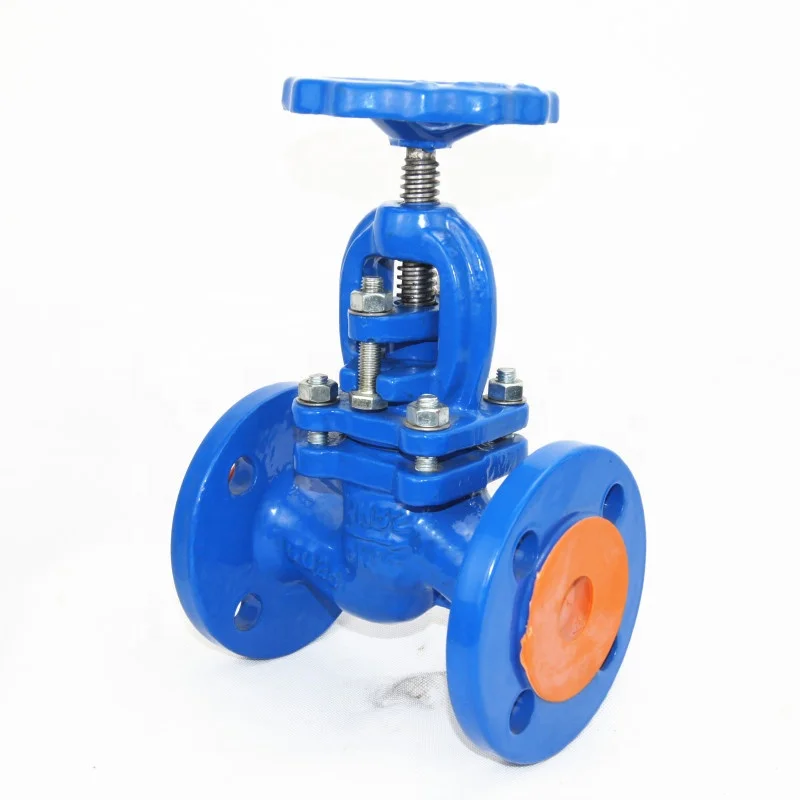

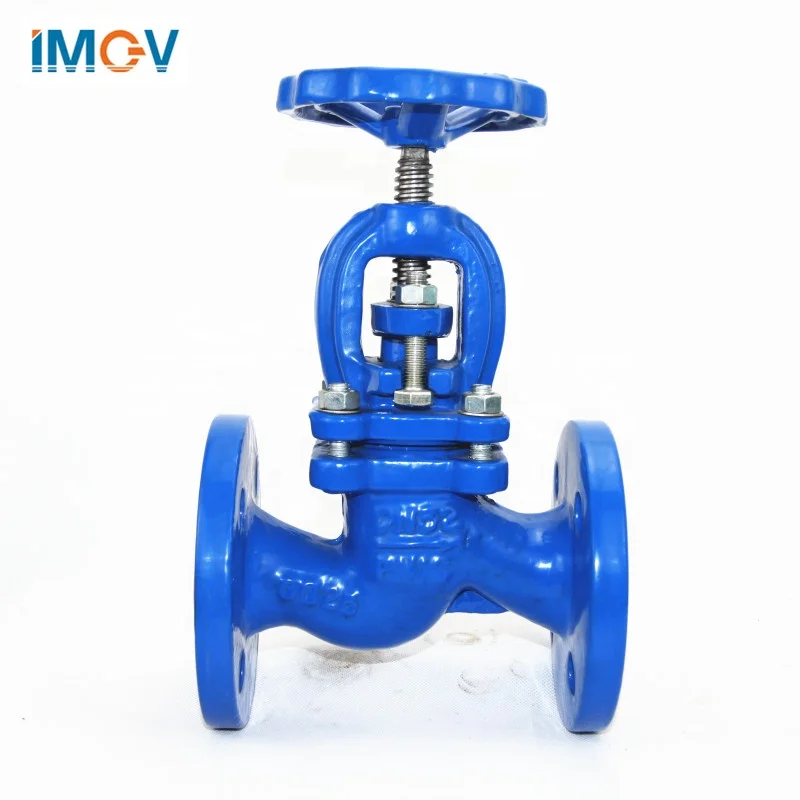

ANSI 16.10 Cast Iron/Ductile Iron Flange Type Globe Valve
- Category: >>>
- Supplier: Tianjin Union Valve Co. Ltd.
Share on (60815471370):
Product Overview
Description
ANSI 16.10 Cast Iron/Ductile Iron Flange Type Globe Valve
Product Description
ANSI 16.10 Cast Iron/Ductile Iron Flange Type Globe Valve
Size DN50—DN600
Nominal Pressure PN10/PN16
Working Temperature -10°C~120°C
Suitable Medium Chemicals,air,water,steam,oil, acids,salts,etc
Performance:
Nominal pressue (MPa) | 1.0 | 1.6 | |
Nominal diameter(mm) | 50-600 | 50-600 | |
Test pressure | Shell | 1.5 | 2.4 |
(MPa) | Seal | 1.1 | 1.76 |
Applicable temperature | 150 | ||
Applicable medium | Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids, | ||
Operating mode | manual, worm gear, pneumatic, electric, etc. | ||
Standard:
Design & Manufacture | Flange Connection | Face to Face Dimension | Test & Inspection |
MSS SP-70 | ANSI B16.10 (125LB) | ANSI B16.10 (125LB) |
Material List:
| No. | Part Name | Material |
| 1 | Body | Cast Iron / Ductile Iron |
| 2 | Body seat ring | Cast Bronze |
| 3 | Reaction Member | Brass |
| 4 | Disc | Cast Bronze |
| 5 | Gasket | Brass |
| 6 | Swivel Nut | Cast Brass |
| 7 | Bolt | Steel |
| 8 | Body Gasket | Graphite |
| 9 | Bonnet | Cast Iron |
| 10 | Packing | Graphite |
| 11 | Packing Gland | Cast Brass |
| 12 | Gland Follower | Ductile iron |
| 13 | Gland Follower Bolts | Steel |
| 14 | Gland Follower Nuts | Steel |
| 15 | Stem | Brass |
| 16 | Yoke Busing | Cast Bronze |
| 17 | Screw | Steel |
| 18 | Handwheel | Cast iron |
| 19 | Identification | steel |
| 20 | Handwheel nut | Ductile iron |
production process
Packaging & Shipping
Company Information
IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.
We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!
chat now
FAQ
1. Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory ,and not trading company.We have 30 years of valve manufacturing experience
2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery/agaist the B/L copy. We'll show you the photos of the products and packages before you pay the balance.
3. Q: What's your product range?
A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint We can build the molds and fixtures.
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,generally 20-35 days.
5. Q: What certificates will you provide ?
A: We can provide CE/ ISO / WRAS
6. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service
7. Payment
T/T, L/C, OA, D/P, D/A
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea
9. Do you provide free sample?
Free sample is ok for us.
10.How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
