Портативная дизельная электрическая мини-Бетономешалка по цене

Портативная дизельная электрическая мини-Бетономешалка по цене

Category: Concrete Mixers >>>
Supplier: Nanjing,Roadsky,Traffic,Facility,Co.,Ltd.

Price:500,00 $

Price in USD:Details

Quantity:

Product Overview

Description

Concrete Mixer

Product Description

1. Description:

Concrete Mixer is twin shaft compulsory concrete mixer, which can mix harsh , plasticit, liquidity, light aggregate concrete and various mortar.Drum sets with wear resistant cast liner and mixing blade, which is durable and easy to replace.
This series concrete mixer is designed reasonable, compact structure, easy to operate and work stably, and it also has many advantages such as good mixing quality, high productivity, low energy consumption, low noise, with long life wearing parts.

Product Details

2.1 RM Series

Model	RM-120	RM-200	RM-350
Drum Capacity	120L	200L	350L
Motor Power	2.5KW	2.5KW	2.8KW
N.W/G.W (KG)	46-51	62-65	90-95
Stir Quantity (KG)	40	110	300
Thickness (MM)	2	2	2.5
Width (MM)	610	700	790
Distance to ground (MM)	480	530	520
Cartons Size (MM)	730580400	790750490	940780820
Motor Speed (RPM)	1380-1400

2.2 RMS Series

Model	RMS-350	RMS-400
Drum Capacity	350L	400L
Discharge Capacity	280L	320L
Productivity (M3/H)	4-5	5-6
Roller Speed (RPM)	25-30
Thickness (MM)	3
Mixing Drum Size (MM)	800x900	850x900
Power Option	Air-cooled Diesel Engine 178FS(6HP) Air-cooled Diesel Engine186FS(10HP) Water-cooled Diesel EngineR175(6HP) Water- cooled Diesel EngineR180(8HP) Honda Gasoline EngineGX270(9HP) Electric Motor 3KW
Total Weight (KG)	280
Overall Size (L x W x H)	1960x1100x1700MM		2100x1200x1800MM

2.3 RMAF Series

Model	RMAF-500
Drum Capacity	500L
Mixing Capacity	400L
Productivity (M3/H)	8-10
Roller Speed (RPM)	22
Motor Power	186FSE (10 HP)
Motor Engine	Air-cooled Diesel Engine
Drum Thickness	2.75-3.75mm
Hopper Tipping	Hydraulic
Transmission Way	Chain
Type of The Tires	4*(5.00-15)
Overall Dimension (L x W x H)	210013002100mm
Weight (KG)	1100

2.4 RMWF Series

Model	RMWF-510
Drum Capacity	510L
Mixing Capacity	350L
Productivity (M3/H)	20
Roller Speed (RPM)	30
Motor Power	ZS1100(16HP)
Motor Engine	Water-cooled Diesel Engine
Drum Thickness	2.75-3.75mm
Hopper Tipping	By Wire Rope
Transmission Way	Chain
Type of The Tires	205/75/R14
Overall Dimension (L x W x H)	230013502750 mm
Weight (KG)	1500

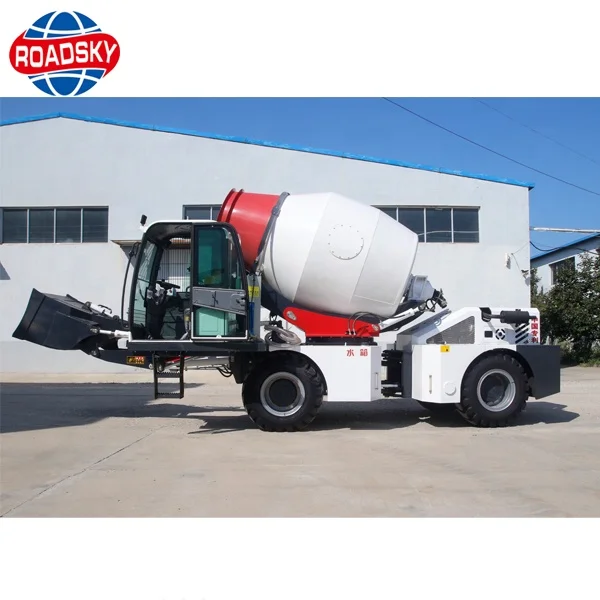

2.5 ICMT Series

Model	ICMT 3.0R	ICMT 3.5R	ICMT 4.0R
Engine Type	Diesel Engine
Alternator	28V--1500Wa (53.5A)
Battery	2×12V--100AH (453A)		2×12V--100AH (454A)
Steering	2 steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels	Articulated Steering by two cylinders move alternately. Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed"
4x4 Four-wheel Drive	hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Drum Volume	5050L	5550L	6100L
Roller Speed(RPM)	16		15
Maximum Flow Rate	63 L/min		56L/min
Maximum Pressure	35MPa
Loader Capacity	550L		800L
Fuel Tank	200L		135L
Hydraulic System Capacity	200L		240L
Engine Oil	16L
Operating Weight	7500kg	7800kg	8800kg
Max Gross Weight	14700kg	16200kg	18400kg
Load-carrying Capacity	7500kg	8400kg	9600kg
