Firewall MINI ITX/NANO ITX 4 ethernet ports motherboard

Model NO.

ZA-1800N4

Size

170mm x 170mm

CPU

Support Intel J1800 2.41 GHz/Dual Core

Memory

1 DDR3 Slot ,800/1066MHz, Support 2GB,Up to 8GB

Graphics

VGA ,Intel HD Graphics,

Chipset

J1800

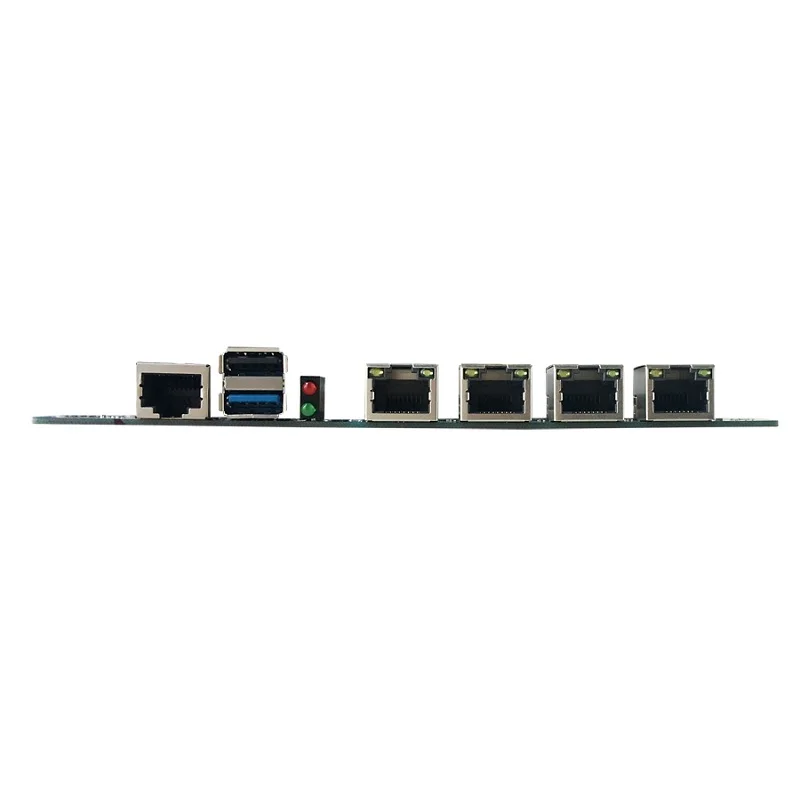

Rear I/O

1* DC Input (12V)

1* VGA

1* USB2.0,1*USB3.0

1* RJ45 COM

4* LAN

Internal I/O

1* CPUFAN And SYSFAN

1* SATA

1* COM

1* 4 PIN Power Input

Expansion Slot

1* DDR3

1* SATA

1* MSATA

LAN

4* LAN Intel WG82583, 10/100/1000M Ethernet

BIOS

AMIBIOS,64M bit Flash Memory

H/W Monitoring

Temperature Management ,Voltage Management ,System Power Management

Operating System

Windows7, Windows 8, Linux

Temp.

-10° C ~ 55° C

Humidity

0% ~ 95% (Relative Humidity,No Condensation)
