Sinocastel LT 164L1 Контейнер GPS трекер с датчик температуры и влажности

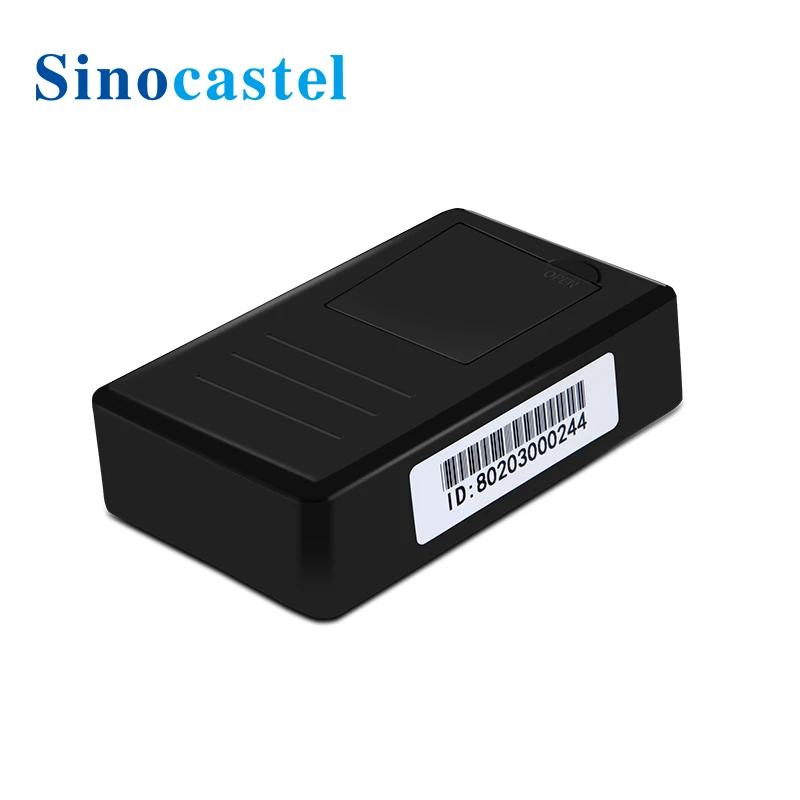

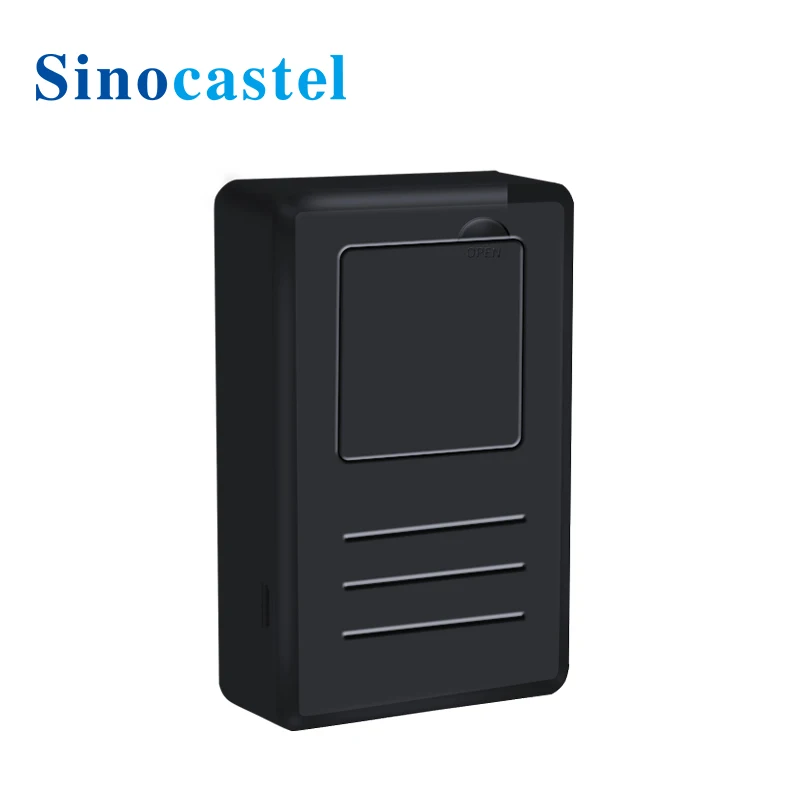

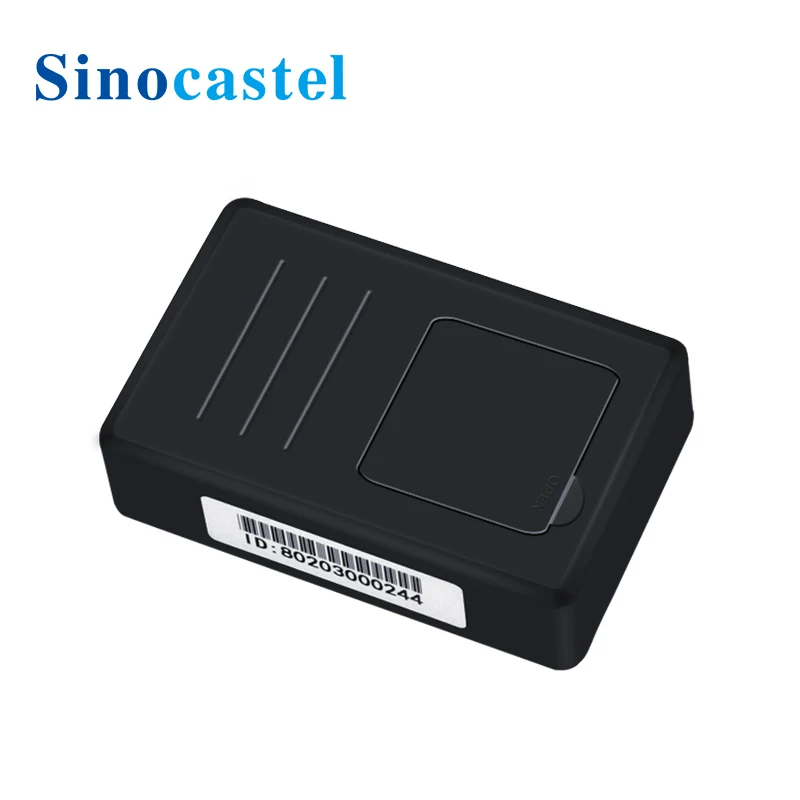

LT-164 is a rechargeable GPS tracking terminal.The product does not need external connection, can be installed on the moving object, the appearance is small.Built-in super lithium battery, charging a sustainable work for 50 hours.Save electricity mode, standby work 800 hours.Supports GPS, AGPS and base station positioning.

Features

Compact size without external wires, free installation.

Built-in rechargeable Li-battery with large capacity.

Long stand-by, for more than 800 hours in the power saving state.

Ultra low power consumption, standby current less than 6mA.

• One-to-one service with efficient;


• OEM&ODM:All customized products can produce;


• Protection of your design and all your private informations;


• We could supply unique items;


• Quality stability, can to provide certification of products( such as CE, FCC, ISO9001:2000);


• Convenient payment methods: Paypal, bank-in, T/T and Western Union;


• Speedy shipment: We could arrange the shipment within 5business days.

About Hardware:

1.What is OBD & OBDII?

OBD and OBDII refer to On-board diagnostics and its upgrade version.

It is a vehicle's self-diagnostic and reporting capability,which gives the vehicle owner or repair technician access to the status of various vehicle sub-systems, including a standardized series of DTCs (Diagnostics Trouble Codes) for remedy purpose.

One popular implementation of OBD is to use the standardized digital communications port (OBD port, which is usually set near the driver seat), to access extra real-time data of vehicles, such as mileage, engine data, fuel consumption etc.

2.What is the "OBD GPS tracker"?

This is an innovative product integrating three parts into one mini size device, including GPS tracker, OBD device and 2G/3G/4G communication terminal.

The device can be plug-and-play installed into most vehicles, and be powered through OBD port easily.

Benefits:

In contrast to other costly and complicated way -- breaking the wire of vehicle (which may lead to invalid of vehicle's warranty) ,

OBD GPS tracker can provide vehicle's positioning function, together with vehicle status monitoring remotely through Telematics service platform.

OBD GPS tracker is widely used in below scenarios: fleet management, vehicular monitoring by government, UBI (Usage Behavior Insurance) and other telematics services, etc.

3.What is the different OF IDD-213GD, IDD-213W, IDD-213LA,IDD-213LE and IDD-213LC?

1)OBD GPS tracker for 2G only : 213GD, for global GSM band

2)OBD GPS tracker for 2G&3G: 213W, for global GSM&WCDMA band:GSM/GPRS 850/900/1800/1900MHz,UMTS/HSPA 800/850/900/1900/2100MHz
3)OBD GPS tracker for 2G&3G&4G:

213LA for North and South America,
213LE for Europe, South East Country like Malaysia, Singapore, Thailand.
213LC for China and other most Asia countries.

Note:

The frequency supports are

1)213LA: LTE FDD:B2/B4/B12;WCDMA:B2/B4/B5
2)213LE:LTE FDD:B1/B3/B5/B7/B8/B20;LTE TDD:B38/B40/B41;WCDMA:B1/B5/B8;GSM:B3/B8
3)213LC:
LTE FDD:B1/B3/B5/B8;LTE TDD:B38/B39/B40/B41;WCDMA:B1/B8;TD-SCDMA:B34/B39;CDMA:BC0;GSM:900/1800MHz;

4. Do your OBD Device tracker support SIM card or not?

Yes, all of Sinocastel OBD GPS tracker serial products support SIM card (Micro size)

5.How to activate and use the device?

1) Receive the device;

2) Connect it to computer use USB cable that supports data transmission;

3) Download PCTOOL and driver (software) from website (//www.sinocastel.com/resources/support/), and install the driver according to product type.
4)Set APN and configuration data.The defaulted working mode is passenger.If you need to install the device to commercial vehicle,please change the working mode to heavy duty;

5) Remove the device from computer;

6) Plug it into the OBD port of vehicle and start the engine immediately;

7) The device starts to work immediately, and transmit selected data to the Telematics Service Platform (TSP), assuming the interoperation has been passed already.

Note:Sinocastel also provides a test account of demo system for our customer to test the device. It will be provided upon sample device is delivery.

 About Our Platform/System:

Q1: What type of platform is Lite Guardian? How is it different from other platforms?

 A: Lite Guardian is an IoT platform based on family members. Which adopts a distributed architecture.

     The data on the platform is encrypted to store and transmit.

Q2: How does Lite Guardian charge?

 A: Each device only charges 3 US dollars platform service fee per year.

Q3: How to ensure the data security of Lite Guardian?

 A:The server is in Germany, The data on the platform is encrypted by MD5/AES , and backups and remote disaster recovery are performed regularly to ensure data security.

Q4: Can we print our own logo on the APP?

 A: Yes ,We can print partners` logo in APP.

     eg:(Partners` logo & Powered by Lite Guardian) or (Lite Guardian logo & Powered by Partners)

Q5:Can the platform add products from third-party?

A:Yes,We can help integrate the protocol to add third-party products.

Q6:What benefits can we bring to our business by working with your Lite Guardian platform?

A: 1 0 Invest on R&D;

     2 Strong technical team to provide service support. Partners are responsible for local market operations, we are responsible for providing the entire technical support services.
