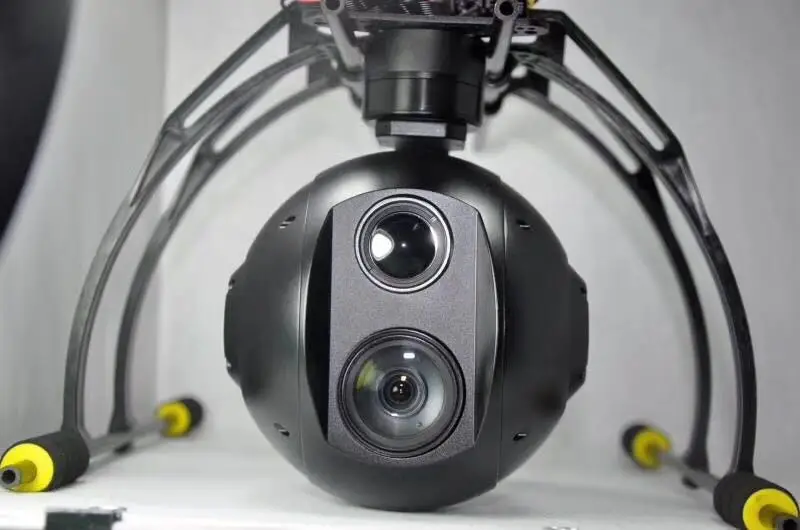

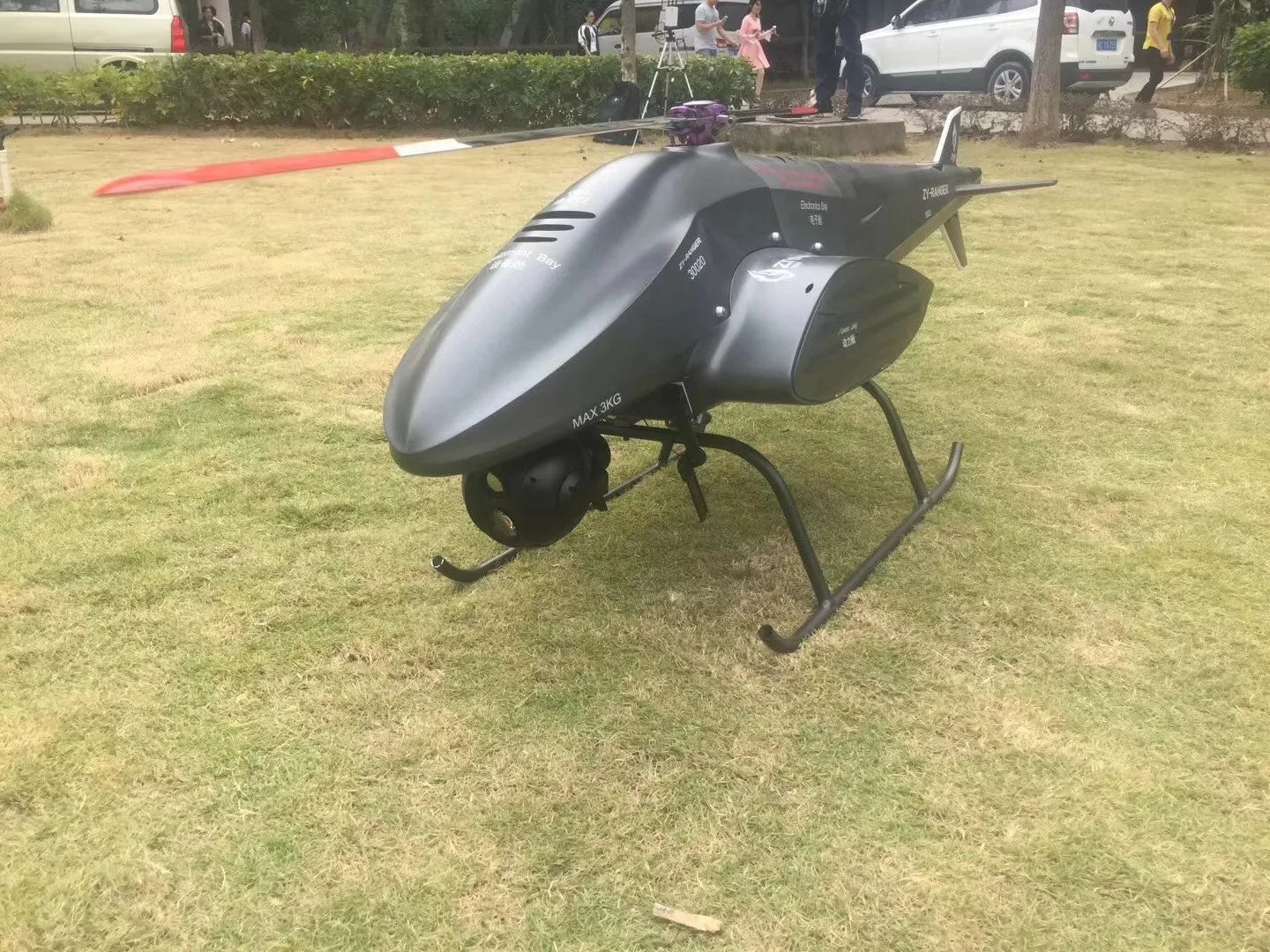

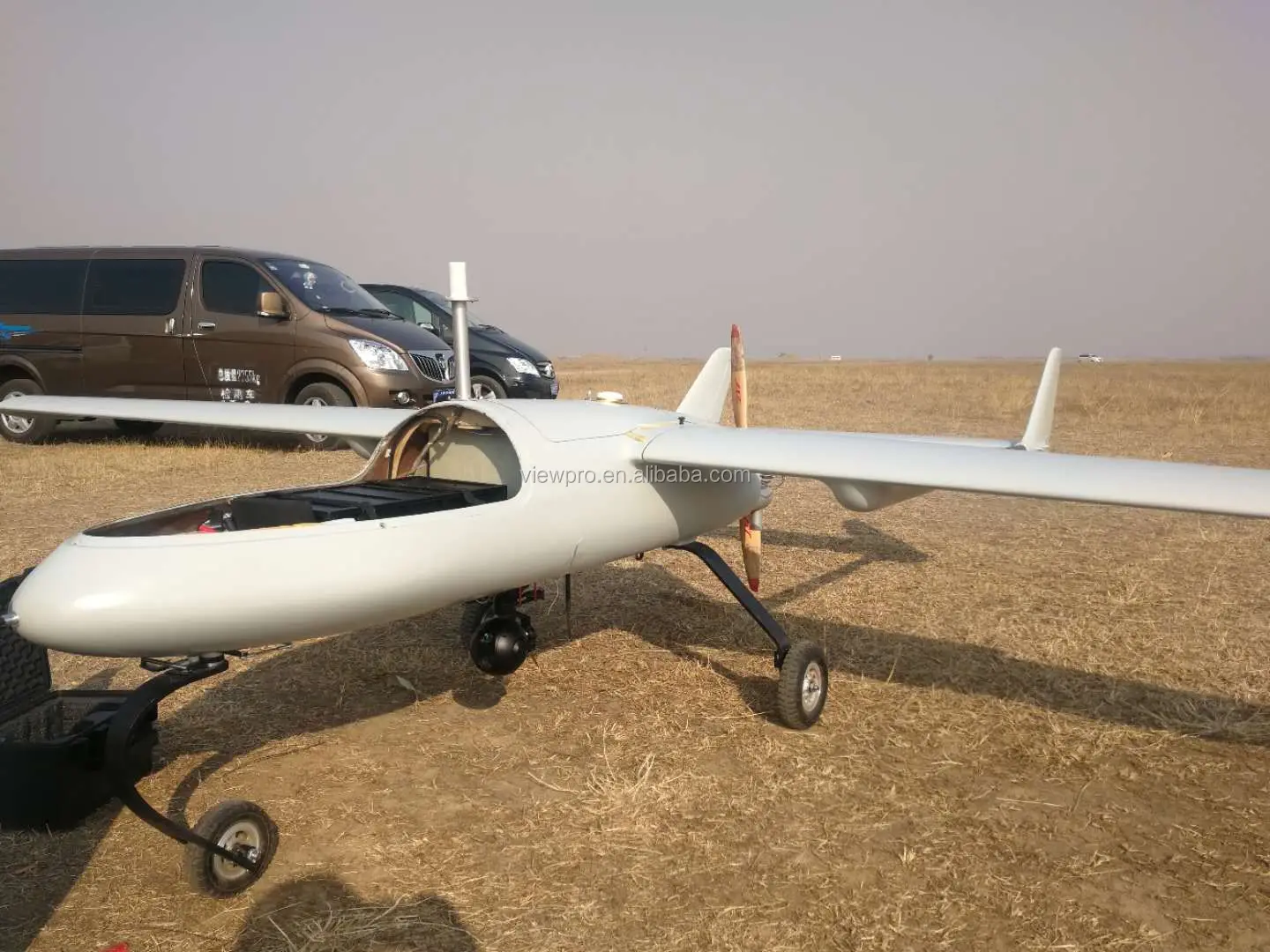

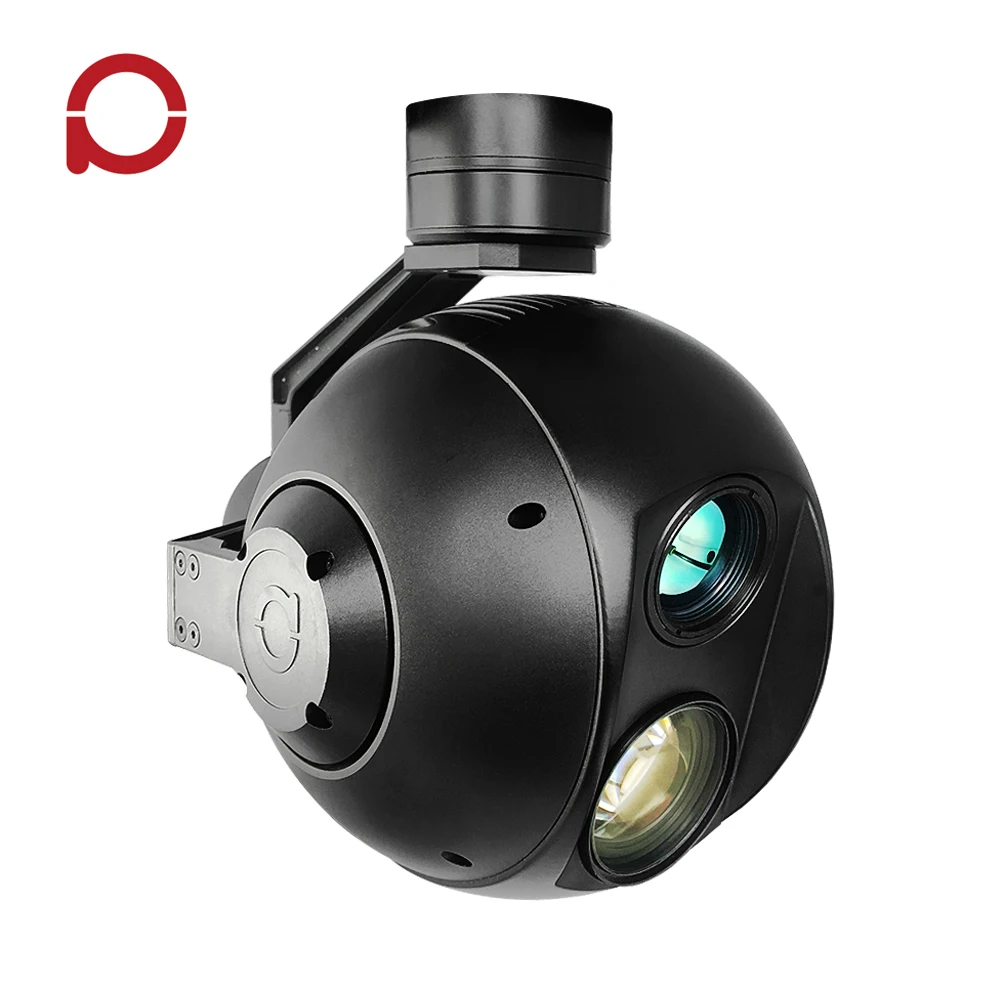

Features high stability, small size, light weight and low power consumption suitable forfor UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. Can be applied in various fields like military reconnaissance, public security surveillance, traffic monitoring, fire fighting, power towers and pipelines inspection, wildlife spotting, disaster management and rescue etc.
Gimbal spec
Pitch
±90°
Roll/Tilt
±85°
Yaw/Pan
±170°
Vibration angle
Picth/Roll: ±0.01°, Yaw:±0.01°
Camera spec
Imager Sensor
SONY 1/2.8-type Exmor R CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.13MP
Lens optical zoom
30x, F=4.3~129mm
Min object distance
10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle
63.7°(wide end) ~ 2.3°(tele end)
Shutter speed
1/1s to 1/10,000s, 22 steps
Defog
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<15ms
SNR
4
Object size range
16*16 pixel ~ 160*160 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
Thermal imager spec
Lens size
25mm
Working mode
Uncooled long wave (8μm~14μm) thermal imager
Detector pixel
640*480
Pixel size
17μm
Color palette
Black, white, pseudo color
Digital zoom
2x, 4x
Thermometry type
Temperature bar (psudo color display) max temp, min temp, FOV center temp
