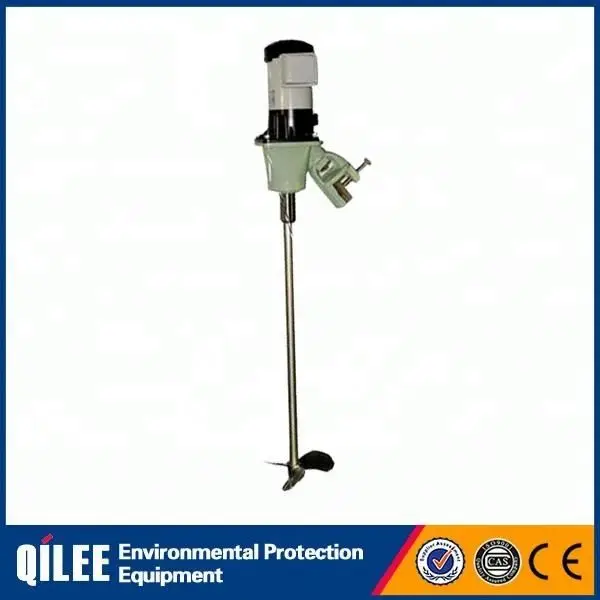

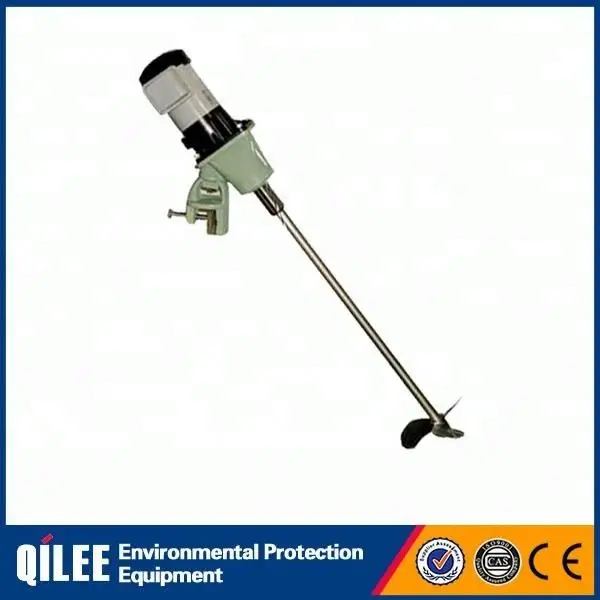

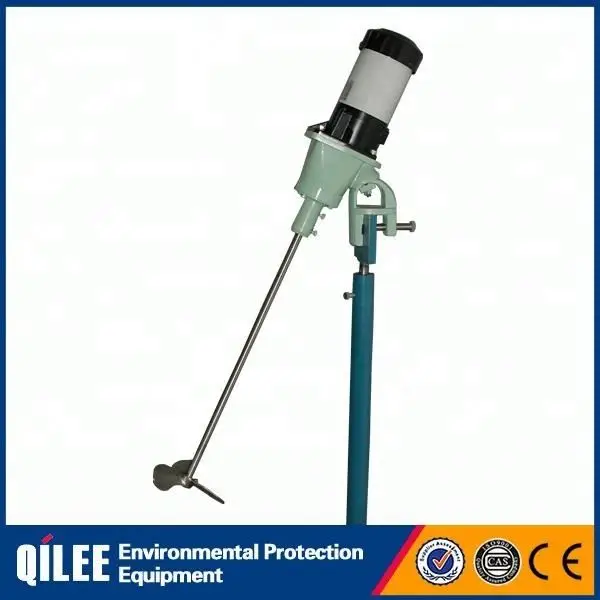

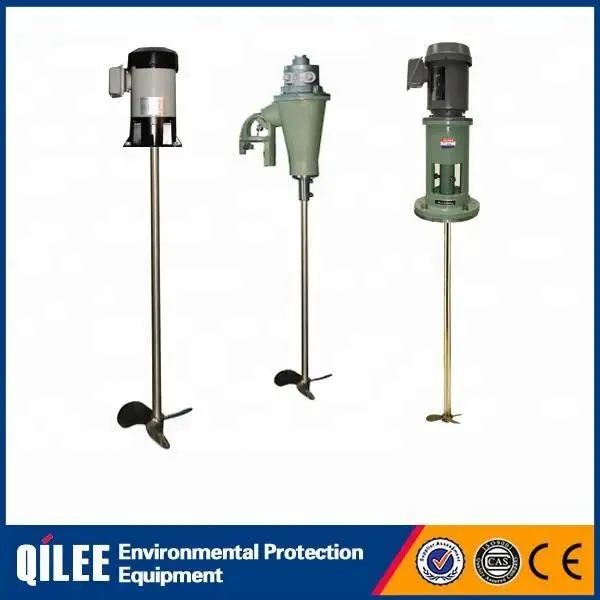

industrial liquid agitator mixer
Product Description
Agitator mixer Features:
•Suitable for medium-low speed agitation Cycloid geared speed reduction motor, output powder is 0.1KW~1.5KW
•Great range of reduction ratio for viscosity liquid
•The most popular and effective mini-agitator
Technical data & External dimensions of agitator mixer:
MODEL | Powder | Length of Shaft | Axial Diameter | Diameter of Blade | Rarefied Liquid | Medium Viscosity |
QL1001 | 0.1 | 800 | 19 | 200 | 600 | 200 |
QL1002 | 0.2 | 1000 | 22 | 300 | 1200 | 400 |
QL2001 | 0.4 | 1200 | 22 | 300 | 2500 | 600 |
QL2002 | 0.75 | 1350 | 28 | 350 | 5000 | 1300 |
QL2003 | 1.5 | 1500 | 28 | 400 | 10000 | 3000 |
Click here for more information

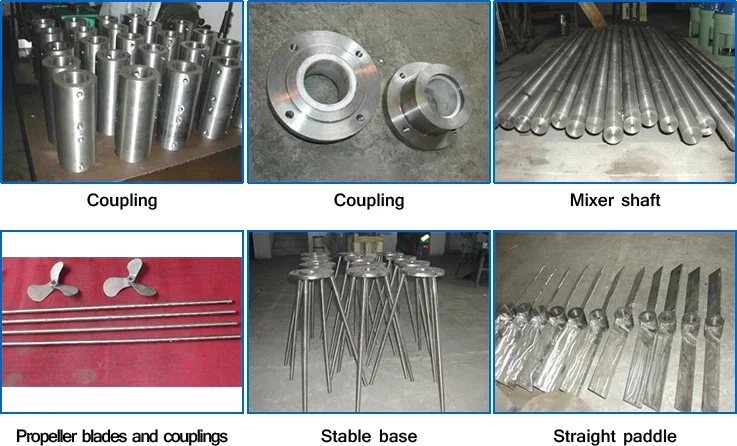

Agitator mixer Accessories:
FAQ
The normal agitator types?
Vertical type, portable type, side entry type.
Could you make pneumatic agitator?
Yes, we could make electric agitator and pneumatic agitator.
What’s the material of agitator?
Our standard material for agitator is SUS304, according to the media and requirements of customer, we would suggest if it needs to be made by SUS316 or needs rubber coating.
What’s the motor of agitator?
We would choose the motor brand according to customer advice, and suggest if it needs ex-proof motor according to media and application site.
How to choose the model?
Advise the mixing media, dimension of tank, type and other special technical data, then we will design and choose the suitable model for you.
