Size:(5 m) inner dimension 2240x2 (W) × 500 (D) x 1400 (H) mm
outer dimension 5000 (W) x 1050 (D) x 2230 (H)
Temperature range: 10 ℃ To MAX 200 ℃
Control accuracy ±0.01 ℃ power AC380V _ 3 50HZ 55KVA
Distribution average ±1.5%
Material :in the middle of the frame of SUS430# stainless steel plate manufacture,
The exterior is made of SS41# steel plate powder baking paint. (customer specifies the color of the outer box), the back plus fuselage weight insulation, high temperature insulation, aluminum silicate cotton insulation.

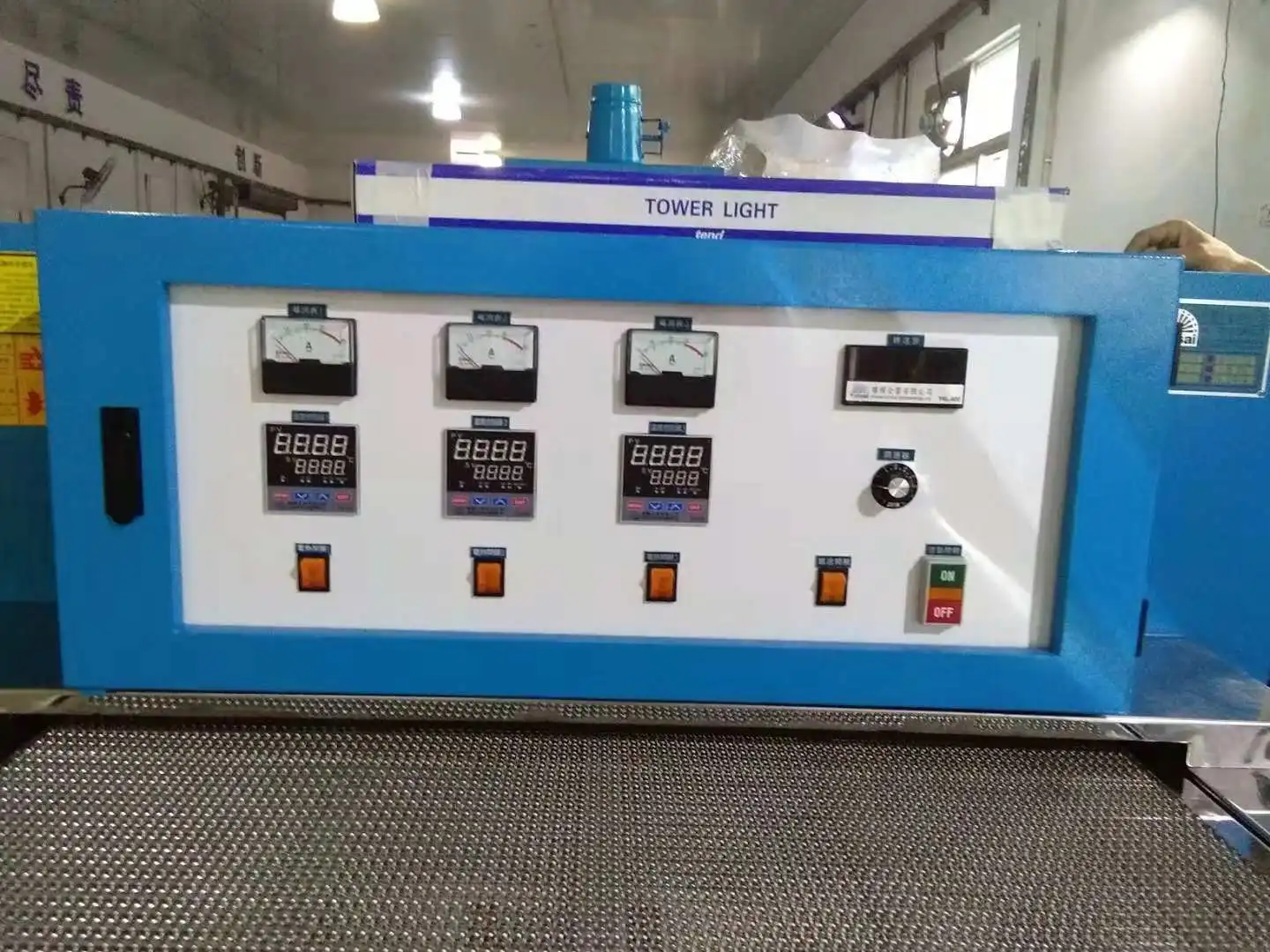

At room temperature of 25 ℃ or so, the control system of oven surface temperature within 50 ℃ (except the peripheral area of entrance and exit / visible window) adopts the daily UMC1100 programmable temperature automatic control module man-machine interface operation setting, digital setting digital display, PID automatic calculus, with SCR action. It can save electricity 30 and 40.
Program section 1000 group 1500 section setting, curve screen display, data storage function, history record function, input break detection, upper and lower limit temperature alarm function, buzzer alarm function, automatic over-temperature protection function, anti-power program recovery function. RS485 communication port can be connected to remote computer, remote operation temperature setting, baking time setting, baking program operation / termination.
It has Ethernet connection function. Fixed value and program operation switching electric heating system special cage type heater, with black heat effect of low watt-number heater, low radiant heat, not easy to oxidize, durable period of 5 ~ 10 years, 4 groups of electric heater. The air supply system is specially designed for Taiwan Datong oven special long shaft motor, with multi wing type wind turbine, double side level air supply circulation ventilation device, air exchange volume is all in and out of the single adjustable air valve, can be directly connected with the exhaust tube.
Door double door type, strong tight type explosion-proof door button, American full-open button, sturdy and durable, the door is fitted with silicone tight break heat seal. The double layer glass window W300*H200mm transmission system is installed on the door. The combination of the city-state deceleration motor and the worm gearing is used to keep the stable power transmission in two groups. The governor regulates the speed, the speed meter LED digital display, the speed range: 0~5000mm/min.
Up and down installation of winding wheel structure 84 groups of diameter 25mm can be wound about 100m, needle wheel center distance 120mm (needle wheel provided by customer), feed and feed mouth installed three groups of winding wheel.
One or two bake zone each installation fault belt detection point three, prevents the material belt to take off the belt function and the alarm stops; walks the belt way to adopt the double row walking belt standard fitting
1. Start switch-1pcs
2. The electrothermal SW-4 is only
3. Switch-1pcs
4. Ammeter-2pcs
5. Power cord 3 Meters -1pcs
6. Reverse phase protector 1 safety device installed with EGO electronic over-temperature protection system, over-temperature shearing electric heating.
Hot sale modles for recommand:
Our Services
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenient
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Our hot sale modles in test machine and the market of our products:
Company Information
About Us
Dongguan city Jinyao precision Equipment co., LTD is one of Enterprise combining develop, produce and sale. Established in 1980, already have 30 years experience to produce: precision Hot-air drying oven; IR/UV deliver drying equipment; environmental test equipment; printing machine; automation industrial equipment etc.
Our company always keep the aims that provide high quality product; quick service attitude and the great design. We keep the company spirit that has advance technology and high quality team. Our product receive a lot of client trust, and stand firmly front of others.
Dong Guan Yutsai Precision Device Enterprise LTD. is registered capital achieve ten million RMB. It has 4800 square meters factory. More than three million RMB fixed assets. Value of output achieve 24million RMB each year.
We has the steady domestic clients such as: Foxconn, HuohYow, Fu Brothrt Industrial Company, HuaXin technology company, PuYao group etc. It's all about more than 500 company include domestic ,foreign and military enterprises. We also has the long-term relationship with Thailand, India and England.
The company toward higher, farther, more perfect operating system. the Taiwan Head Company as the axis, and we make efforts in mainland market development.
Hot air circulation ovenis our Original product, with carefully designed and continuously update,it have reach the international advanced level.
The device is a kind of Oven, and can be installed, divided into CT type (centrifugal fan) CT-C (axial fans) series products, it is the use of steam, electricity and gas as heat source, through the heater heating,a large number of hot air will circulate in the Oven, and then continue to dehumidify from the outlet,increase the heat transfer effect, and keep reducing the moisture. The oven equipped with low noise and high temperature proof axial flow fan and automatic temperaturecontrol system, the circulatory system fully closed, the thermal efficiency of the oven is from the traditional drying room 3 - 7% increase to the current 35 - 40%, the highest thermal efficiency up to 70%.
The device named SAO series is according to the National Pharmaceutical Administration released the industry standard.
Advantage 1.Strong durability: As the haater is sealed in the housing,the contact area with air is small,it is difficult be oxidized. 2.Heated air circulation: Baked good is heated uniformly Accurate and reliable electrical control:reasonable structure,effective working area,full-function,simple operation,easy to maintenance and adjustment,low noise,high reliability,low cost,low energy consumption and high production efficiency.
Application Apply for baking of food and goods with chemical gas ,removal of the substrate,curing of the lnk and drying of film and so on. Widely used in the precision baking,drying,tempering,preheating,stereotypes and processing of electronics,electrical,communications,plating,plactics,metal,chemicals,food,printing,pharmaceutical,PC board,power,dipping,spraying,glass,ceramic and building materials and so on. With the help of our experienced professionals, we offer a comprehensive range of Hot Air Oven that gives accurate control over temperature setting. These are provided with double walled insulation, which keeps the heat in and conserves energy. To assure optimum performance and durability, we manufacture these ovens using superior quality raw material such as sheets and structural steel, blowers and motors, burners, insulation , heat exchanger and Control systems. Victech manufactures the following type of ovens Dry Off Ovens for moisture removal after Pretreatment or any wet process Industrial Drying Oven for any drying application Batch / Conveyorised Ovens for paint or powder curing Hot Air Generators - Electrical / Oil /Gas Heat Exchangers
