Customizable energy saving and environment friendly popsicle machine
- Category: >>>
- Supplier: Nanjing Shanlin Cold Food Machinery Co. Ltd.
Share on (60815654324):
Product Overview
Description

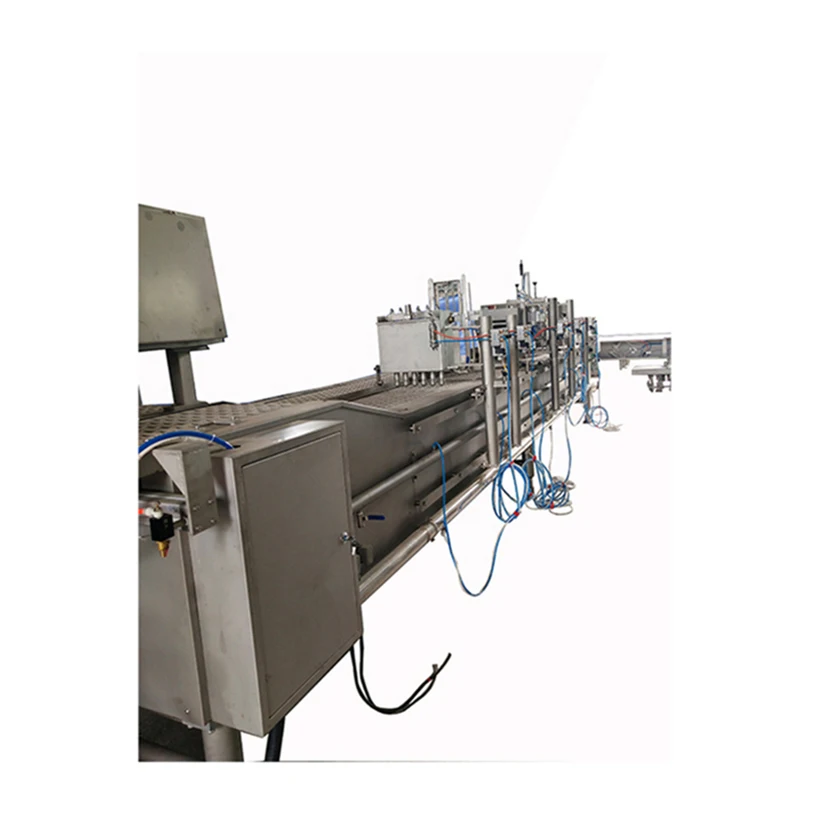

Customizable energy-saving and environment-friendly popsicle machine
SPECIFICATION
NO | Name | Unit | 3 rows | |
1 | the max output | P/H | 3000 | |
2 | mold | a.Number of mold per row |
| 3 |
b.the number of total mold (the body of machine is 7.5m) | Pcs | 236 | ||
c.The max size of the outer wall of the mold (upper) | mm | 55×30×160 | ||
3 | Electrical | a.the phase number of power | Phase | 3 |
b.supply voltage | v | 380 | ||
c. the frequency of power | Hz | 50 | ||
d.the motor power of Hot water pump | kw | 1 | ||
e.Frequency conversion motor power of the chocolate coating | kw | 0.37 | ||
f.the motor power of the Vacuum pump | kw | 2.2 | ||
g.Total power of main engine (except for brine circulating pump) | kw | 4 | ||
4 | Compressed air | a.pressure | Mpa | 0.6 |
b.Dosage (free air) | m³/min | 1 | ||
5 | Calcium chloride | a. consistence | Baume Degrees | 32 |
b. flow | m³/h | 80 | ||
c. Temperature | ℃ | <-25 | ||
d.PH value of brine | PH | 8-9 | ||
6 | Need to be equipped with cold(working condition :±35℃) | HP | 40 | |
7 | the specifications of stick | mm | 2×10×93~140 | |
8 | the size of the appearance | a.fuselage (7.5m) | M(L*W*H) | 7.4×0.9×1.3 |
b.manipulator | M(L*W*H) | 2.7×0.4×0.5 | ||
c. the whole machine (the fuselage is 7.4m) | M(L*W*H) | 9.1×1.1×2.1 | ||
9 | weight | a.net weight | t | 2.5 |
b.gross weight | t | 2.5 | ||
c.working weight | t | 3.5 | ||
PRODUCT DISPLAY
RELATED PRODUCTS
COMPANY PROFILE
Nanjing shanlin cold food machinery co .,ltd is located in nanjing national high technology development zone. adjacent to the nanjing yangtze river bridge and the second Bridge, between 104 national highway side. With its excellent geography position, it enjoys a very convenient transportation.
The company more than 20 years are engaged in the ice cream cold food equipment development. Its engaged in manufacturing a series of ice-cream machines,hardware and software facilities. Has the technical force, the software and hardware facility is abundantly complete.
Through the strengthened enterprise internal management, Through the strengthened enterprise internal management, by the management mechanism, participates in the market competition positively nimbly, for many years the unswerving implementation “take the letter as a book, take as said honestly, by superior win” operational policy. Our nation’s joining into the WTO enables ShanLin Machinery to meet new vital force and challenge.devoted to the most advanced research on the whole set of ice-cream cold drink equipment and quick-frozen food equipment. Makes the unremitting efforts for the ice cream happy enterprise, develops the market, the establishment brand, associate with more national or foreign enterprises and friends, to create a new century cooperatively.
The company has been working on ice cream equipment for many years. At present, many products have national patents.
ShanLin machinery welcome new and old friends at home and abroad visit the the guidance of the company.
The company more than 20 years are engaged in the ice cream cold food equipment development. Its engaged in manufacturing a series of ice-cream machines,hardware and software facilities. Has the technical force, the software and hardware facility is abundantly complete.
Through the strengthened enterprise internal management, Through the strengthened enterprise internal management, by the management mechanism, participates in the market competition positively nimbly, for many years the unswerving implementation “take the letter as a book, take as said honestly, by superior win” operational policy. Our nation’s joining into the WTO enables ShanLin Machinery to meet new vital force and challenge.devoted to the most advanced research on the whole set of ice-cream cold drink equipment and quick-frozen food equipment. Makes the unremitting efforts for the ice cream happy enterprise, develops the market, the establishment brand, associate with more national or foreign enterprises and friends, to create a new century cooperatively.
The company has been working on ice cream equipment for many years. At present, many products have national patents.
ShanLin machinery welcome new and old friends at home and abroad visit the the guidance of the company.
CUSTOMER PHOTOS
PACKGING
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A:Sample is 3-5 working days, bulk production time is 18-25 working days for order less than 2000pcs. The specific delivery time depends on the items and the quantity of your order.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. And sea shipping also optional.
Q5. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly
based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
