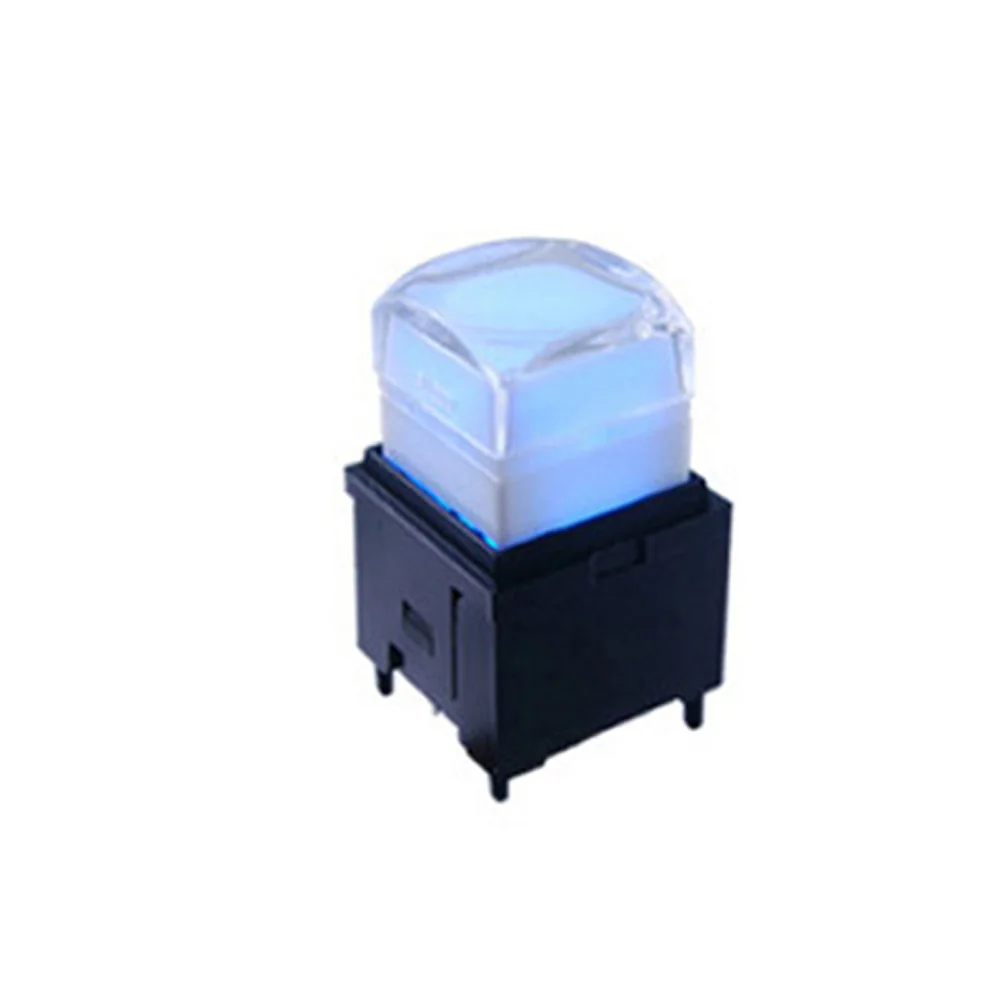

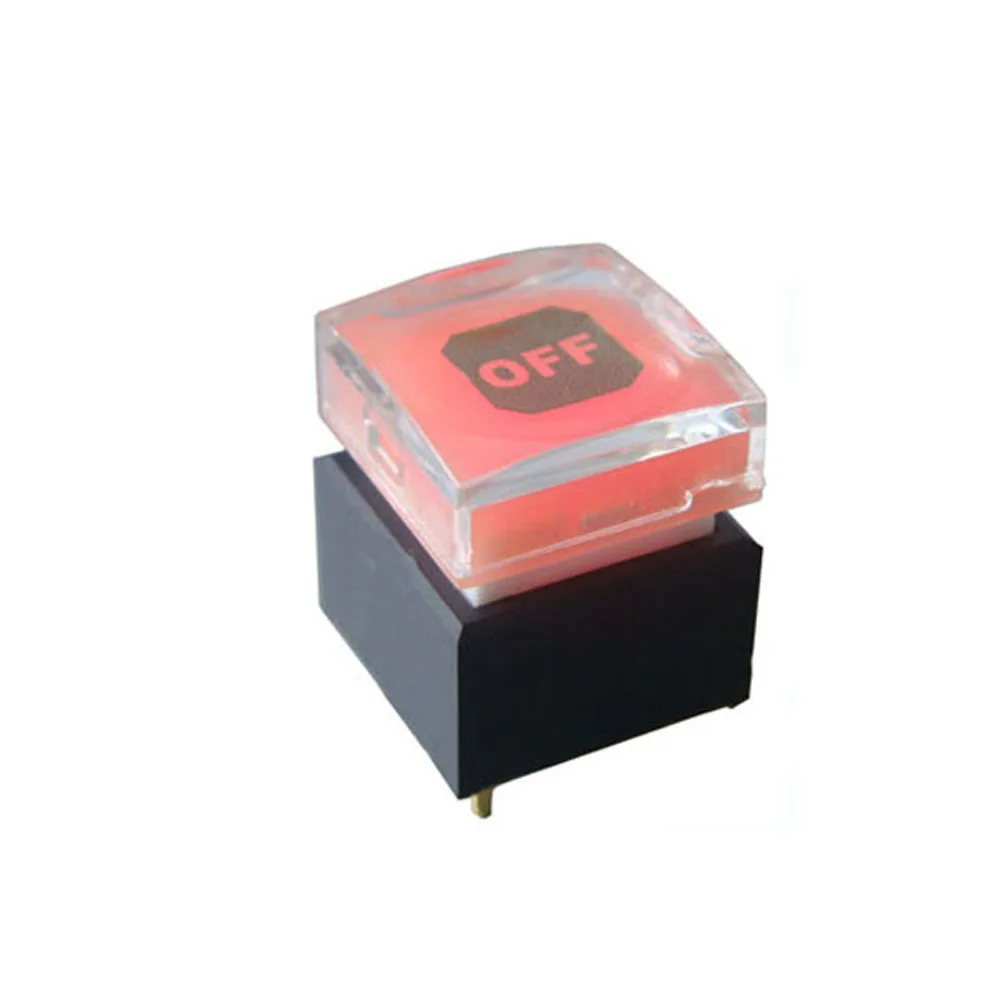

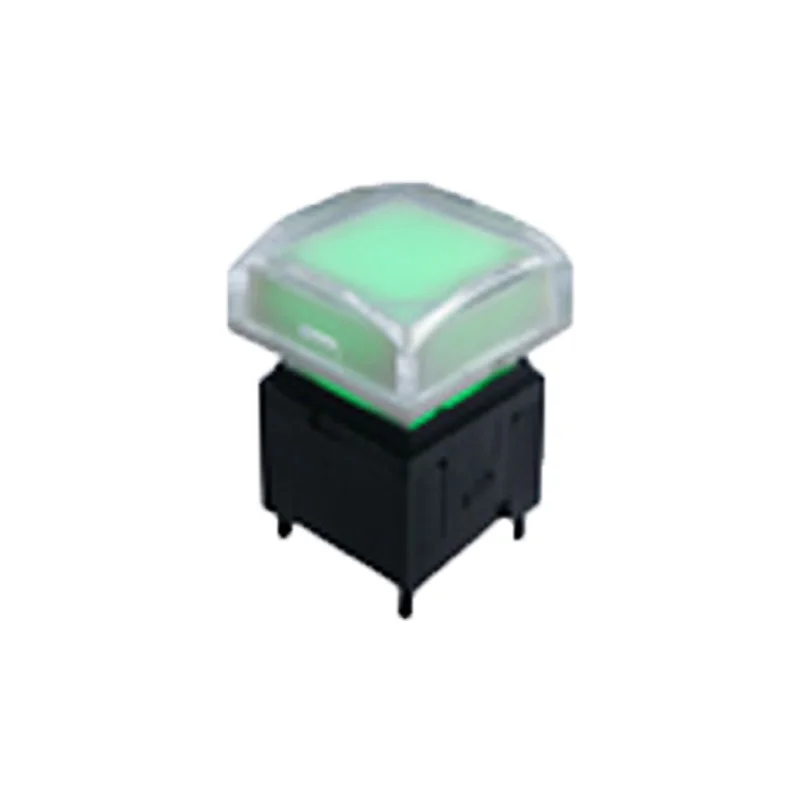

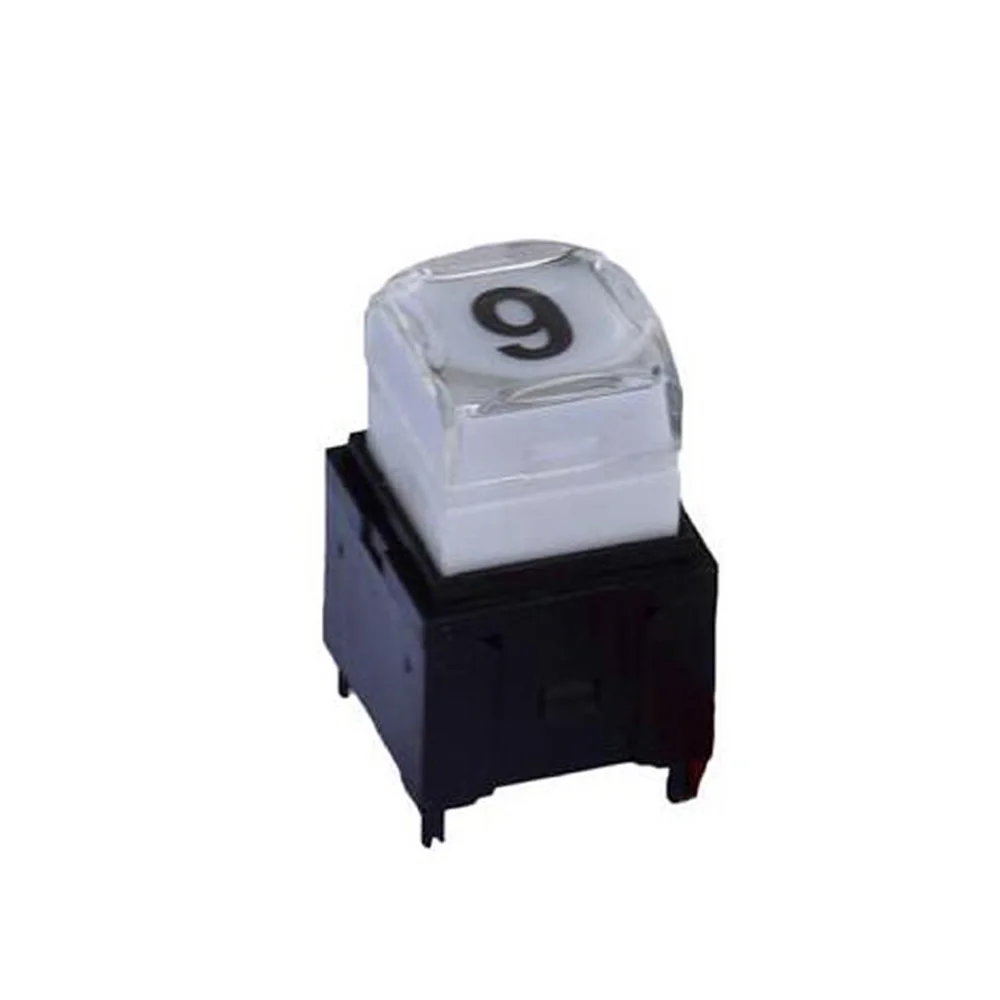

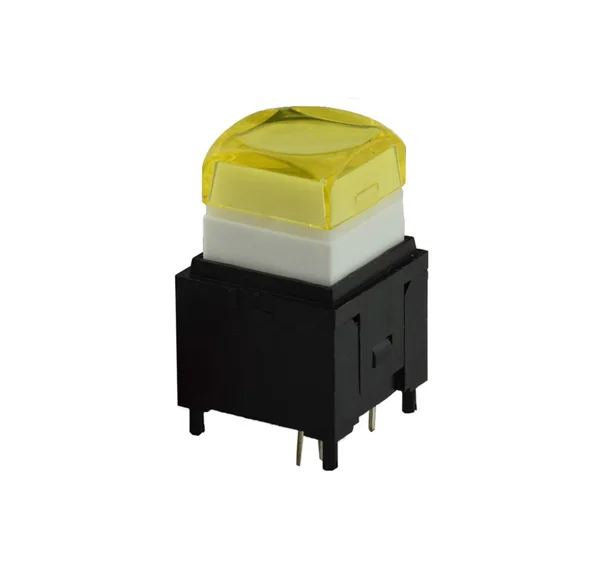

15mm Cap RGB LED light switch momentary push button
- Category: >>>
- Supplier: Shenzhen Eker Electronic Co. Ltd.
Share on (60815697152):
Product Overview
Description
15mm Cap RGB LED light switch momentary push button
Feature Application
♦ Noiseless ♦ Audio/Video Products
♦ Full Color LED Illuminated Available ♦ Instrumentation
♦ Long Electrical Life Cycles ♦ Communication Equipments
♦ SPST, OFF-(ON)Momentary Function
Product Description
15mm Cap RGB LED light switch momentary push button
Specification
| Circuit | SPST |
| Function | OFF-(ON)Momentary |
| Current Rating | 100mA |
| Voltage Rating | 12VDC |
| Contact Resistance | 200mΩ Max Intial |
| Insulation Resistance | 100mΩ Min |
| Total Travel | 4.5±0.2mm |
| Operation Temp | -20℃ ~ +70℃ |
| Operation Force | 250±100gf, 1,000,000 Cycles Min |
| Soldering Specifications | 260℃ for 5 Seconds |
