Factory direct 4.8mm 187 spring terminal brass terminal piercing terminal
Factory direct 4.8mm 187 spring terminal brass terminal piercing terminal

Factory direct 4.8mm 187 spring terminal brass terminal piercing terminal

Share on (60815731114):


Price:$0.05

Quantity:


Product Overview

Description



Product Description

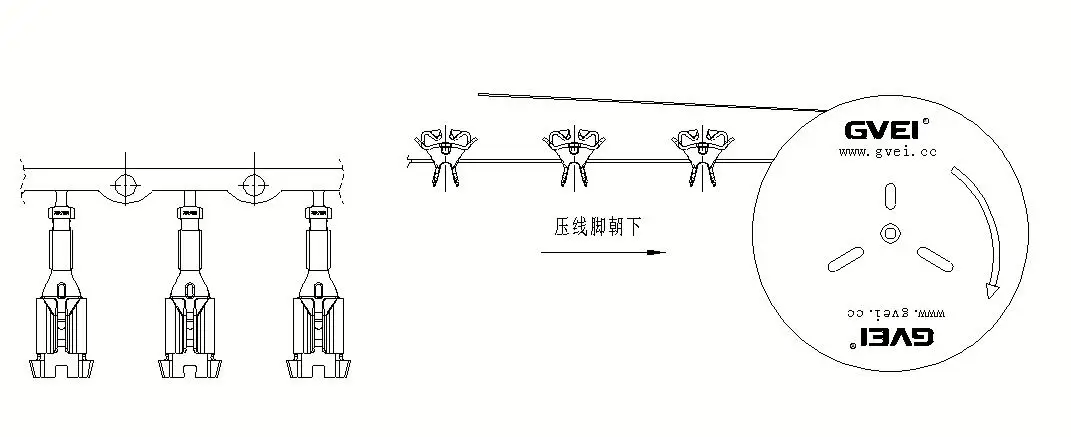

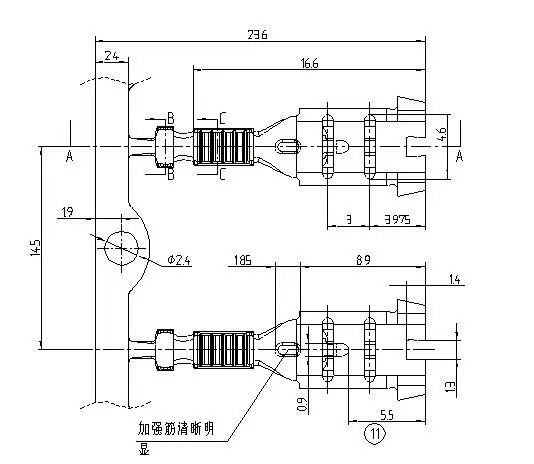

 N811940 4.8-2.jpgN811940 4.8.jpg
































MaterialPhosphor Bronze T=0.35mm
Wire rangeStrip wire diameter 0.45-1.32
Blade requirement4.8*0.5 Brass no plated
Force requirementInsert force less than 45N
 Pull out force first force larger than 25N,after 6th time larger than 10N
Plating requirementNo plated




Tooling







Production







Certifications


CERTIFICATES





Inspection equipment









Exhibition







Air shipment


.png
