RFTYT TG6466E 0.95 2.0 GHz UHF SMA N TAB Connector RF Coaxial Isolator
- Category: >>>
- Supplier: Sichuan Rftyt Technology Co. Ltd.
Share on (60815786808):
Product Overview
Description

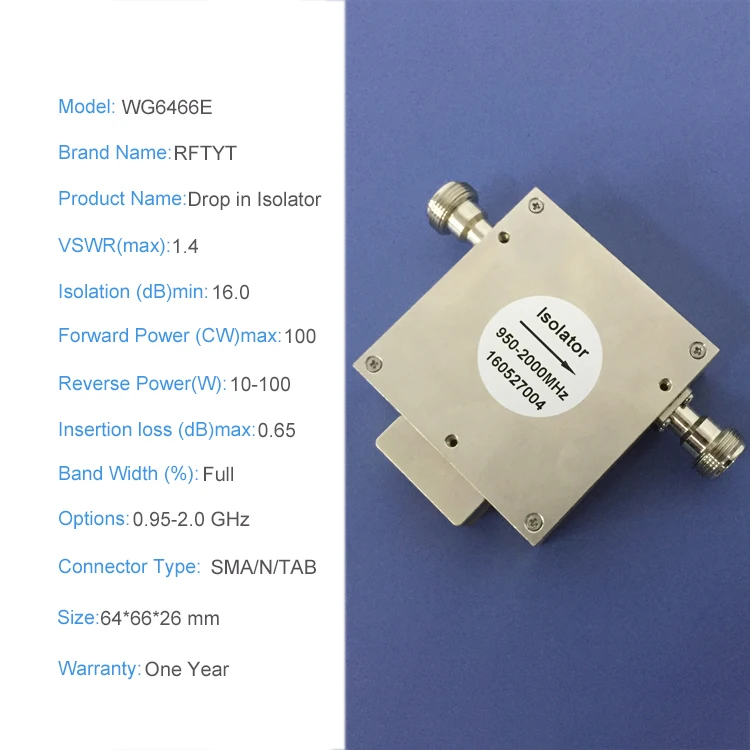

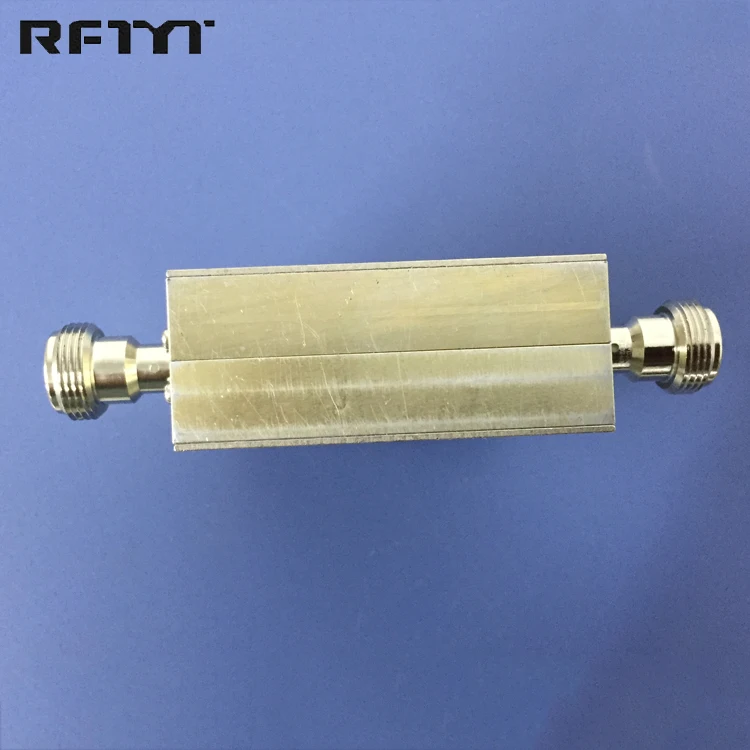

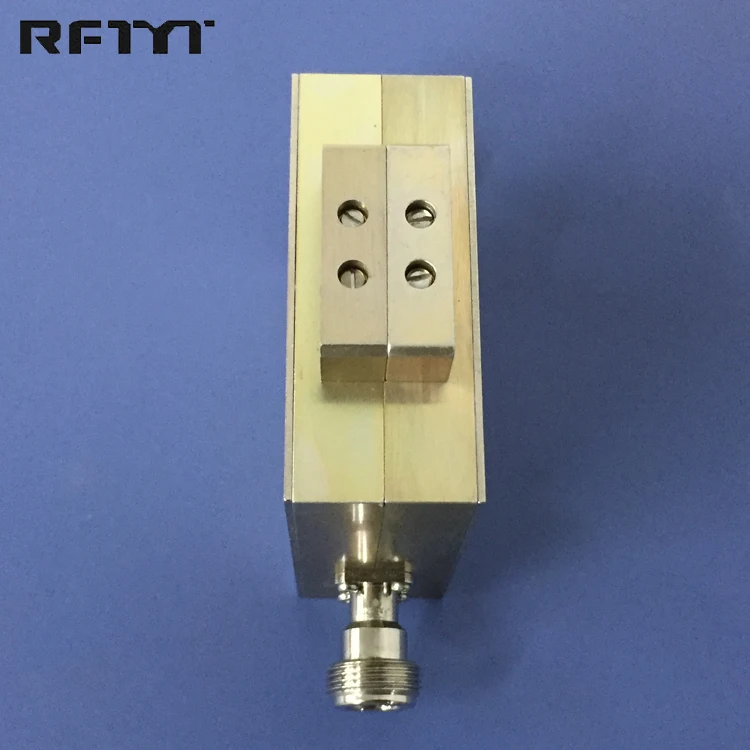

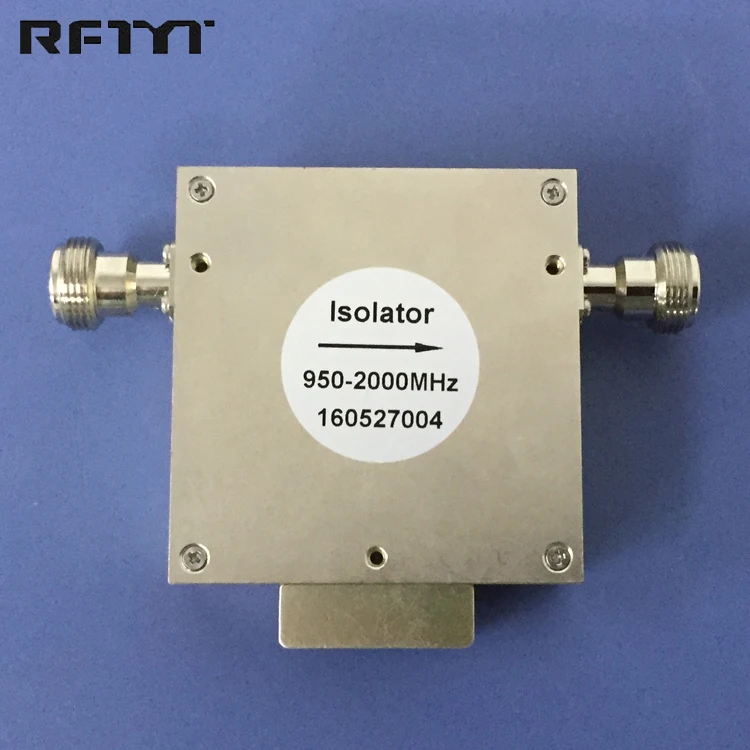

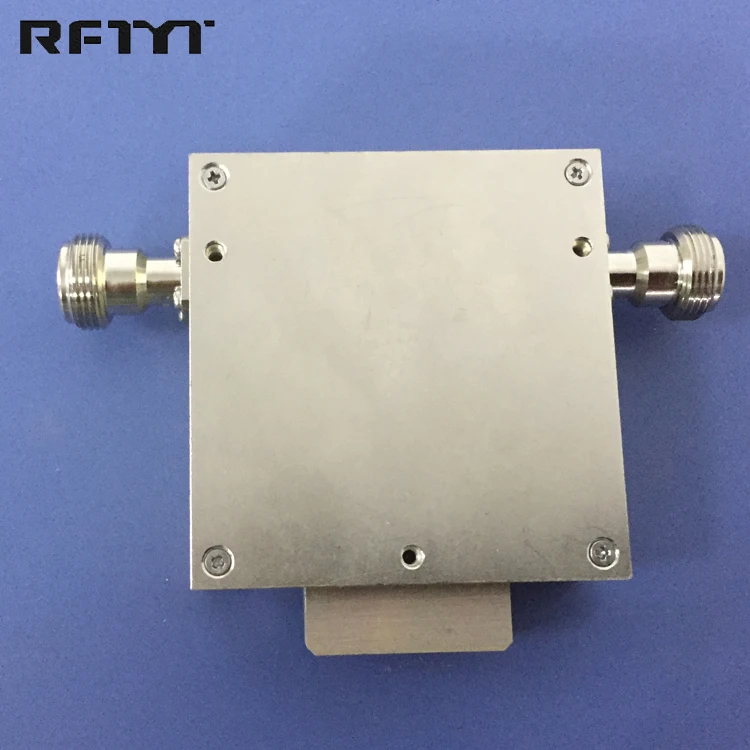

RFTYT TG6466E 0.95-2.0 GHz UHF SMA N TAB Connector RF Coaxial Isolator
Product Description
Our Products Features:
1.Good temperature behavior, High aseismatic capability. 2.Low Insertion Loss, High power handling.
3.High quality, Low price, Fast delivery. 4.Custom design available upon request.
5.Meet ROHS standard. 6.Guaranteed for one year standard
10MHz-26.5GHz Power(Max) 2000W Coaxial Isolators
Model |
Frequency range |
Power (max) |
Reverse Power |
Size |
Connector Type |
|---|---|---|---|---|---|
TG6466E
|
30-230MHz |
150W |
10-150W |
64.0*66.0*22.0 mm |
SMA/N |
TG6060E
|
30 - 230MHz |
50W |
10-50W |
60.0*60.0*25.5 mm |
SMA/N/TAB |
TG6466E
|
130-200MHz |
500W |
10-250W |
64.0*66.0*22.0 mm |
SMA/N |
TG5258E
|
160-330MHz |
500W |
10-250W |
52.0*57.5*22.0 mm |
SMA/N |
TG4550E
|
300-1100MHz |
400W |
10-100W |
45.0*50.0*25.0 mm |
SMA/N |
TG3538X
|
300-1850MHz |
300W |
10-250W |
35.0*38.0*15.0 mm |
SMA/N |
TG3434E
|
700-3100MHz |
300W |
20-100W |
34.0*34.0*22.0 mm |
SMA/N |
TG3232X
|
700-3100MHz |
300W |
20-100W |
32.0*32.0*15.0 mm |
SMA/N |
TG3033X
|
700-3100MHz |
300W |
20-100W |
30.0*33.0*15.0 mm |
SMA/N |
TG2528B
|
900-4000MHz |
200W |
10-100W |
25.4*28.5*15.0 mm |
SMA/N |
TG6466E
|
950-2000MHz(full) |
100W |
10-100W |
64.0*66.0*26.0 mm |
SMA/N/TAB |
TG2025X |
1500-4000MHz
|
100W |
20W |
20.0*25.4*15.0 mm |
SMA |
TG3234A
|
2.0 - 4.0 GHz(full) |
100W |
20W |
32.0*34.0*21.0 mm |
SMA/N/TAB |
TG2528C
|
3.0-6.0GHz(full) |
60W |
20W |
25.4*28.0*14.0 mm |
SMA/N/TAB |
TG1626B
|
3.7 - 5.0GHz |
60W |
5W |
16.0*26.0*15.0 mm |
SMA |
TG1523C
|
3.6 - 7.2 GHz |
60W |
5W |
15.0*23.0*13.8 mm |
SMA |
TG2123B
|
4.0-8.0GHz(full) |
60W |
20W |
21.0*23.0*15.0 mm |
SMA |
TG1319C
|
7.0- 15.0GHz |
20W |
5W |
13.0*19.0*12.7 mm |
SMA |
TG1220C
|
9.0 - 15.0GHz |
30W |
5W |
12.0*20.0*13.0 mm |
SMA/ Through wall connector |
TG1622B
|
6.0 - 18.0 GHz
|
30W |
5W |
16.0*22.0*14.0 mm |
SMA |
For more detail specifications, please contact us or go to the official website.
(WWW.RFTYT.COM)
Forms are specify frequency range and other ranges available
(The temperature is generally -30 to 70, which can be customized -40 to 80 or your specified requirement.)
Tip:These informations are needed for your enquiry.
*1.The frequency range that you need. *2.Power capacity (Forward ,Reverse,Peak,etc.). *3.Joint form
4.Your special requirements (Insertion loss.Isolation.VSWR.Temperature.Dimension.etc.)
