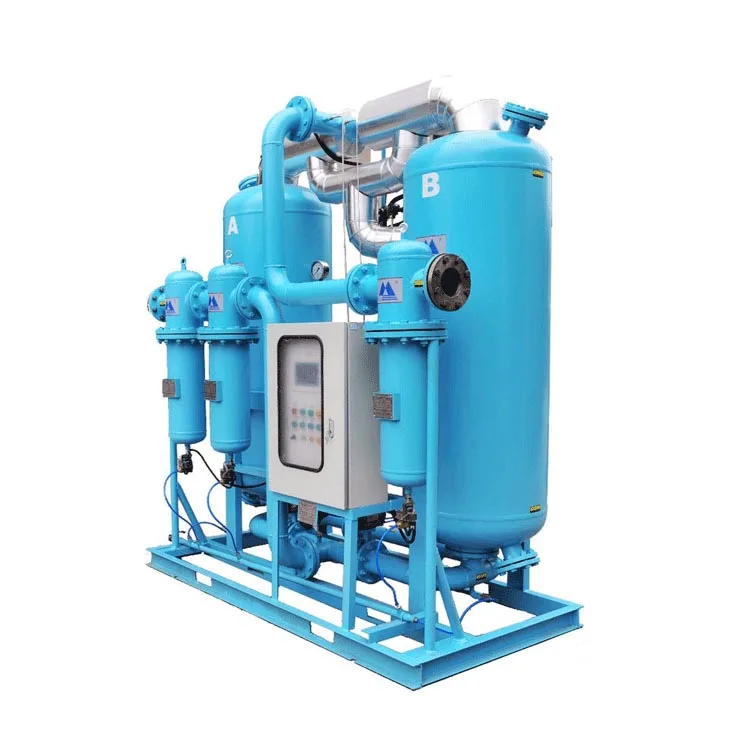

Factory Price SLAD 6MXF 6 m3/min CE&ISO certification 7% air purge 230V 50Hz Heated Regeneration Desiccant Compressed Air Dryer
- Category: Air Cleaning Equipment >>>
- Supplier: Hangzhou Shanli Purify Equipment Corporation
Share on (60815822728):
Product Overview
Description
First the dryer will adsorb moisture in the compressed air with the help of desiccant which
has numerous super micropore. Then moisture will be desorbed from desiccant when pressure
released. The dryer is fully automatic with dual towers. The controller provides reliable control
of the system. As one tower is drying air, the other tower will be generating.
Techical Specifications | |
Air Inlet Temp | 25~45 ℃ |
Oil Content: | ≤0.1PPM |
Air Inlet Pressure | 0.6~1.0MPa |
Pressure Loss: | ≤3% Of Inlet Pressure |
Pressure Dew Point: | -40℃ |
Power | AC380V-50HZ/ AC220V-50HZ |
Air Consumption | ≤7% |
Cycling Time | T=2 h |
Control Method | Microcomputer Automatic Control |
Note: All the above parameters are based on our standard working pressure 0.7MPa.
(Please contact us if you need customized service.)
| Heated Regeneration Adsorption Air Dryer | ||||||||
| Model | Air Capacity | Desiccant Weight (Kg) | Air Pipe Diameter | Net Weight (Kg) | Length (mm) | Width (mm) | Height (mm) | |
| (Nm3/min) | cfm | |||||||
| SLAD-1MXF | 1.2 | 42 | 24 | G1" | 186 | 812 | 620 | 1417 |
| SLAD-2MXF | 2.5 | 88 | 40 | G1" | 256 | 732 | 586 | 2017 |
| SLAD-3MXF | 3.6 | 127 | 60 | G1" | 341 | 962 | 638 | 1711 |
| SLAD-4.5MXF | 4.8 | 169 | 85 | G1 1/2" | 447 | 842 | 642 | 2225 |
| SLAD-6MXF | 6.8 | 240 | 120 | G1 1/2" | 630 | 950 | 642 | 2105 |
| SLAD-8MXF | 8.5 | 300 | 158 | G2" | 678 | 1288 | 696 | 2231 |
| SLAD-10MXF | 10.9 | 384 | 190 | G2" | 810 | 1288 | 696 | 2331 |
| SLAD-12MXF | 12.8 | 451 | 190 | G2" | 810 | 1288 | 696 | 2331 |
| SLAD-15MXF | 16 | 564 | 310 | DN65 | 983 | 1743 | 735 | 2356 |
| SLAD-20MXF | 22 | 775 | 492 | DN65 | 1271 | 1933 | 736 | 2415 |
| SLAD-25MXF | 26.8 | 945 | 578 | DN80 | 1371 | 1903 | 823 | 2738 |
| SLAD-30MXF | 32 | 1128 | 600 | DN80 | 1550 | 2101 | 913 | 2462 |
| SLAD-40MXF | 43.5 | 1533 | 856 | DN100 | 1994 | 2200 | 1002 | 2576 |
| SLAD-50MXF | 53 | 1868 | 1002 | DN100 | 2127 | 2213 | 1002 | 2594 |
| SLAD-60MXF | 67 | 2361 | 1718 | DN125 | 3243 | 2716 | 1270 | 2857 |
| SLAD-80MXF | 90 | 3172 | 2300 | DN125 | 3698 | 2816 | 1453 | 2911 |
| SLAD-100MXF | 110 | 3877 | 2800 | DN150 | 4677 | 3312 | 1751 | 3094 |
| SLAD-120MXF | 130 | 4582 | 3370 | DN150 | 5140 | 3420 | 1900 | 3159 |
| SLAD-150MXF | 160 | 5639 | 4070 | DN200 | 6126 | 3812 | 1900 | 3378 |
| SLAD-200MXF | 210 | 7402 | 5530 | DN200 | 8370 | 4224 | 2235 | 3534 |
| SLAD-250MXF | 260 | 9164 | 6116 | DN250 | 13100 | 4616 | 2647 | 3805 |
| SLAD-300MXF | 310 | 10926 | 7016 | DN250 | 15000 | 4816 | 2802 | 3883 |
Product Overviews
Advantages
Company Information
Shanli is a CE and ISO 9001:2008 certificated leading air dryer manufacture in China with more than 20 year experience
with the most 26 patents.Shanli has been the supporting supplier for Atlas,Boge and Ingersoll Rand.We are already make
export to 20 different countries and worldwide as active, mainly Middle East and Europe.
Application
Shanli refrigerated air dryers are widely used in industry such as pharmaceutical industry,automobile making,textile
industry,war industry,iron and steel industry,petroleum and petrochemical,Electronics Industry.
