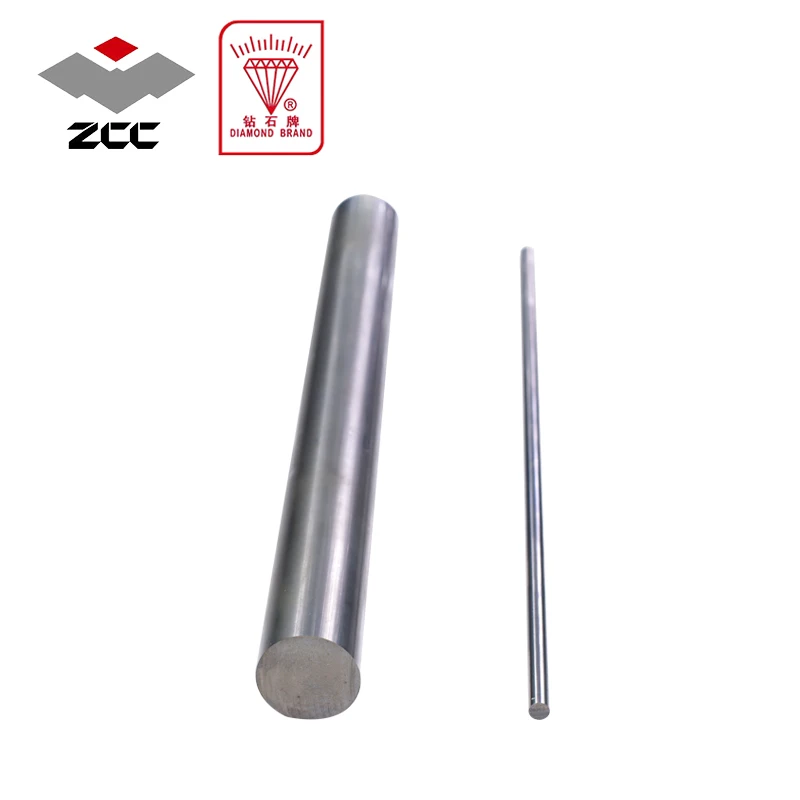

Ground cemented carbide rods length 100mm looking for buyers who demand

Product Overview

Description







Application of  Carbide rods and bars

Purpose: Fine performance, suitable for processing of non-ferrous metal, plastic materials, carbon fiber, chilled cast iron and heat-resistant alloy steel, high-temperature alloy steel, stainless steel, high manganese steel, etc. Used in the manufacture of various metals and non-metal cutting tools such as drills, end mills, reamers. Also widely used in stamping tools and wear-resistant tools, etc.



Specification of  Carbide rods and bars

GRADE		YL06C	YL10.2	YL10A	YF06	XF20S	XF30S	XT30S	XU30	XU09S	XU10W
Drilling		*	*	*	*	*
Milling		*	*	*		*	*	*	*	*	*
Reaming					*
P	General carbon steel		^		#	^	^		#
M	Stainless steel					#		^
K	Cast Iron		^	#		^	^		#
S	Ti					#		^
	HRSA						#
N	Al-Mg		^	#	^	^	^		#
H	Hard steel									^
Others	Plastic		#			#
	CFRP	^(coated)
	Wood					^	#				^
	Ceramic	^(coated)



Carbide ground Rod(tol.h5/h6)	,
Length100mm ,
Chamfered 45°
Type	D(mm)	L(mm)	ToleranceL(mm)	C(mm)
φ1.0×100	1.0	100	up on request	0.3
φ1.5×100	1.5	100	up on request	0.3
φ2.0×100	2.0	100	up on request	0.3
φ2.5×100	2.5	100	up on request	0.3
φ3.0×100	3.0	100	up on request	0.3
φ3.5×100	3.5	100	up on request	0.3
φ4.0×100	4.0	100	up on request	0.3
φ4.5×100	4.5	100	up on request	0.3
φ5.0×100	5.0	100	up on request	0.3
φ5.5×100	5.5	100	up on request	0.3
φ6×100	6.0	100	up on request	0.5
φ6.5×100	6.5	100	up on request	0.5
φ7.0×100	7.0	100	up on request	0.5
φ7.5×100	7.5	100	up on request	0.5
φ8.0×100	8.0	100	up on request	0.5
φ8.5×100	8.5	100	up on request	0.5
φ9.0×100	9.0	100	up on request	0.5
φ9.5×100	9.5	100	up on request	0.5
φ10.0×100	10.0	100	up on request	0.5
φ10.5×100	10.5	100	up on request	0.5
φ11.0×100	11.0	100	up on request	0.5
φ11.5×100	11.5	100	up on request	0.5
φ12.0×100	12.0	100	up on request	0.7
φ13.0×100	13.0	100	up on request	0.7
φ14.0×100	14.0	100	up on request	0.7
φ15.0×100	15.0	100	up on request	0.7
φ16.0×100	16.0	100	up on request	0.7
φ18.0×100	18.0	100	up on request	1
φ19.0×100	19.0	100	up on request	1
φ20.0×100	20.0	100	up on request	1
φ21.0×100	21.0	100	up on request	1
φ22.0×100	22.0	100	up on request	1
φ23.0×100	23.0	100	up on request	1
φ24.0×100	24.0	100	up on request	1
φ25.0×100	25.0	100	up on request	1.5
φ26.0×100	26.0	100	up on request	1.5
φ28.0×100	28.0	100	up on request	1.5
φ30.0×100	30.0	100	up on request	1.5
φ32.0×100	32.0	100	up on request	1.5
φ33.0×100	33.0	100	up on request	1.5
φ34.0×100	34.0	100	up on request	1.5
φ35.0×100	35.0	100	up on request	1.5
φ36.0×100	36.0	100	up on request	1.5
φ38.0×100	38.0	100	up on request	1.5
φ40.0×100	40.0	100	up on request	1.5
