type

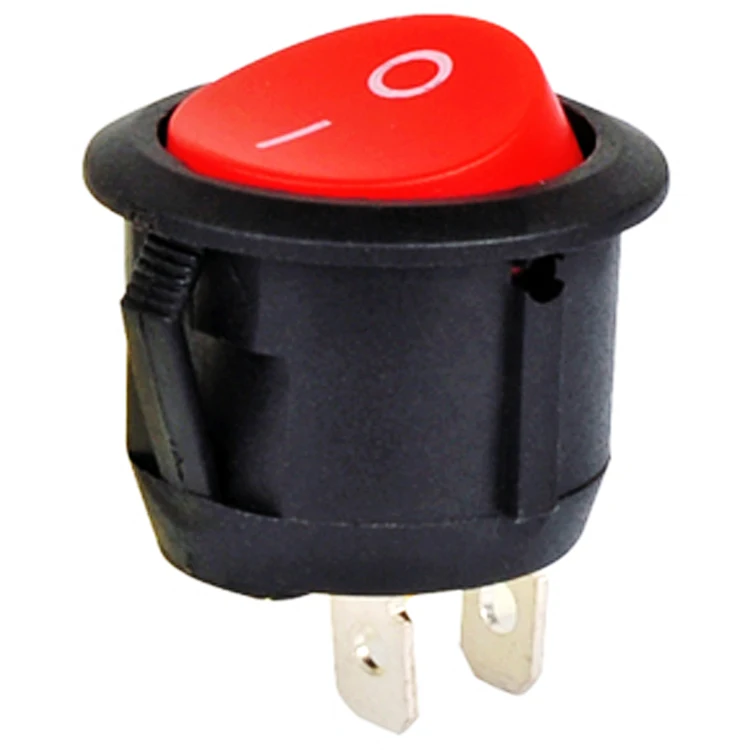

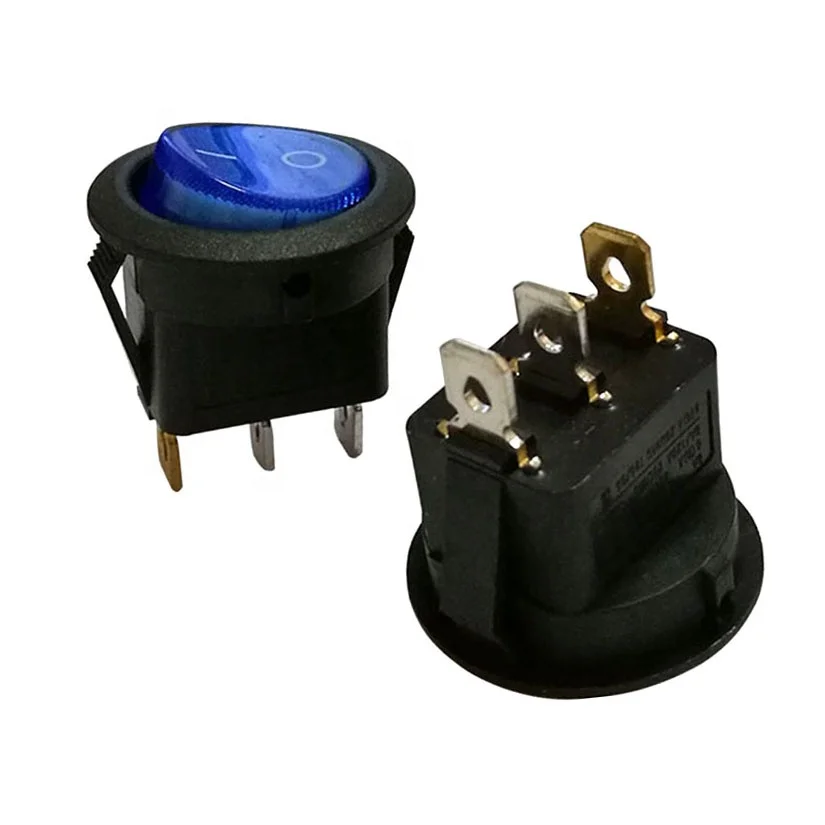

6A 250VAC ON OFF 3PIN 2Way T85 SPST Lighted Rocker Switch 12V

Circuit Diagram

4pin on off

rating

10A 125VAC; 6A 250VAC

contact resistance

< 35MΩ

insulation resistance

500VDC 1000MΩ Minute

Dielectric strength

1500VAC, 1 Minute

operating temperature

-25°C~+85°C

electrical life

10000 CYCLES

material

Nylon 66  copper silver-contacts

Application

Used for electronic equipment and appliance

Operating force

3-8N

Cold endurance

-20+-2°C for 96H

Heat endurance

105+-2°C for 96H

Humidity endurance

40+-2°C 90-95%RH for 96h

Solder ability

230+-10°C  3+-1Sec

Terminal strength

80N
