Led High Bay Light Mining Lamp Linear Batten Led Light IP 65 Aluminium Case For led light waterproof
- Category: Commercial & Industrial Lighting >>>
- Supplier: Guangdong Lonyung Led Lighting Co. Ltd.
Share on (60815909450):
Product Overview
Description
Led High Bay Light Mining Lamp Linear Batten Led Light IP 65 Aluminium Case For led light waterproof
Product Description
Features
Led High Bay Light Mining Lamp Linear Batten Led Light IP 65 Aluminium Case For led light waterproof
1.IP65 water-proof & dust-proof

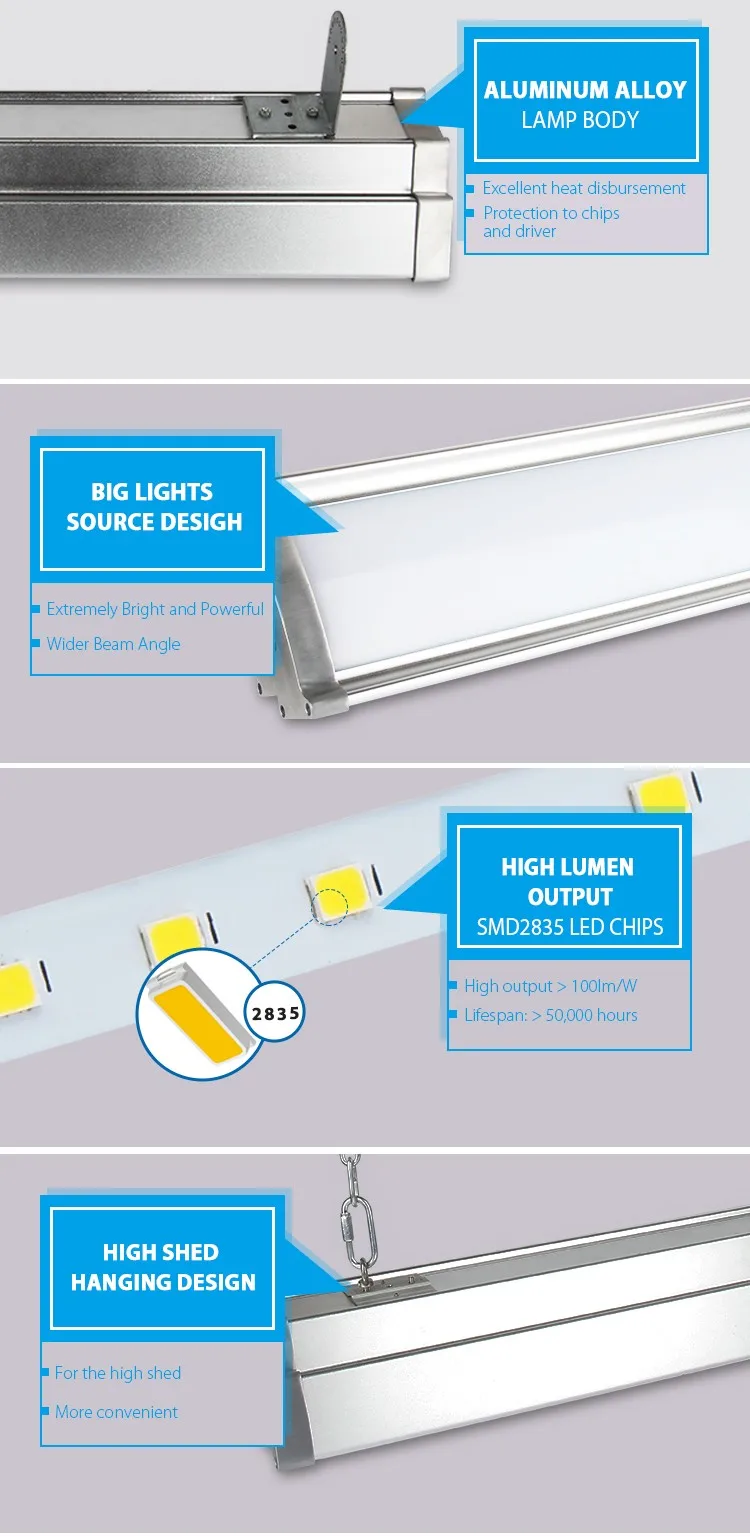

2.Big Lights Source Design
3.TUV SAA approved, DLC Premium Listed
4.MEANWELL Internal driver
5.Housing material: Aluminum Body + PC
6.Easy replacement and installation with brackets
Technical Specifications
1.Input Voltage: Meanwell driver
AC100-277V 50/60Hz
AC 347V 50/60Hz
AC100-240V 50/60Hz
2.Total harmonic distortion: THD<19%
3.Power Factor: PF>0.95
4.UGR: <19
5.Efficiency: 120-140LM/W
6.Color Index: Ra>82
7.IP Rating: IP65
8.Life Span: 50,000 hours
9.Switching Time: 100,000
10.Operation Temperature: -20°C ~ +50°C
| Model | LY-HB180L 600-100/120W | LY-HB180L 900-150W/180W | LY-HB180L 1200-200W/240W | LY-HB180L 1500-240W/300W |
| Wattage | 100W | 150W | 200W | 240W |
Lamp Luminous Flux (lm) | 12000-14000lm | 12000-14000lm | 21600-28000lm | 28800-33600lm |
| Length (mm) | 600 | 900 | 1200 | 1500 |
| Length (ft) | 2ft | 3ft | 4ft | 5ft |
Item Type | LED High Bay light | |||
Light Source | Epistar SMD3030 | |||
Beam angle | >120° | |||
Warranty | 5 Years | |||
Power factor | >0.95 | |||
Led driver | Meanwell driver(Internal) | |||
Installation | Suspending / Surface mounted | |||
Input Voltage | 100-277/347VAC 50/60Hz | |||
CRI | >80 | |||
Working Lifetime | 50000Hrs | |||
Working Temperature | -4-122℉(-20-50℃) | |||
Lamp Body Material | Pure Aluminum Housing | |||
IP value | IP65 | |||
CCT | Warm White, Neutral White, Cool White, (2700-6500K). | |||
Lamp Luminous Efficiency (lm/w) | 140lm/w+10% | |||
Certification | DLC Premium ETL/TUV /SAA
| |||
♥ Options
-Installation Type: Standard Clip / Suspending Kits
-Input Voltage: AC100-277V / 347V / AC100-240V 50/60Hz

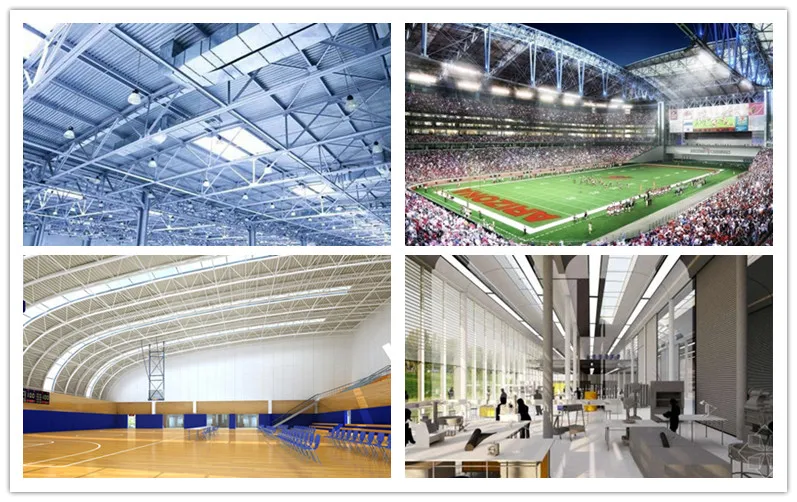

PRODUCT APPLICATION
1.Warehouses, factories & food storage
2.Car parks & sports facilities, gas station
3.Mining area, Steel plant, Tunnel, Basement etc
4.Design for more than 6 meters high industry lighting
5.Specially used in some indoor/outdoor wet place environments

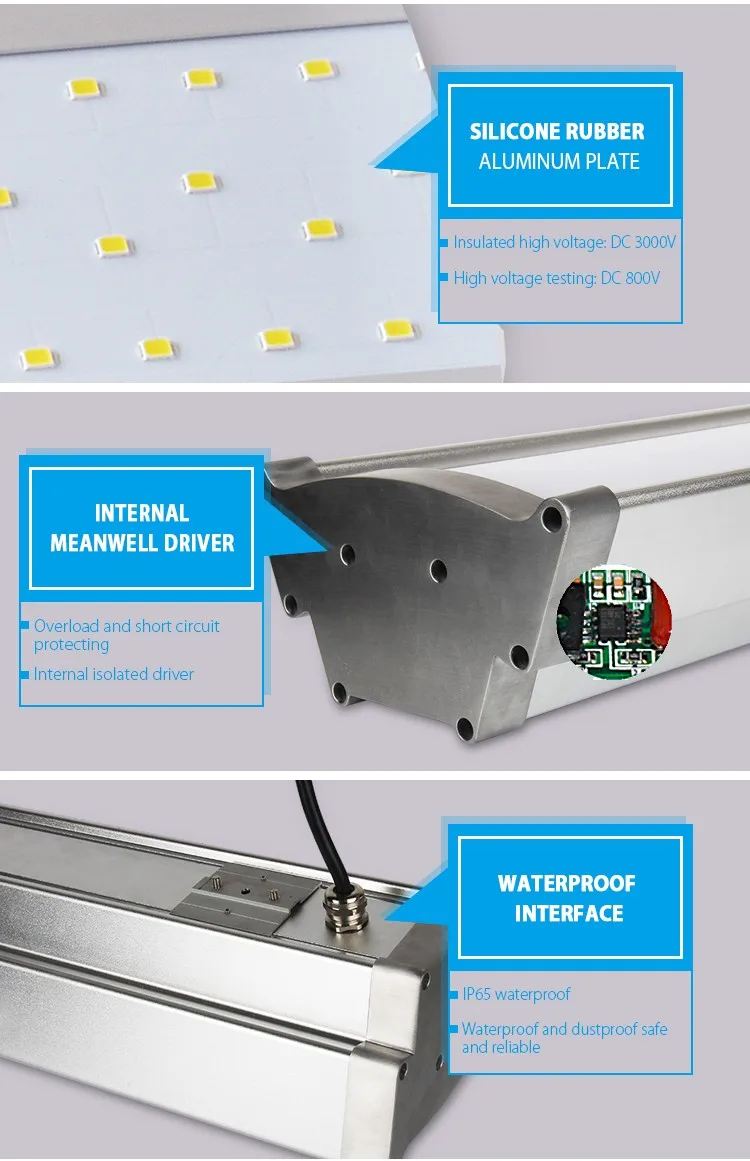

PRODUCT DETAILS

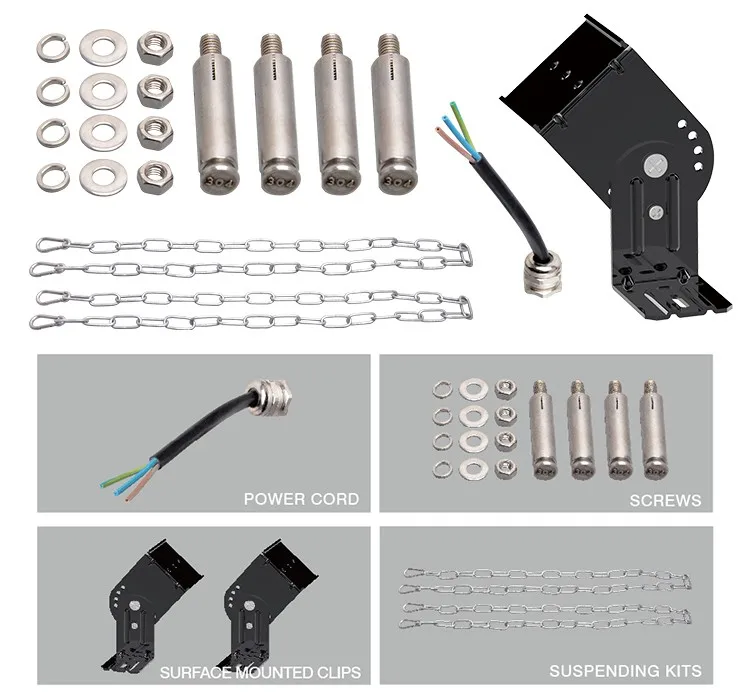

PRODUCT ACCESSORIES
IP65 High bay Integration tube light
CONNECTION:
Packaging & Shipping

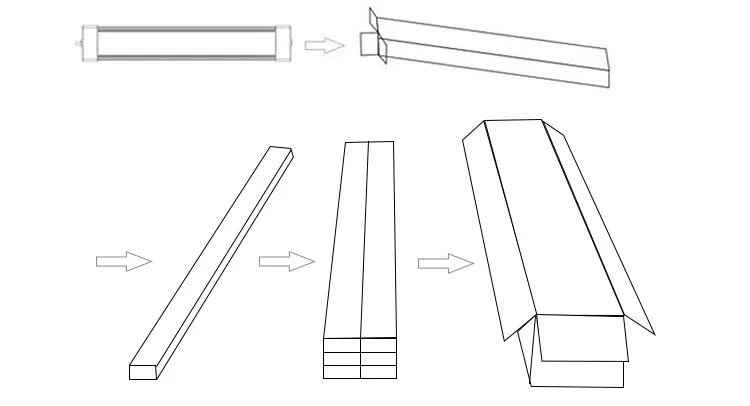

Packing
IP65 High bay Integration tube light
Company Information
♠ Test Lonyung LED Manufacturer
LONYUNG LED LIGHTING CO.,LTD is a professional manufacturer of LED lighting products. We established in 2008 and dedicated in design, development, production and sales of LED products. LONYUNG focus on LED lighting, includes LED T5/T8 Tubes, LED T5/T8 Integrative Tubes, Direct replacement LED Tubes, etc. We successfully built up longterm relationship with our partners from North America, Europe, Australia, Asia and other areas all over the world. Our products are widely used in office buildings, houses, and industrial areas.All of our drivers are designed and produced in.house, all products are demonstrated by our strict QC system. Each single piece of our product will be tested through a 48 hours aging test.
LONYUNG Team sincerely welcomes your OEM/ODM requirements. We will always provide you excellent products and service with a competitive and reasonable cost.
FAQ
♥ Any questions & enquiries, please do not hesitate to contact with us directly : )
