Privacy Window Tint Glass Switchable Electric PDLC Smart Film for Glass
US $78.00-$149.00

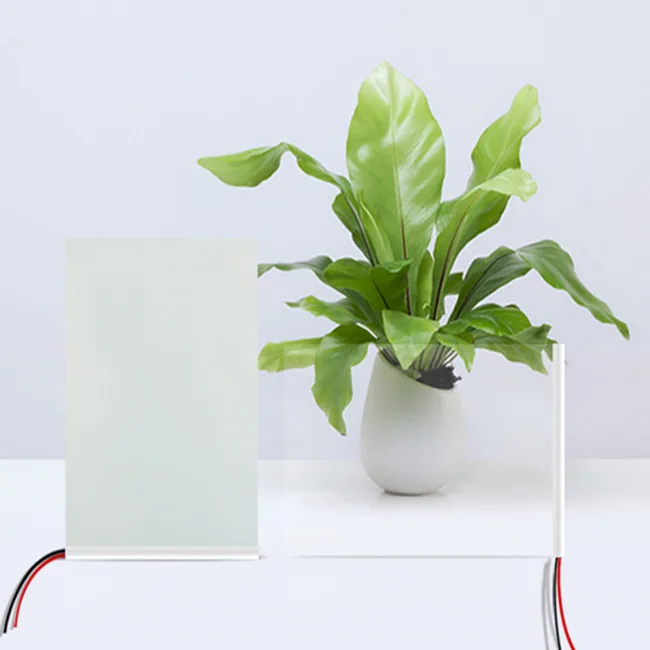

Multicolor Self adhesive Electric Smart tint Film non ageing smart PDLC film
- Category: >>>
- Supplier: Qingdao Boruito Trading Co. Ltd.
Share on (60815938942):
Product Overview
Description
Description:

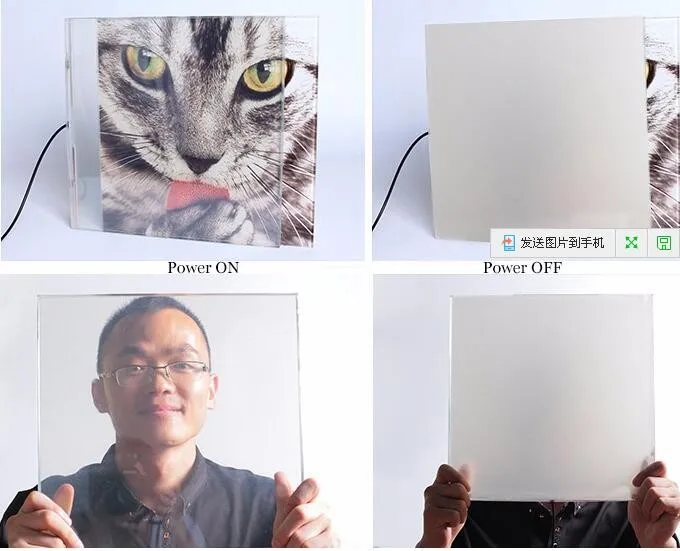

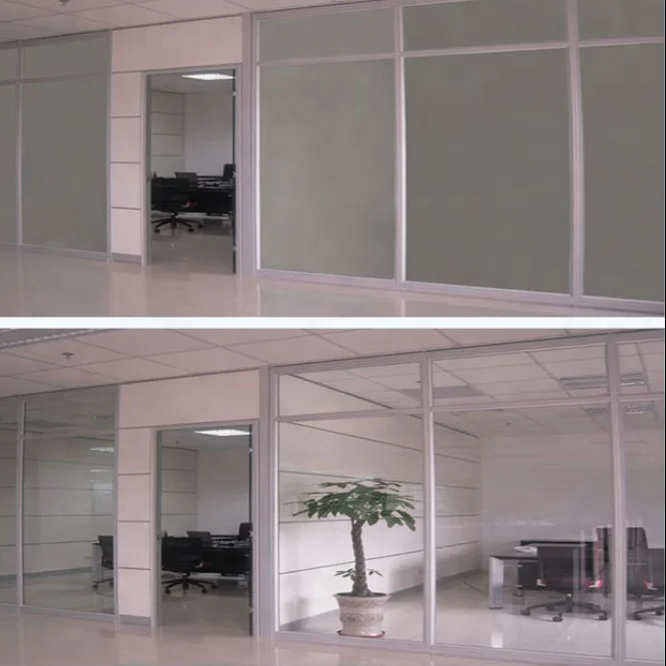

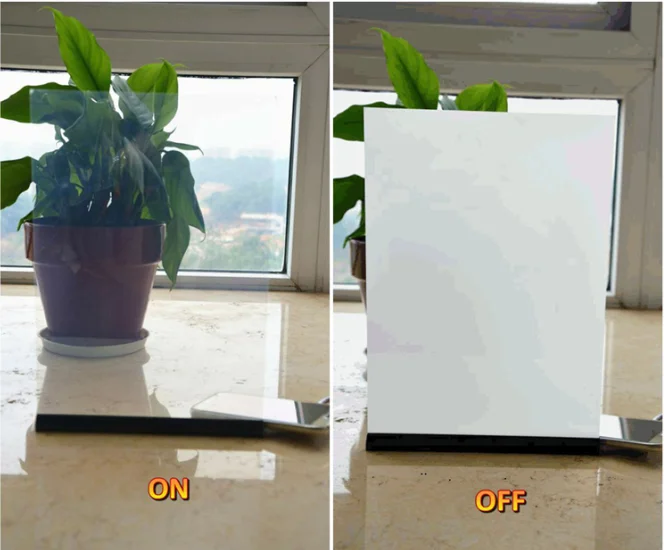

PDLC (Polymer Dispersed Liguid Crystal) is a light modulating material comprised of droplets of liquid crystal uniformly dispersed in a transparency or translucency, flexible plastic film. When power off, coming visible light scatters through the PDLC, and the film turns translucent; When power on, coming visible light transmits thePDLC and the Film turns clear.

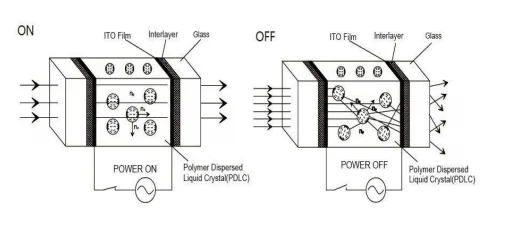

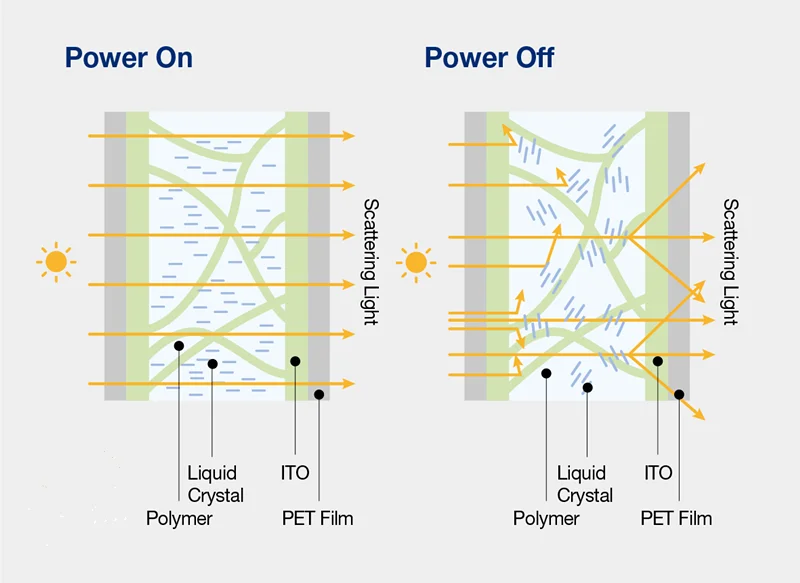

Principle & structure:
Specification:
| PDLC SMART FILM Specification and Technical Data | |||
| Optical Properties | Visible Light Transmission | ON | >75% |
| OFF | <5% | ||
| Visual Angle | ON | 145° | |
| UV Blocking | ON/OFF | >99% | |
| Heat Resistance | R/RO | 0.8-1.1 | |
| Electrical Properties | Operating Voltage | ON | 48±5V |
| Power Consumption | ON | <3.7W/m² | |
| A.C. Transformer | 100W/SET | ||
| Resistance uniformity | ≤ ±5% | ||
| Specification | Thickness | 0.38mm | |
| Hardcoat hardess | ≥30H | ||
| Max Size | Self-adhesive 1500mm*30000mm | Laminated 1800mm*3200mm | |
| Color | Milk white, dark grey | ||
| Life Time | >100000hrs | ||
| Energy Saving | Excellent thermal performance | Indoor and outdoor temperature difference 2℃~5℃ | |

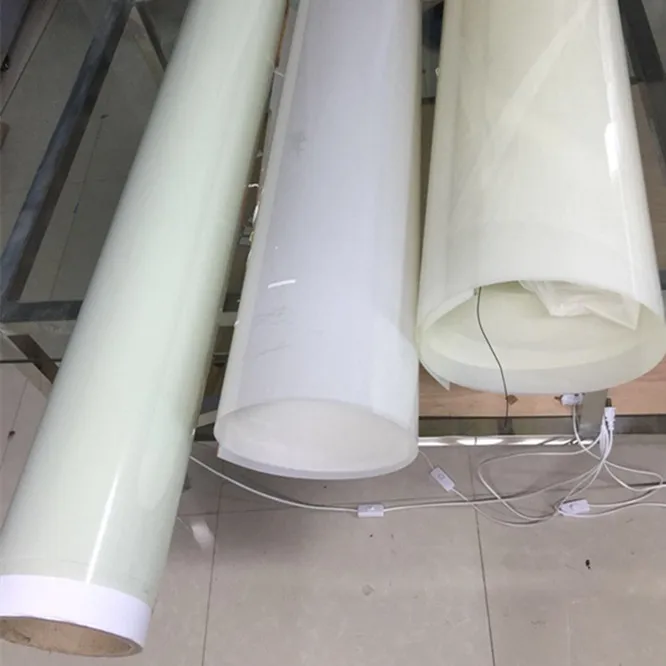

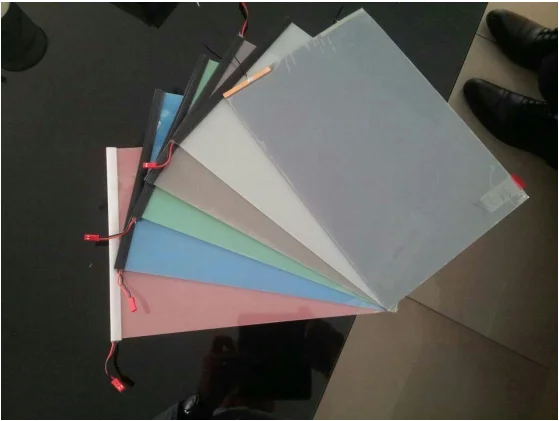

Colors:

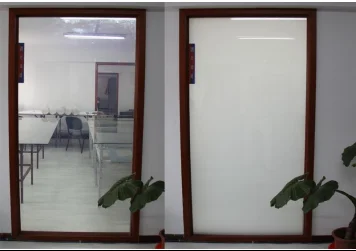

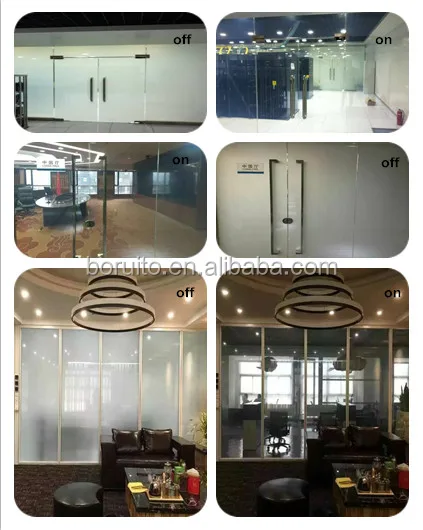

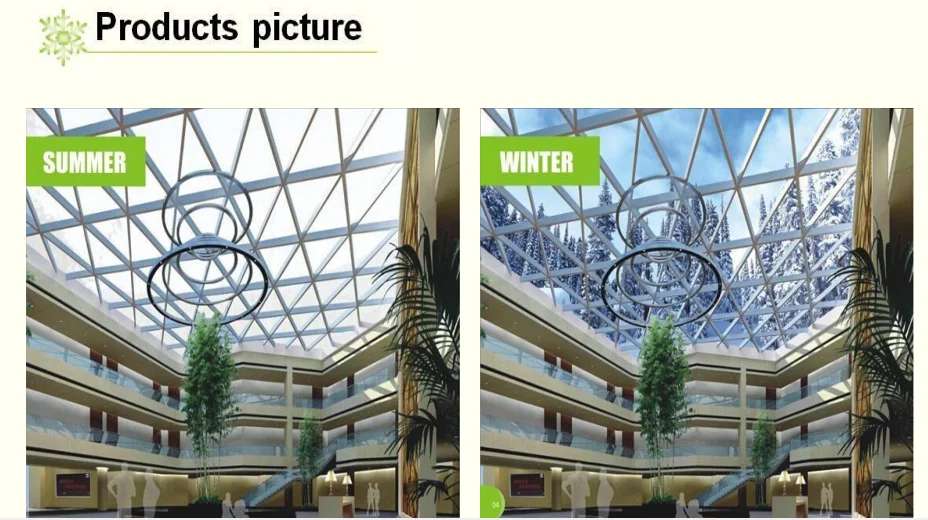

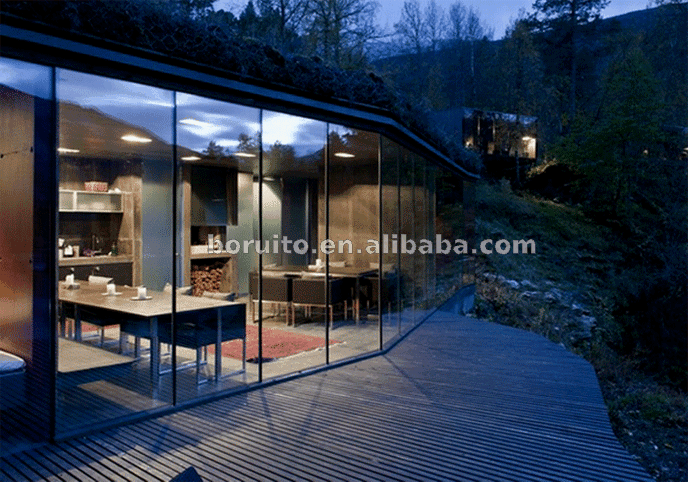

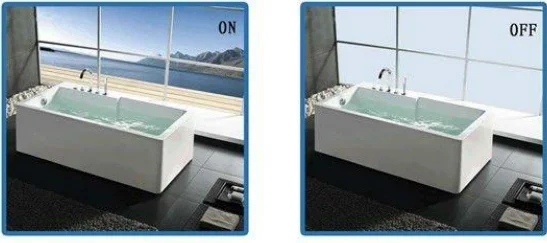

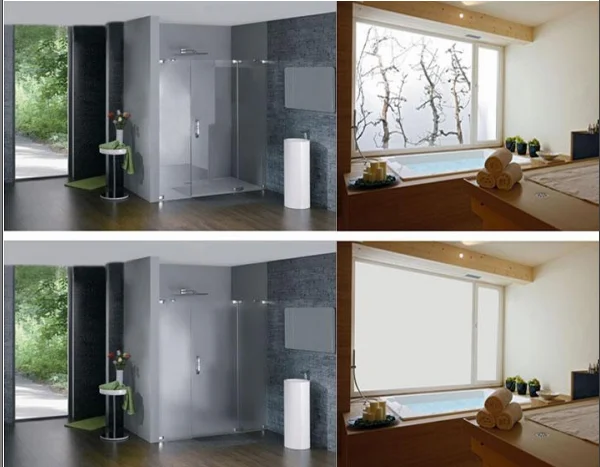

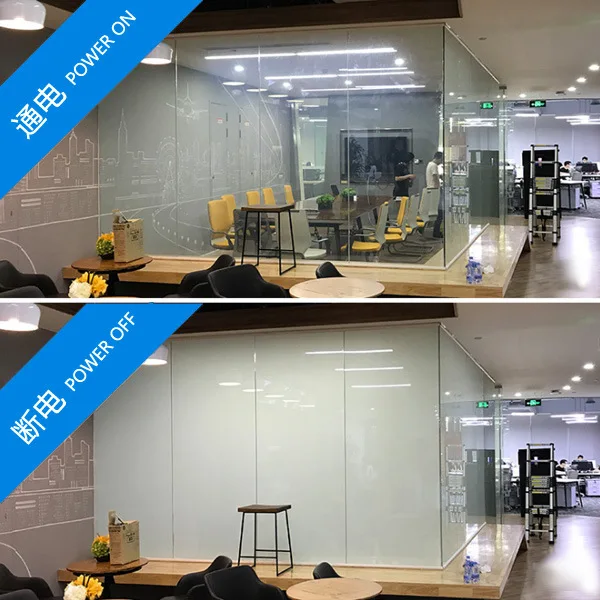

Application:

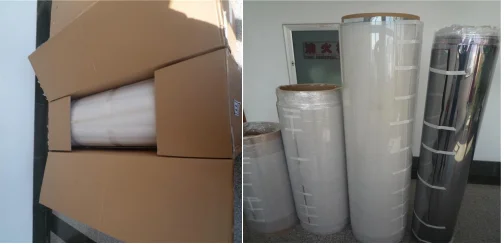

Package & Shipping:
Contact us
Sara Gu (Sales manager)
| Tel/Mobile | +86 532 6897 9932 / +86 159 6986 5736 |
| sara AT boruito.com | |
| Whatsapp/Wechat | +86 159 6986 5736 |
| Skype | Sara Gu |
1014898197 |
FAQ
Q: Is this product customizable?
A: Yes, we have professional technique team, we could produce this product exactly under your requirements.

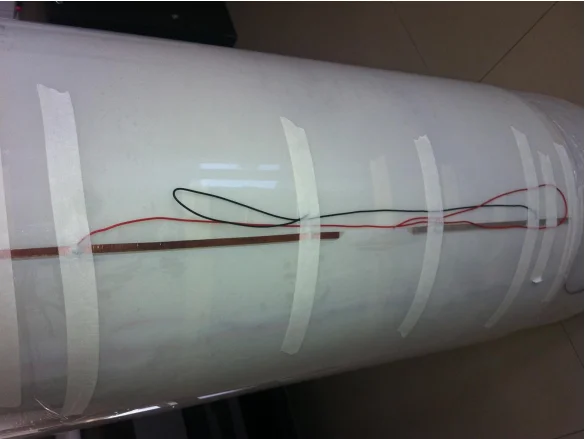

Q:How to make busbar and how to do installation ?
A: We can offer all needed materials,training and installation manuals.
Q:Can you provide free samples?
A: Yes, but if you want big size sample, we will consider to charge basic cost.
A: Yes, we have professional technique team, we could produce this product exactly under your requirements.
Q:How to make busbar and how to do installation ?
A: We can offer all needed materials,training and installation manuals.
Q:Can you provide free samples?
A: Yes, but if you want big size sample, we will consider to charge basic cost.
