Price:$35,000.00

Quantity:


Product Overview

Description


Product Description

Product Application for waste tire recycling machine:

About us:
1.Semi-automatic tire recycling line machine, fully-automatic tire recycling line machine all are can be provided based on your output products, capacity.
2.ISO 9001 and Patent certificate
3.Professional manufacturer in this field for near 30 year.

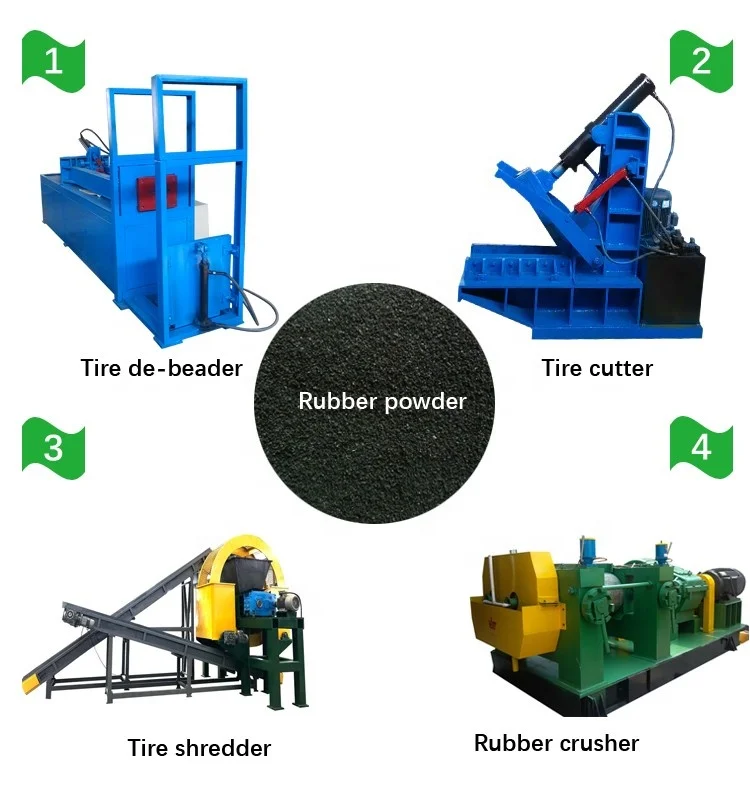

Flowchart of tire recycling machine

(Fully-automatic Production Line):


Waste tire - Tire de beader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder

Description of tire recycling machine

Tire recycling production line is used for processing waste tires into fine rubber powders.

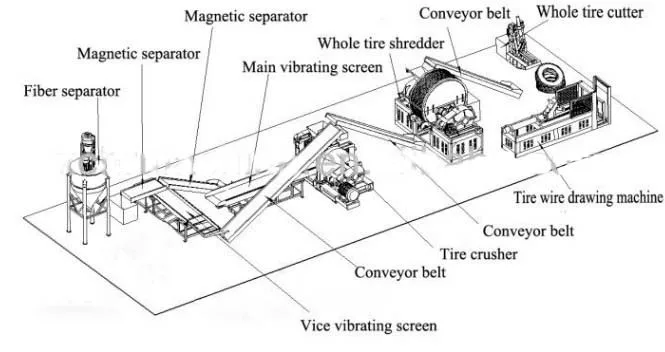

Waste tire recycling production line process: Tire debeader Machine--Tire Cutter --Conveyor--Tire shredder--Magnetic Separator --Nylon fiber separator--Rubber powder

\t
No
\t
Machine
\t
Process
\t
Description
\t
1
\t
Tire debeader machine
\t
to draw out the wire steel from tire bead
\t
TIre debeader can pull the still from the bead inside the whole tire, then the tire will be easy crush and cut.
\t
2
\t
Tire cutter machine (optional)
\t
to cut big tires into smaller piece
\t
If the tire diameter is too larger, you can use this machine to cut first
\t
3
\t
Tire shredder
\t
to shred the tire into rubber block
\t

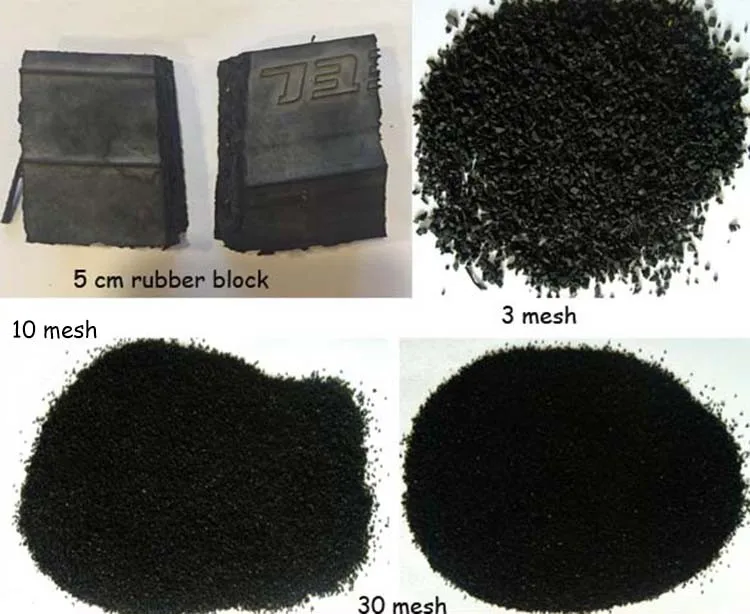

the rubber block 50*50mm
\t
4
\t
Rubber crusher
\t
to crush the rubber block into rubber  power, and separate steel
\t
the host tire broken machine
\t
5
\t
Magnetic separator
\t
Strong separator to remove the steel wire
\t
Remove the steel wire from rubber powder
\t
6
\t
Fiber separator
\t
Remove the nylon fiber from rubber
\t
99% remove of fiber

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Detailed Images

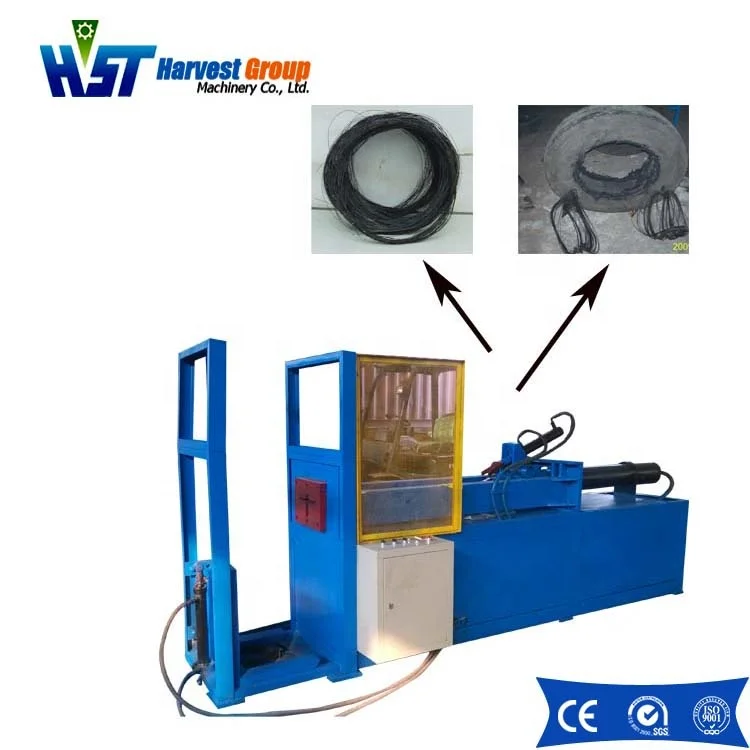

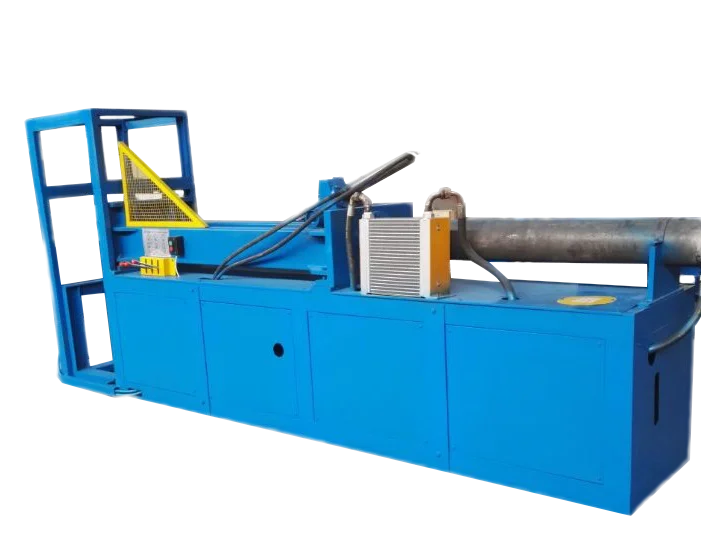

Tire debeader

Model No. :TD-1200

Feed size of tire(mm): ≦Φ1200

Capacity(tires/h):40

Power(kw):7.5

Overall dimensions(m):4.1*1.3*1.75

Equipment weitht(T):2.8

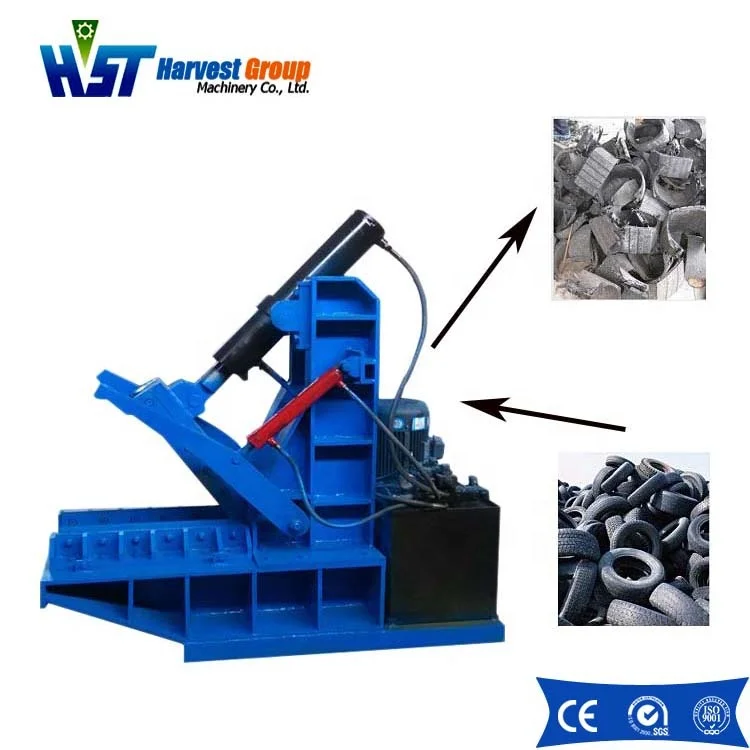

Whole tire cutter

Model No.: TC-1200

Feed size of tire(mm): ≦Φ1200

Capacity(tires/h):30-40

Working pressure(T):12

Power(kw): 7.5

Overall dimensions(m): 1.85*0.7*1.76

Equipment weight(T): 2.5

Megnatic separator

remove steel

Fiber separator

separate the nylon fiber from the nylon tire

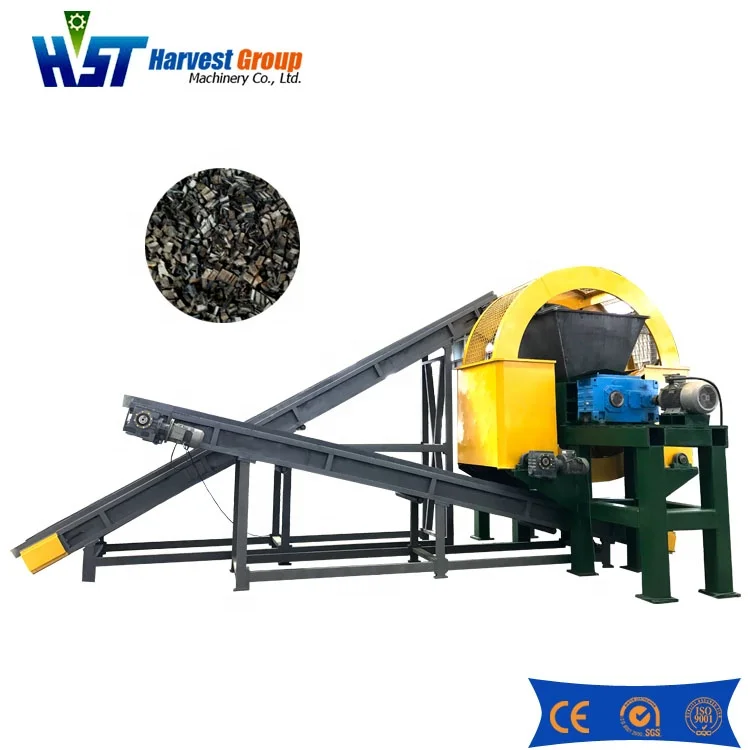

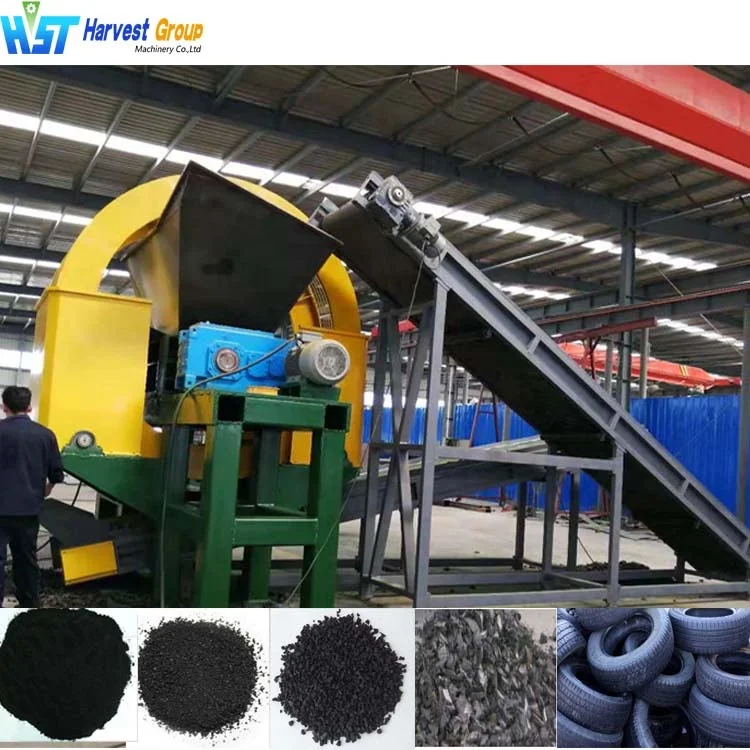

Tire shredder: There are other models TS-1000/1200/1400/1600/1800/2000/2400/4000,etc. Based on customer different requirement, we will provide suitable capacity shredder machine

\t
Model
\t
TS-800
\t
Production capacity
\t
1-2t/h
\t
Size of feeding
\t
≦900mm whole tire
\t
Size of slice
\t
≦50*50mm
\t
Quantity of the knives
\t
16pcs
\t
Dimension
\t
2.8*2.1*2.4m
\t
Weight
\t
6.2t

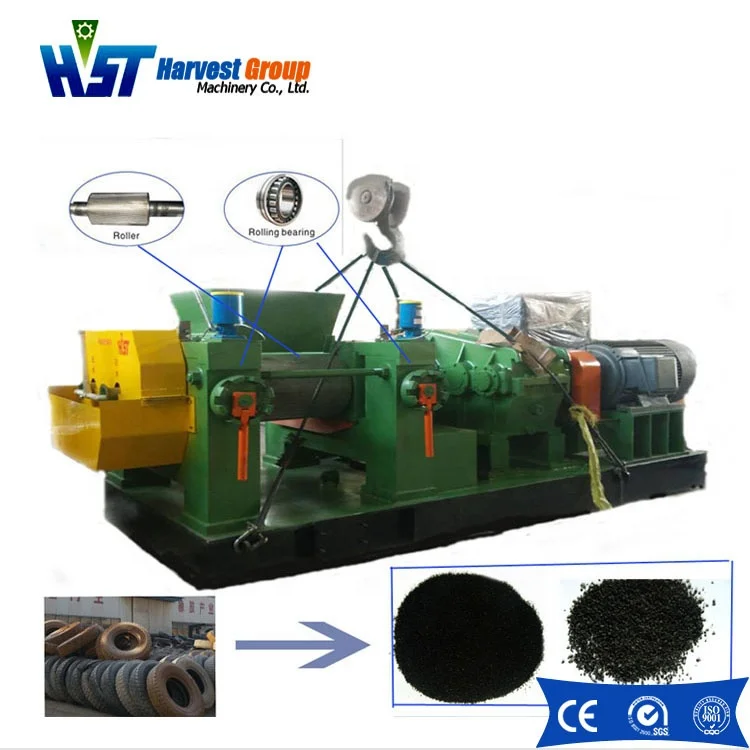

Rubber crusher:

Here are five models rubber crusher with different capacity.
\t
Model
\t
Drum diameter
\t
Drum length
\t
Front roll linear
\t
Roll speed ratio
\t
Max roller spacing
\t
Motor power
\t
Remarks
\t
XKP350
\t
350mm
\t
500mm
\t
26.2m/min
\t
1:2.5
\t
8mm
\t
30kw
\t



Antifriction bearing
\t
XKP400
\t
400mm
\t
600mm
\t
34.5m/min
\t
1:2.5
\t
8mm
\t
45kw
\t
XKP450
\t
450mm
\t
760mm
\t
38.0m/min
\t
1:2.5
\t
8mm
\t
55kw
\t
XKP560
\t
560mm
\t
800mm
\t
38.6m/min
\t
1:2.5
\t
8mm
\t
75kw
\t
XKP560D
\t
560mm
\t
800mm
\t
42.5m/min
\t
1:2.5
\t
8mm
\t
132kw

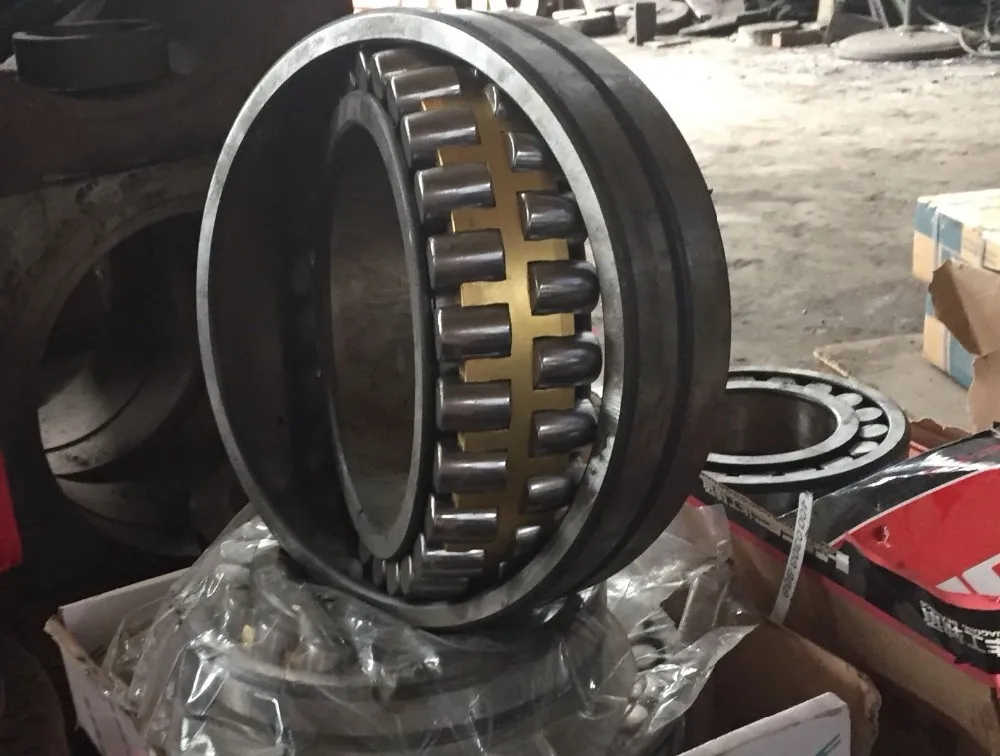

Name: Bearing

There are 8 pieces of bearing in the machines. to keep the machines low noise and hgih speed, will help save 30% electricity


Name: Roller

Function: crushing the rubbers into rubber powder in different size
Materials: 5Cr6MnMo alloy
