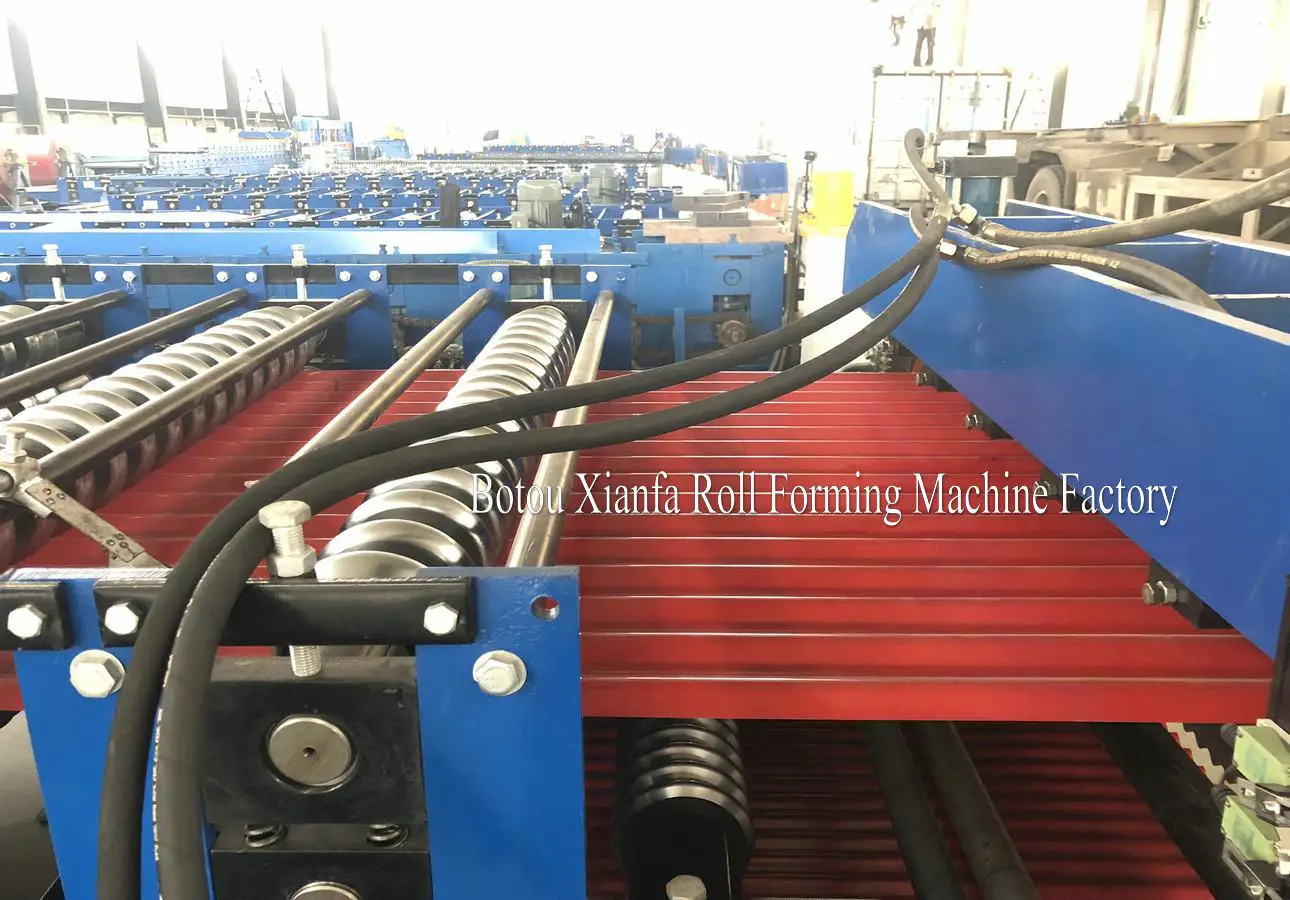

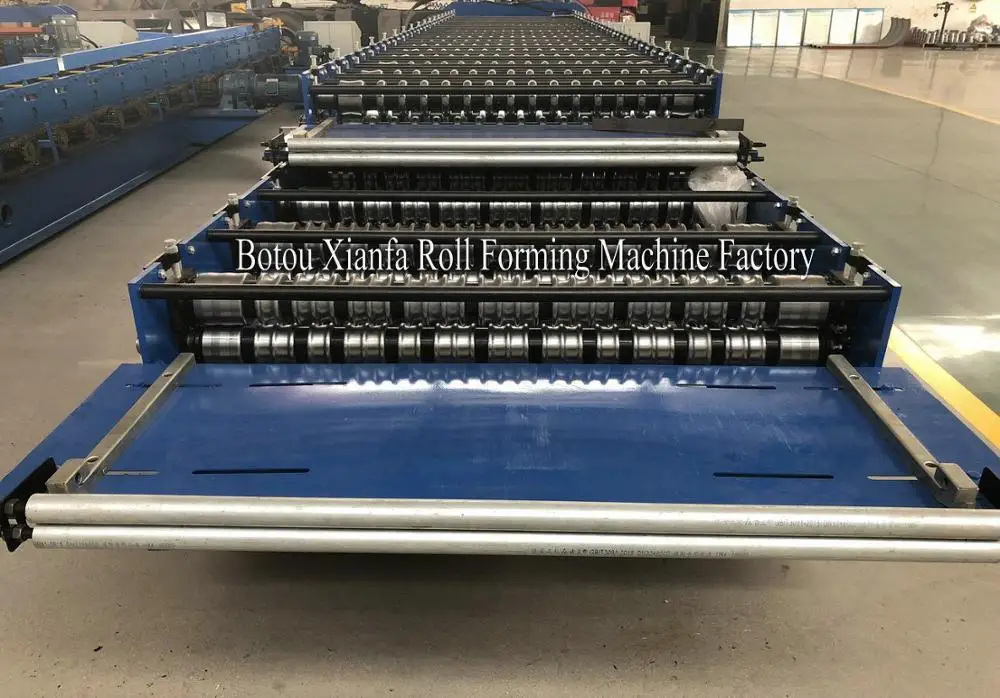

Double Deck Corrugation Roll Forming Machine For Roof Sheet
- Category: >>>
- Supplier: Botou Xianfa Roll Forming Machine Factory
Share on (60815978672):
Product Overview
Description
Botou Xianfa Roll Forming Machine Factory
Our factory is the professional manufactory of roll forming machine. The main products are trapezoidal sheet roll forming machine, corrugated sheet roll forming machine, glazed tile roll forming machine, double layer roll forming machine ......
We have passed European CE security certificate.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions’ customers.
We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request. We believe that our cooperation will create bright future.
1. Technical Parameter
No. | main parameter of roll forming machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 1219mm |
3 | Rollers | 18+18rows |
4 | Power | 4+4kw |
5 | Thickness of the plate | 0.3-0.6mm |
6 | Productivity | 0-15m/min |
7 | Diameter of the roller | Φ70mm |
8 | Voltage | 380V 50Hz 3phases |
9 | Material of the cutting plate | Cr12 |
10 | Hydraulic | 40# |
11 | Processing precision | Within 1.00mm |
2.The Producting Process Flow
3.Components
No |
| Technical Specification |

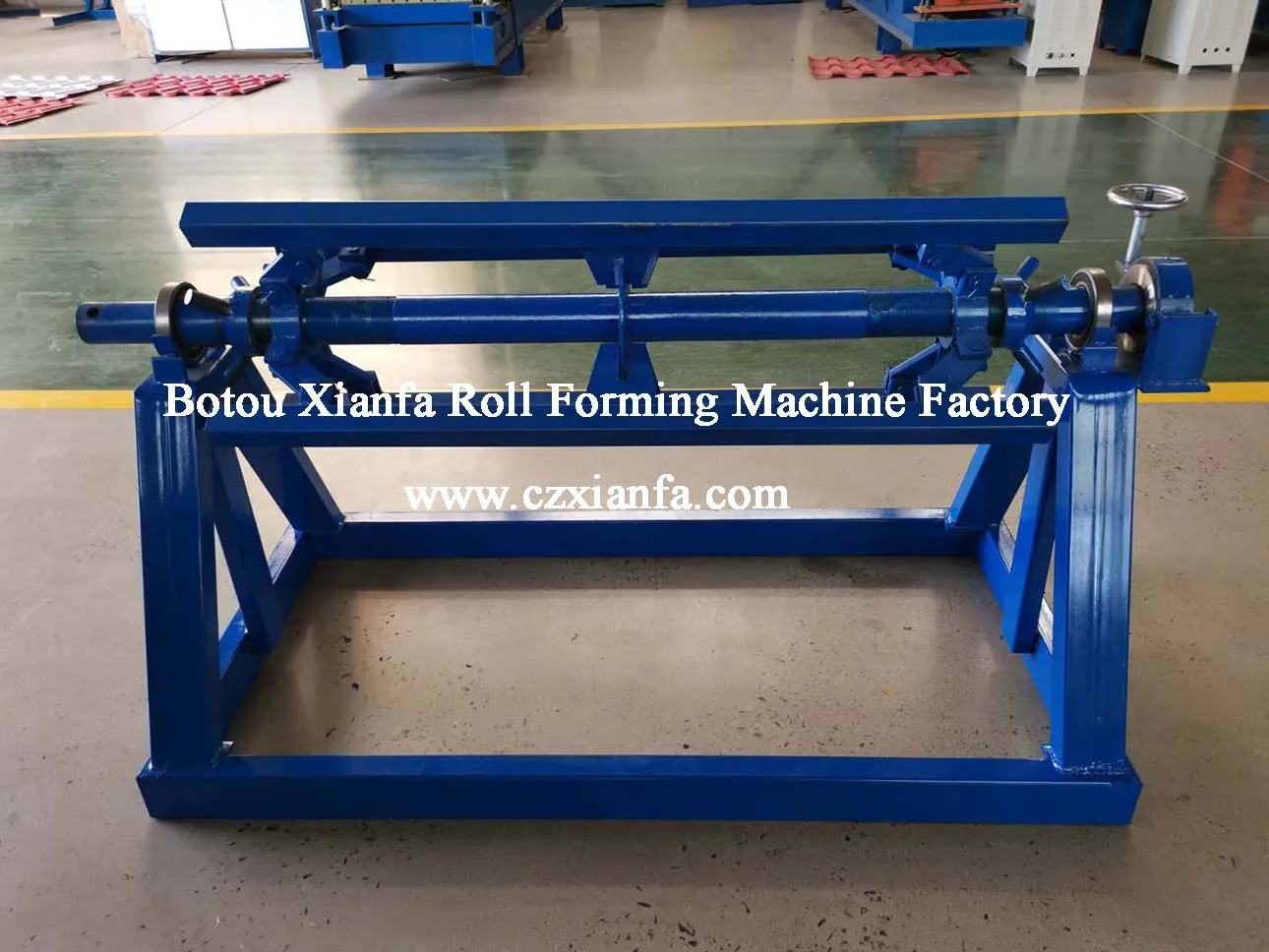

1 | Manual Uncoiler
| Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T Inner diameter: 500-508mm |

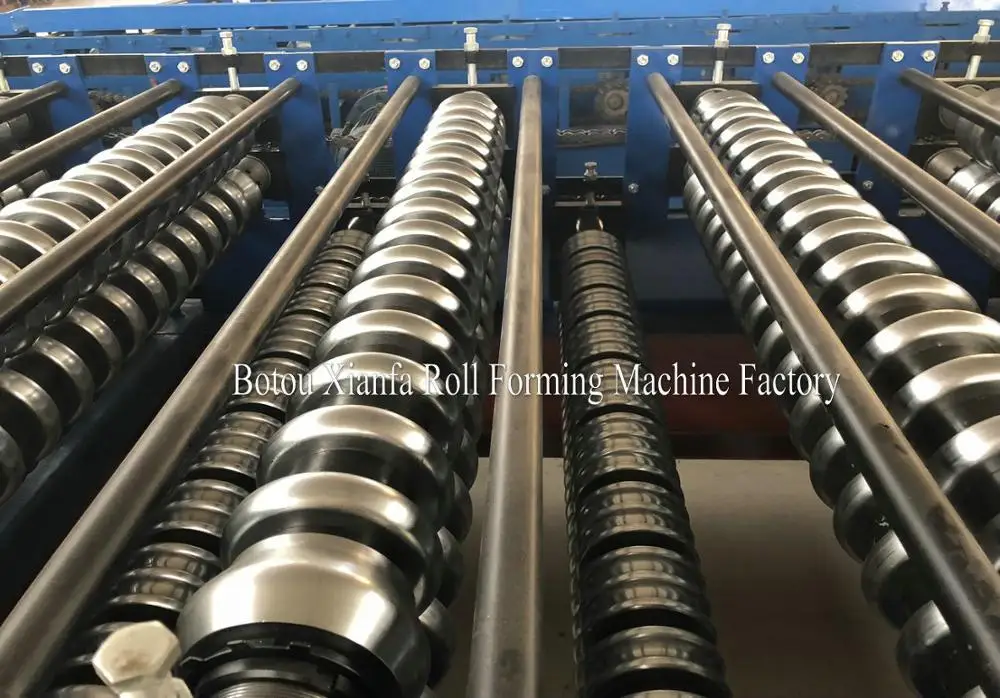

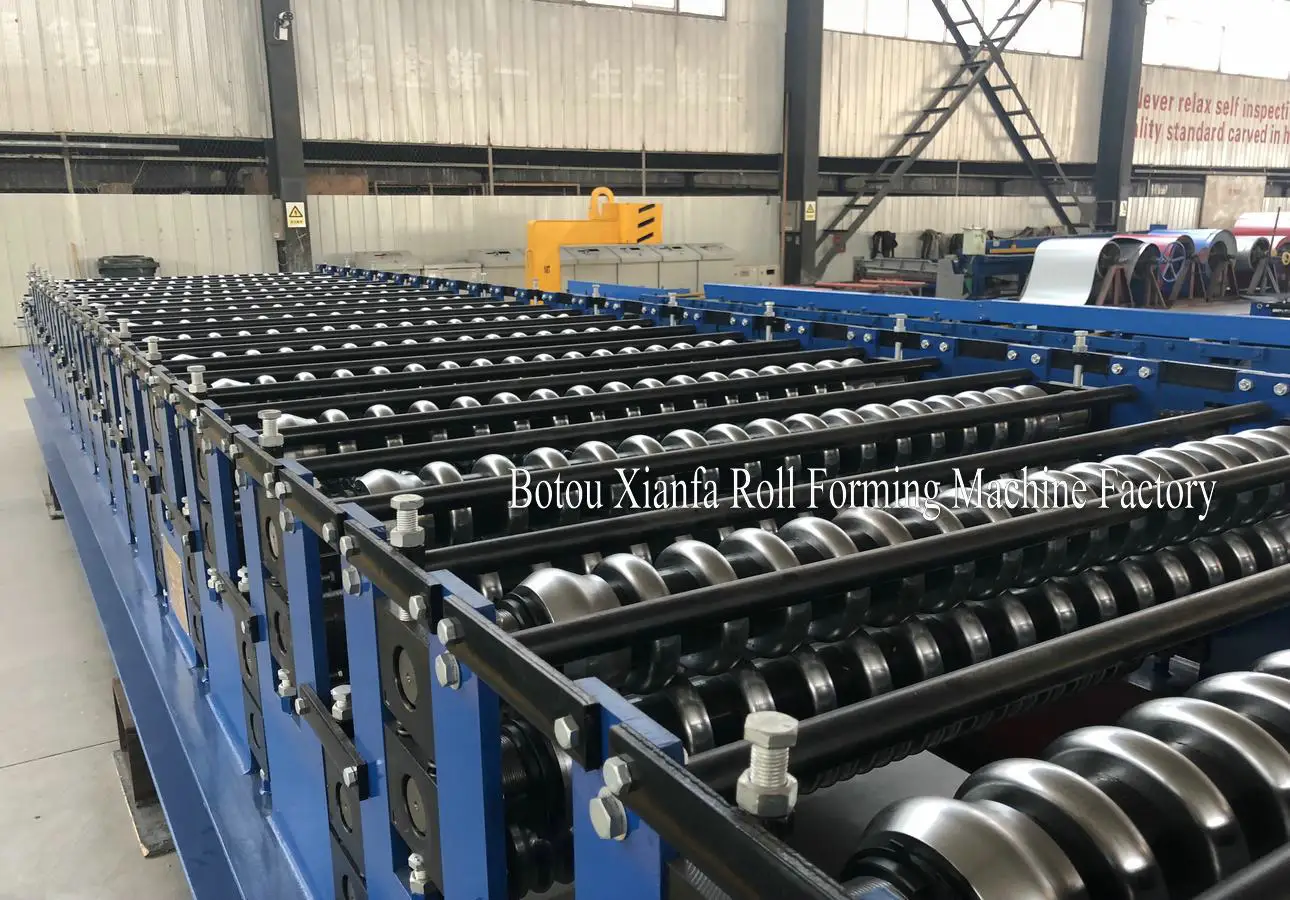

2 | Molding System
| Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
|

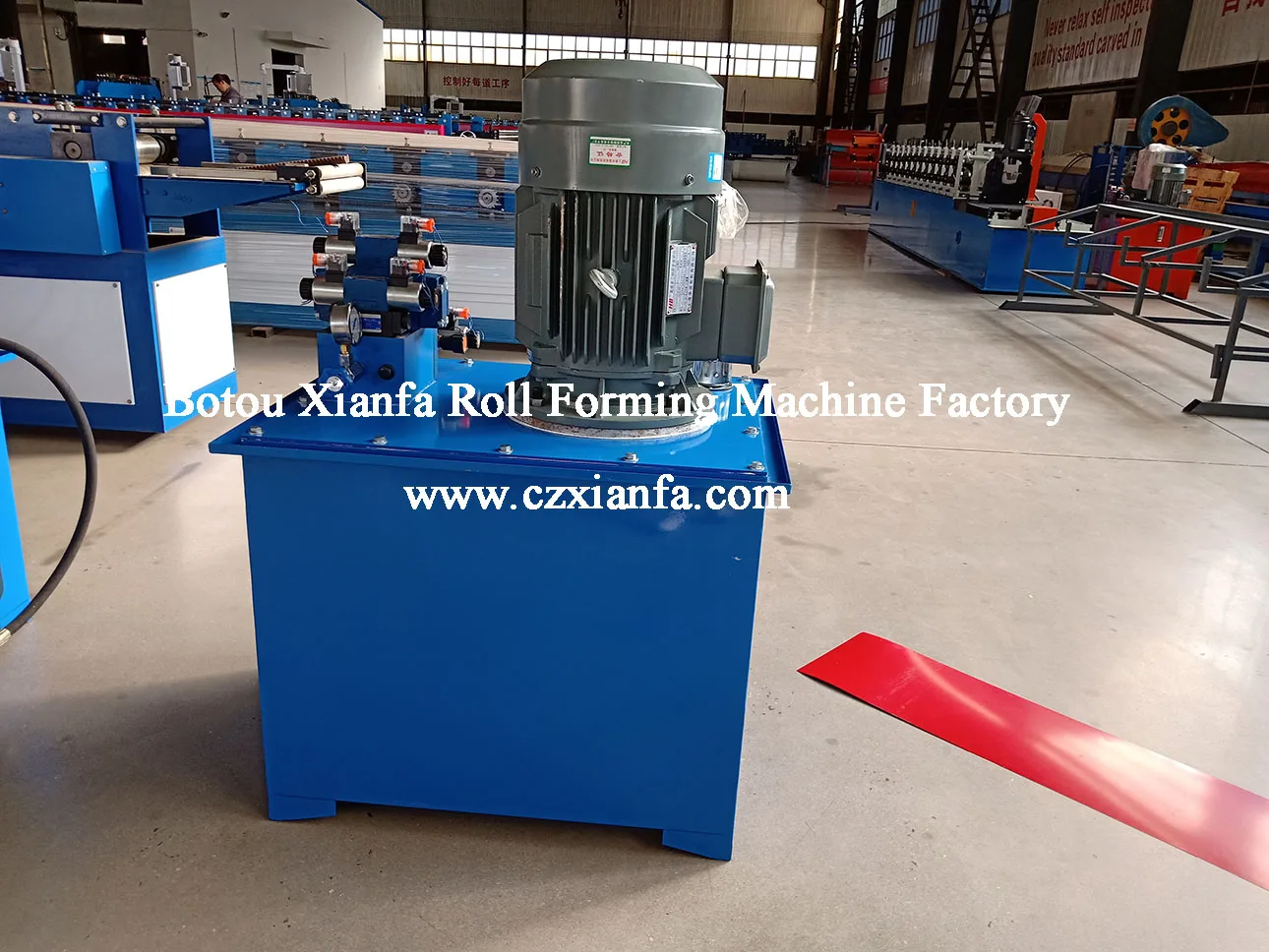

3 | Hydraulic System
|
Power:4kw,Hydraulic oil: 40# hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |

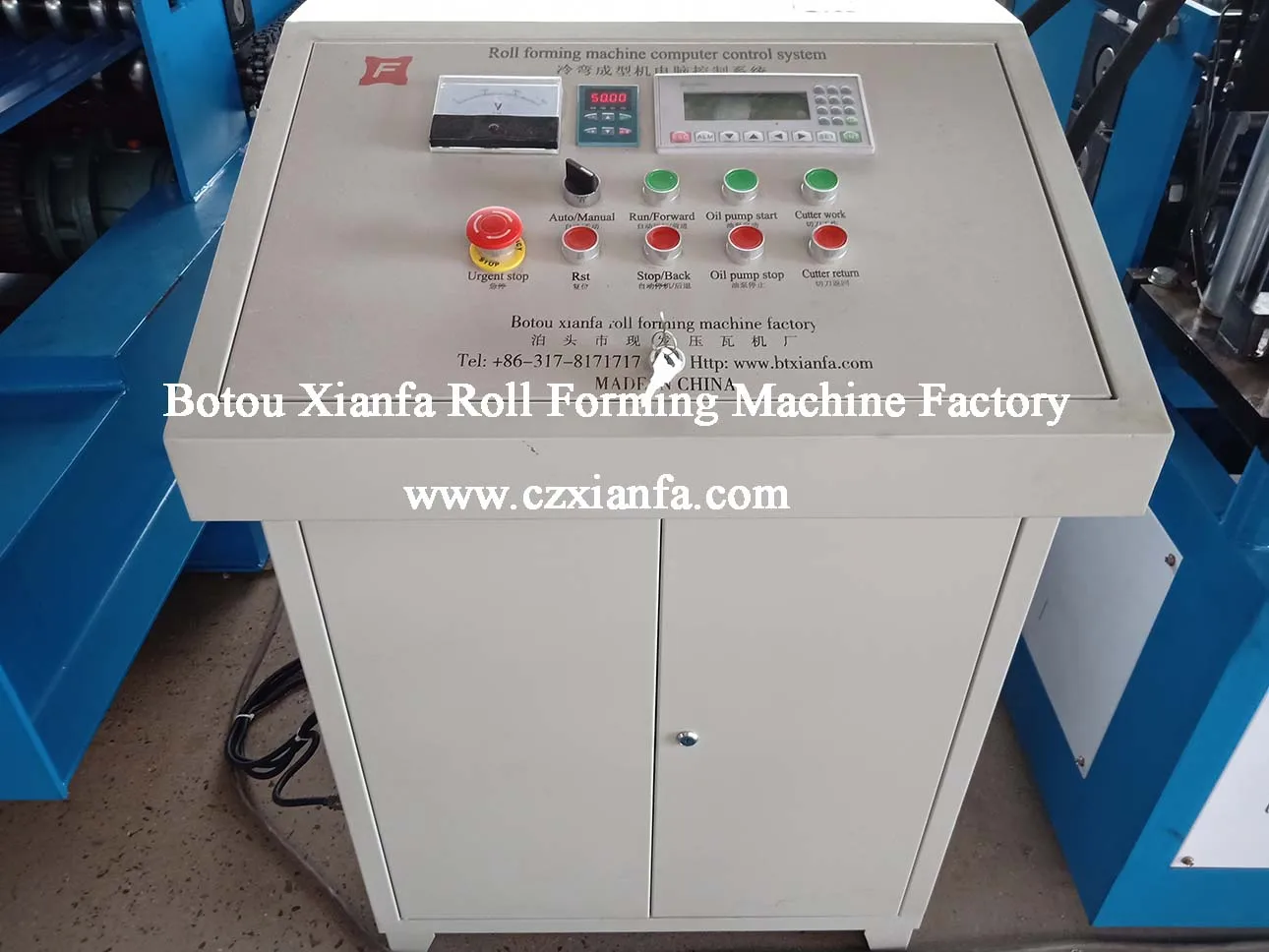

4 | Computer Control Cabinet
| The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use
|

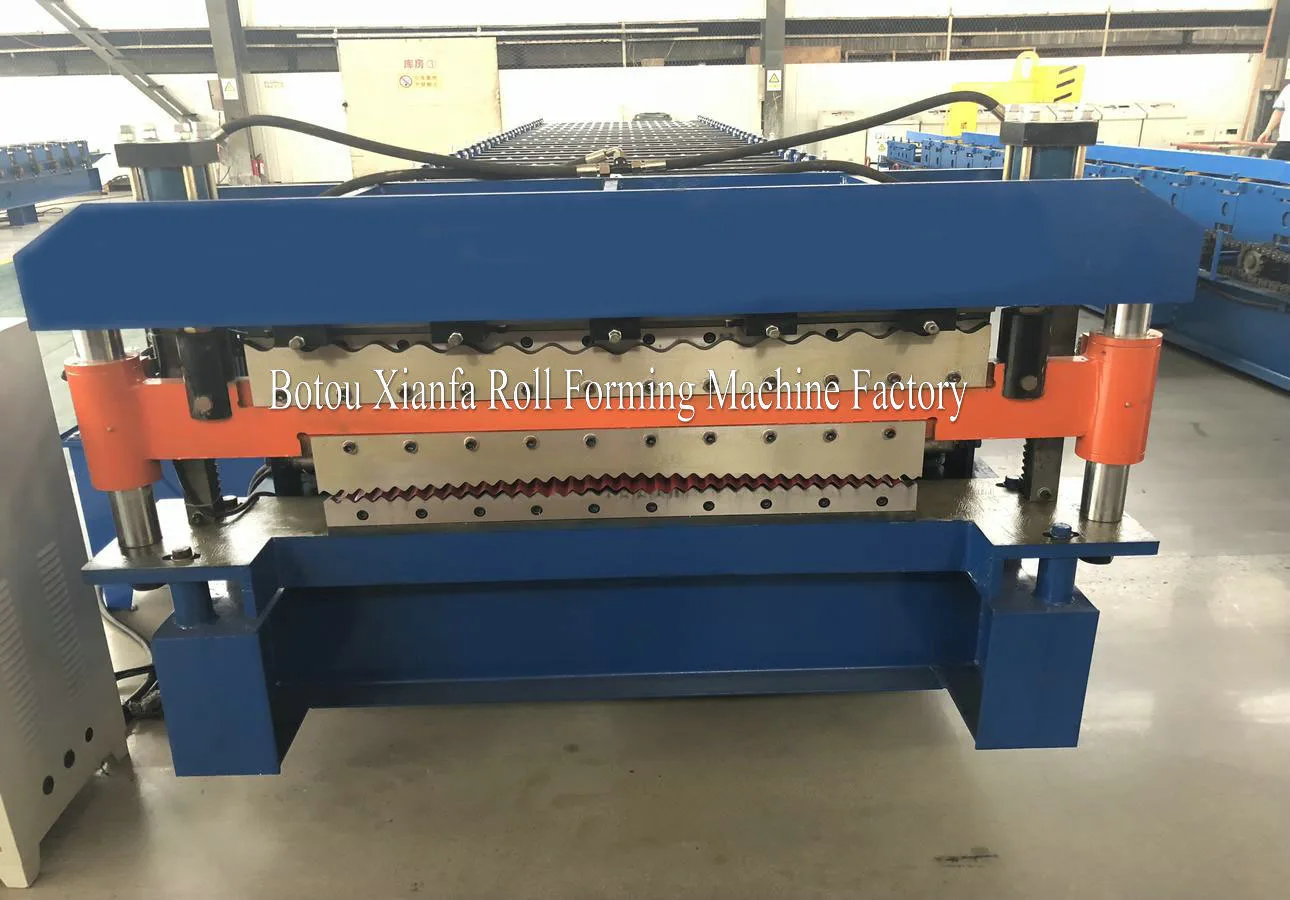

5 | Shearing Mechanism
| It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment |

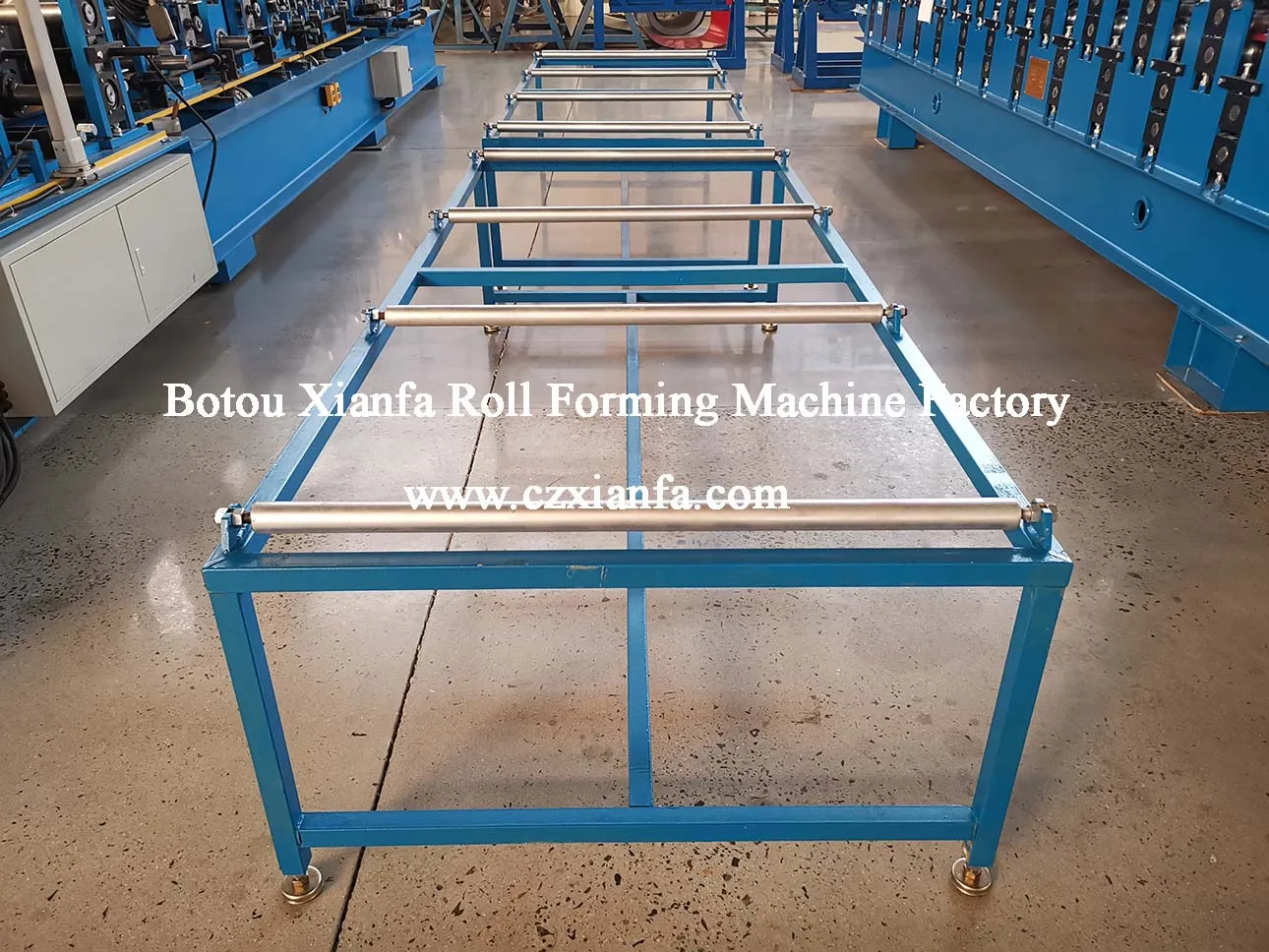

6 | Output table
| It adopts welded steel and supported roller to transmit the products, which is used to collect the finished products. |
4.Warehouse and Loading
1.We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2.Transportation : Machines need one 40 feet container to hold
3.Warranty : One year,and we will provide technical support for wholelife of the equipment.
If any question ,Pls contact us .
Thanks for attention our products.
