Firstrate FST100 2006A 24V EC Soil Electrical Conductivity RS485 Temperature Humidity Sensor
- Category: >>>
- Supplier: Hunan Firstrate Sensor Co. Ltd.
Share on (60816002557):
Product Overview
Description

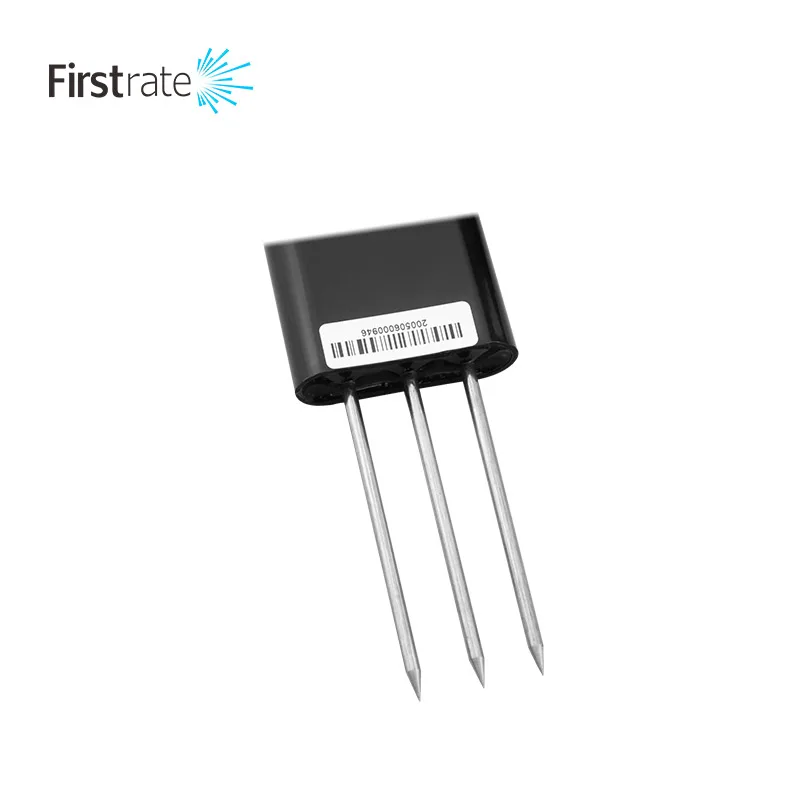

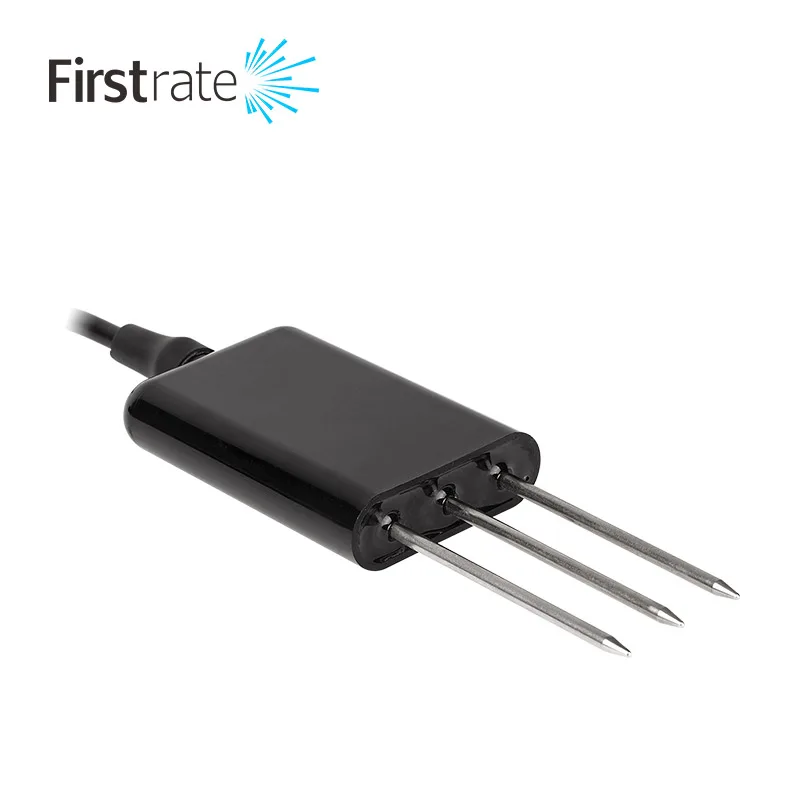

Firstrate FST100-2006A 24V EC Soil Electrical Conductivity RS485 Temperature Humidity Sensor
Product Description
| Product Introduction | |||||

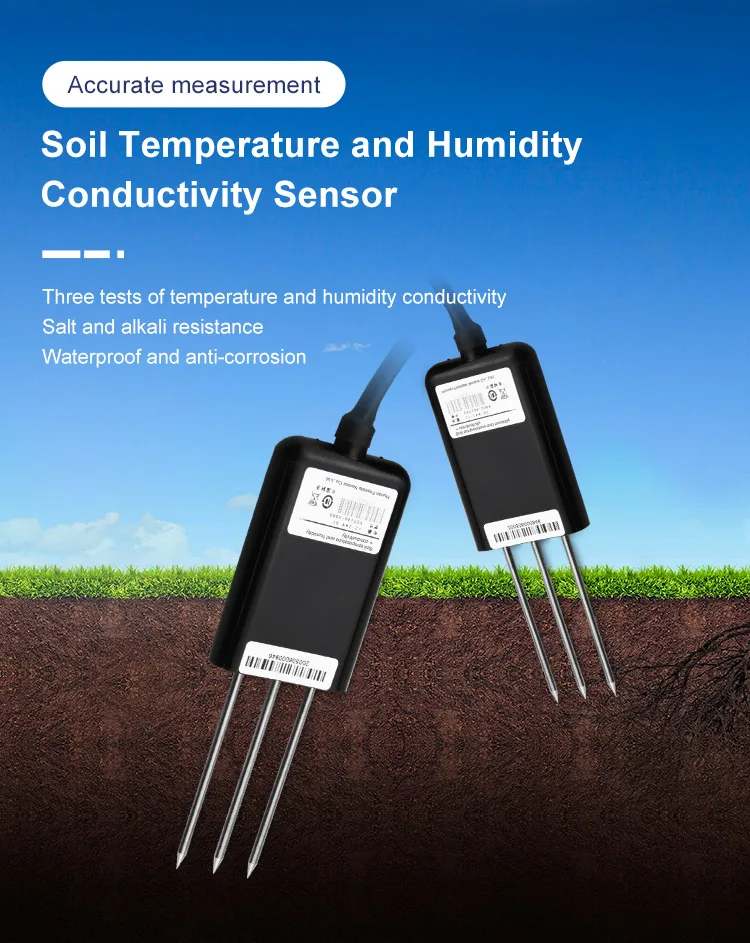

| FST100-2006A Soil temperature and humidity + conductivity sensor for water-saving agricultural irrigation, meteorological monitoring, environmental monitoring, measurement, greenhouse, flower and vegetable, grassland pasture, soil speed measurement, plant culture, scientific experiment, etc. The field of humidity and salt content. | |||||
| Product Features | |||||

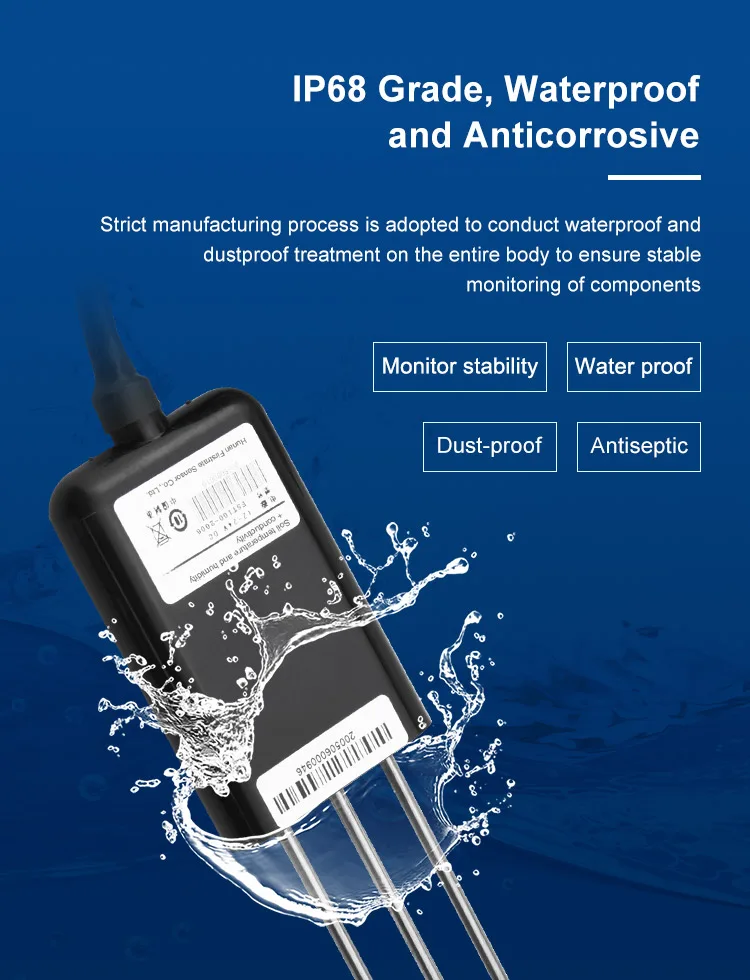

| ♦ Real-time temperature and humidity salt monitoring function to measure the temperature and salt content of soils at different depths ♦ Good sealing, can be directly buried in the soil, and is not corroded ♦ High measurement accuracy, reliable performance, fast response, high data transmission efficiency ♦ Less affected by soil and widely used | |||||
 | |||||
| Product Specification (Technical Parameters) | |||||
| Measurement range | -40~80°C | ||||
| Units of measurement | °C;%( m3/m3);mS/cm | ||||
| Temperature range | -30 ~ 70 ° C (can be customized 0 ~ 50 ° C or any other range) | ||||
| Water component | 0~100% (can choose 30%, 50% equal range or customize any range) | ||||
| Salt component | 0~20 mS/cm (can be customized 0~5mS/cm, 0~10mS/cm, etc.) | ||||
| Accuracy | ±0.2°C; ±2% (m3/m3) in the range of 0 to 50% (m3/m3); ±2% | ||||
| Resolution | 0.1 ° C; 0.1%, 0.001 mS / cm (1 μS / cm) | ||||
| Output signal | Rs485 (standard Modbus-RTU protocol, device default address: 01) | ||||
| Supply voltage | 6~24V DC | ||||
| Electrical connections | Direct lead | ||||

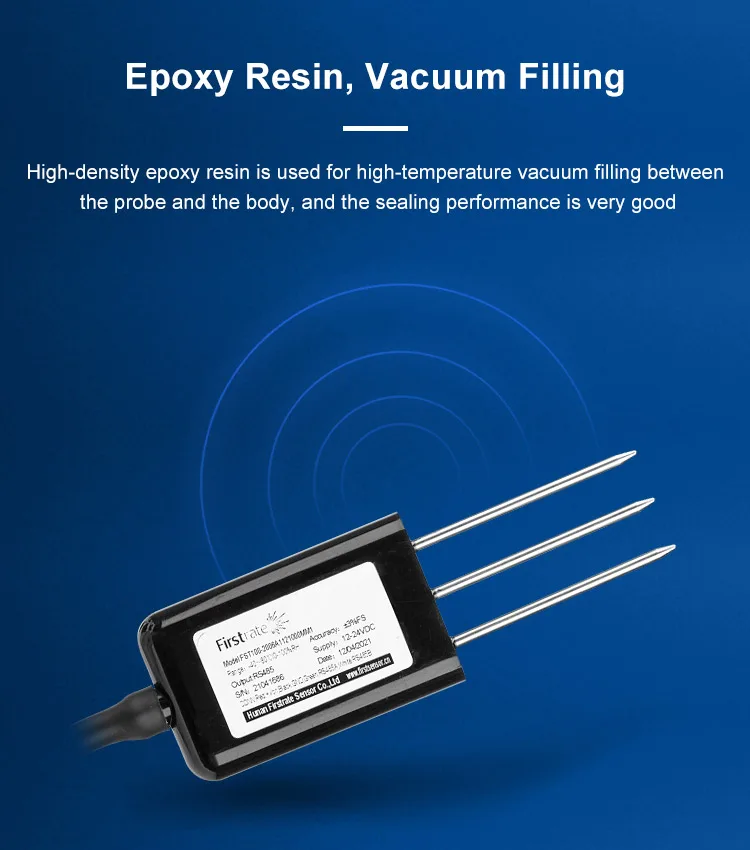

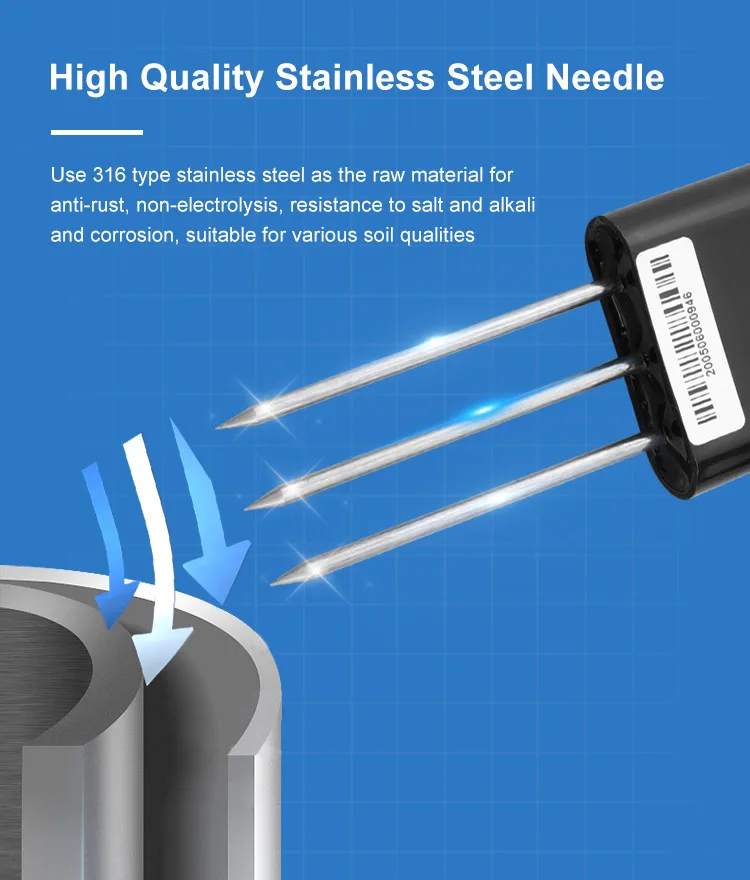

| Sealing material | ABS engineering plastic, epoxy resin | ||||
| Probe length | 55mm | ||||
| Probe diameter | 3mm | ||||
Product Detail Show
Relative Products
 |  |  |

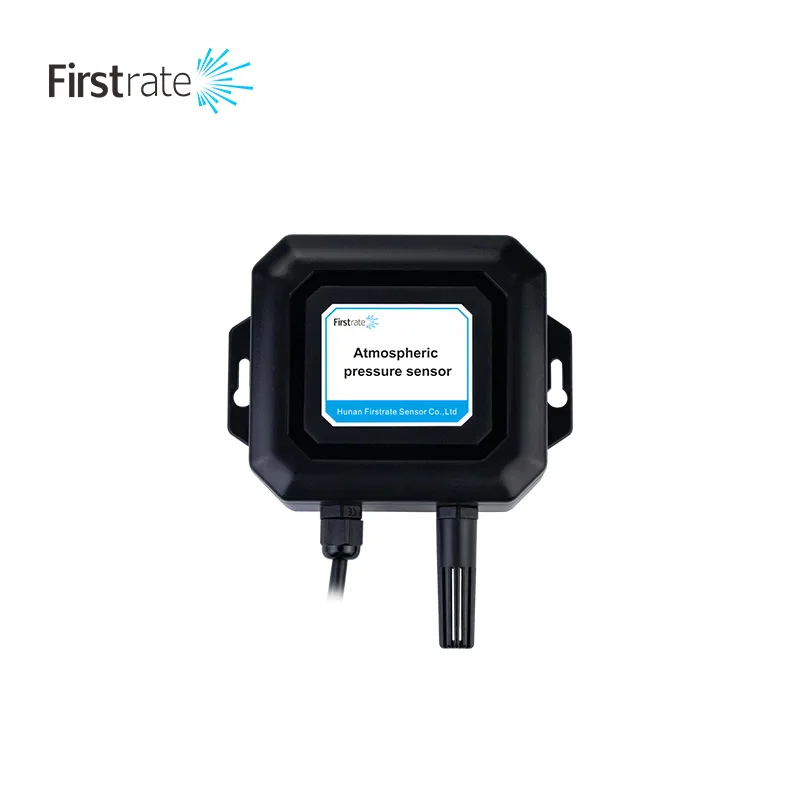

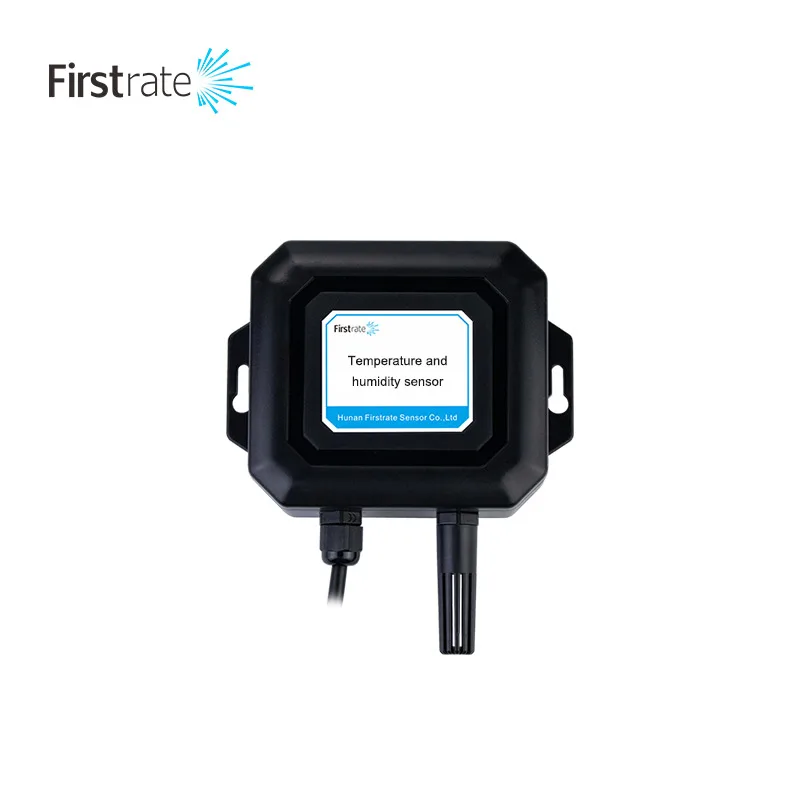

| Temperature and Humidity Sensor FST100-2001 | Atmospheric Pressure Transmitter FST100-2002 | Carbon Dioxide Sensor FST100-2004 |
MORE PRODUCTS »»» WELCOME HERE
Company Information
Packaging & Shipping
FAQ
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
