How to make fiber for making mattress pulp and papers empty fruit bunches long fiber crusher

Product Overview

Description

How to make fiber for making mattress pulp and papers -- empty fruit bunches long fiber crusher

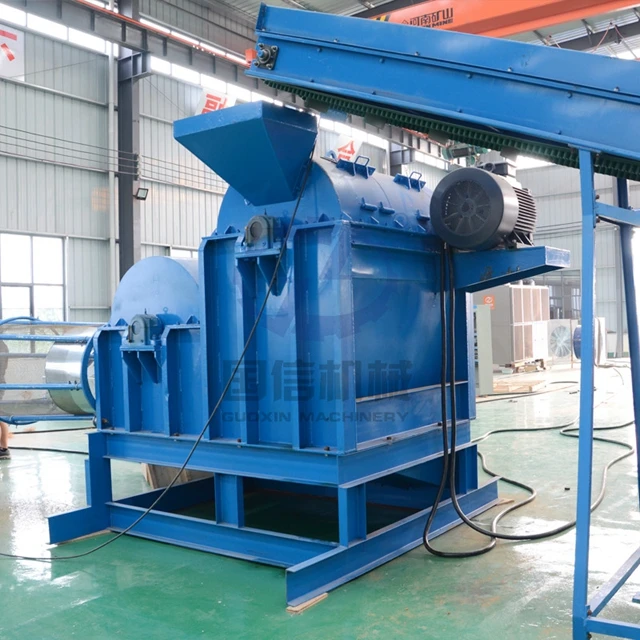

Description of low price double drum long fiber crusher:

low price double drum long fiber crusher have single drum and double drum type ,single drum

crusher is suitable for oil palm. The long fiber crusher is suitable for  coconut shell.

because coconut shell is little hard.

Purpose: Seperate coconut fiber and coconut peat. Fiber used for mattress and coconut peat used for fertilizer.





Technical parameters of low price double drum long fiber crusher:



Single drum long fiber crusher

Model	Power	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JPD-II	45	400	2100	2000×1500×1600
JPD-III	55	500	2500	2200×1700×1700
JPD-XI	75	600-700	3100	2500×2000×1900
JPD-XII	95	800-900	3500	2700×2100×1900
JPD-XY	110	1200-1500	4200	3100×2200×2000

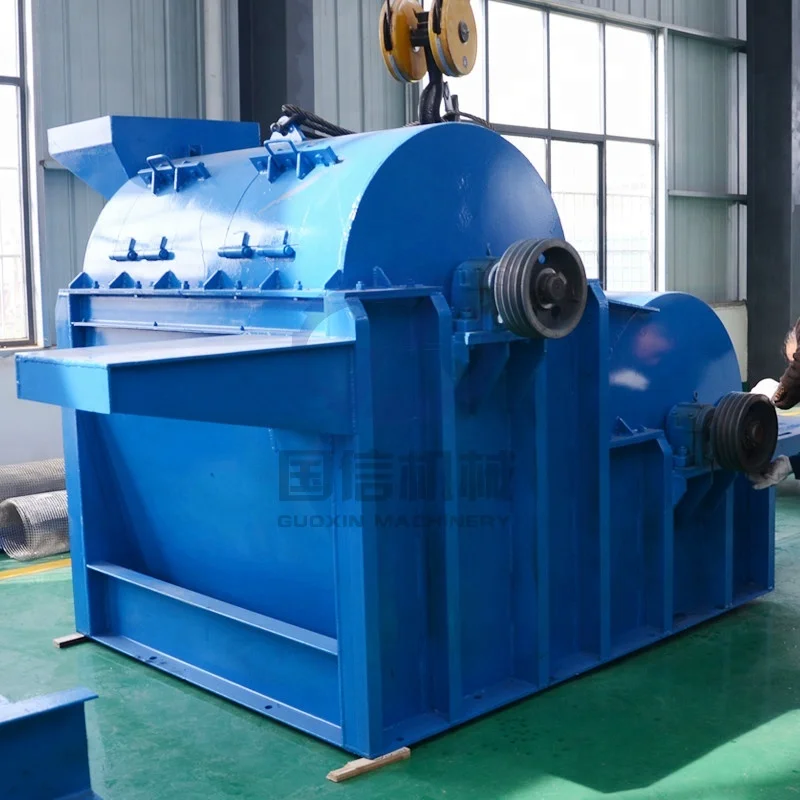

Double drum long fiber crusher

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Dimension(mm)
JZD-I	37+55	500	3400	3410×2300×1720
JZD-II	55+75	600-700	4100	4800×2250×1800
JZD-III	75+95	900-1000	4800	5750×2400×1900
JZD-XI	95+110	1500-1800	5100	6100×2600×2100

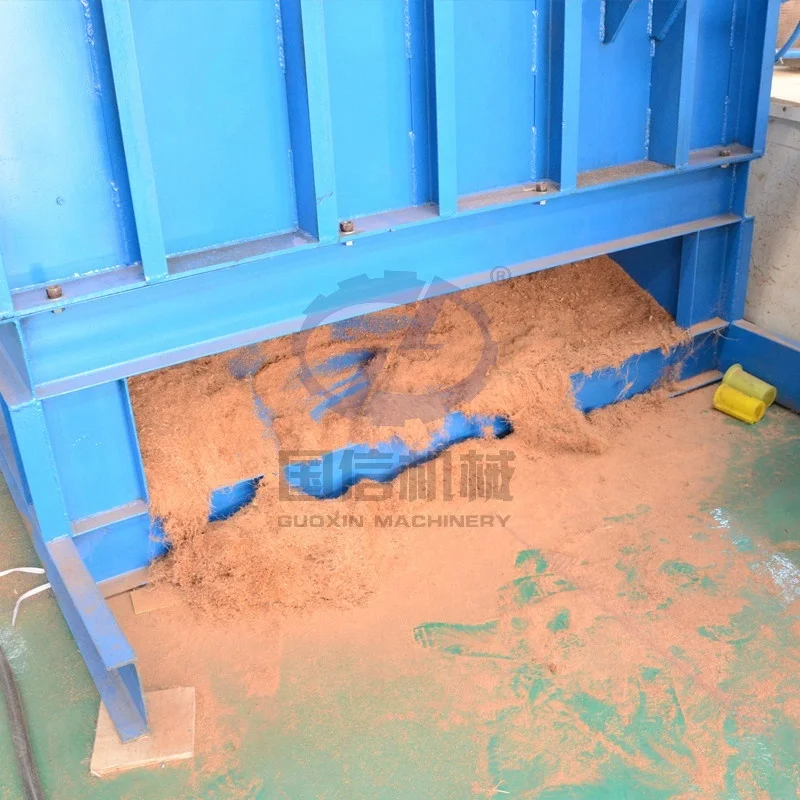

long fiber crusher --break the coconut shell ,extract the fiber

Rotary screen --seperate coconut fiber and coconut coir











After extracting low price double drum long fiber crusher:





The whole processing line about coconut shell:

1.Double drum long fiber crusher

Mainly seperate coconut fiber and coconut peat.

2.Screen

The fiber blowing to screen and through screen forward to discharge port, it can collect pure fiber.

3.Baling macine

The coconut fiber can make bale and loading into container.

4.Coconut peat washing machine.

Reduce salt and EC inside.

5.Dewater machine.

Reduce moisture inside coconut peat around 50-60%

6.Coconut peat drying machine.

Using hot air dry coconut peat and get final product with moisture 12-15%.

7.Coconut peat block making machine.

The block weight is 5kg , can be customized .



coconut husk processing line delivery

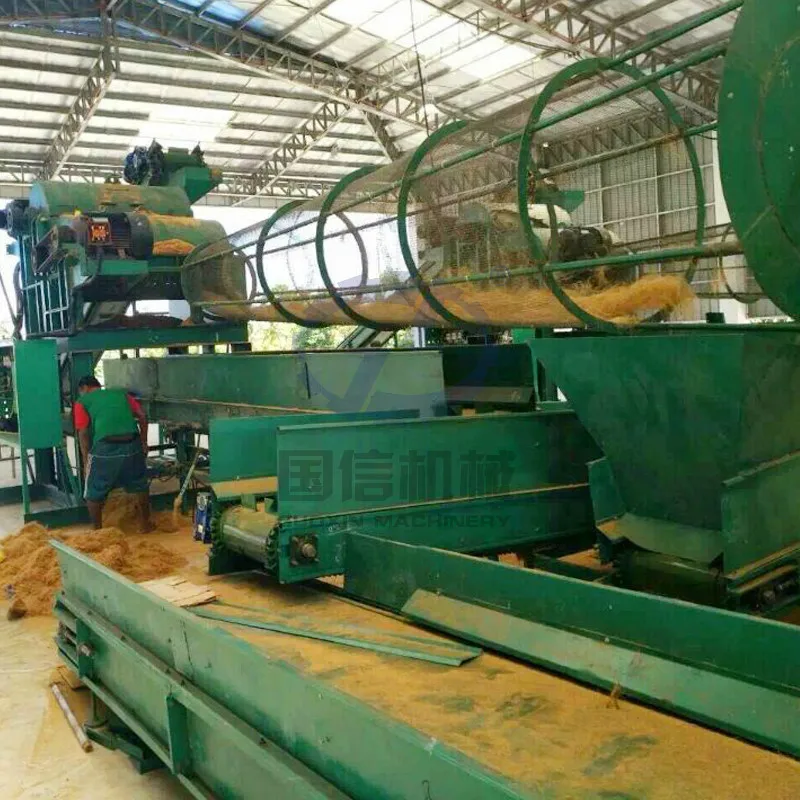

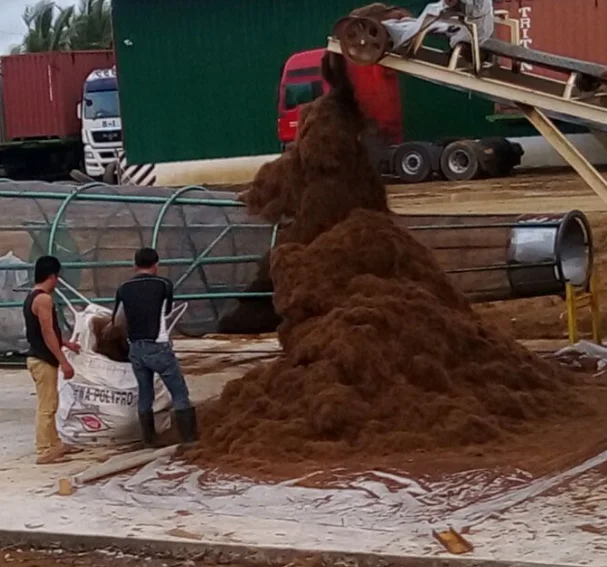

Working site of low price double drum long fiber crusher



The customers visit our factory :

Customer from Philippine visist our factory ,ordering palm fiber extracting machine, palm fiber baling machine.

Customer from Burma order coconut fiber extracting machine ,rotary screen, rotary dryer .
