Product Overview
Description

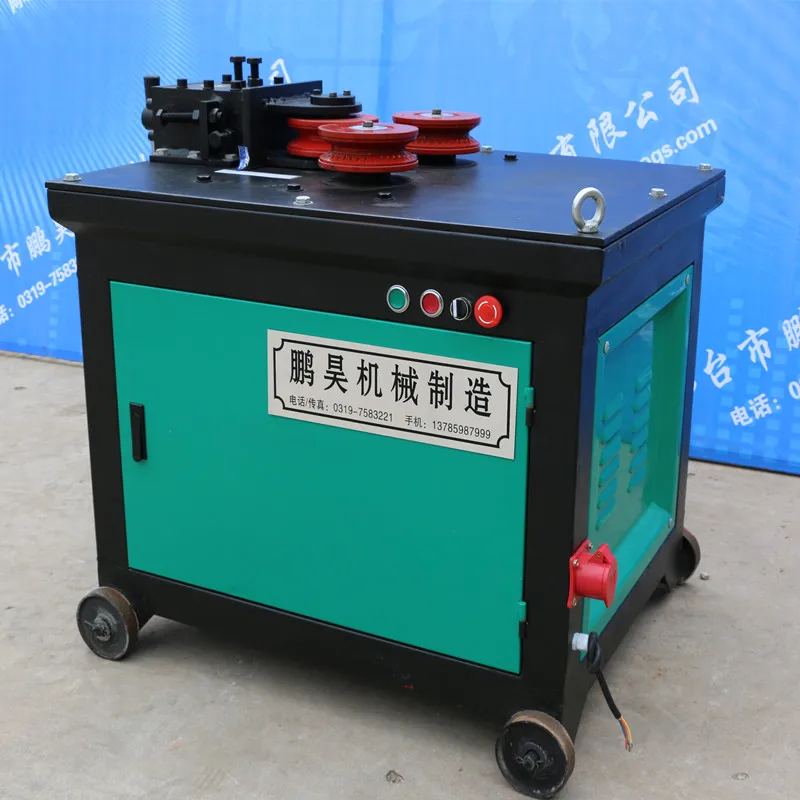

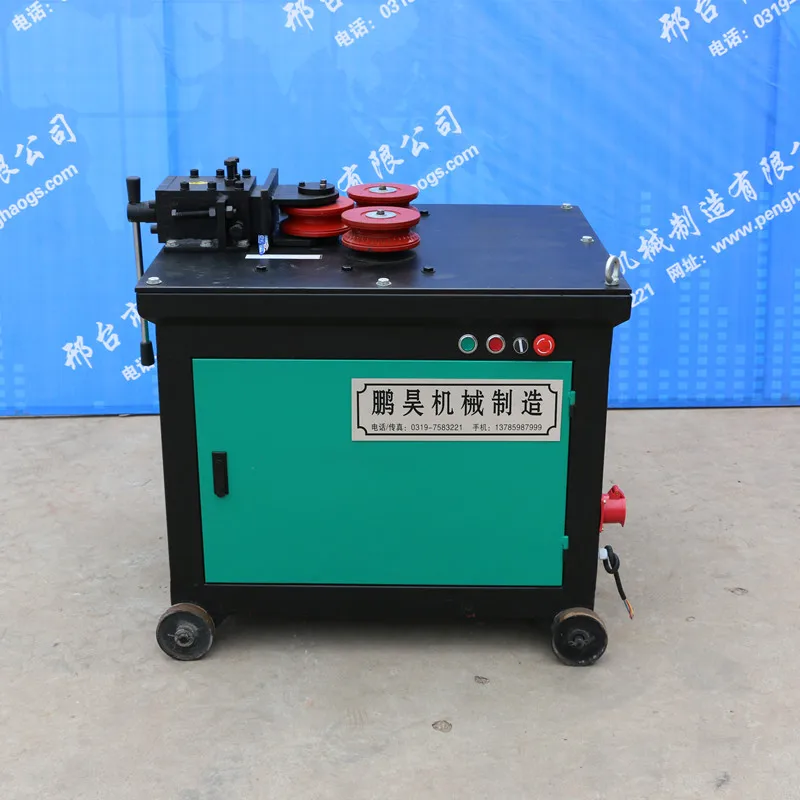

Steel bar spiral bender for 12-32mm
GWH-32 semi-automatic bending machine is a kind of bending machine used in Engineering.The process of the machine is simplified,it is easy to use .Bending angle and size can be arbitrarily adjusted.GWH-32 can process 12-32mm round steel bars into any shapes.
Arc bending machine technical parameters
| Model | GWH-32 | GWH-40 | GWH-45 |
| Bending rebar diameter (mm) | 18-32mm | 25-40mm | 25-45mm |
| Bending radius | ≥400mm | ≥600mm | ≥900mm |
| Bending speed (m/min) | 20 | 20 | 20 |
| Motor model | Y112M-4 | Y112M-4 | Y112M-4 |
| Power | 4kw | 4kw | 4kw |
| Spindle speed (r/min) | 1440 | 1440 | 1440 |
| Voltage | 380 | 380 | 380 |
| Size | 910*730*800mm | 1100*900*880mm | 1100*900*880mm |
| Weight | 320kg | 500kg | 550kg |
