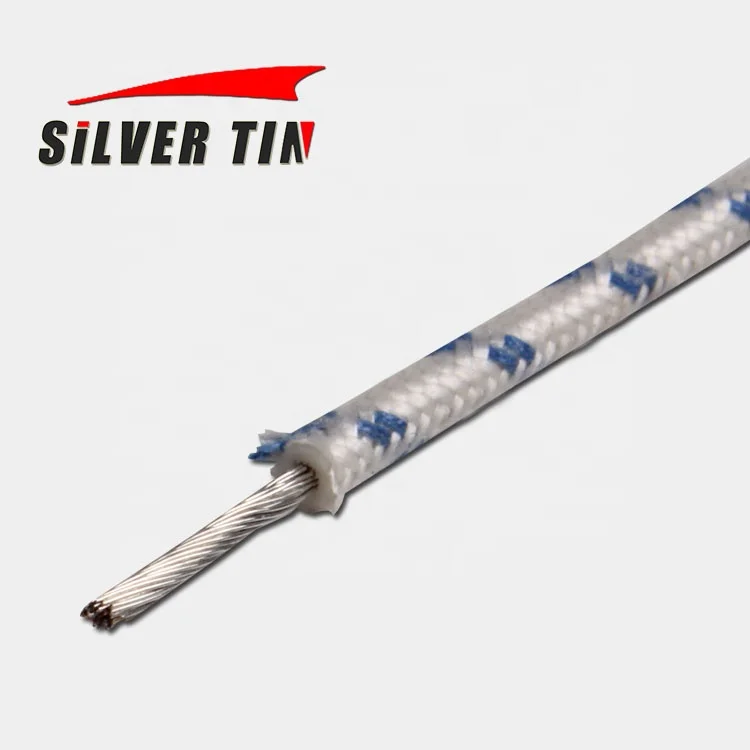

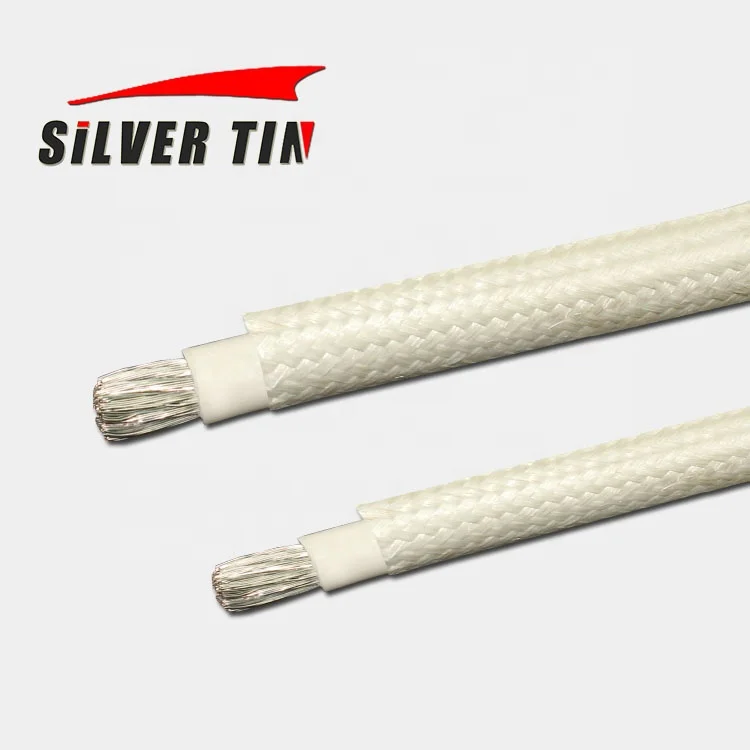

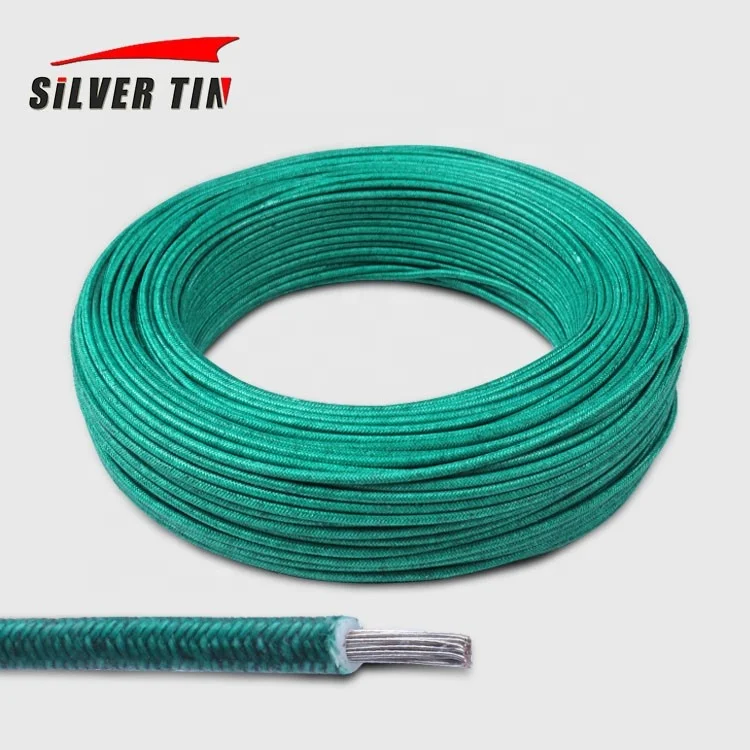

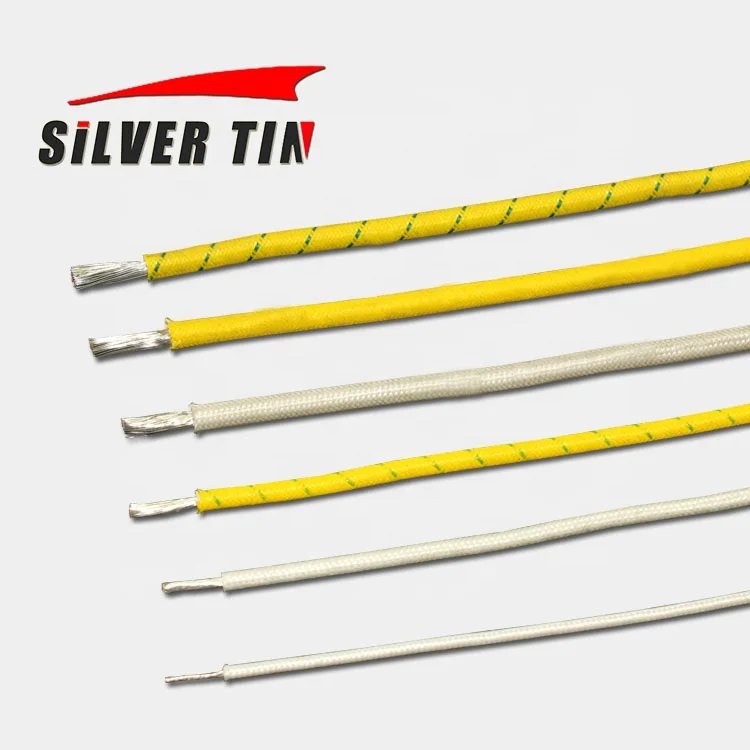

HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire
HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire

HIgh Temperature Fiberglass Insulated Heat Resistant Electric Wire

Share on (60816048482):


Price:

Quantity:


Product Overview

Description


Product Description

Temperature Fiberglass Insulated Heat Resistant Electric Wire

Application

Heat resistant silicone rubber cable is widely used as connecting wire of movable equipment in power generation, metallurgy, chemical industry, port, mining etc. It can also be used in fixed power transmission lines of rated voltage 600/1000V and below

Product Description

1) Conductor: class 5 copper, tinned or plain

2) Sectional area: 4-95mm2

3) Insulation: silicone rubber

4) No. of cores: 2, 3, 4, 5, 3+1, 3+2, 4+1

5) Screen: braided copper wire

6) Armor: steel tape

7) Sheath: silicone rubber or pvc elastomer

8) Min. beding radius: 10 times cable radius for unarmored cable and 12 times for armored

9) Working temperature: 180 °c

10) Max. conductor DC resistance at 20°c:

\t
Sectional area (mm2)
\t
4
\t
6
\t
10
\t
16
\t
25
\t
35
\t
50
\t
70
\t
95
\t
Tinned copper (Ω/km)
\t
5.09
\t
3.39
\t
1.95
\t
1.24
\t
0.795
\t
0.565
\t
0.393
\t
0.277
\t
0.21
\t
Plain copper (Ω/km)
\t
4.95
\t
3.30
\t
1.91
\t
1.21
\t
0.78
\t
0.554
\t
0.386
\t
0.272
\t
0.206

Product Models

\t
Code
\t
Description
\t
DHTGGR
\t
Copper conductor silicone rubber insulated and sheathed power cable
\t
DHTGGRx
\t
Tinned copper conductor silicone rubber insulated and sheathed power cable
\t
DHTGVtR
\t
Copper conductor silicone rubber insulated PVC elastomer sheathed power cable
\t
DHTGVtRx
\t
Tinned copper conductor silicone rubber insulated PVC elastomer sheathed power cable
\t
DHTGGRP
\t
Copper conductor silicone rubber insulated and sheathed screened power cable
\t
DHTGVtR22
\t
Copper conductor silicone rubber insulated steel tape armored PVC elastomer sheathed power cable

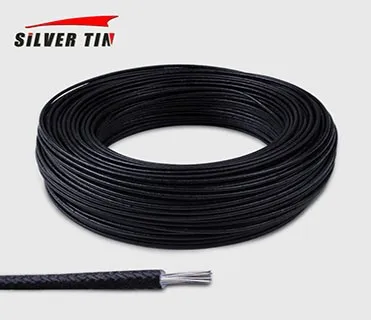

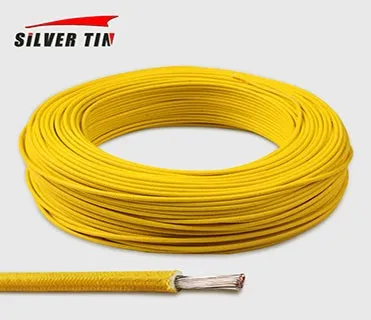

Detailed Images
Packing Details
Our Service
Our Company

Shanghai Silver tin Temperature Measuring Equipment Co., Ltd. is a high-tech enterprise specializing in the R&D and manufacture of electric heating technology. It has introduced European advanced production technology and equipment, also research and develop heating cables and related accessory products for building comfort heating, pipe insulation and antifreeze, outdoor snow melting and ice melting.The company owns a production base company and a sales company with strong strength, complete production equipment and perfect testing methods.

''Quality first and user uppermost" is our principle. We always strive for best quality and after-sales services to satisfy customers' demands.
