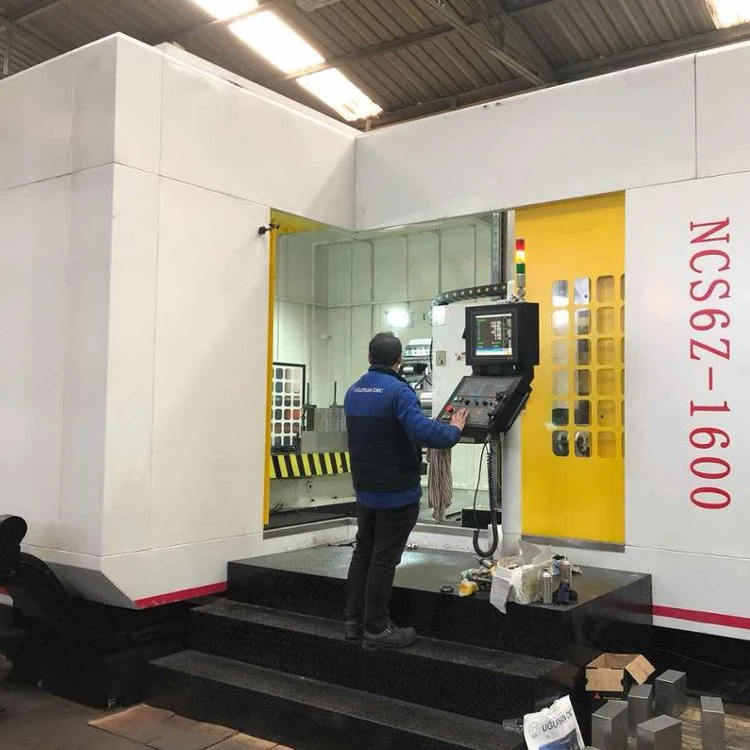

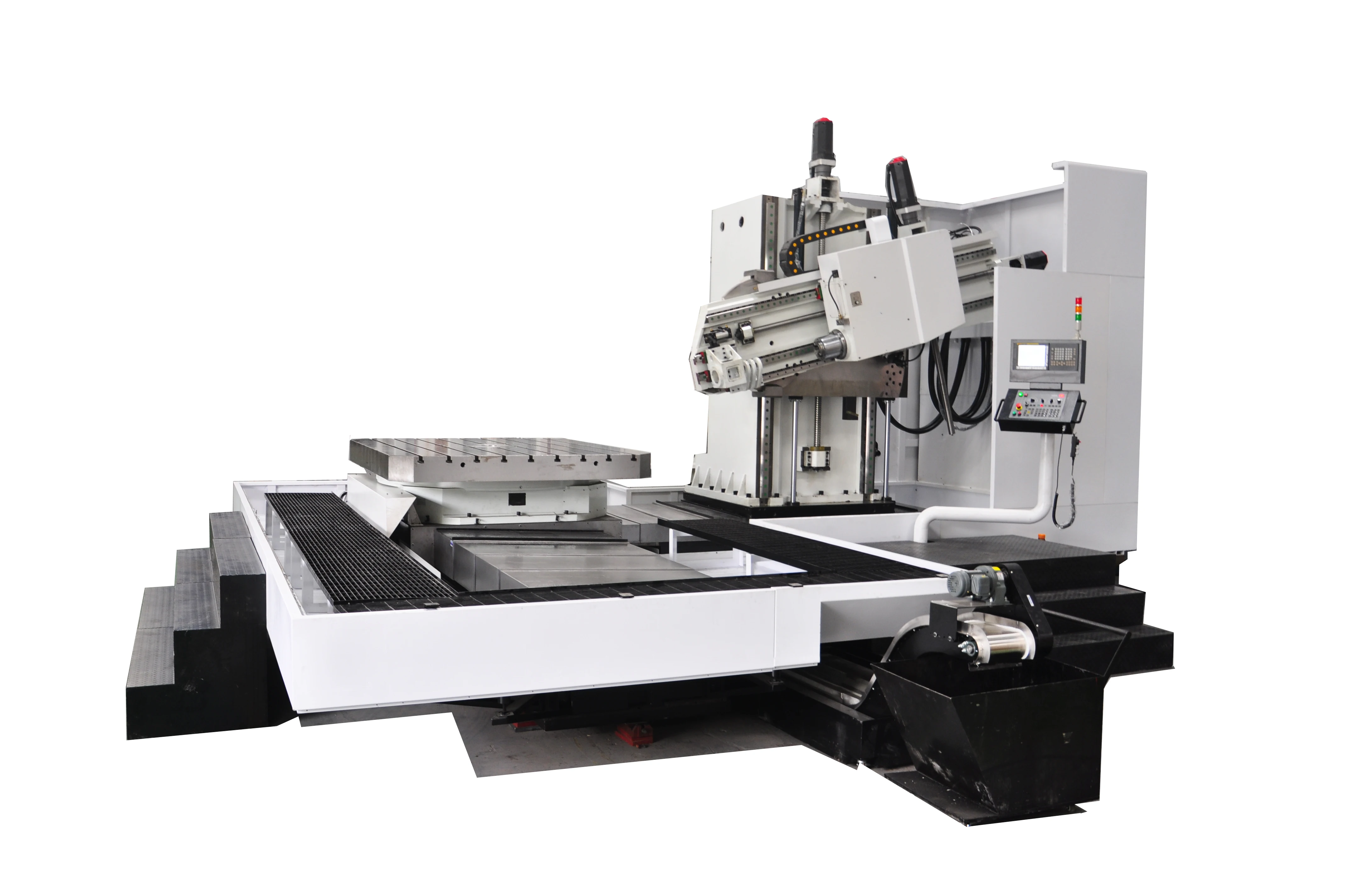

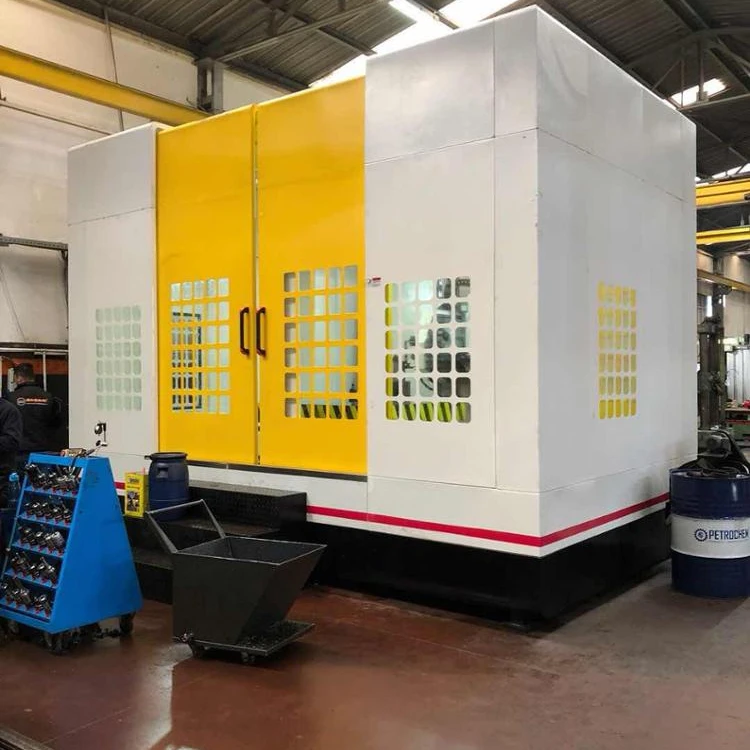

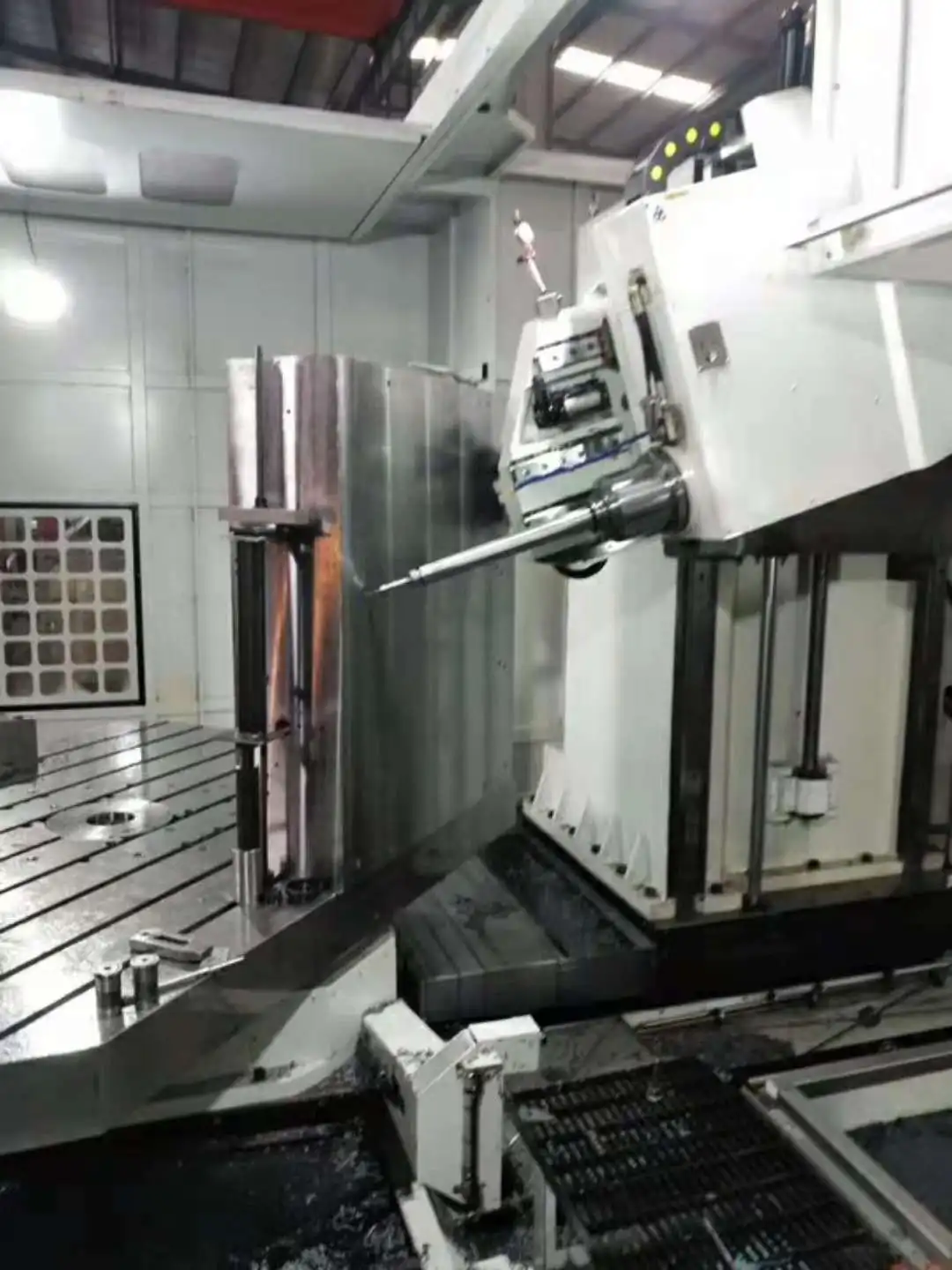

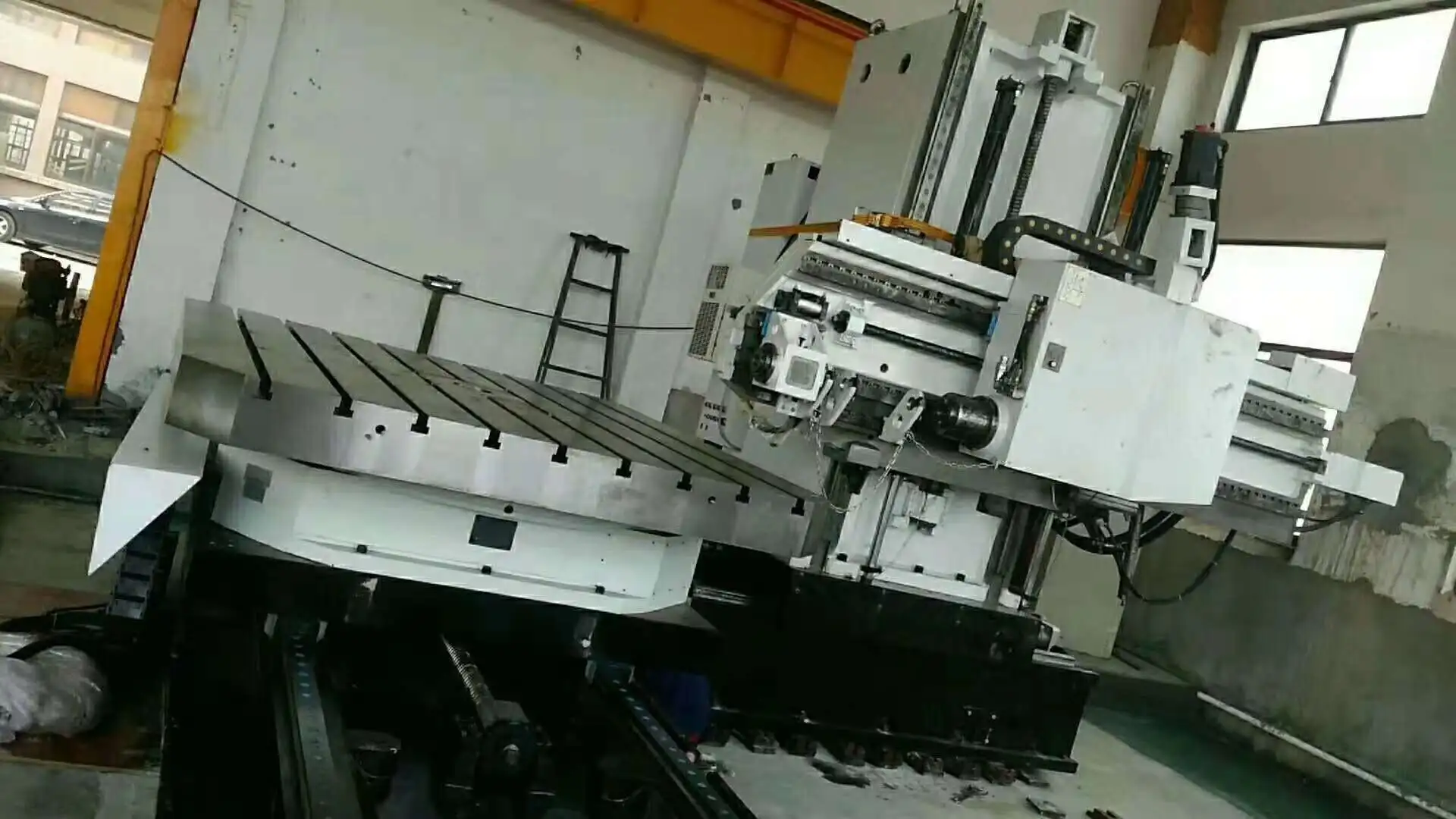

NCS6Z series 6 shafts multiple-functional numerical drilling and milling machine integrating milling and deep-hole processing and makes it possible to achieve multiple surfaces and working procedures at one-time clamping. Application field: Used in mold and mechanical manufacturing Industry for milling of complex parts and deep-hole processing. Main characteristics: 1.High precisionrotation of main shaft (shaft A)up 15 degrees and down 25 degrees. 2.The main shaft features powerful milling function (cutter disc may be installed) 3.Equipped with spray and absorb drill to achieve high efficiency and high precision,high fineness large -hole procissing. The fineness can reach 0.4~0.8. 4.The main body of machine tool is made of cast iron parts and has high strength and rigidity, providing effective guarantee for stable operation of machine tool.
Project NCS6Z2215-1600
X-axis(travel of work bench)(mm) : 2200 Y-axis(travel of sliding plate)(mm): 1600 W-axis(travel of vertical pillar)(mm): 800 A axis(rotation of squar guide way)(degree) The main shaft head up 15 degrees and down 25 degrees Maximum drill depth of gun drill(mm) :1600
milling diameter of gun drill(mm): Φ3-35 Φ18-65 Size of rotating table(mm): 2000Χ1600 Load-bearing of work bench(T) :20 Taper of main shaft end : BT50 External size of machine tool (mm): 8440Χ7350Χ4800 Total weight of machine tool(T) :35
