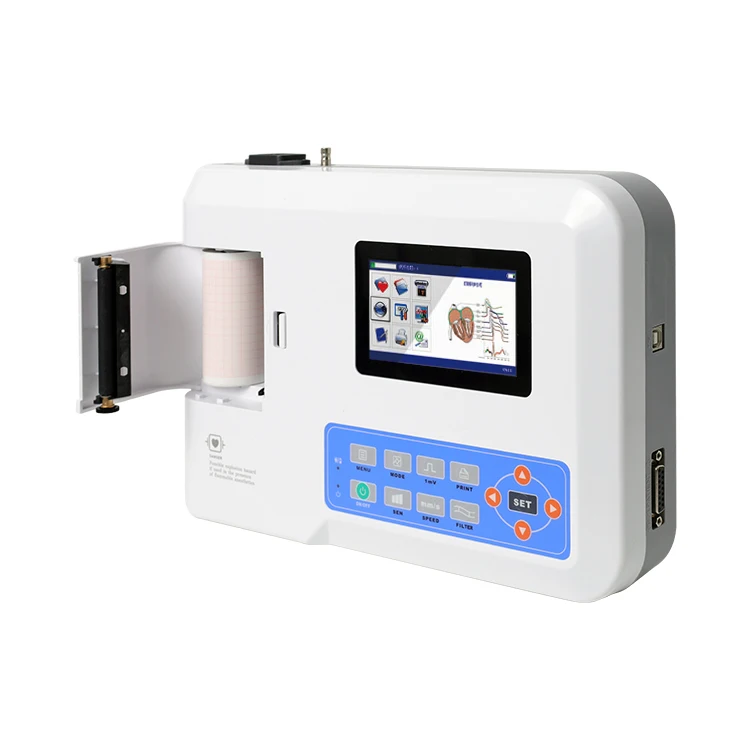

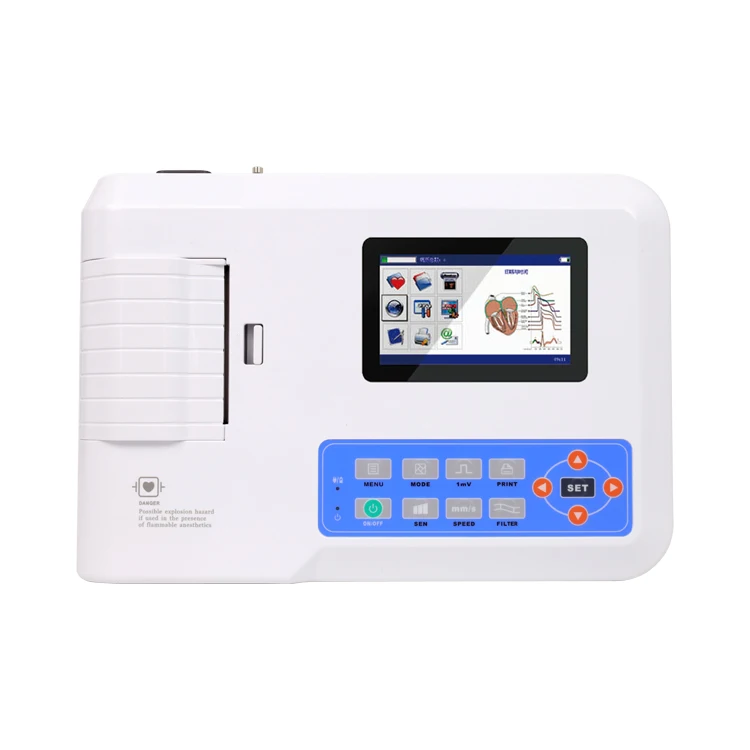

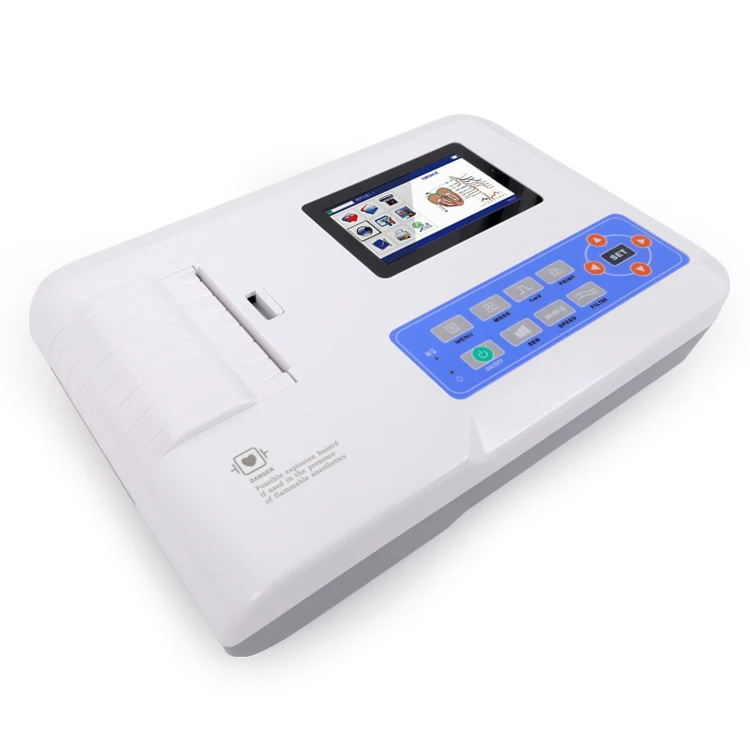

CONTEC ECG300G portable digital 12 lead ecg monitor cardiotocography machine ecg ekg
- Category: >>>
- Supplier: Contec Medical Systems Co. Ltd.
Share on (60816067986):
Product Overview
Description
Product Description
Introduction
ECG300G is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by thermal printing
system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform
parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, optional rhythm lead that
convenient to observe abnormal heart rhythm, case database management, etc.
Note: The device sold to the countries and regions that have FDA certification requirement does not support automatic analysis and
diagnosis function.
Function
1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power
frequency filter, baseline filter and EMG filter of ECG signal.
2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for
contrastively diagnosing.
3)Multiply printing modes and formats, including manual, auto 4x3, auto 3x4+1, auto 3x4, auto 2x6+1, auto 2x6, auto 3-2+1, auto
3-2, auto 1x12+1, auto 1x12, rhythm 4, rhythm 3, rhythm 2, etc. Waveform length printed can be adjusted, and with timed print
function, which meets different requirements.
4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and
auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T
Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
5)Build-in large capacity memory stores at least to 1000 cases, which is convenient for doctor to review case and statistic.
6)Multi- language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian,
Vietnamese, Slovenian, Slovak, Bulgarian and Nigerian language) interface and report.
ECG300G is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by thermal printing
system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform
parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, optional rhythm lead that
convenient to observe abnormal heart rhythm, case database management, etc.
Note: The device sold to the countries and regions that have FDA certification requirement does not support automatic analysis and
diagnosis function.
Function
1)Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power
frequency filter, baseline filter and EMG filter of ECG signal.
2)Display of 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for
contrastively diagnosing.
3)Multiply printing modes and formats, including manual, auto 4x3, auto 3x4+1, auto 3x4, auto 2x6+1, auto 2x6, auto 3-2+1, auto
3-2, auto 1x12+1, auto 1x12, rhythm 4, rhythm 3, rhythm 2, etc. Waveform length printed can be adjusted, and with timed print
function, which meets different requirements.
4)With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and
auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T
Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor’s burden.
5)Build-in large capacity memory stores at least to 1000 cases, which is convenient for doctor to review case and statistic.
6)Multi- language(Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Russian, Ukrainian, Serbian,
Vietnamese, Slovenian, Slovak, Bulgarian and Nigerian language) interface and report.

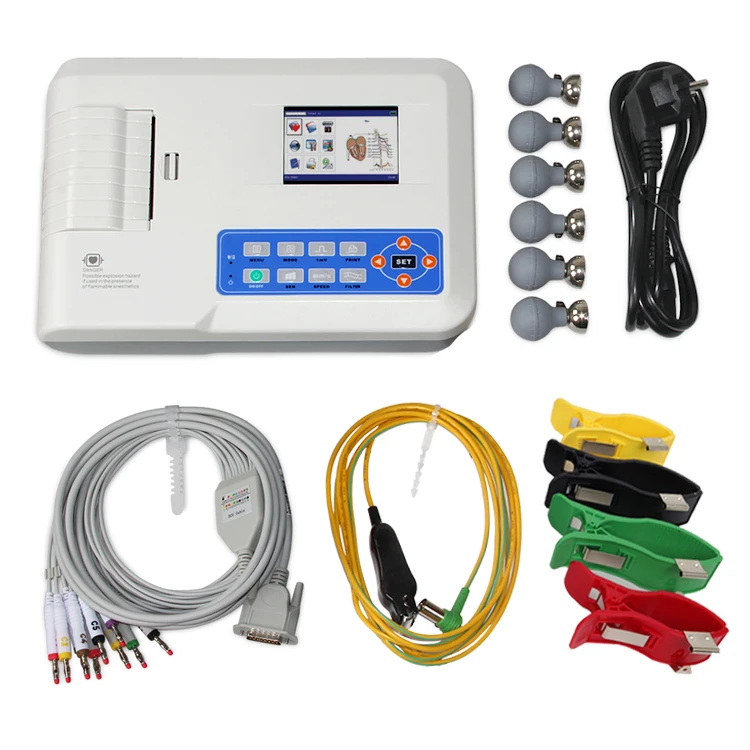

Accessories
Standard configuration:
A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual
Physical characteristic
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700 hPa~1060 hPa
Transport and storage environment
Temperature: -20 ℃～+55 ℃
Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa
Dimension: 315mm(L)×215mm(W)×77mm(H)
Weight: 1.6Kg
Standard configuration:
A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual
Physical characteristic
Working environment
Temperature: 5℃~40℃
Relative humidity: 25%~95%(non-condensing)
Atmospheric pressure: 700 hPa~1060 hPa
Transport and storage environment
Temperature: -20 ℃～+55 ℃
Relative humidity: ≤95%
Atmospheric pressure: 500 hPa~1060 hPa
Dimension: 315mm(L)×215mm(W)×77mm(H)
Weight: 1.6Kg
Company Profile
FAQ
Q: Are you manufacturer or reseller?
A: We are manufacturer who has more than 28 year's experience on research & design, production and sale.
Q: Where your factory located in? How can I visit it?
A: Our factory located in Qinhuangdao city, Hebei Province, China, about 2 hours by train from Beijing. We warmly welcome for your visiting!
Q: Do you support customization? such as provide box according to my design or print my logo on the gift box or device?
A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould to provide device with different appearance.
Q: How can I place an order?
A: We support Alibaba trade assurance order; you can place order directly or contact us to draft order and send you payment link; we can also issue invoice for you to pay by TT/PayPal/LC/Western Union etc.
Q: How many days for shipping after payment done?
A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity.
Customized order needs mutual negotiation.
A: We are manufacturer who has more than 28 year's experience on research & design, production and sale.
Q: Where your factory located in? How can I visit it?
A: Our factory located in Qinhuangdao city, Hebei Province, China, about 2 hours by train from Beijing. We warmly welcome for your visiting!
Q: Do you support customization? such as provide box according to my design or print my logo on the gift box or device?
A: Of course, we support OEM/ODM service. we can help design box according to your requirement. Moreover, we can also make mould to provide device with different appearance.
Q: How can I place an order?
A: We support Alibaba trade assurance order; you can place order directly or contact us to draft order and send you payment link; we can also issue invoice for you to pay by TT/PayPal/LC/Western Union etc.
Q: How many days for shipping after payment done?
A: Sample order will be sent within 2 days after receiving sample fee. 3-20 days for general order according to the quantity.
Customized order needs mutual negotiation.
Brand | CONTEC |
