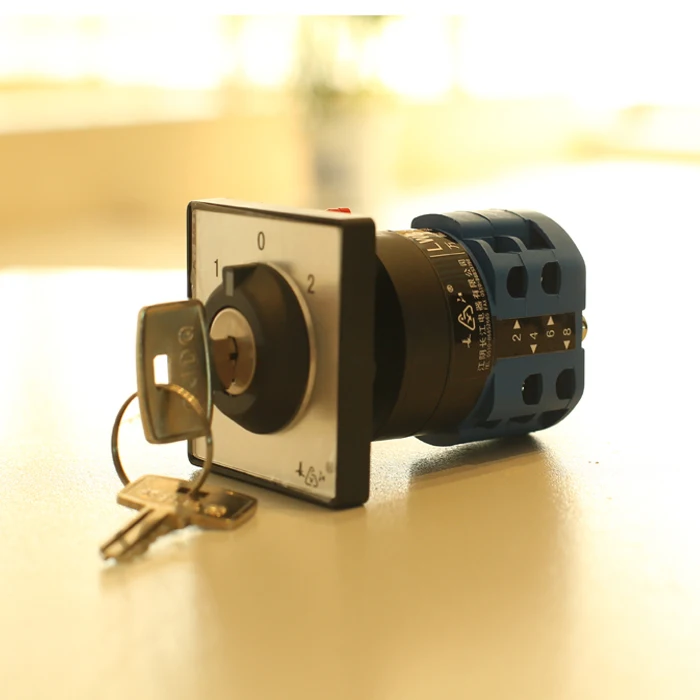

Motorized Rotary Switch
US $2.00-$60.00
10 Позиции поворотный переключатель
- Category: Rotary Switches >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60816206002):
Product Overview
Description
Manufacturer since 1992 LW38 series cam rotary switch

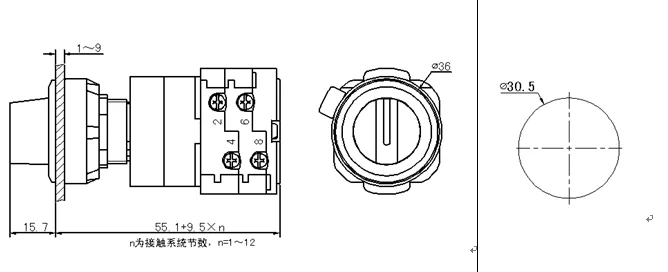

Outline Size of mounding hole
LW38D-16(20)/CWP | |||||||||
Name | Cam switch | ||||||||
Products Standard | GB/T 14048.5 | ||||||||
Operation Condition | Altitude height | Environment temperature | Storage temperature | Relative humidity | Pollution class | Install type | |||
≤2000m | -25℃~+55℃ | -40℃~+70℃ | ≤90% | 3 | Ⅲ | ||||
Main technical index |
| Rated insulated Voltage | 690V | ||||||
Front panel protection degree | IP65 | ||||||||
Withstand Voltage | 1.89KV | ||||||||
working frequency | 50Hz | ||||||||
Basic parameters | Stipulated hot current Ith | 16A | 20A | ||||||
Rated working Voltage /Current | AC-15 | DC-13 | AC-15 | DC-13 | |||||
380V/2.6A | 220V/0.27A | 380V/4A | 220V/0.6A | ||||||
Electrical life | 200000times | 100000times | 200000times | 100000times | |||||
Mechanical life | 300000times | ||||||||
Certificate
About us
Our company is a subsidiary of Jiangsu Xinchao Group. Founded in 1992, it is a strong capital and continuous innovatio manufacturer,This enables us to provide the most advanced an competitively-priced products and services available today.OEM can also available, Customers' designs are warmly welcome.
Company history
1972-1992 Jiangyin transistor factory
1992-1993 Jiangyin Changjiang electronic industrial company
1993-1996 Jiangyin Changjiang electronic industrial corporation
1997-2002 Jiangyin Changjiang electric appliance Co., Ltd.
Jiangyin Changjiang electronic industry Co., Ltd.
2003- Jiangyin Changjiang electric appliance Co., Ltd.
Department and production line
FAQ
Q:Why choose us?
A:1. We are the professional manufacturer with competitive price ,and lower freight rate and the faster speed delivery.
2.Strict quality control.,and every product is inspected 100% by our QC team before delivery.
3.Certified by ISO9001:2015/CCC/CE/ROHS
Q:After-sale service
1. Indicator light:2 years' warranty; switch: 18 months' warranty.
2. Parts replacement for free
3. Free tech support.
Q:How long is your delivery time?
A:Door to door international express costs 5-7days in general.
.
Q:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A:We accept Multiple payment methods such us T/T in advance,Western Union,Alitrade assurance and so on.
Q:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
Contact us for more details about price,packing,shipping and discount.
