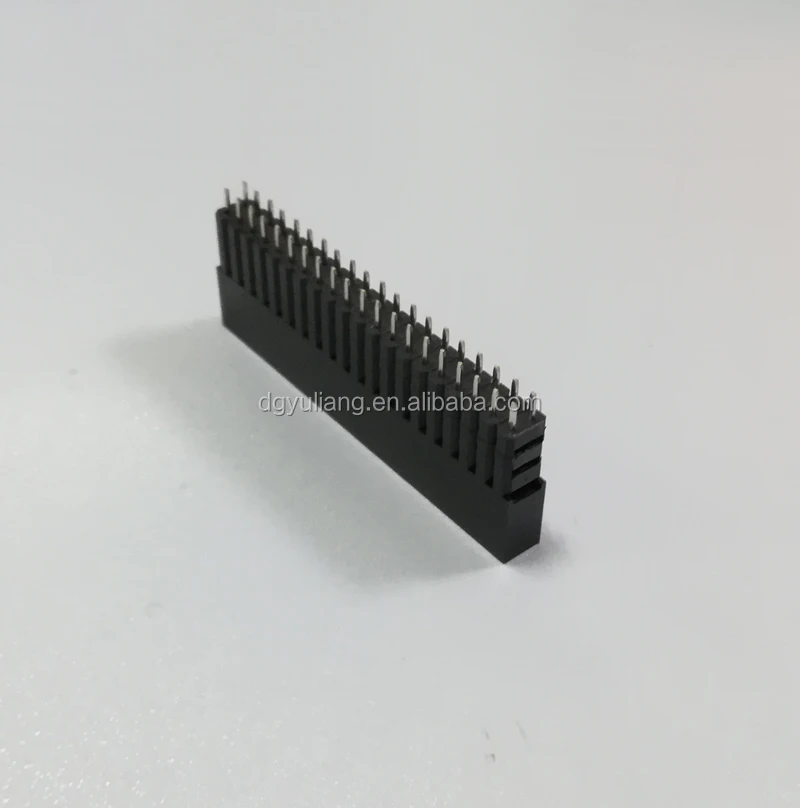

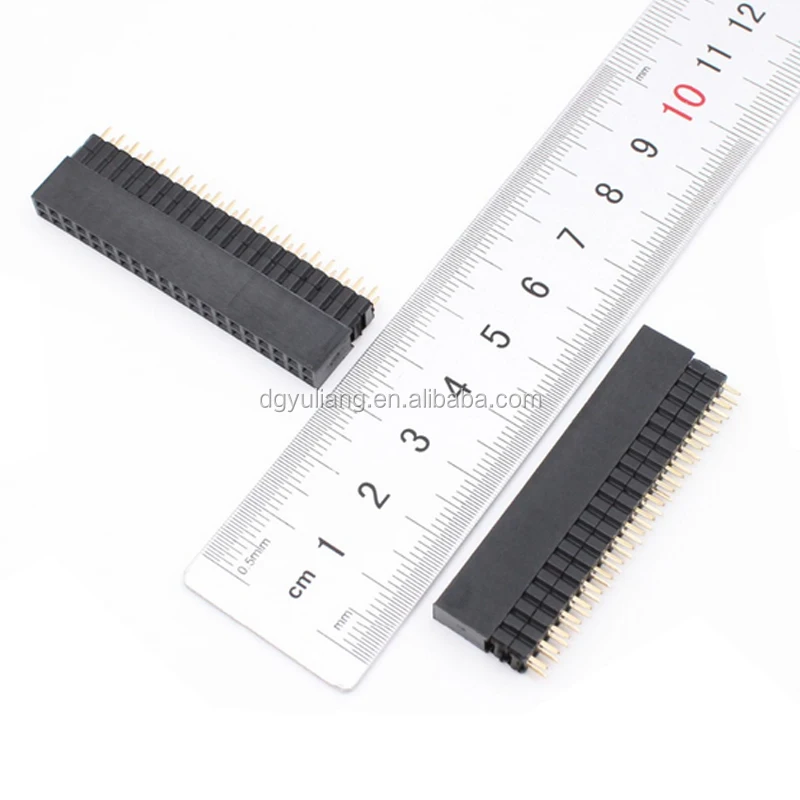

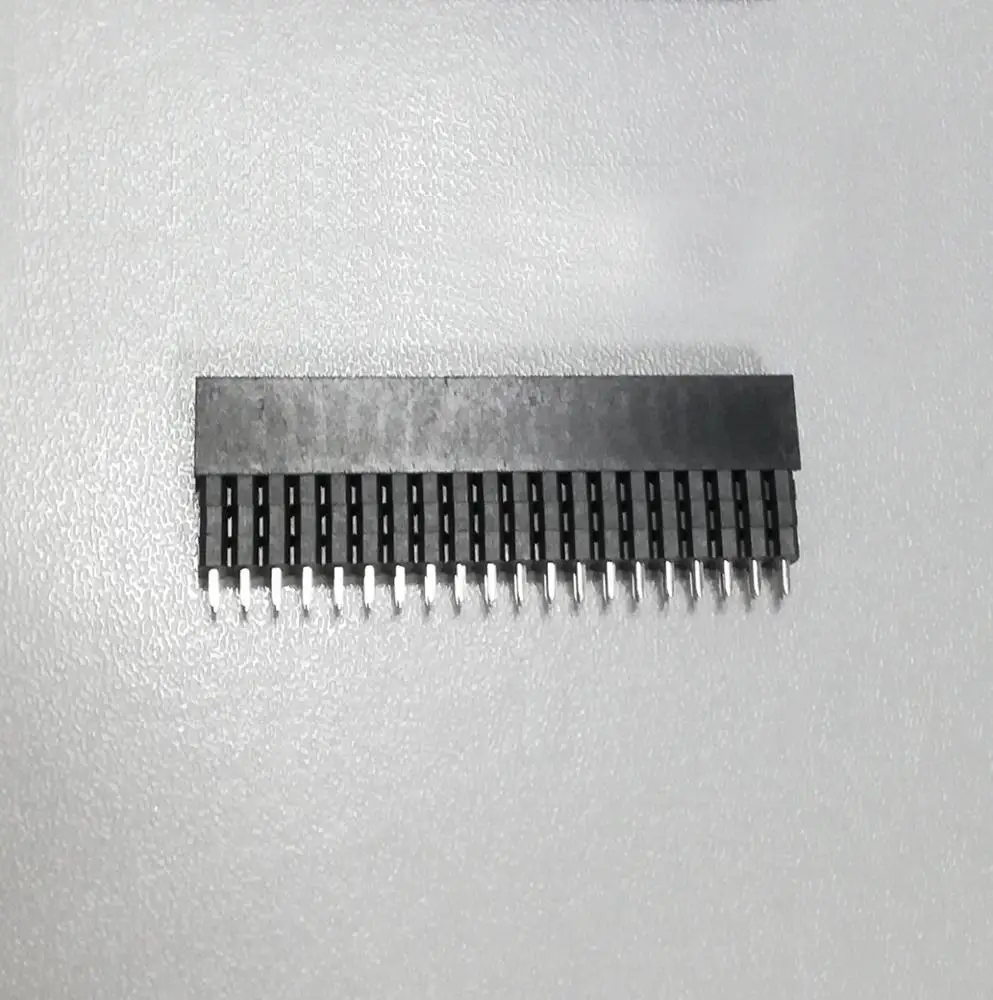

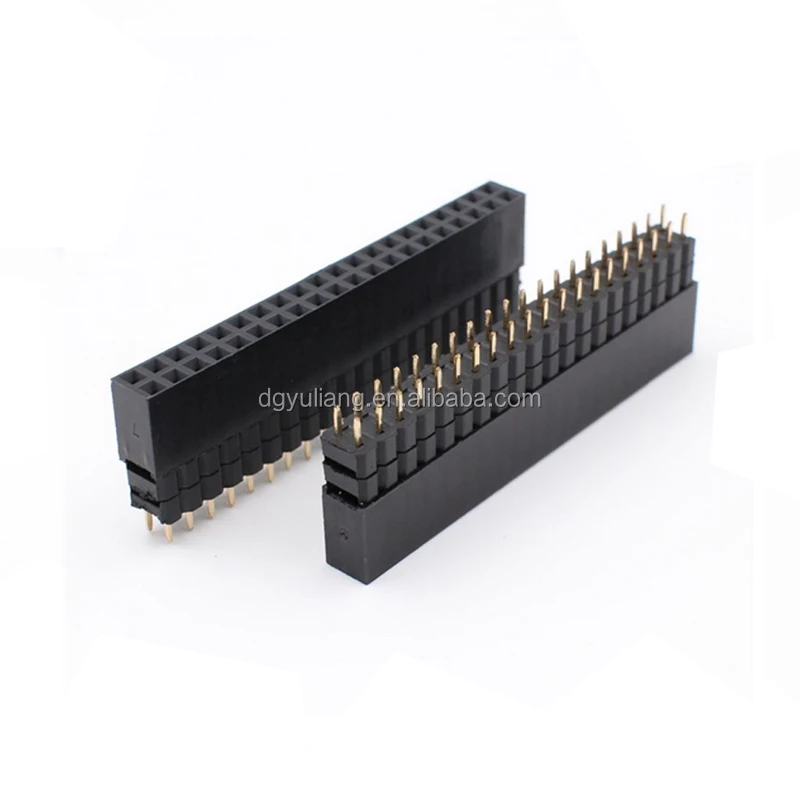

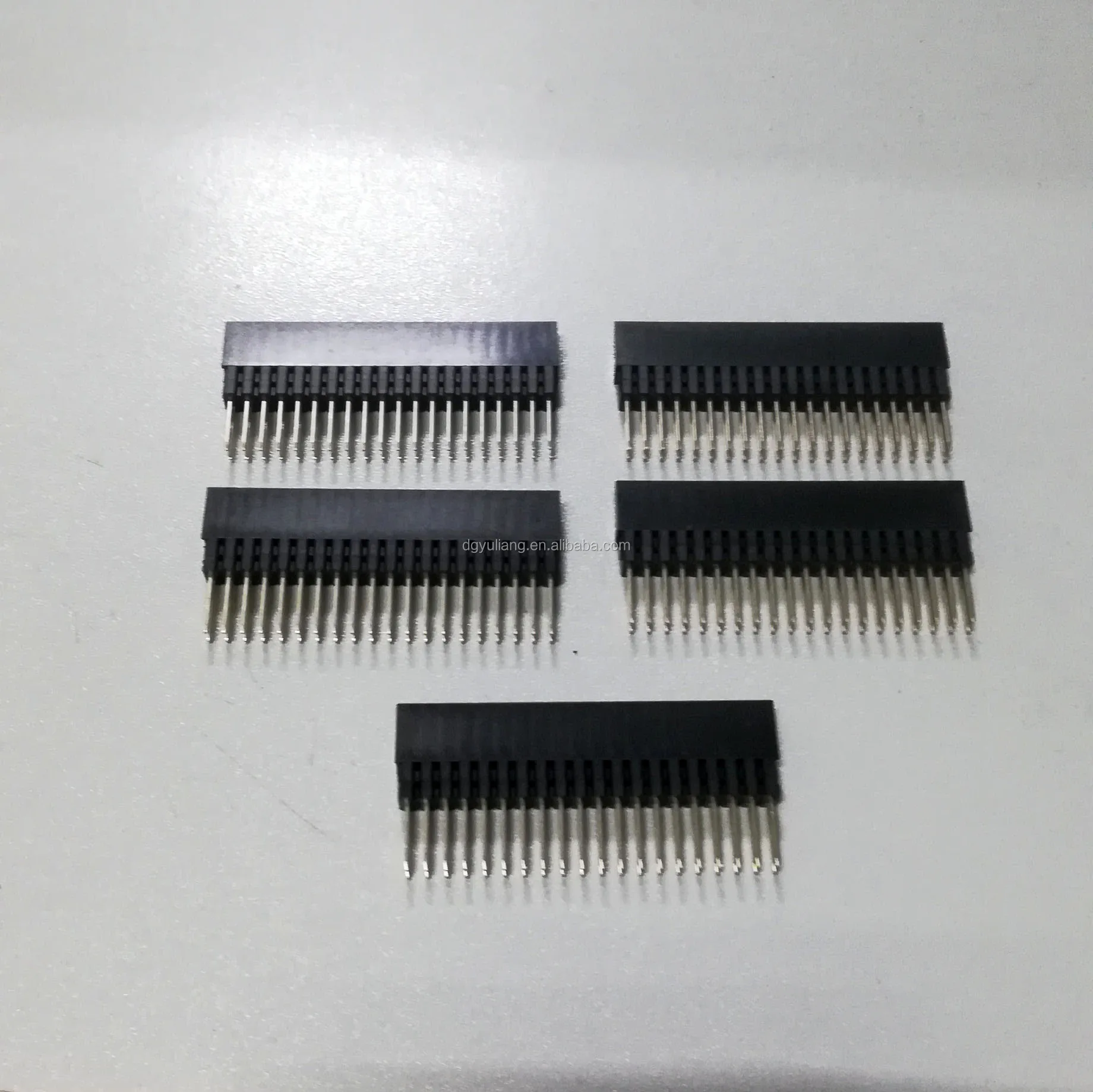

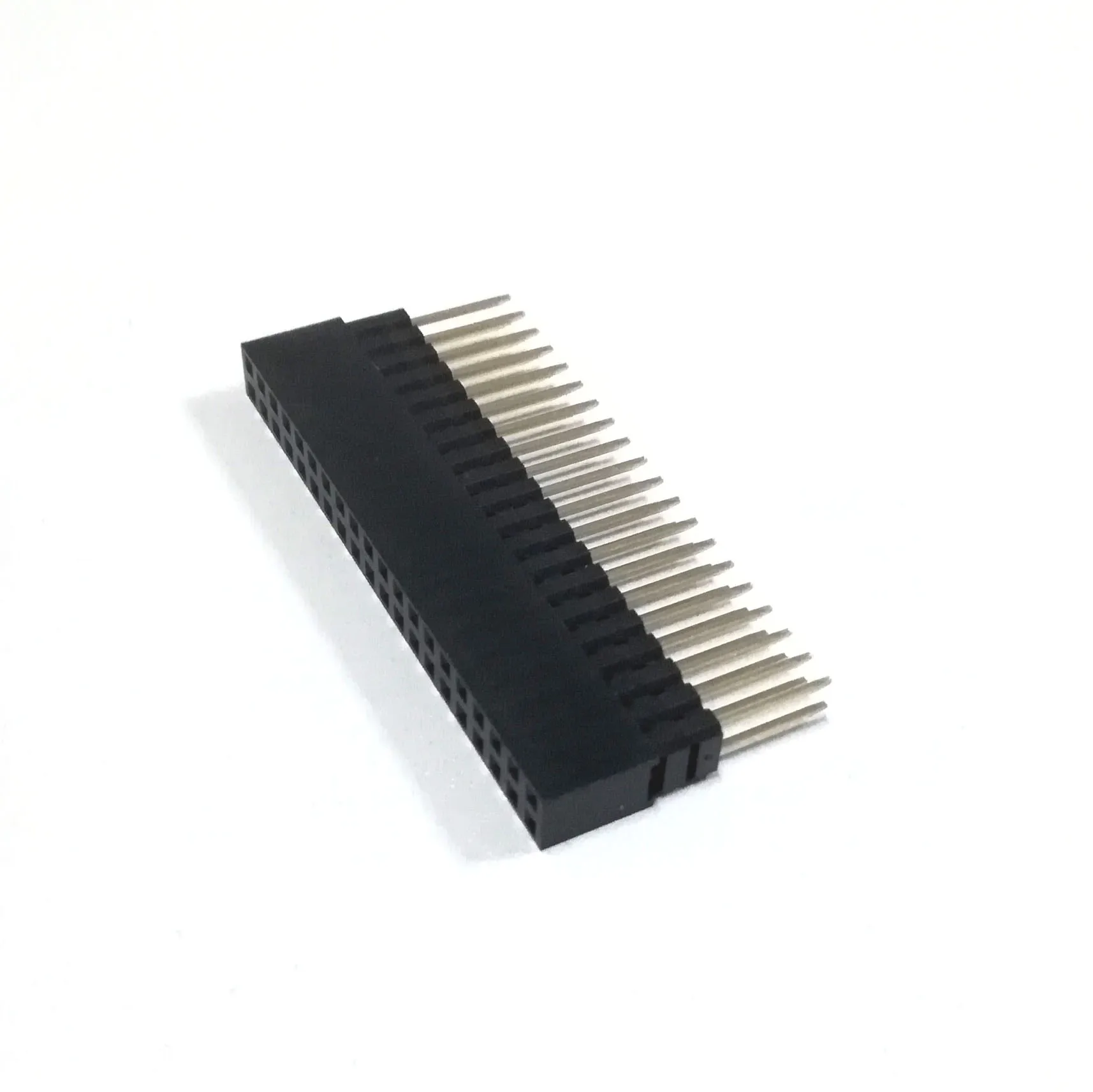

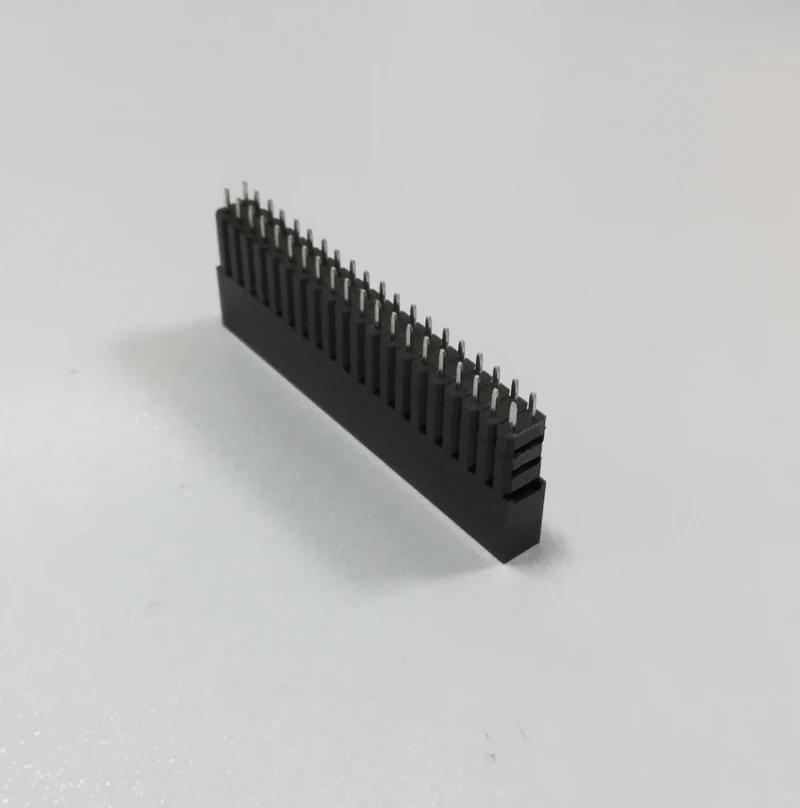

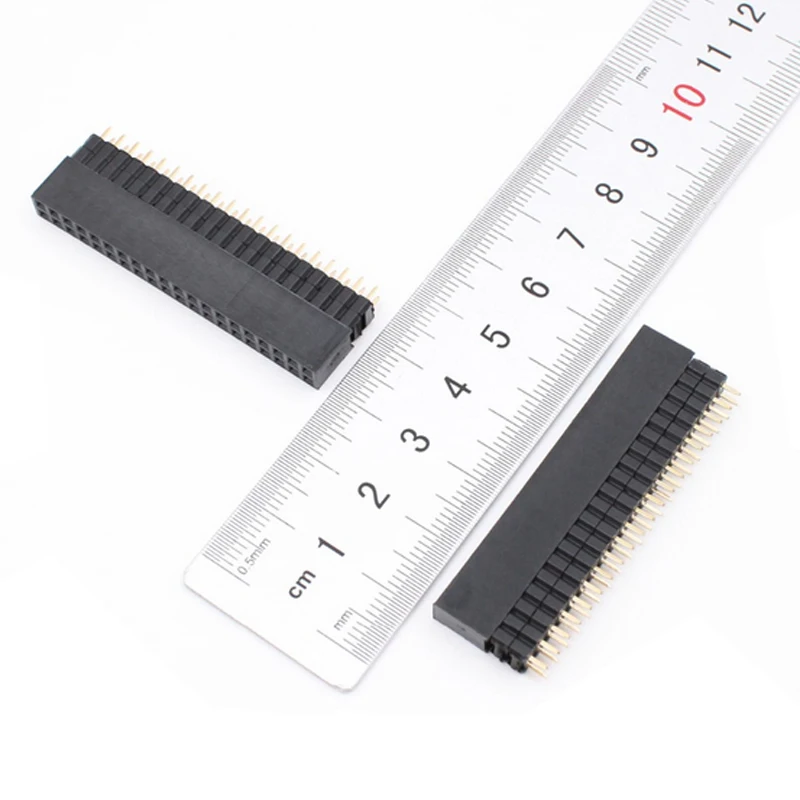

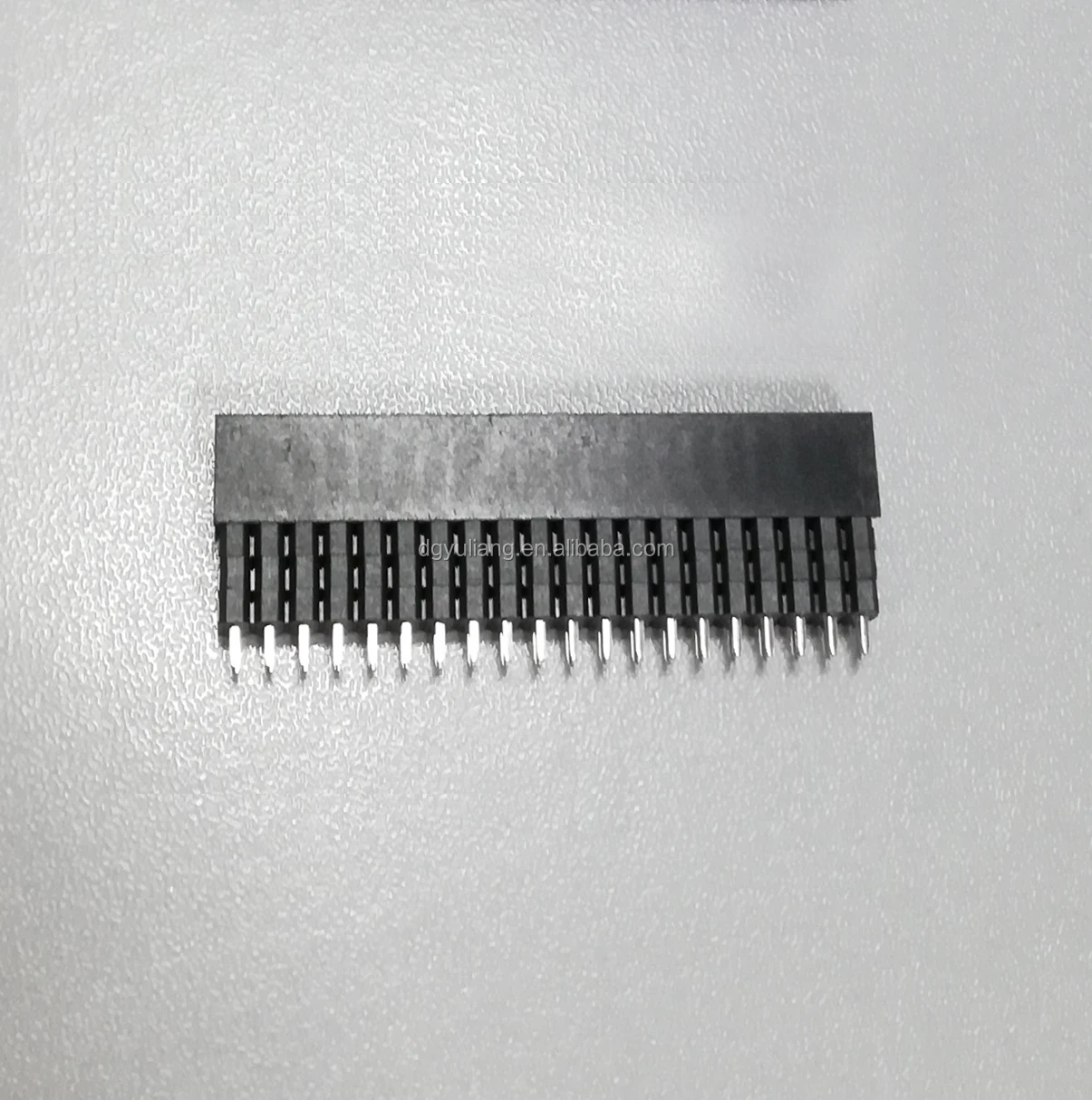

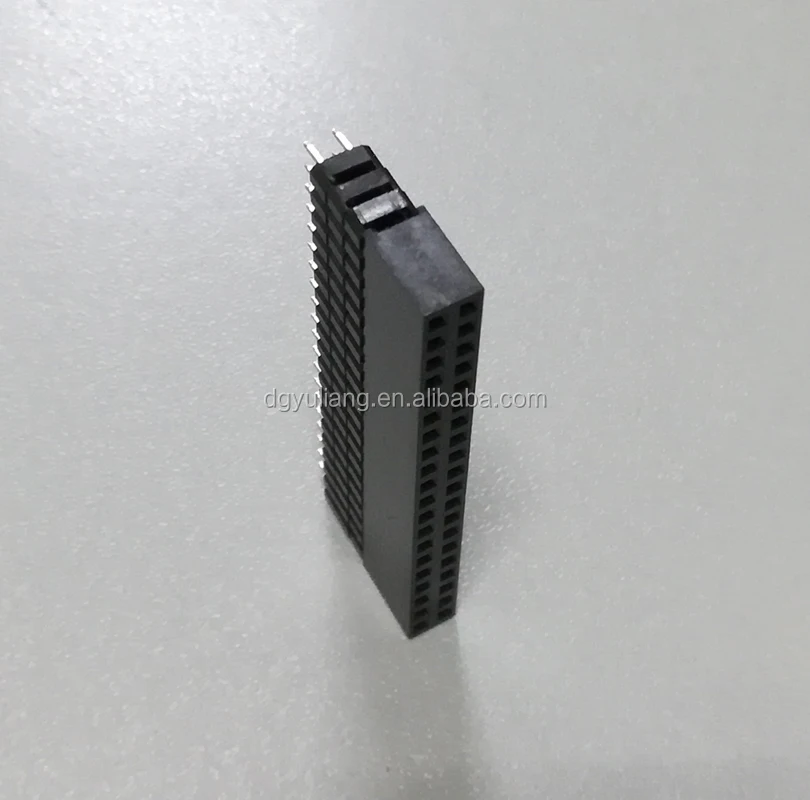

2x20 pin DIP stacked 2.54mm female header connector series for Raspberry PI pcb edge header

Product Overview

Description

2x20 pin DIP stacked 2.54mm female header connector series for Raspberry PI pcb edge header

Specifications:

01. Model: FH254-220-020

02. Positions: 2x20 pins, 100PIN AVAILABLE

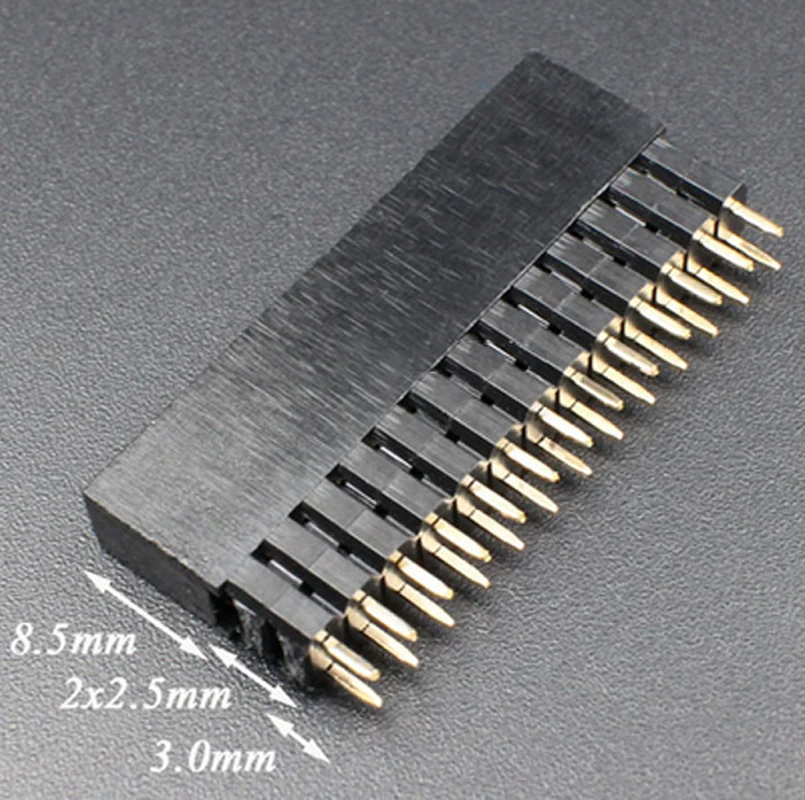

03. Plastics height: 8.5mm OPTIONAL

04. Plastics width: 2.5 mm OPTIONAL,stacked height 2.5xN,DIP :customizable

05. Pitch: 2.54mm

06. Current rating: 3A

07. Insulation resistance: 1000MΩ min

08. Dielectric withstanding voltage: AC 1000V

09. Contact resistance: 30mΩ max

10. Operating temperature: -30 to +80°C

11. Insulation material: PBT UL94V-0

12. Contact material: Brass

13. Plating: Gold TIN

14. Max. Processing Temp: 260℃

15. Insertion force: 80~200g

16. Withdrawal force: 70~200g
17. Mechanical life/Durability:

18. Packing: tube, tray, plastic bag, tape & reel optional

19.Carton size: customized

20.Carton quantity: customized

21. Carton weight: customized

22. Free sample available

23. 100% tested before shipment

24. Payment terms: T/T, Western Union, L/C, Moneygram, PayPal, Cash
25. Shipping ways: Fedex,DHL,UPS,TNT,AIR,SEA

26. Delivery lead-time: within 5-30 days, depends on order quantity
27. We are professional manufacturer majoring in board to board connectors, wire to         000board connector, pin header, female header, box header, ejector header, wafer, FFC, 000FPC, D-SUB, USB,RJ45,SD Card ,SIM Card ,IC socket ,terminal block ,Jumper cap, 000cables etc.

28. OEM/ODM/Customized products are welcome
29. If any questions, feel free to contact us.

30. For drawings ,please send an inquiry or Contact: James to: james(2)cylconn.com
