BWIN manufacture 4 Flute Solid tungsten Carbide Milling Cutter cnc End Mill for Stainless Steel
- Category: Milling Cutter >>>
- Supplier: Shenzhen Bwin Precision Tools Co. Ltd.
Share on (60816233274):
Product Overview
Description
Product Description
1.Fully enables running at rough machining parameters, resulting in finish surface quality.
2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
3.The coating provides longer tool-life or increased cutting-values.
4.Suitable for all types of steel or metal.
Product Name | 4 Flute Parallel Shank Solid Tungsten Carbide Milling Cutter End Mill |
Material | Tungsten Carbide |
Coating | AlTiSiN Coating |
Standard | ISO |
HRC | HRC55 |
OEM | supply |
Machining | Stainless steel, Die steel, Pre-hardened Steel, Grey cast iron etc |

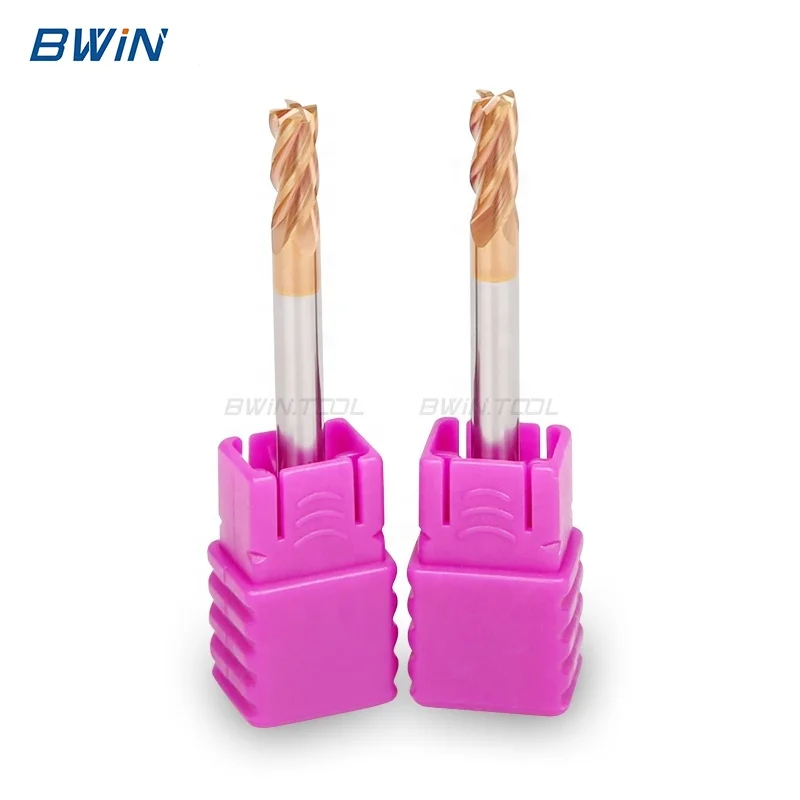

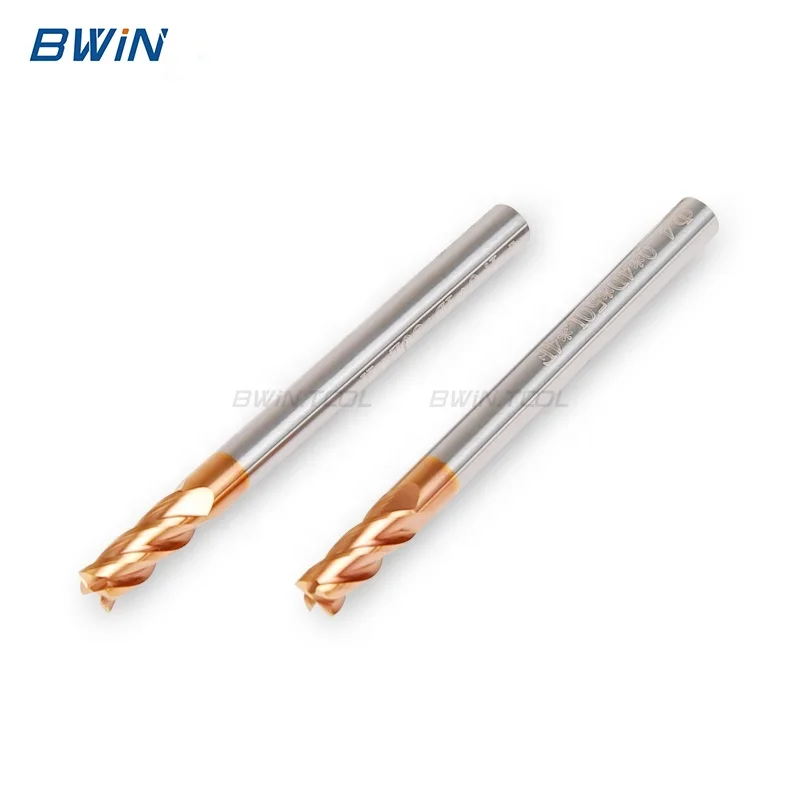

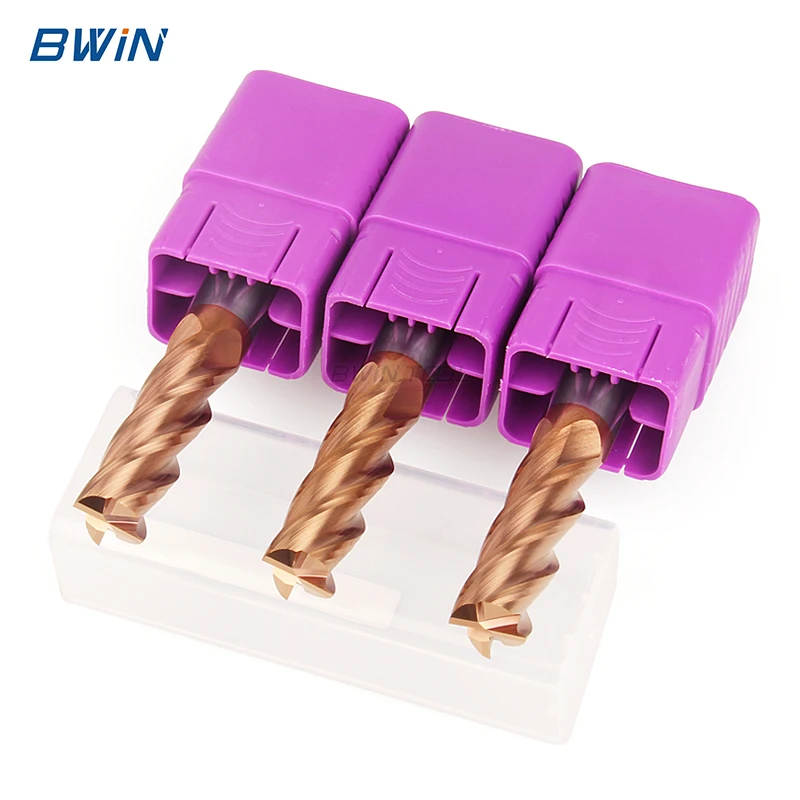

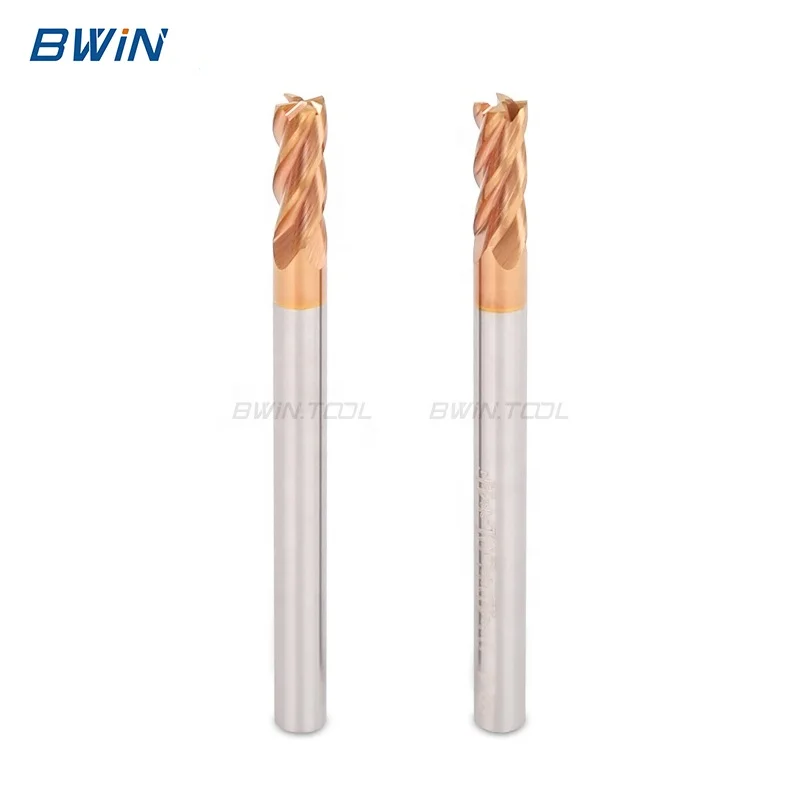

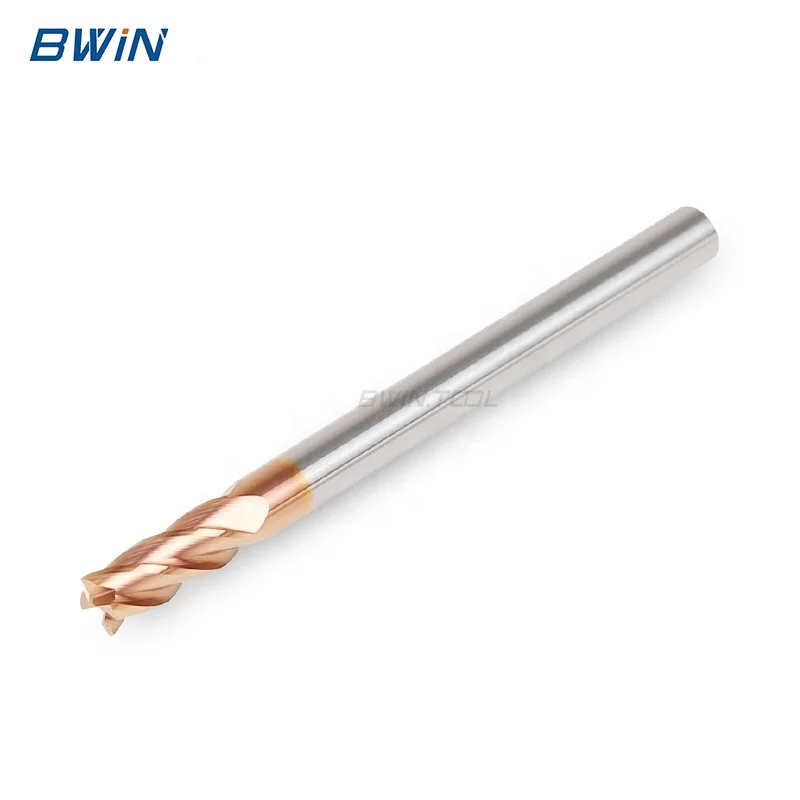

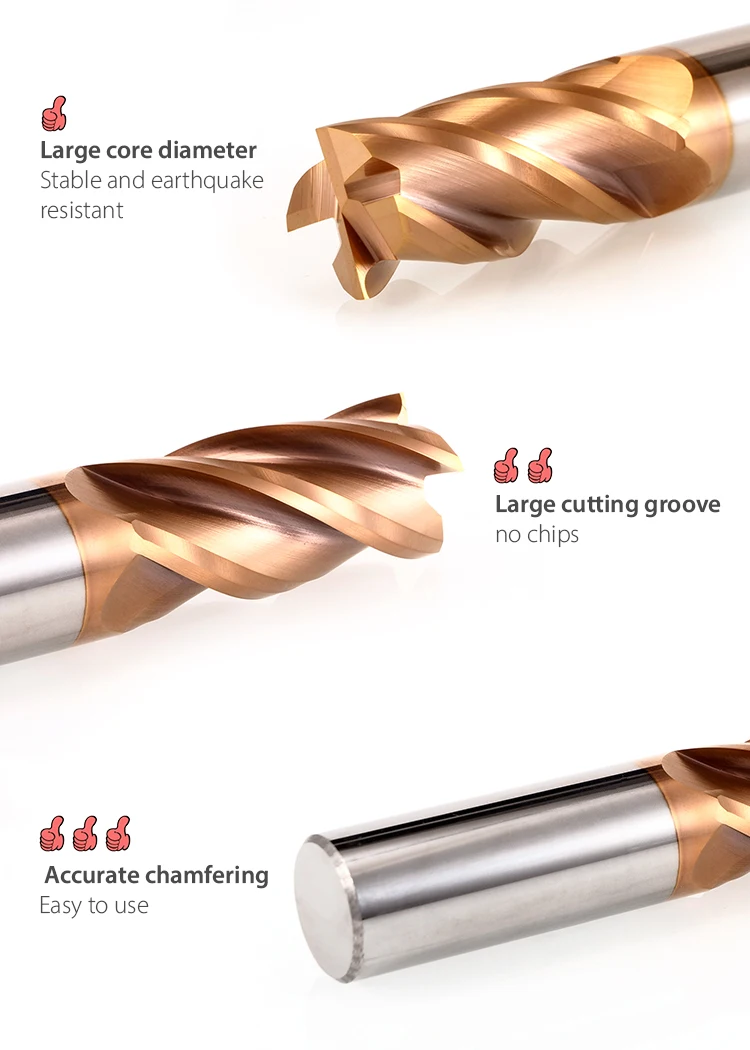

Products Show
Super Raw Material
Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
Details | Grain size 0.7um Co10% Flexural strength 3320N/mm2 | Grain size 0.6um Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12% Flexural strength 4300N/mm2 | Grain size 0.5um Co10% Flexural strength 4300N/mm2 |
Super Coating
Coating Classifying and Advantage | ||||||||||
Item | Coating Type | AlTin | TiAlN | TiSiN | Naco | |||||
Characteristic | Hardness(HV) | 3300 | 2800 | 4300 | 42(GPA) | |||||
Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 | ||||||
Oxidation Temp.(°C) | 900 | 800 | 1000 | 1200 | ||||||
Friction Coefficient | 0.35 | 0.3 | 0.25 | 0.4 | ||||||
Color | Black | Bronze | Bronze and gold | Blue | ||||||
Advantages | High heat stability | Normally cutting | Suitable for heavy cutting, and high hardness cutting | For high precision cutting | ||||||
Suitable for high speed, dry cutting | Suitable for cutting mould steel, stainless steel | Suitable for high hardness cutting, mould steel processing | ||||||||
Most suitable for carbide cutting tools, turning insert | ||||||||||

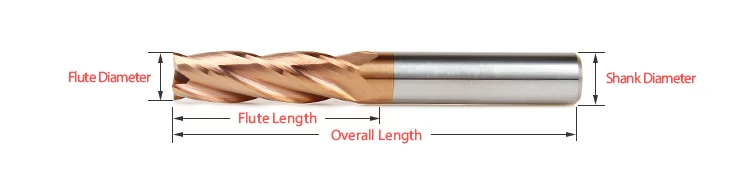

Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
Other Products
Wide Range of Processing
Customer Evaluate

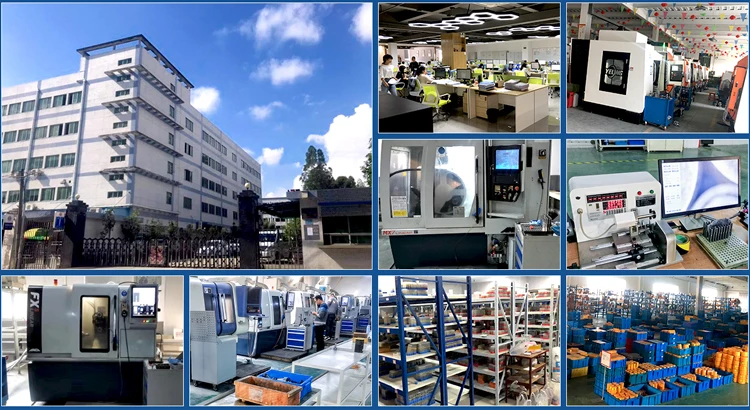

Welocme to visit our factory
Shenzhen Bwin Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling
tools,BWIN manufacture with the integration of R&D, Design and Sales. We insists the principles of "high quality, Competitive
price andExcellent service."
BWIN manufacture has over 1500 square meter factory area and storehouse.
We are leading OEM & ODM Manufacture many years of experience in this field. BWIN have various kinds of products and they are 70% for export. Our customers are from all over the world, such as North America, Europe, South America, the Middle East, East Asia and Africa. The quality control standards are based on ISO9001 certifications.
BWIN relies on advanced automatic machining center and complete testing method, Control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international market. Welcome send inquiry to us, we will provide high quality productsandexcellent service for you!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
