Lithium battery forced internal short circuit tester price
- Category: >>>
- Supplier: Dongguan Lizjin Electronic Technology Co. Ltd.
Share on (60816241200):
Product Overview
Description
Product Description
Product Application

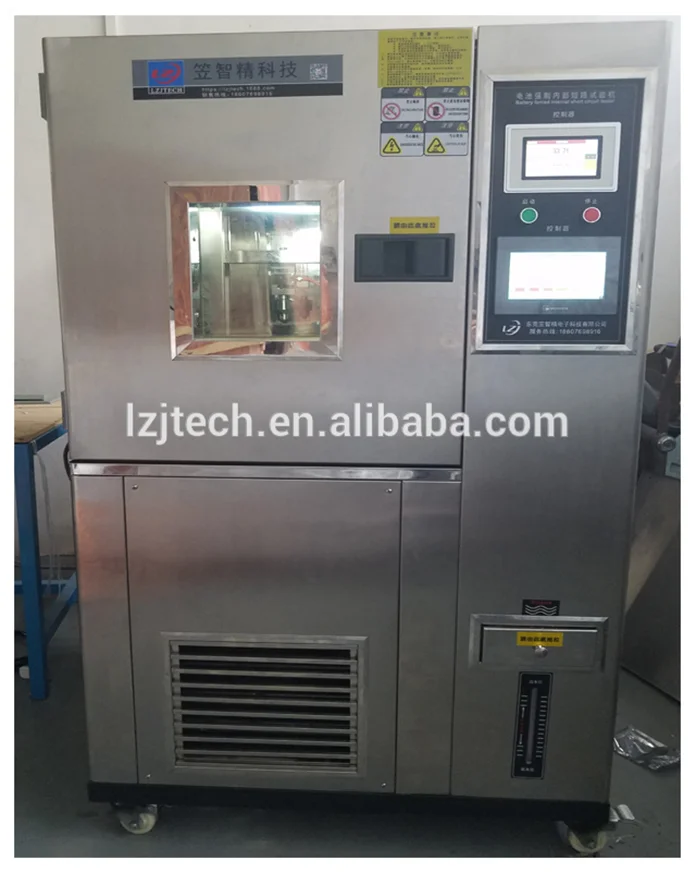

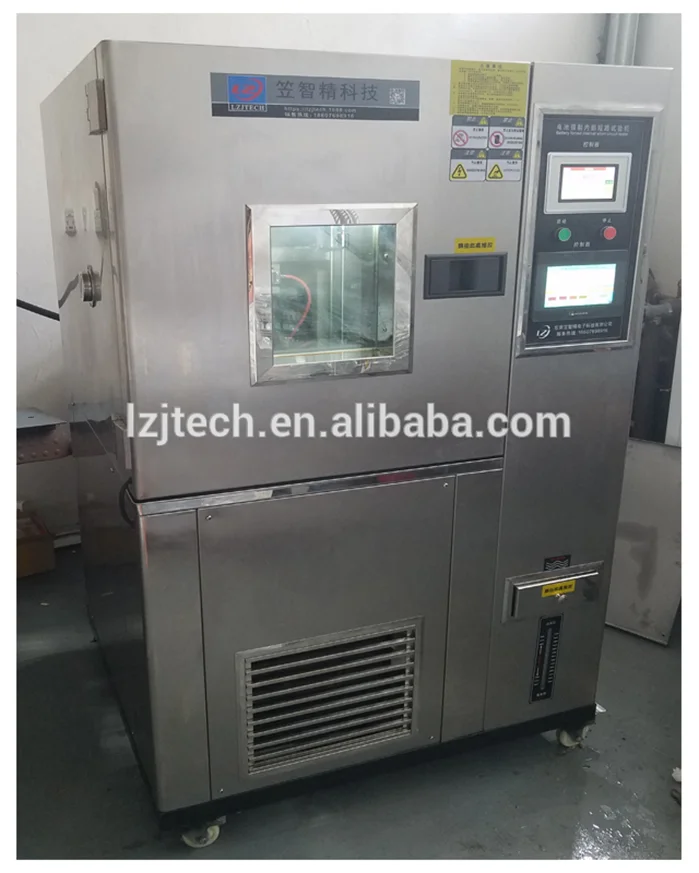

Battery forced internal short circuit tester is a simulated battery under certain ambient temperature
conditions for forced internal short circuit test, the test box for the stainless steel, the temperature
uniformity, with exhaust function (that is, after the completion of the test exhaust emissions). Test machine control system for the PLC touch screen menu type operation, collecting data frequency
up to 100 times / sec, while programming through the PLC set test pressure , pressure holding time, measured pressure, battery voltage, battery temperature, pressure drop speed.
Specification
Model | LZJ-DC-58 |
Temperature Range | 0℃ ~ +100℃(Controllable) |
Resolution | 0.01℃ |
Temperature Fluctuation | ± 0.5℃ |
Temperature Uniformity | ± 2.0℃ |
Max. Low Temperature | -5℃ |
Temperature Rising Rate | Ave.3℃/min(0℃ to 100℃,Nonlinear No-load) |
Temperature Cooling Rate | Ave.1℃/min(100℃to 0℃,Nonlinear No-load) |
Inner Chamber Dimension | W600 X H750 X D500 MM |
Inner Chamber Material | Mirror stainless steel with bottom reinforcement |
| Max. Loading | 200KG |
| Resolution | 1/10000 |
| Force Accuracy | ≤0.5% |
| Displacement Resolution | 1/1000 |
Displacement Accuracy | ≤0.5% |
Speed Range | 0.01-20MM/S |
| Effective Range | 0 ~ 150mm |
Standards
IEC62133-2012 JISC8714-2007 GB 31241-2014 GB/T 18287 -2013 GB/T 8897.6-2008
GB/T 21966-2008 MT/T 1051-2007 YD 1268-2003

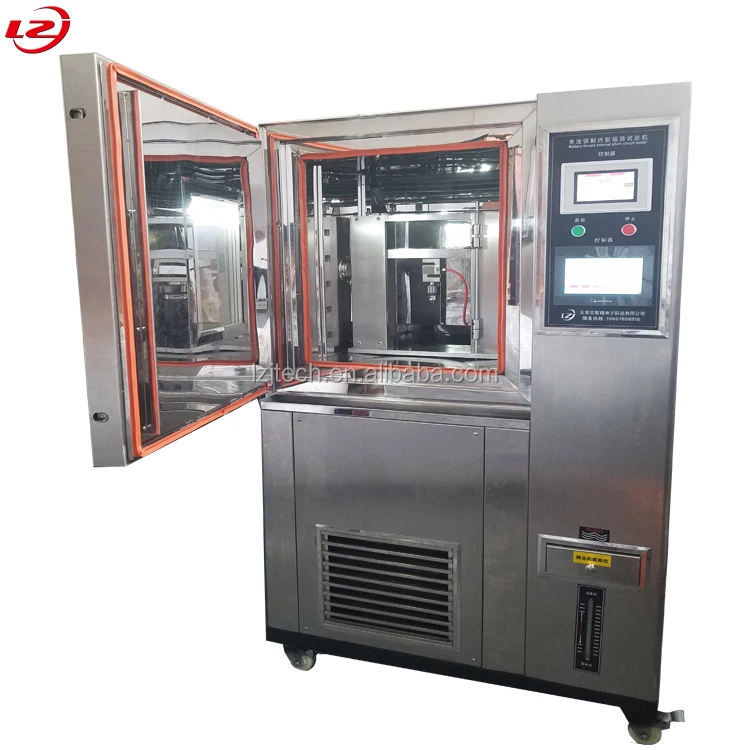

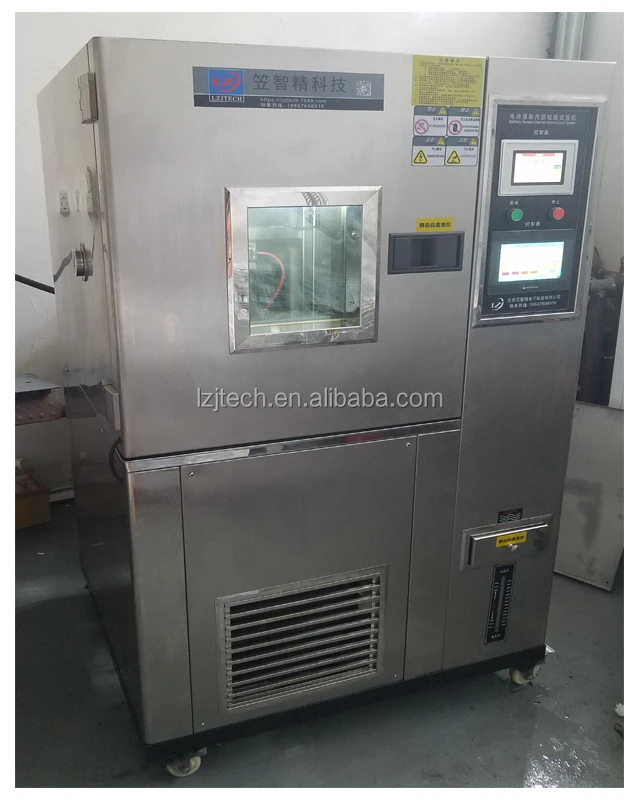

Detailed Images
Packaging & Shipping
Company Information
Our products
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Pre-sales service
*24-hour Online contact
*Choose the right model of the equipment according to customer's request
Middle service
*Give the best offer
*Support customization
* Do customer's request
*Choose payment term you convenient.
*Promptly production and delivery inform you in time.
*Can provide invoice value as you like to decrease your tax
After sale service
*1 year warranty service and all life maintenance
*Provide Free information (1. Product Instruction 2. Product
operation instruction/video 3. Experiment Test)
*Remote control technical consult
*Free installation DVD
*Maintenance plan
Certifications
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),we have our own factory.
Q:Do you accept customization service?
A:Yes, we can not only offer standard machines, but also customized machines according to your request. We will design until you are satisfied.
Q:What is your product warranty ?
A:1Year warranty, but lifetime for services.
Q How about the products quality?
A: Our products apply to ISO, ASTM, GB, etc.
