Product Overview

Description

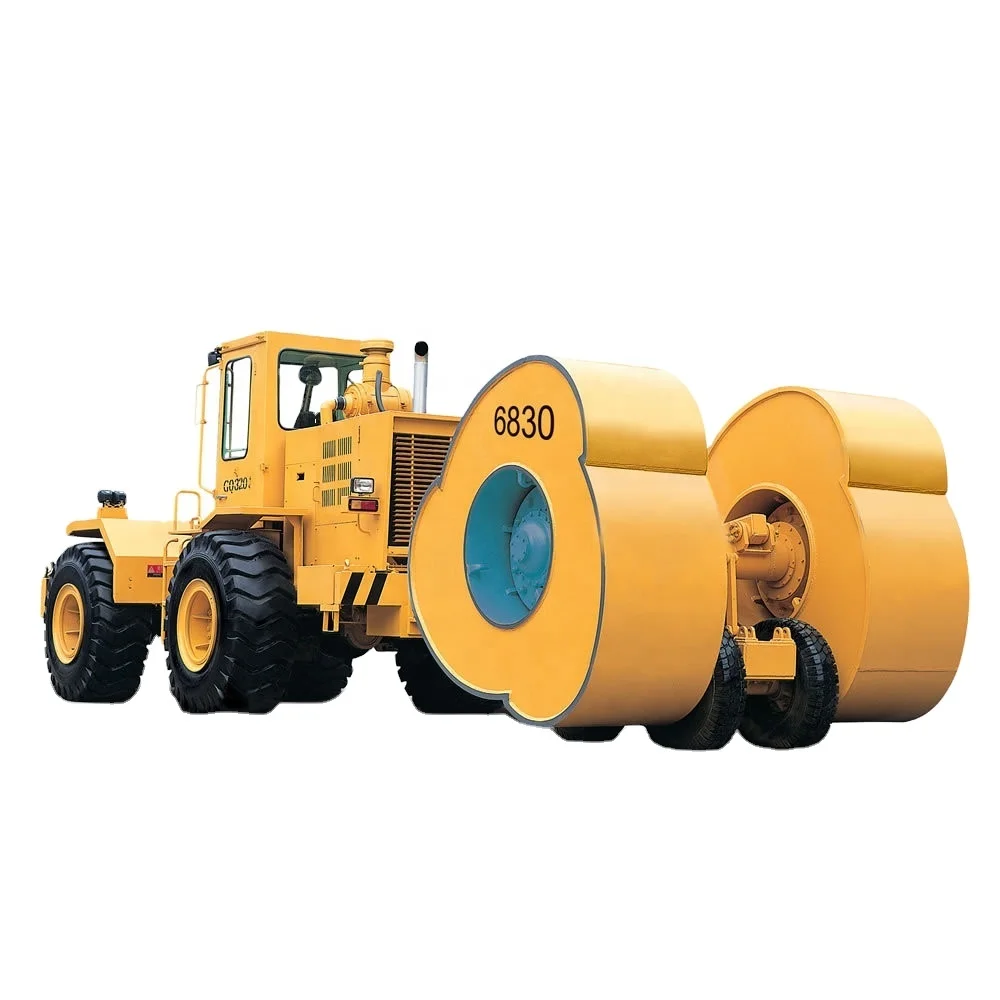

Main Technical Parameters of  6830 Impact Compactor Roller



1.     I found that you have other products such as impact roller hydraulic compaction on what jobs is it useful for?

Answer:impact roller and hydraulic compaction machinery used in many aspects.

Impact roller Application scope: 1. Foundation compaction of highways, railways, dams, factories and residences. 2. Compaction of waste, ash, coal and other bulk materials in cement plants. 3. Compaction of earth and stone with relatively wide water content. 4. Compaction of rock, clay and expansive soil. 5. Flame-retardant compaction of open coal seam.

1. The impact rolling of the airstrip and the crushing and fixing of the old sports ground;

2. Impact roller compaction and hydraulic compactor impact compaction for reclamation engineering projects;

3. Application of impact roller impact rolling and hydraulic tamping machine impact compaction for water conservancy hubs and river embankments;

4. The impact of the original basic conditions of compaction, it is necessary to dig deep and affect the total cost of construction;

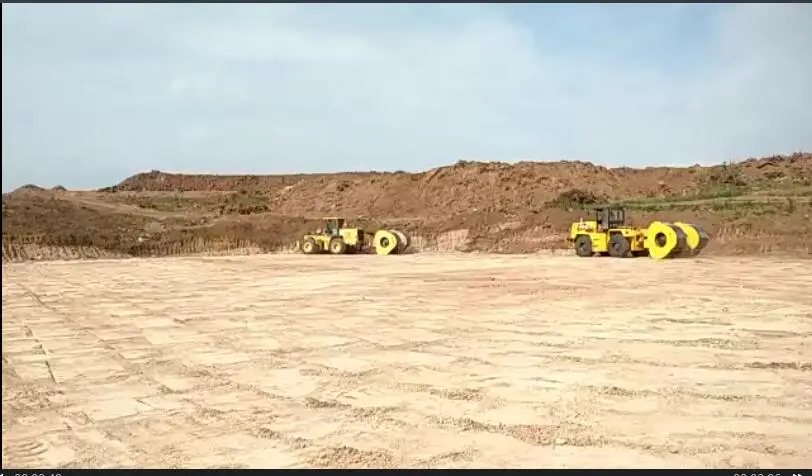

Impact rolling construction

5. Hierarchical paving of high-backfill soil and stone-filled roadbed projects;

6. Operation of high-filled earth and stone works with impact loader hierarchical structure impact rolling and on-line detection competition puts pressure on;

7. The impact rolling of the hierarchical structure of the subgrade engineering above the height-to-width ratio of 1.5m in the design scheme;

8. Abandoned construction waste is operated by impact rollers for impact rolling and reuse;

9. Upgrading and upgrading of impact rollers running on the old concrete ground;

10. The old road widening or half-filling and half-digging types of roadbed works run the impact roller impact rolling;

11. Impact roller compaction machinery for impact compaction of waste materials such as coal ash

12. High-speed rail trains have extremely high requirements for the settlement of subgrade engineering foundations. The impact compaction technology of impact rollers and hydraulic tampers is one of the reasonable ways to avoid foundation settlement after subgrade engineering and basic conditions.

With the development trend of infrastructure, the popularization of impact roller technology will eventually become more and more popular, and its application area will eventually become wider and wider.

2.     What’s the difference with using a vibratory compactor and impact roller?

Answer:For compact machinery: Application range: Widely used in the tamping of highway and railway subgrades such as abutment backs, culvert sides, Jizhaogou, dam protection and leakage treatment, oil depots, airports, ports and other large foundations, solving bridge head jumping The space is compacted quickly in a small area.

1. Scope of application

Because the working principle of the impact roller is more compaction, the impact roller is about 10 times more than the vibratory roller in this function, and the impact depth of compaction reaches about 5m. The existence of this difference also makes impact rollers and vibratory rollers different in application fields. Vibratory rollers are recommended for construction above culverts and bridges, and impact rollers are recommended for construction on flat ground projects such as expressways.

For the humidity of the paving material, the vibration roller has a relatively high requirement, which needs to be kept at ±2%. The punch roller has a very wide requirement for this point, which can be relaxed by 3%-5% in the upper and lower directions; therefore, for If the original foundation is not good or the old road is reconstructed, the impact roller can directly construct, continuously crush and compact the road surface, and can directly press the broken pieces into the foundation, omit the excavation process, shorten the road maintenance period, and greatly reduce Project costs.

The effective compaction thickness of the impact roller can reach 1m-1.5m, and the driving speed is generally 10-15km/h, so the basic course of compaction per hour is as high as 20000m²; the compaction thickness of the vibratory roller is 0.2-0.3m, and the rolling speed Keep it at 4-6km/h, but generally require fewer rolling variables. From the perspective of comprehensive construction efficiency, the impact roller is 2-4 times higher than the vibratory roller, so the efficiency is quite different.

From the above two points, we can roughly understand that the function and efficiency of the impact roller and the vibratory roller are very different, but it does not mean that the impact roller is completely superior to the vibratory roller. The choice of the two depends more on the actual needs of the project.

Comparative features: 1. The impact compactor has a large impact on the effective foundation compaction depth, about 5 meters; the effective impact depth of the vibratory roller on the foundation is between 0.25-0.35 meters.

2. The impact compactor has a large amplitude, which belongs to the category of tamping machines, and performs dynamic compaction work; conventional rollers belong to the technical category of static roller compaction and vibration compaction.

Vibratory roller, the depth of compaction is 0.3-0.5 meters;

Sheep foot pad roller, compaction affects the depth of 0.3-08 meters;

Triangular 25kJ (10-14T) impact compactor, compaction depth of 3m-5m;

Triangular 30 kJ(16-16.5T) impact compactor, compaction depth 4 meters to 6 meters.

3.     How long is your lead time? and where is your factory?

Answer:now 20-30 days,and now we have a client ordered 5 impact rollers and construction tractor and can prepare in advance if you want to buy. Our factory in zhengzhou city.

4.     how much is the total for that?

Answer:FOB price will be USD. You can check with me whatsapp or wechat: 008615137175109

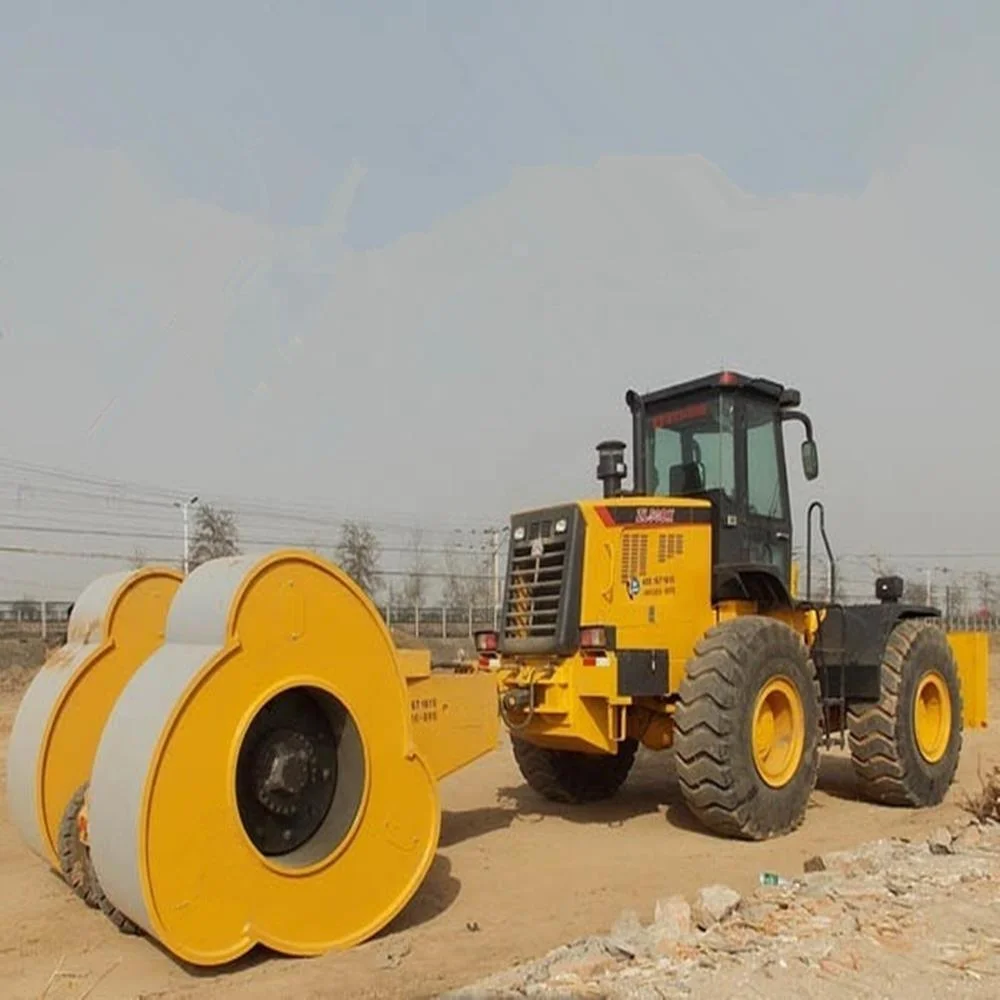

5T wheel loader can connect with 10-12.5T impact roller(3720*2980*1800mm). 10-12.5T impact roller same price 25000USD/unit.  8T wheel loader can connect with 14T impact roller price about 30000USD/unit. Our construction tractor can connect our 16T 6830 impact roller.

5.     What machine can be used to pull that?Is there any substitute for a construction tractor, like a wheel loader for example? I have a situation, i am using XS163H XCMG to compact this area, Loader only 162kw.

Answer:We have small impact roller such as 10.5T 12.5T 14T impact roller which can be used connect with more than 5T wheel loader. 5T wheel loader 162KW enought for 20KJ impact roller, 6830 need 266KW. 5T wheel loader not enough for 30KJ 6830. but 20KJ is enough for your 5T wheel loader, in China, most end user use small impact roller 20KJ  10.5T to connect their wheel loader. For 5 T wheel loader, we not suggest to use hydraulic system to operate it up and down, and only add a traction seat in the wheel loader and connect impact roller is ok, when you not use impact roller, easy to take off fro.m the wheel loader. it is use mechanical operate is enough and easy, and if you need hydraulic system to operate also ok need add many hydraulic , and when take off from wheel loader a little complicate. and price also expensive need add 1000USD than mechanical, so you donnot worry to connect when we ship the impact roller will will design ok and easy fr your company to operate to connect when arrive. also consider when you not use the impact roller and you use wheel loader separately not affect.

1. I checked with our engineer, 20KJ impact roller + 5ton wheel loader can meet your construction requirements. According to needs, by increasing the times of compactions and increasing the driving speed, the compaction effect will be better.

 2. The 30KJ impact roller + 8ton wheel loader or construction tractor KF380 is of course more efficient. but price will be more expensive.

3.Because our impact compactor is used for highway, airport and land reclamation construction, the compaction effect is very good.

6.     on how to go about the compaction, we have just started to fill up an area, but using vibratory roller?

Answer:please send me more about your working area. and we give you suggestion, your places use our machinery is very suitable, and our impact roller high work efficiency than road roller,(i have a komatsu WA420,and xcmg LW500F,XS163H XCMG,Sakai rollers)

7.     Difference between 5 side, 3 side, sheep foot rollers ?

Answer:The trilateral double-wheel impact roller has large energy and is suitable for most of the foundation compaction, but not suitable for crushing and stamping of old cement concrete pavements. The pentagonal double-wheel impact roller has less energy and can also impact the foundation. It is more suitable for silty soil, sandy soil and other subgrades with large loose paving coefficient, as well as impact crushing of old pavements. because 5 sides mainly used for broken the cement road.

8.     For silty soil and sandy can use impact roller?

Answer:yes, except soil and sand also small rock area also can use trilateral impact roller.

Trilateral impact compactor is usually used for subgrade impact rolling compaction that requires deep compaction. Since the impact depth of the impact compactor is significantly greater than that of traditional equipment, the use of a three-sided impact compactor can usually achieve a satisfactory degree of soil compaction, without having to remove the soil and layer compaction like a vibratory roller. Depending on the type of material, on-site material compaction can be increased to 3 meters or more. On many construction sites, the impact compactor is the only compactor that can achieve the required density by pressing the field surface without removing and replacing materials in layers, which greatly saves costs.

The pentagonal impact compactor is mainly used for compacting multi-layered or cement pavement crushing transformation. According to the type of material, the filler can be laid in layers with a thickness of 500mm to 700mm and above. Compared with the output of the vibratory roller of about 300 m per hour, the output of the 5-sided compactor is about 2000 m/h.

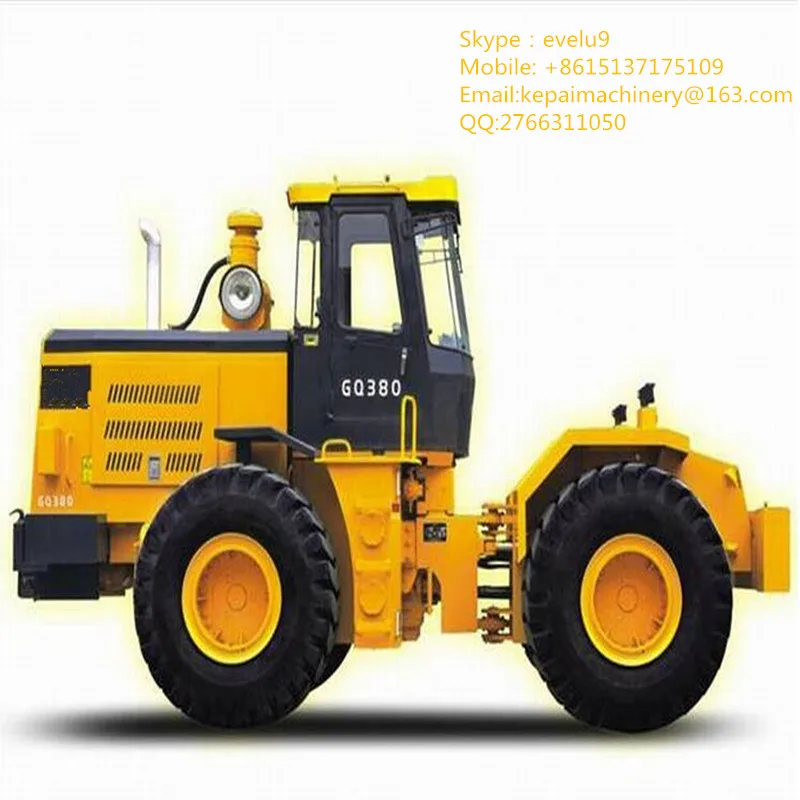

9.     Is there control on the impact roller to lift it out of ground? What is the engine of the construction tractor?

Answer:yes. hydraulic system, because sometimes wheel loader engine power is lower, 16T 6830 need engine power more than 266KW

10.  Impact compactor connect to wheel loader?

Answer:5T wheel loader can connect with 10-12.5T impact roller. 8T wheel loader can connect with 14T impact roller, 6830 16T impact roller is better to connect with our construction tractor.

Our impact roller cannot connect 10 ton vibratory roller, usually connect to wheel loader, tractor or excavator or bulldozer, our technical has test. bulldozer also not good. because speed is slow. our technical has test. bulldozer also not good. because speed is slow. client usually use wheel loader and construction client usually use wheel loader and tractor  tractor.

11.  How do you suggest to use the impact compactor? Because we need to dump, spread, then compact, So trucks can pass? Its a land fill project, We just need to fill 1.2m,Loose soil,To compact to 1.2m,70000 square meters,The bottom is ocean, or sea bed?

Answer:And in our country, we all have construction technology. The effective depth of impact of this impact roller must be stronger than that of the vibratory roller. What do you think of his roadbed and what kind of project is it? Our domestic expressways are all handed by 20KJ or 25KJ , and the airport is 30KJ 32 kj, and 35 kj.

From this degree of compaction, as well as the filling, as well as this work efficiency, and then these aspects, and then my sheep foot pad roller, as well as the impact roller, I will compare specific parameters, and then let the customer know about it. from the compaction degree, work efficiency, filling layer, our technical people will give compare and you can understand well the differences between the  sheep foot pad roller, and the vibratory roller, and the impact roller.
