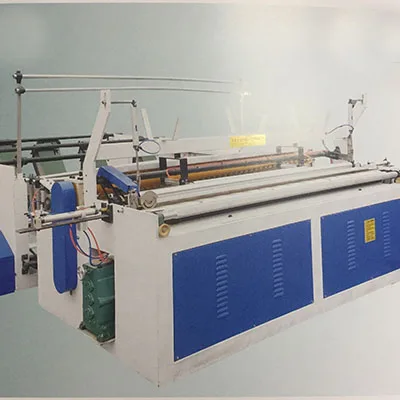

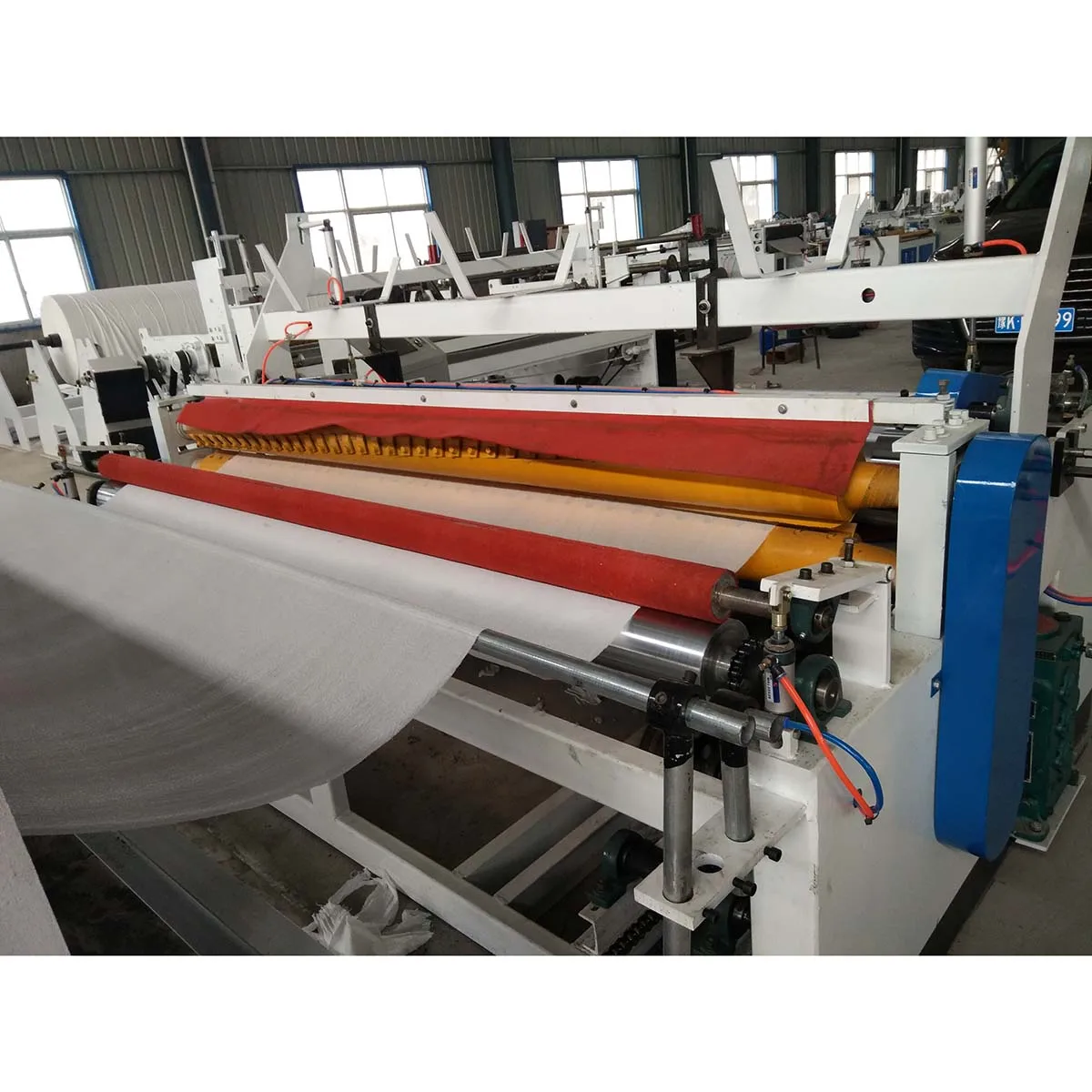

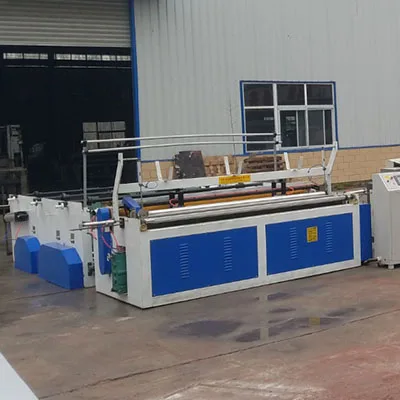

Toilet Paper Rewinding Machine and Tissue Paper Converting Machine
Product Features:
1.PLC used in automatic rewinding, automatically send finished product, immediately reset rewinding, automatic trimming, spraying, sealing a complete synchronization. Replace the traditinal line trimming, realizes trimming margin,sealing tail into technology. Product has 10mm--20mm paper tail, easy to open use. Realization no paper tail loss, threby reducing the cost.
2.PLC applied to the finished product in the rewinding process after the first tight, solve due to the long time storage, paper core loose phenomenon.
3.The application base monitoring system, automatic stop off paper. At high speed in the process of the base base paper, real--time monitoring, reduce the resulting loss because of the broken paper to ensure the normal operation of the equipment at high speed.
Technical parameter:
1092mm-1880mm | |
Paper width | 1092mm / 1575mm / 1760mm / 1880mm |
Base diameter | 1200mm(please specify) |
Jumbo roll core diameter | 76mm(please specify) |
Product diameter | 40mm-200mm |
Paper backing | 1-4layer, general chain feed or continuously variable transmission feed paper |
Punch | 2-4 knife, spiral cutter line |
Hole pitch | Positioning of bell and chain wheel |
Control system | PLC control, variable frequency speed control, touch screen operation |
Product range | Core paper, non core roll paper |
Drop tube | Manual, automatic(optional) |
Production speed | 150-280m/min |
Spray, cutting and rewinding | Automatic |
Finished product launch | Automatic |
Point moving mode | Before and after the point moving |
Power configuration | 380V, 50HZ |
Required air pressure | 0.5Mps( supply by customer himself) |
Embossing | Single embossing, double embossing(steel roller to wool roller,steel roller,optional) |
Blank holder | Airbag control, cylinder control, steel to steel structure |
Outline dimension | 6200mm-7500mm*2600mm-3200mm*1750mm |
Machine weight | 2900kg-3800kg |
Related Products
Company Information
Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years’ experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company’s leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia,
Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya, Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.

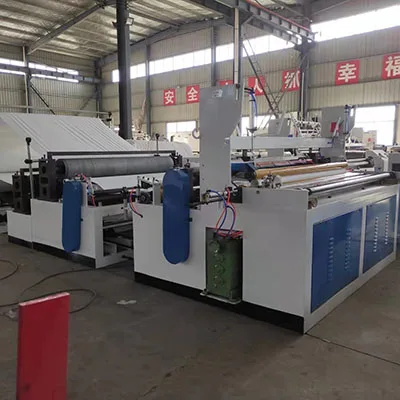

Workshop display
