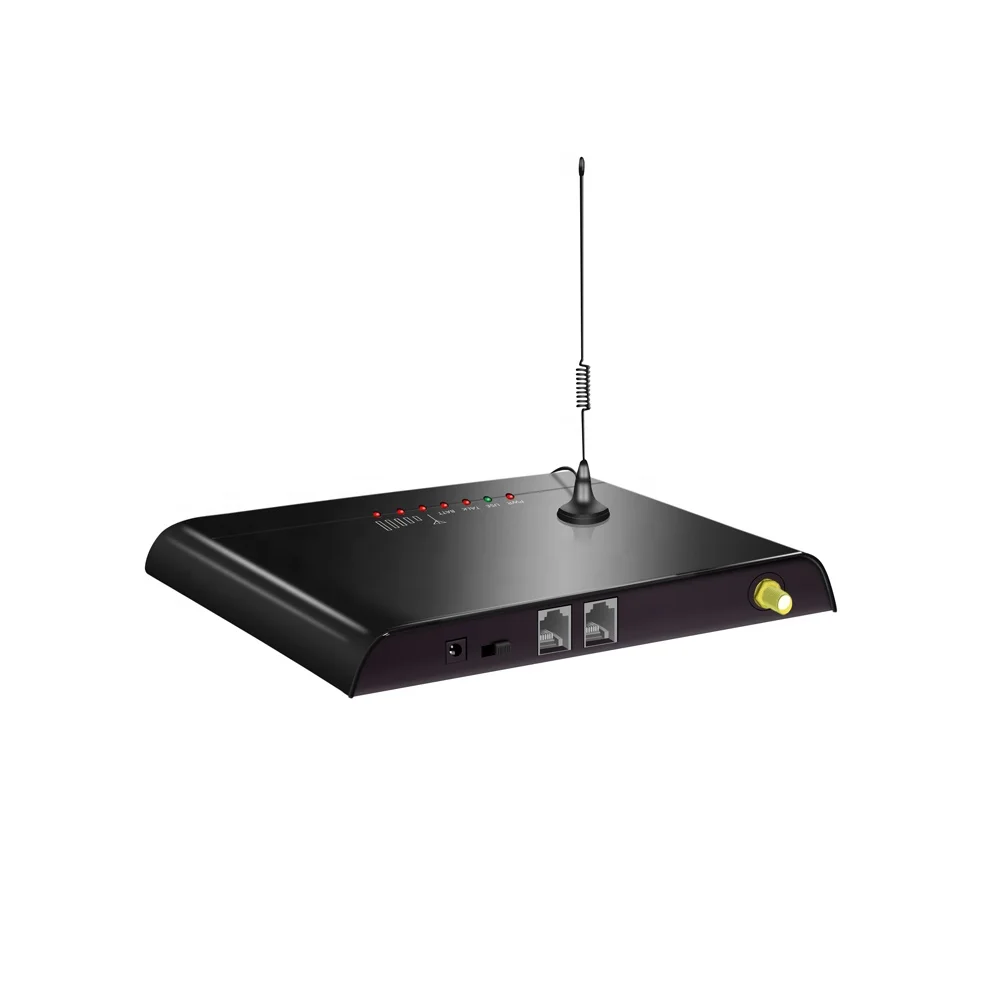

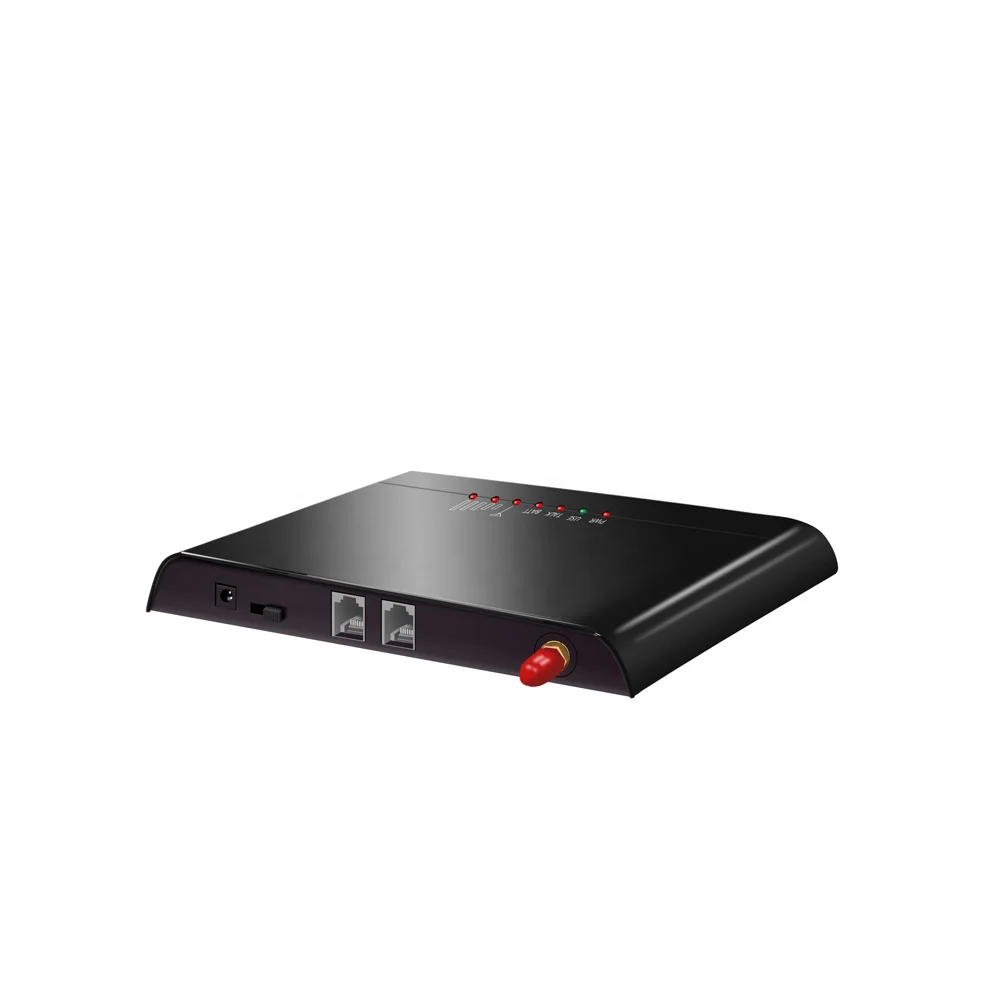

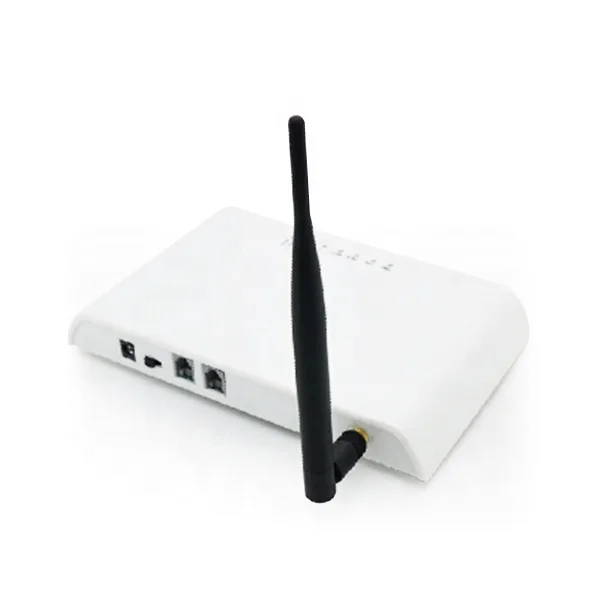

FWT 8848/ GSM to landline converter/ fixed wireless terminal with Caller ID

Product Overview

Description

FWT 8848/  GSM to landline converter/  fixed wireless terminal with Caller ID / Gsm terminal etross 8848  with CE



Brand: Etross
Model no.: Etross-8848
Product name: GSM Fixed Wireless Terminal
Frequencies: GSM850/1900Mhz 900/1800Mhz Quadband



Available:

Employ Quectel M35 Module/Zhiwu 680F module

Frequency:Quad band GSM 850/900/1800/1900Mhz





1.General Description

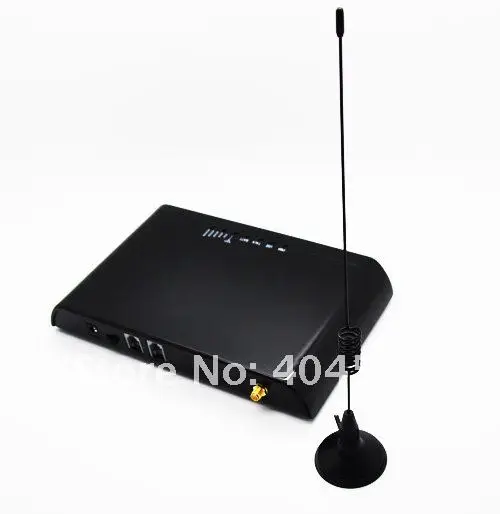

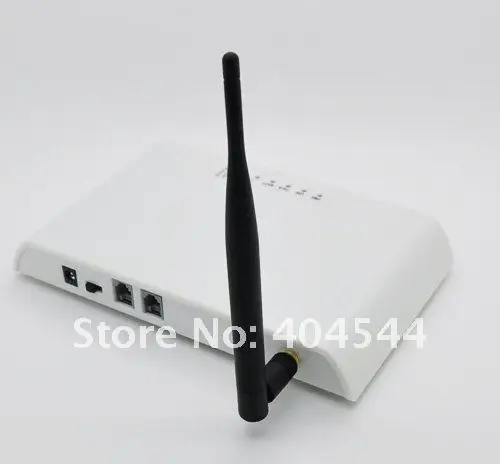

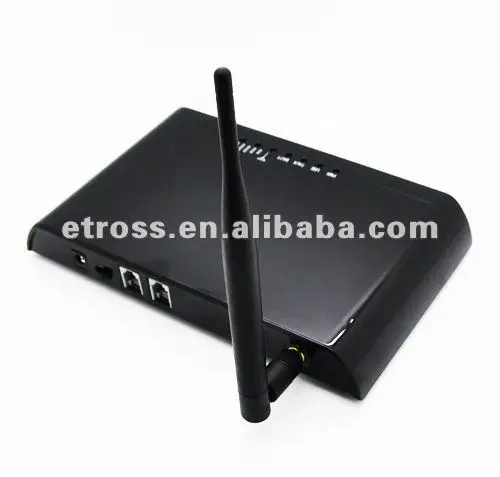

GSM FWT-8848 is a GSM to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will  go out the GSM network. This device can both receive and make calls.



The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line .



2.Features:

1) It is a 1 channel GSM FWT which has 2 RJ-11 outputs for extensions;

2) It can connect with ordinary telephone set, Alarm system,PBX ,Billing meter, VOIP Gateway etc. ;

3) Dialing tone frequency:450hz;

4) Employ Industrial module to make;

5) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

6) Can adjust voice volume by setting up from telephone set;

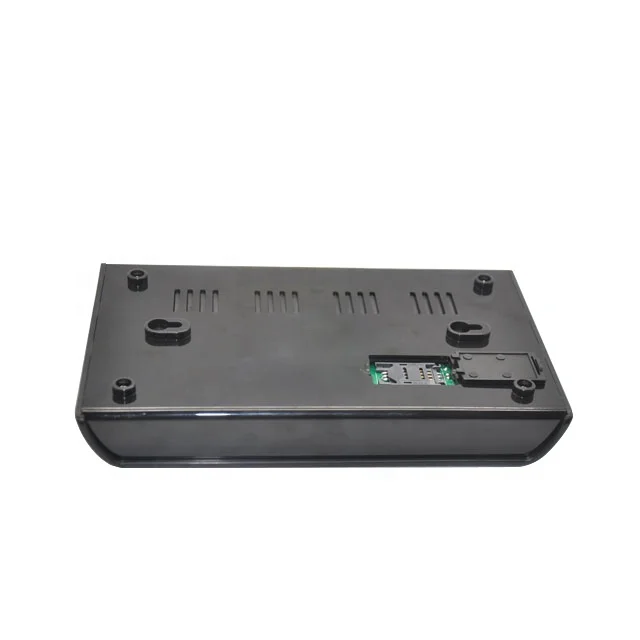

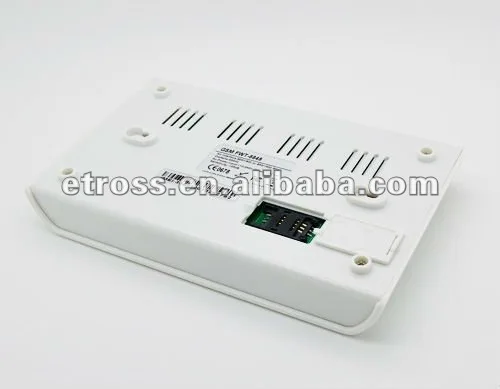

7) SIM card supported (1.8V, 3V);
8) Caller ID display;
9) DTMF Dialing;
10) Bell signal;
11) Polarity reversal;
12) The RJ-11 socket which connect the phone or billing system for metering purpose;

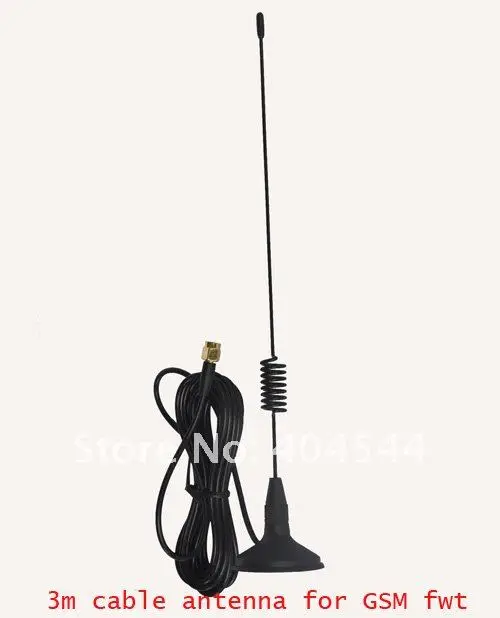

13) Antenna socket (SMA);
14) IP Presetting;

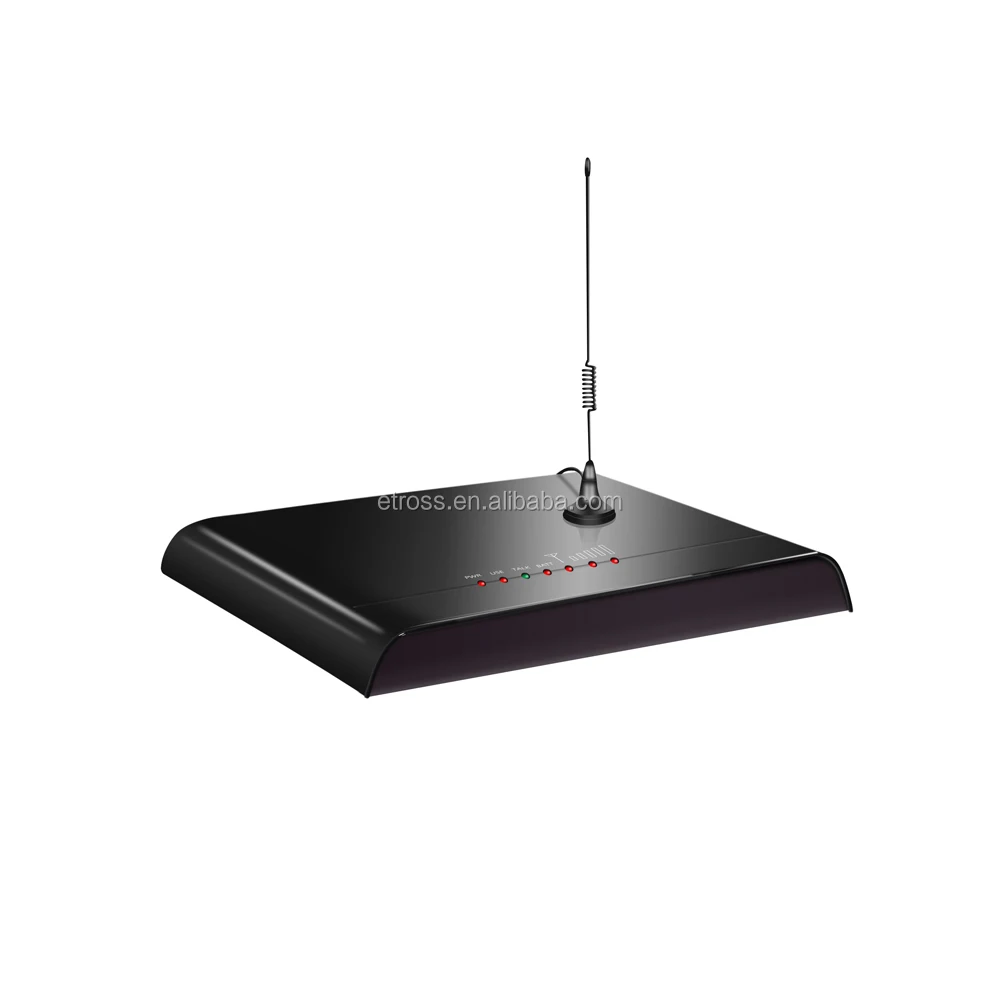

15) Working status and Signal Strength by LED indicator;

16) IMEI Change (optional).

17) PIN Lock&Network Lock(optional)

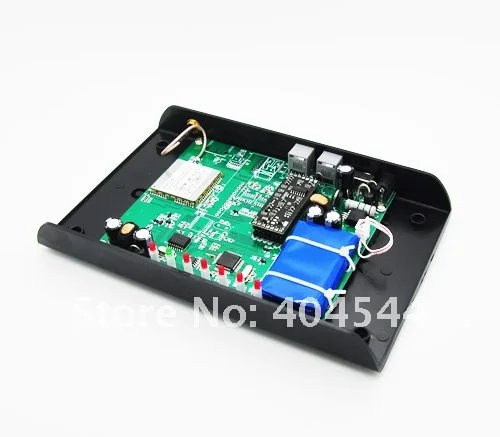

18) Back up Li-ion battery( Optional) 7.4V 900mAh.standby 24hrs,talking time: 2.5hrs.



3.Technical Specifications:

Air interface standard: GSM850/1900Mhz,900/1,800Mhz phase 2+ full band
Frequency ranges:
 A) GSM 850                                   GSM 1900:
 I) Transmission: 869.2 ~ 893.8MHz      I) Transmission: 1, 930 ~ 1, 990MHz
 Ii) Reception: 824.2 ~ 848.2MHz         Ii) Reception: 1, 850 ~ 1, 910MHz
 B) GSM 900:                                  GSM 1800:
 I) Transmission: 890 ~ 915MHz           I) Transmission: 1, 710 ~ 1, 785MHz
 Ii) Reception: 935 ~ 960MHz              Ii) Reception: 1, 805 ~ 1, 880MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W

Color: White /Black (optional)
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz;Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional



4.Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
