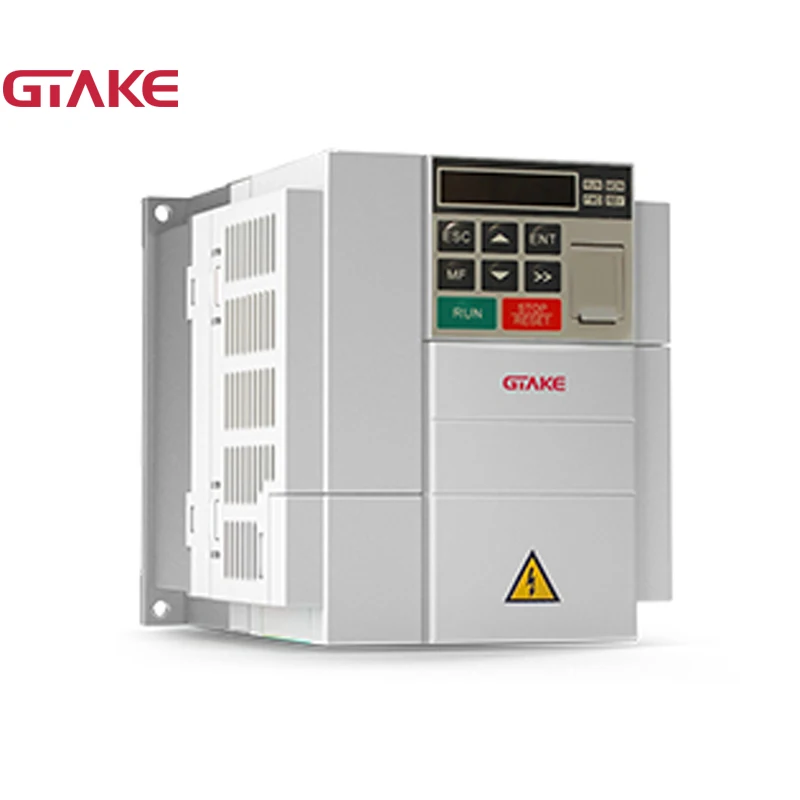

GK510 Sensorless Vector Control Variable Frequency Drive Inverter Brand: GTAKE Certificate: CE, RoHS
VFDs Model
Power Rating
Input Voltage
Output FREQ
Type
GK510 series
0.75kW-2.2kW
208V~240V / 380~480V, ±10%
0.00-600.00Hz
DC/AC to AC inverters
Advantages
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE frequency inverters are equipped with advanced features, some of which are listed as below:
01
Common DC bus solution is permissible for GK510, a big promotion in the efficiency of energy saving;
02
Stronger wobble frequency: Optimized wobble frequency inside GK510 enables the drive to have a wider fit to all kinds of traverse motion. All parameters and trigger conditions of wobble function can be set flexibly. Remarkable control capability pledges spindle smooth without bumps;
03
Textile industry locations are always filled with cotton fiber and have high ambient temperature. Gk510 dedicated drives are equipped with completely separated heat sink, as well as forced air cooling and water cooling are selectable;
04
GK510 drives supports remote control panel operation including parameter copy, a benefit for textile industry and OEM users to reduce the cost of commissioning;
05
This drive supports multiple frequency references, a lot of ogic and /or hard ware combination, meeting a variety of industrial requirement;
Features
Mains Supply (R/L1,S/L2,T/L3)
Supply voltage
208-240V ±10% 380-480V ±10%
Power source frequency
50/60Hz ± 5%
Switching on input supply
Maximum 2 times/min
True Power Factor
0.92 nominal at rated load
Displacement power factor (cos φ)
(> 0.98)
Output Data (U, V, W)
Output voltage / frequency
0-100% of supply voltage / 0.00-600.00 Hz or customized
Switching on output
Maximum 2 times / min.
Ramp time
0.01-60000 S
Note:
150% current can be provided for 1 minute, 180% for 10 seconds. Higher overload rating is achieved by oversizing the drive.
Digital Input
Programmable digital inputs
5
Logic
NPN or PNP
Voltage level
22V-26V
Input
24VDC, 5mA
Frequncy range
0-200Hz
Analog Input
Analog inputs
2
Modes
Voltage or current
Level
0/-10-10V
Current range
0/4-20mA Scalable
Digital Output
Programmable digital outputs
2
Voltage level at digital output
0 - 24 V
Current range
0-50mA
ModBus
Format
RTU / ASCII
Rate
4800 / 9600 / 19200 /38400 / 57600
Relay Output
Programmable relay outputs
1
Remote Panel
Maximum cable length
5m
Applications
Compact and Powerful

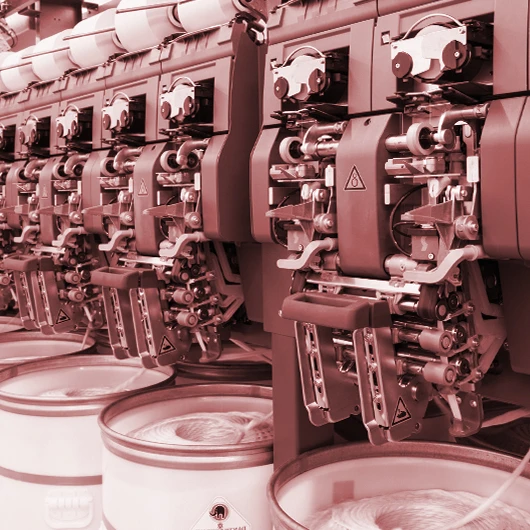

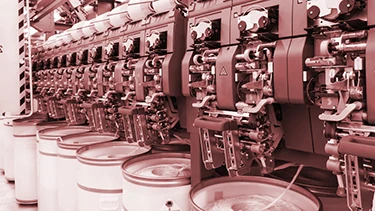

GK510 dedicated drives are tailored for textile industry, powerful in performance and compact in sizes. Their frame dimensions, dedicated function, and type of heat dissipation are all considerate for various textile machines.
Why choose GTAKE variable frequency drive?
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, Gtake, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.
Production

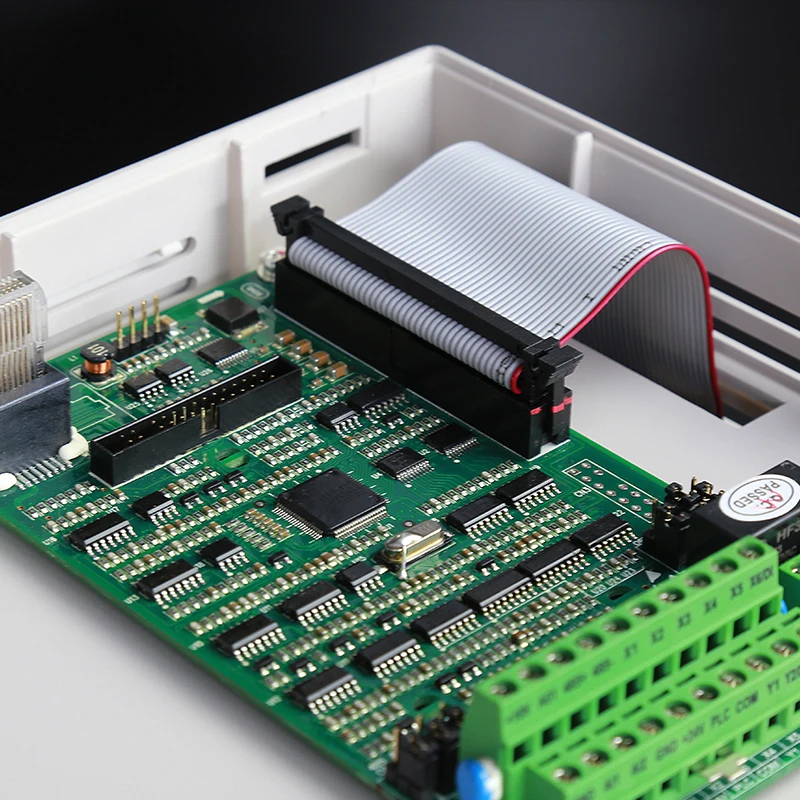

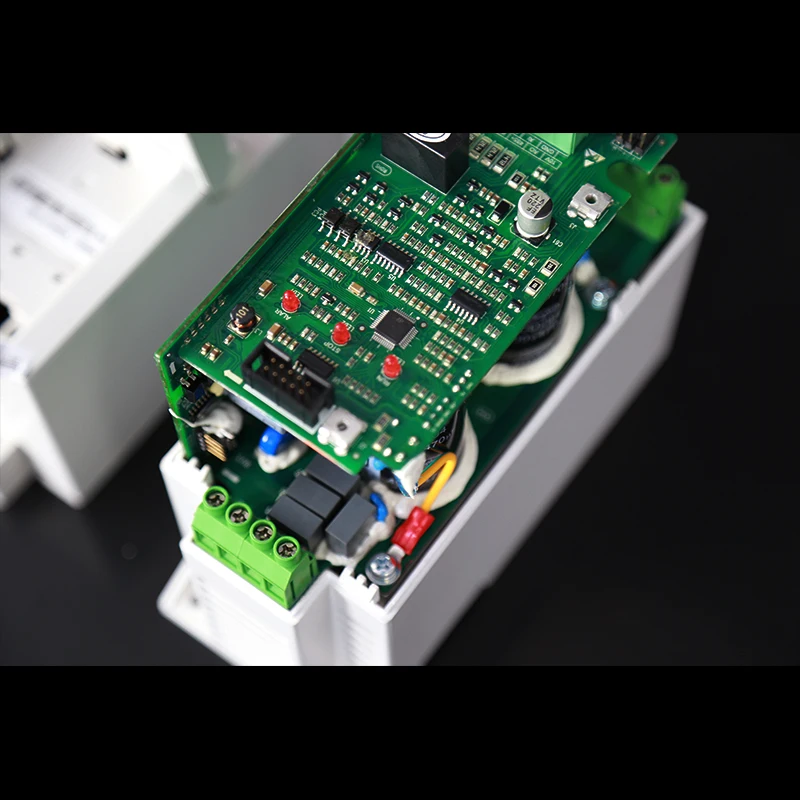

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
GTAKE VS Other brands
Performance
Common brands
GTAKE
Applicable motors
Asynchronous motors
Asynchronous /synchronous motors
Starting torque
2.0Hz, 150% (sensor-less vector control)
0Hz, 180% (closed-loop vector control)
0.5Hz, 180% (sensor-less vector control)
0Hz, 200% (closed-loop vector control)
Speed adjustable range
1:100 (SVC), 1:1000 (VC)
1:200 (SVC), 1:1000 (VC)
Ambient temperature (no derating required)
-10-40ºC
-10-50ºC (for most of the models)
Rated input voltage
208VAC-400VAC
208VAC-480VAC
Communication
Modbus RTU//ASCII
Modbus RTU//ASCII Profibus-DP, CANopen, etc.
Position control (fixed length, or angular positioning)
×
√
Field weakening control
×
√
Autotune online
Online
Online & Offline
Short-time ramp-up
Trip
No trip
Customized features (software and/or hardware)
Unprocurable or no experience
Procurable with rich experience
Packaging and logistics
All drives are well packed before shipment, fit for air shipment, sea transportation, and express delivery. Customers are able to call its own nominated forwarder or consult GTAKE logistics department for worldwide shipment services.
* Low-power inverters are packed in cardboard box, and others are in plywood cases.
* Plenty of transportation procurable globally in accordance with customer demand or GTAKE expertise.
GTAKE AC motor drives are able to replace AC drives and inverters of the following brands: , LS, Toshiba, Siemens, Lenze, Yaskawa, Mitsubishi, Delta, Hitachi, WEG and etc.
Please leave us an inquiry for more details of our frequency inverters, like information of the model numbers, technical data, applicable application, pricing, distributor policy, lead time and/or customized functionality.
