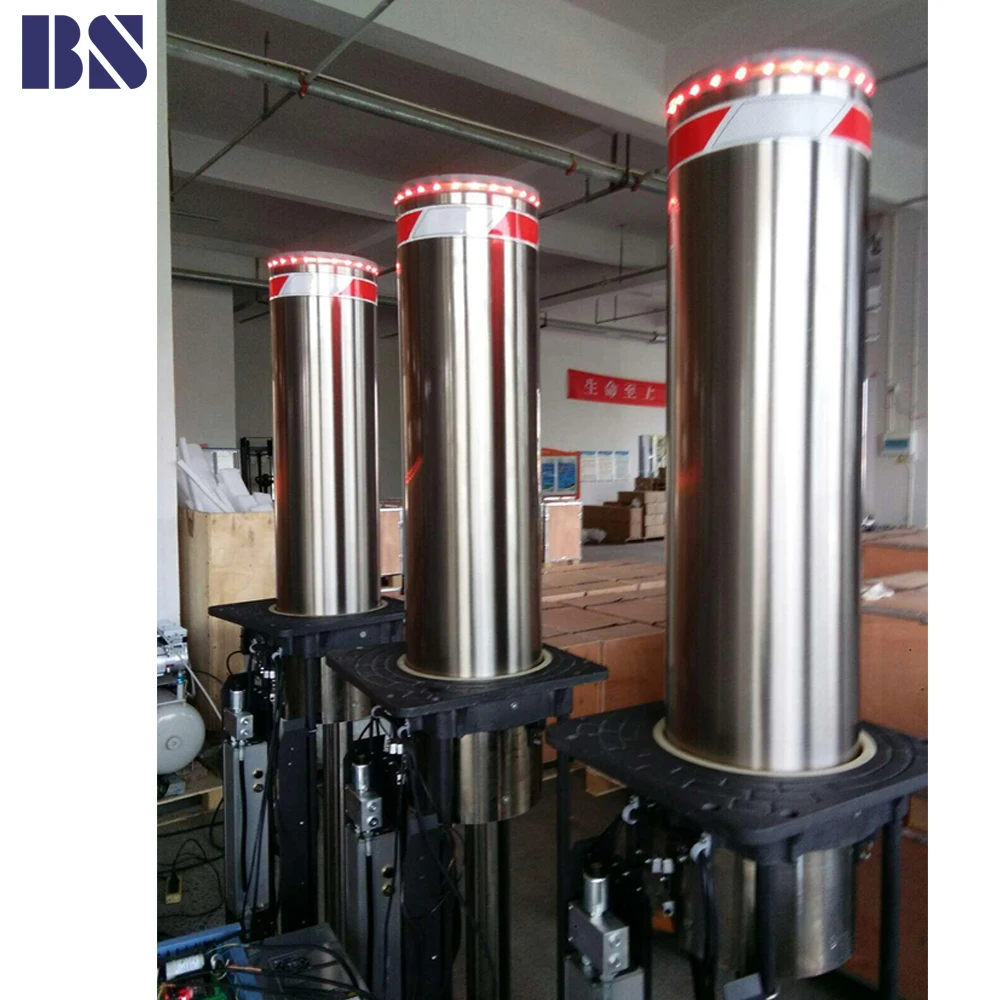

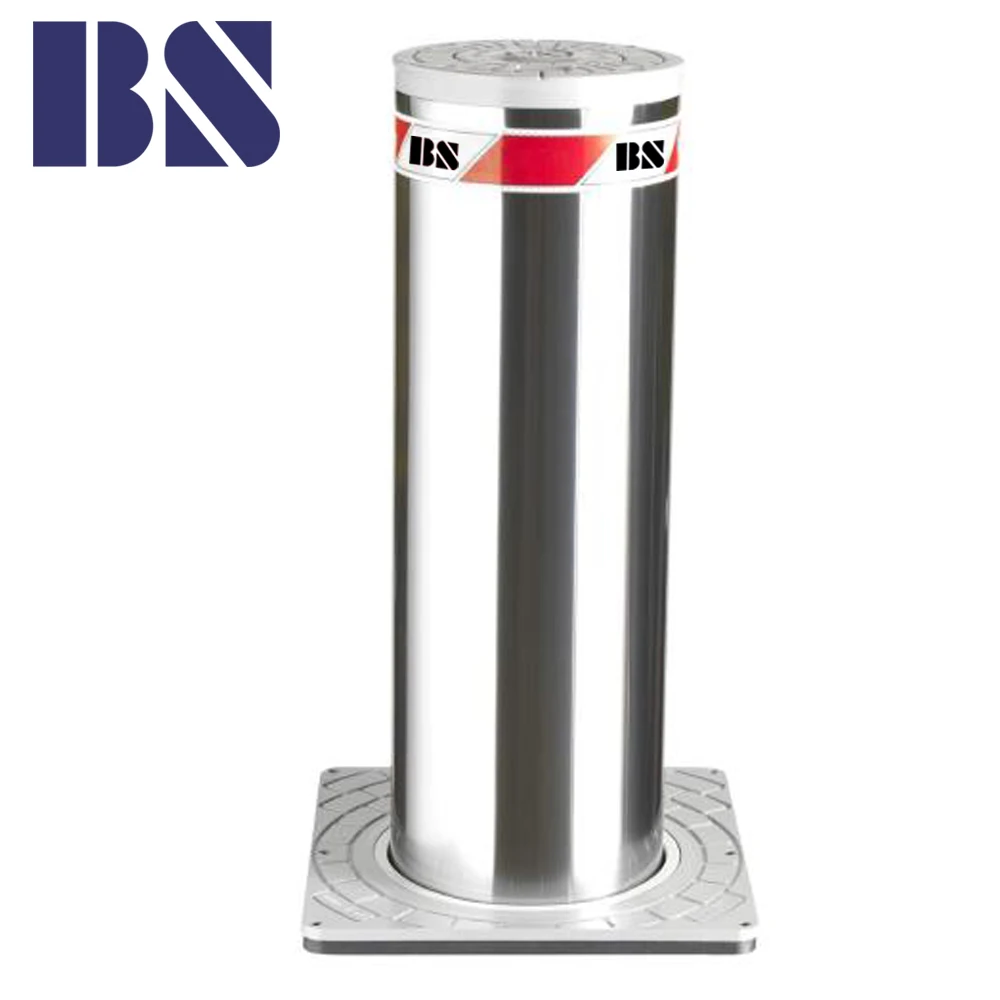

Security Electric Rising Hydraulic Road Traffic Bollard with Lights and Buzzer

Product Overview

Description

Brief

Hydraulic bollard is used for government, customs, prison... for access controlling and security.

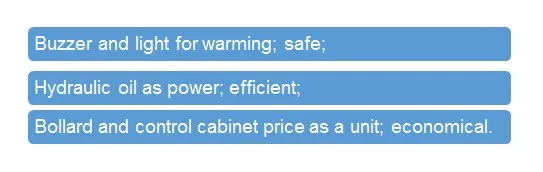

Feature









Technical Date

BS Hydraulic Bollard Technical Data
Model	BS-220H4-600
Diameter	220mm
Block height	600 mm
Embedded height	837 mm
Thickness	6 mm
Material	304 Stainless Steel
Surface finish	polish
Color	304SS Natural Color
Light	with
Buzzer	with
Reflector band	1 strip (brand 3M; diamond level; 55mm) or without or OEM
Working way	rasie and fall automatically
Working speed	3-6S
Protection class	IP 67
Weight	about 155 kg
Work frequency	Intensive use>2,000,000 life cycles;      2,000 daily operations (for reference; subjec to real one)
Working Temperature	(-)15℃-70℃
Impact Resistence	250,000 J (for reference; depends on the installation environment, using surrouding, using frequency, maintenance...)
Accessory	remote and push button

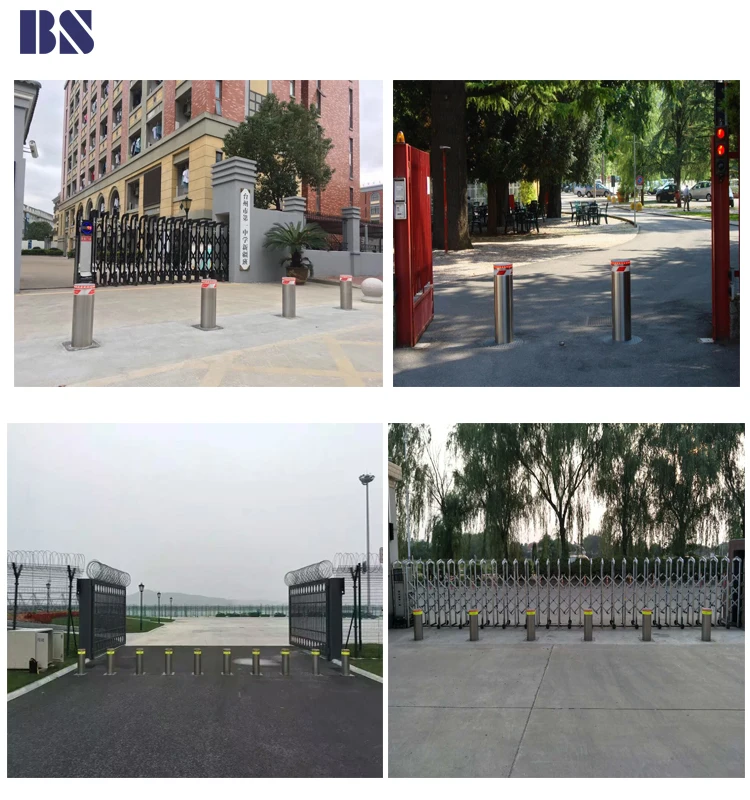

Project Show

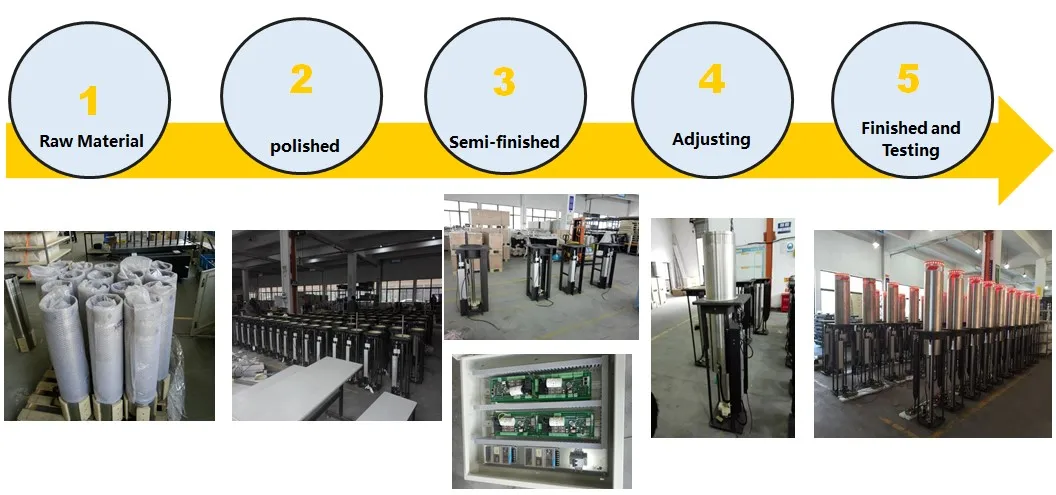

Production







Package

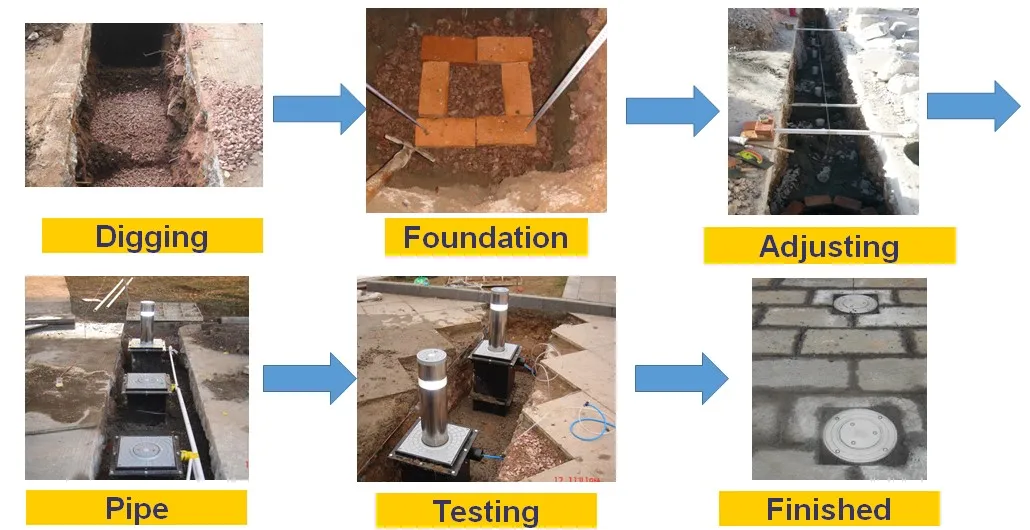

Installation









 Our Factory

Comments by Clients





Q&A



1). Q: Are you a factory or trading company?
Factory; 8,000 square meters; with 11 years experiences in Bollard field.



2). Q: Where is your factory? How can I get there?
Hangzhou; near to Shanghai

About 1 hour from Shanghai to Hangzhou by fast train.



3). Q: Can I get a sample?
Yes. Sample is available.



4). Quality control?

A full quality controlling procedure from pre-production, middle production, aging testing to pre-shipment production….



5). Q: Warranty period?

12 months upon receipt of goods.



6). Q: Spare part?

Wearing spare part list would be offered for review when you place the order



7). Q: Lead time?

30-45 days upon receipt of your payment. Time depends on different products.



8). Q: Payment terms?

50% T/T in advance and balance before shipment.



9). Q: Delivery?

Express delivery; sea freight; air freight.
