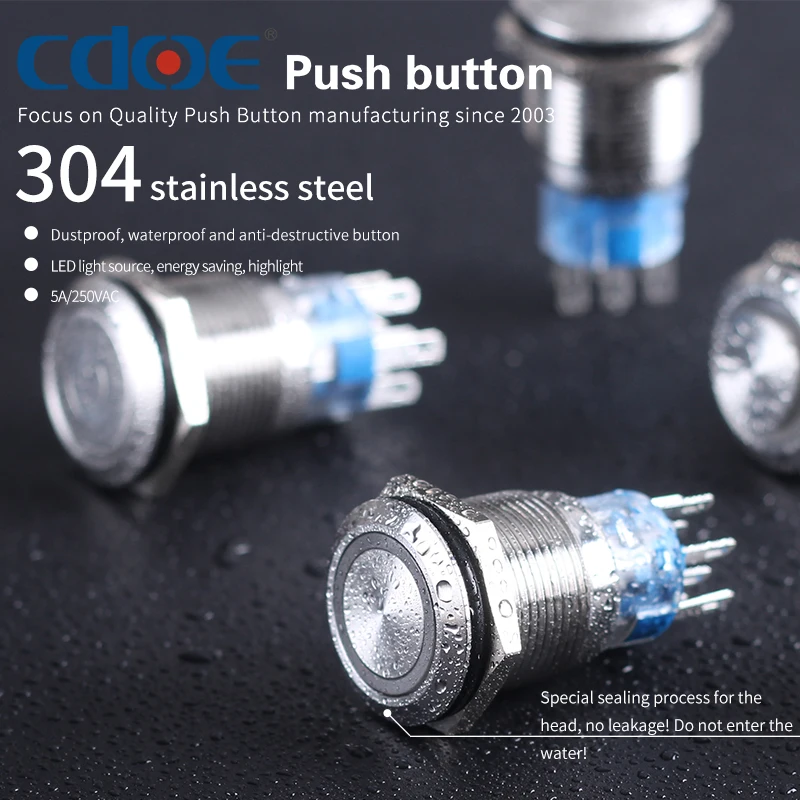

Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch
Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch

Chinese manufacturers nickel plated brass momentary metal pushbutton 19mm high head power symbol switch

Share on (60816320810):


Price:$2.26

Quantity:


Product Overview

Description





Products Description






Parameter


Metal Push Button Switch With Led

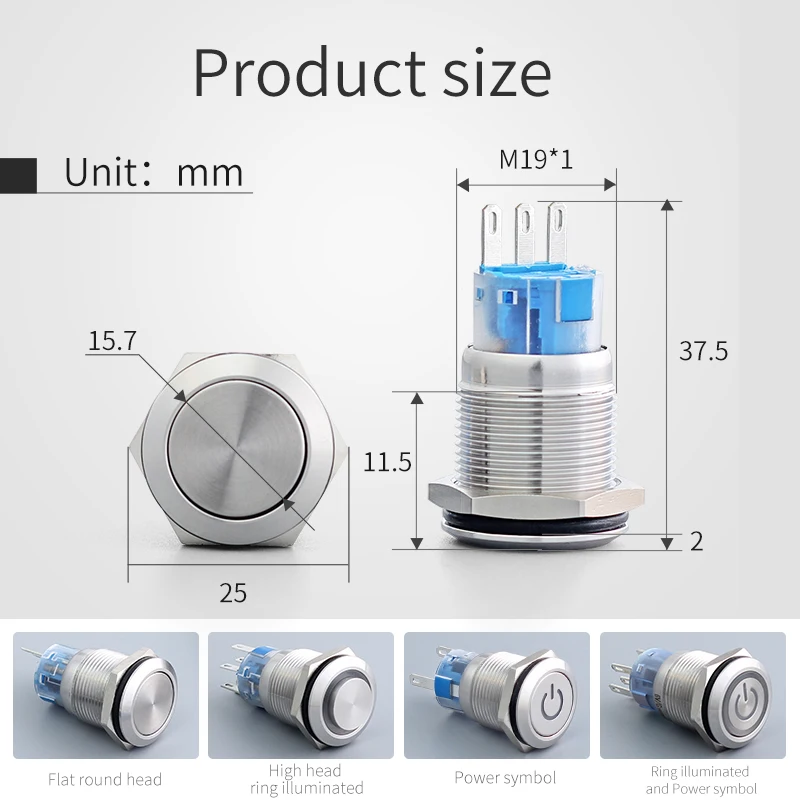

Mounting hole size :
19mm
Switch value:
5A/250V AC
Operation type:
Momentary

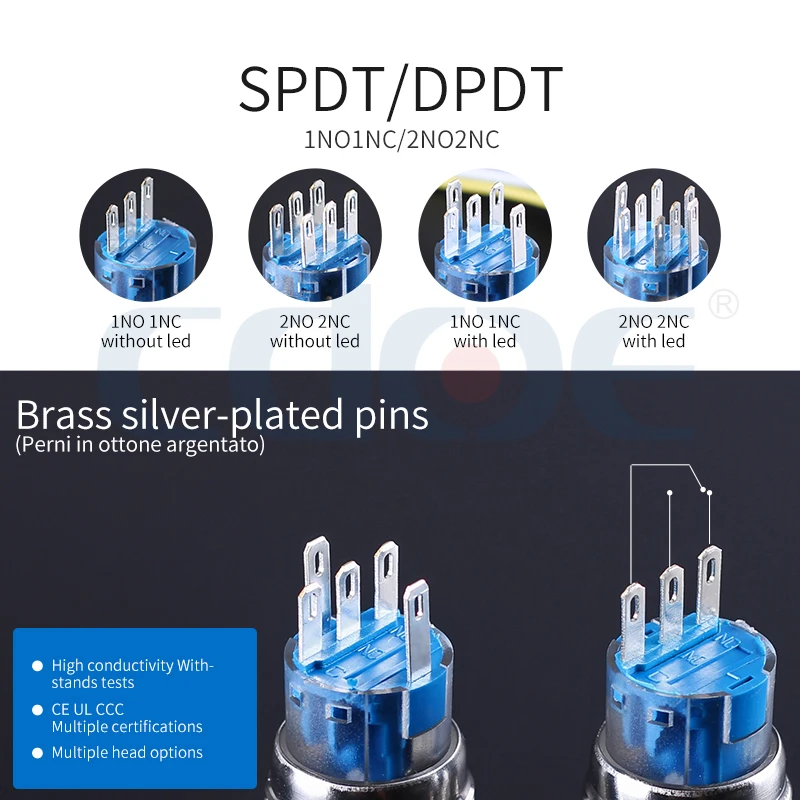

Contact configuration:
1NO1NC
Head shape：
High,Flat
Crust material:
Nickel-plated brass
Terminal type:
Pin terminal
Electrical life :
≥50,000 times
Mechanical life:
≥1,000,000 times
Operation temperature:
-25℃~+65℃
Contact Resistance:
≤50mΩ
Insulation Resistance:
≥100mΩ
Operation stroke:
3.2mm

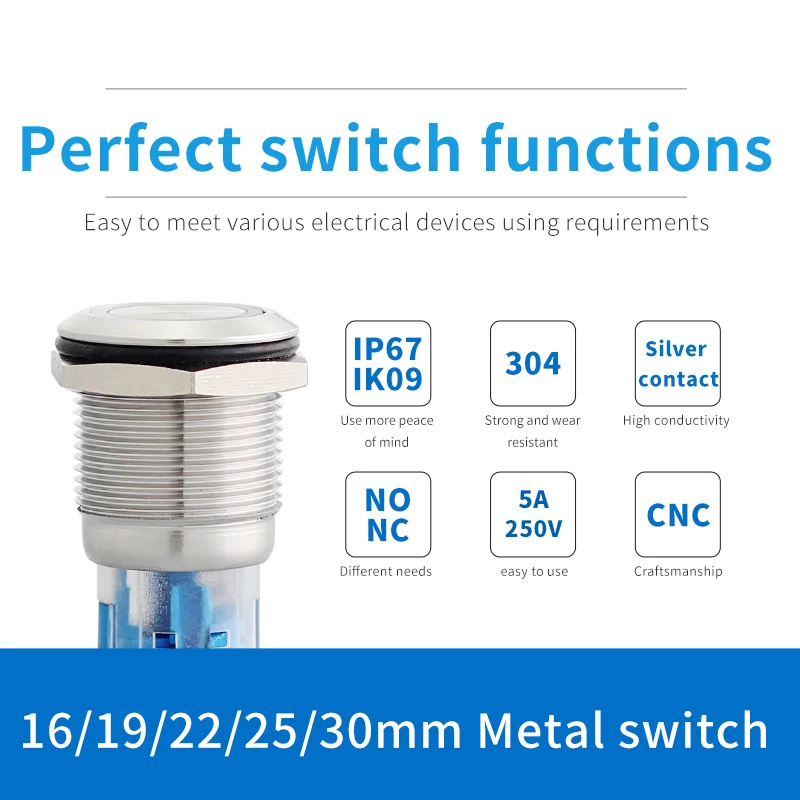

Protection grade :
IP67
Contact material:
Silver alloy

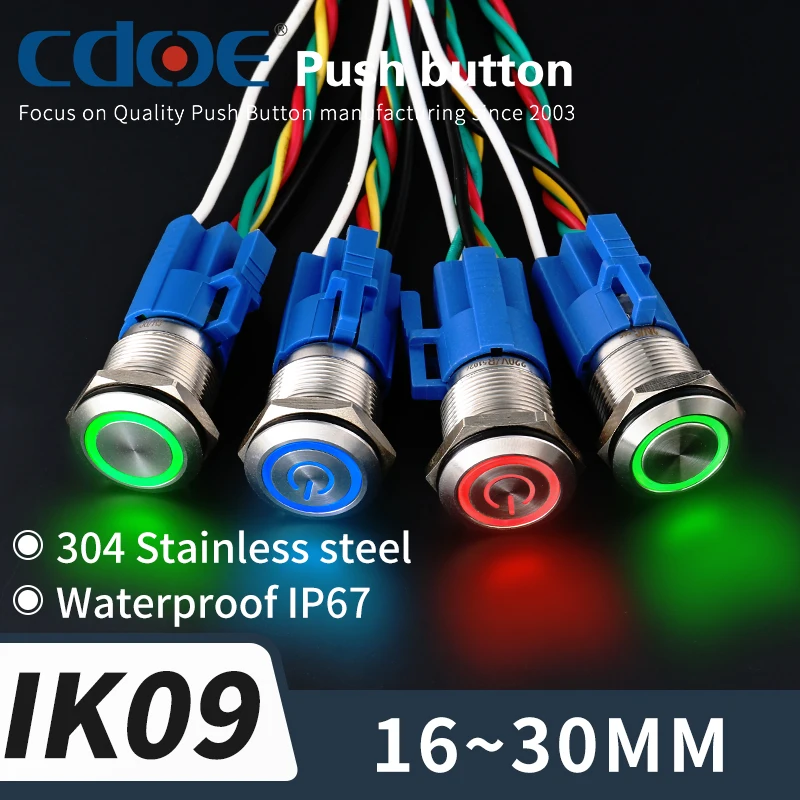

Illumination type:
illuminated Power symbol
Led color:
 R G B O W Y (One led)
Red/Green,Red/Blue,Red/White bi-color led
Red-Green-Blue tri-color led
Led voltage:
2V(3V),5V(6V),12V,24V,36V,110V,220V
Led life:
50,000 hours


Company Information




Product packaging


Product packing method.
We pack 40 pieces diameter 19 mm metal push button into 1 foam box to protect them.We supply 40 pieces rubber rings.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.


FAQ


Q: Can you provide samples ? Are the samples free ?
"A: Yes,we can provide samples. we will collect samples fee(1-3 pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the sample fee for you."

Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer),Western Union and PayPal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."

Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you."

Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express,such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery."

Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes , We have product catalog.Please contact us on line or send an Email to sending the catalog.

Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year. Any requirement or question,pls send us an e-mail now! It's our great honor to do services for you! We will reply you ASAP. If no response within 24 Hours, please kindly check the spam in your mail box.

Thank you for your trust and support!
