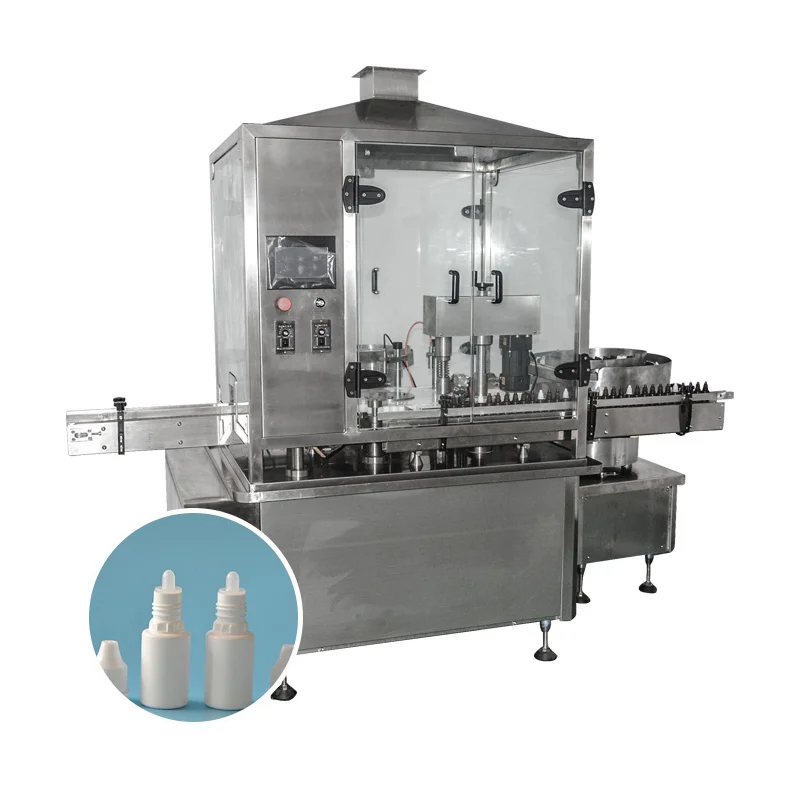

Latest Design Automatic Rotary Small Bottle Vial eye drops Rinsing Filling Machine
- Category: >>>
- Supplier: Nantong Bolang Machinery Technology Co. Ltd.
Share on (60816333012):
Product Overview
Description
Our Product Advantages
1.We have many high quality and reliable suppliers.
2.We have young and powerful sales team, and have enough exported experience.
3. Our products are of excellent quality and fast processing speed.
4.Rich experience, more than 1,500 global customers, more than 20 years of factory history.
5. Rich product categories, products support OEM and customer customization.
6. One-year warranty, can provide overseas installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description
Latest Design Automatic Rotary Small Bottle Vial eye drops Rinsing Filling Machine\t
Product Function

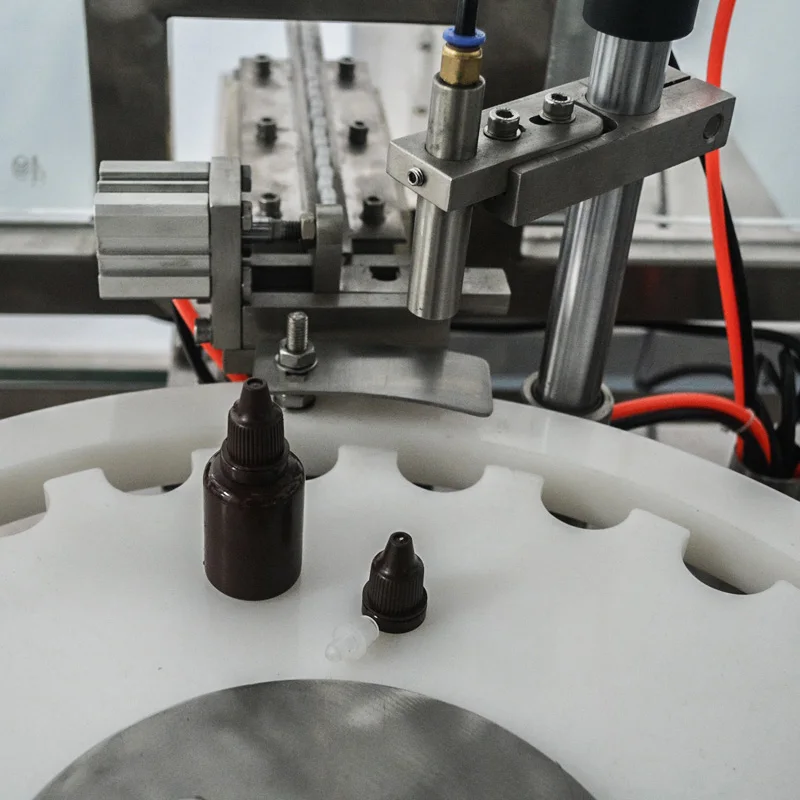

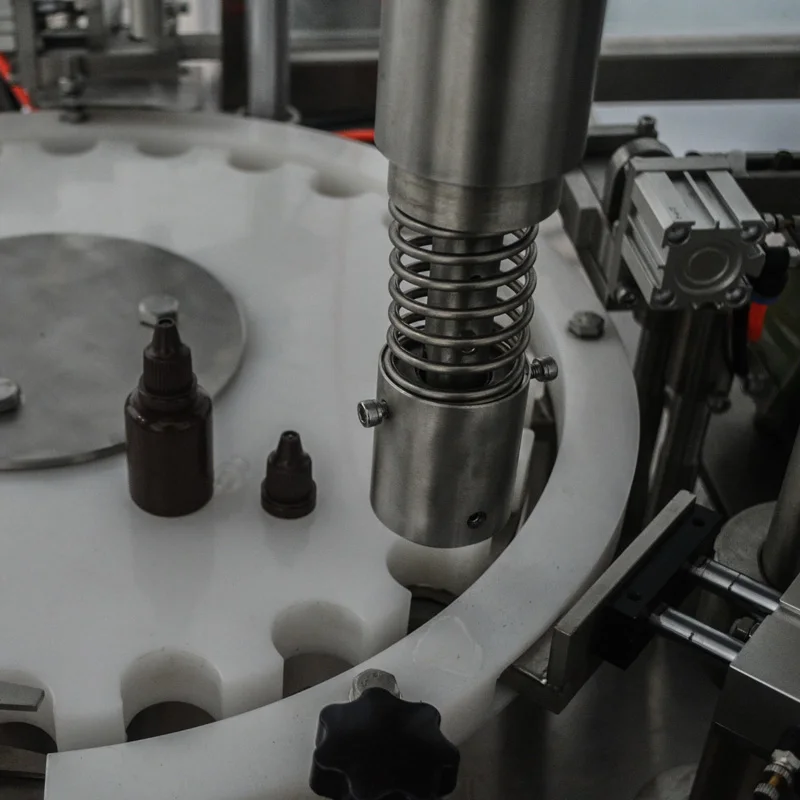

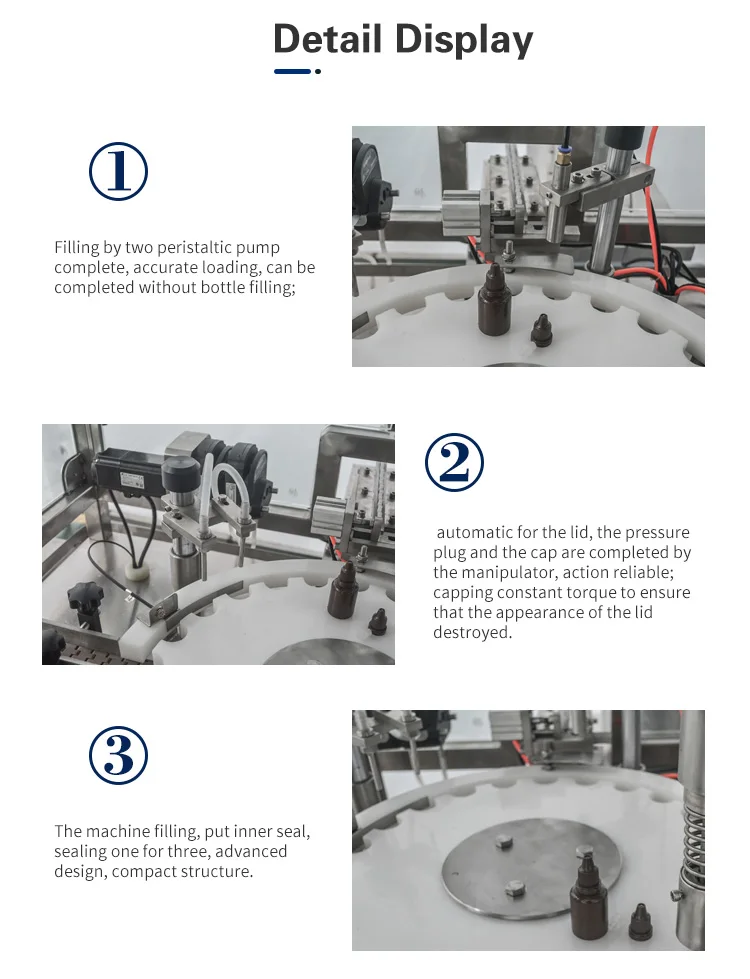

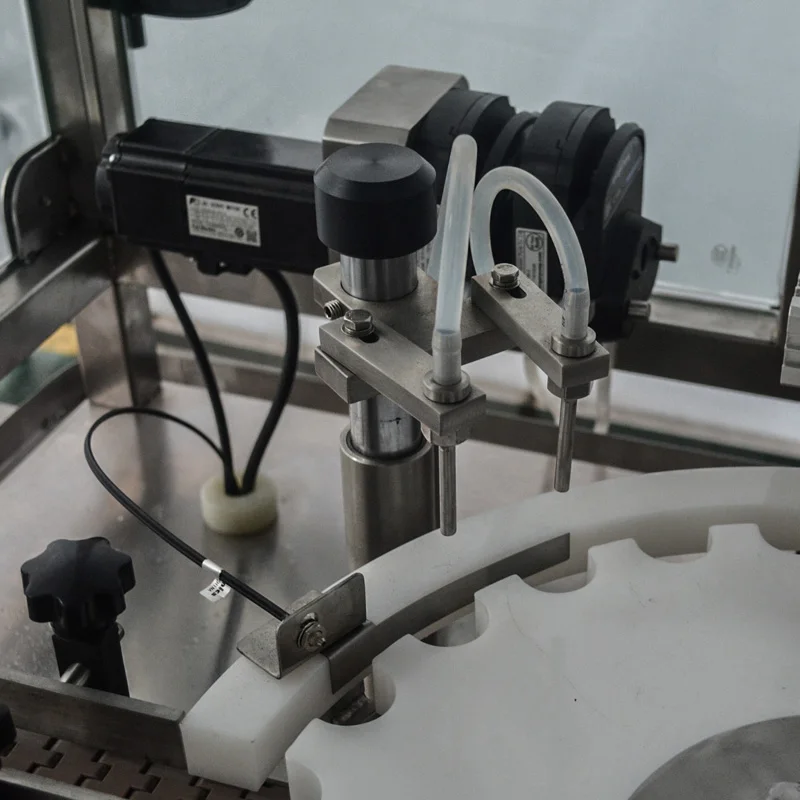

1. This machine is the filling host in the eye drop liquid filling line, which is mainly used for filling 10-15ml plastic bottle straight tube, sealing on inner plug, lid and screw cap.2.Filling by two peristaltic pump complete, accurate loading, can be completed without bottle filling; automatic for the lid, the pressure plug and the cap are completed by the manipulator, action reliable; capping constant torque to ensure that the appearance of the lid destroyed. The machine filling, put inner seal, sealing one for three, advanced design, compact structure.
3. This machine can also finish the automatic filling of the glass bottle and dropper cap, and automatically cover the cap and the screw cap.
Production capacity | 40-50 bottles / min (eye drops bottle)， 30-40 bottles / minute (glass bottle) |
Applicable bottles | 10ml / 15ml garden eye drops bottles, 30ml glass bottles |
Capacity | 0 ~ 2% |
Number of compression | double head |
Tamping method | half plug or full plug (adjustable) |
Power | 220V 50Hz / 60Hz |
Power | 2Kw |
Dimensions | 1650 × 1300 × 1850 |
Main device component configuration
No. | Name | Model or Material | Supplier |
1 | PLC | FX3U-24MT | Japan Mitsubishi |
2 | touch screen | GS2107 | Japan Mitsubishi |
3 | inverter | FR-A740-0.75K-C | Taiwan Delta |
4 | pneumatic components | Taiwan AIRTAC | |
5 | sensor | BW200-DDT | Korea Autonics |
6 | stepper motor | 2S86Q-030B8 | Shenzhen |
7 | Peristaltic pump | Baoding Lange | |
8 | high-precision dividing box | RTT80-12-2: 1 | Zhucheng Mingxin |
9 | Inner seal and cap stacker | 400 (304 #) | Shanghai Dinghua |
10 | drip cap stacker | 500 (304 #) | Shanghai Dinghua |
11 | other electrical components | France Schneider | |
12 | Equal parts | nylon | Nantong Bo Lang |
13 | bottles system | components | Nantong Bo Lang |
14 | Filling system | components | Nantong Bo Lang |
15 | Press stopper system | components | Nantong Bo Lang |
16 | capping system | components | Nantong Bo Lang |
17 | Drip bottle stacker system | components | Nantong Bo Lang |
18 | screwing system | components | Nantong Bo Lang |
19 | transmission | components | Nantong Bo Lang |
20 | rack, table | assembly (A3) | Nantong Bo Lang |
21 | side panels, panel | components (304 #) | Nantong Bo Lang |
22 | dust cover | assembly | Nantong Bo Lang |
Company Profile
Our company is one of the member units of China Pharmaceutical Equipment Industry Association. Its predecessor is Haimen Nantong Precision Machinery Co.,Ltd.It has a history of more than 20 years.It specializes in the design and manufacture of pharmaceutical,food and chemical machinery,and has a far-reaching impact on the national pharmaceutical and food industries.The company has strong design ability.The products are also exported to Southeast Asia,Central Asia and other countries and regions,and are favored by users.
Delivery&Certificate
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
