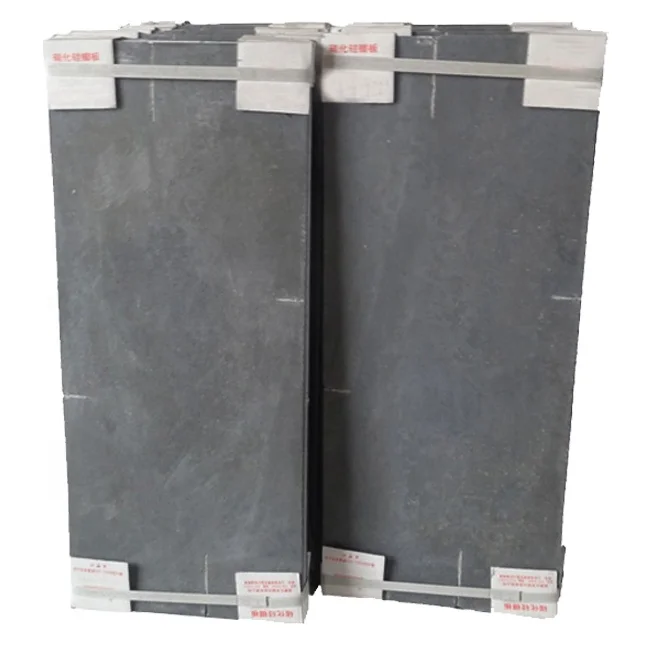

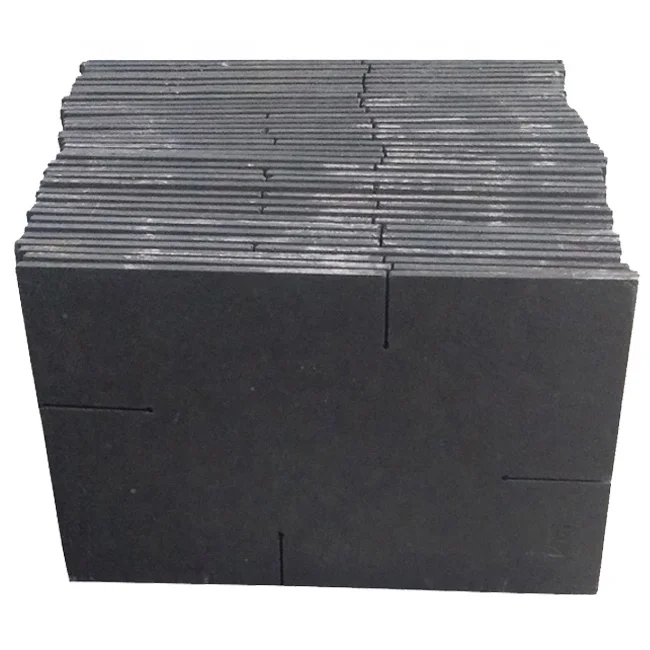

Silicon carbide setter plate / sic batts used as silicon carbide kiln shelves
Product Description
1. Technical parameters
ITEM
UNIT
DATA
Name
Silicon carbide setter plate / sic batts used as silicon carbide kiln shelves
Temperature
℃
1400
Density
g/cm³
2.7-2.75
Open Porosity
%
<14
Moh's Scale of Hardness
13
Bending Strength
MPa
45 (20℃)
MPa
55 (1300℃)
Modulus of Elasticity
GPa
330 (20℃)
GPa
300 (1200℃)
Thermal Conductivity
W/m.k
14 (1200℃)
Coefficient of thermal expansion
k-1×10-6
4.8
Acid Alkaline -proof
Excellent
Taking silicon carbide as the main material and adding expansion agent and anti oxidant silicon carbide setter plate / sic batts used as silicon carbide kiln shelves have very high load softening temperature and excellent anti oxidative effect through vibration supported uniaxial press compaction and high temperature firing. It was originally used as an alternative to conventional bonded SiC materials, but it shows the long term stability comparable to RSiC and NSiC with lower cost.
2.Property:
Good thermal shock resistance
Good resistance against corrosion and oxdiation
Good mechanical strength at high temperature
Excellent thermal and electric conductivity
Long service life and energy saving
Environmental friendly
Other recommendations :
Reaction Bonded SiC (SiSiC)
Recrystallizde SiC (RSiC)
Nitride Bonded SiC (NSiC)
3. Shapes of silicon carbide setter plate / sic batts used as silicon carbide kiln shelves
Batts, setter plate, pusher plate, setter slab, sagger,muffle board,support shelves and other special shaped products
Remark: sizes and shape are available upon requests.

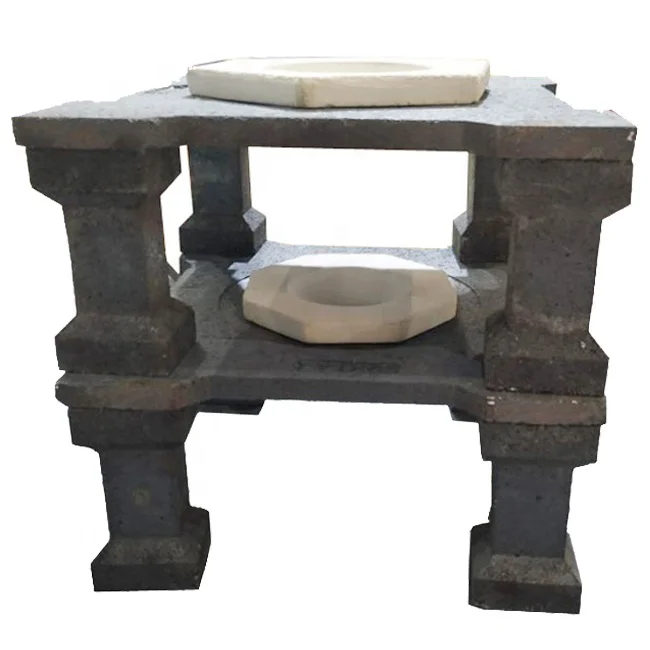

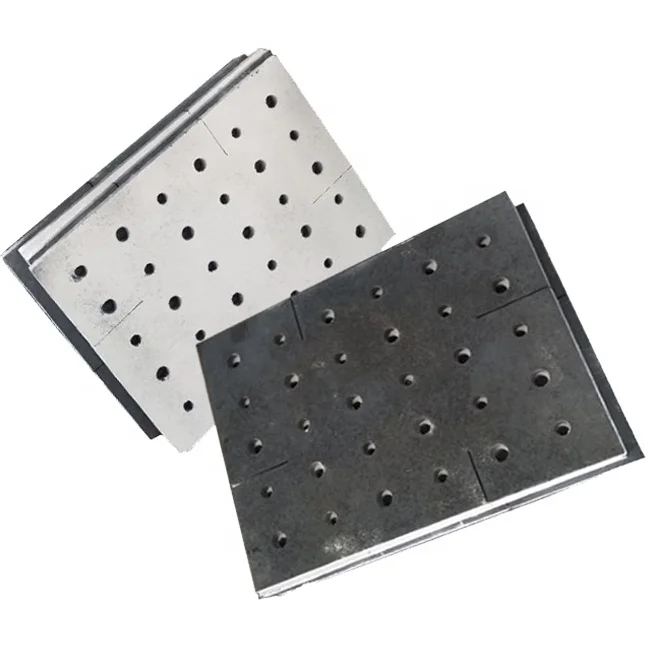

Some OSiCOxide bonded silicon carbide parts is shown as follows:
Silicon carbide setter plate / sic batts used as silicon carbide kiln shelves can be made into OSiC plate, OSiCsupport, OSiC disc and other special shaped products, which are mostly used as kiln furniture like batts, setter plate, pusher plate, setter slab, sagger,muffle board and support shelves in firing tableware, sanitary ceramics, electrical ceramics, emery wheel and so on.

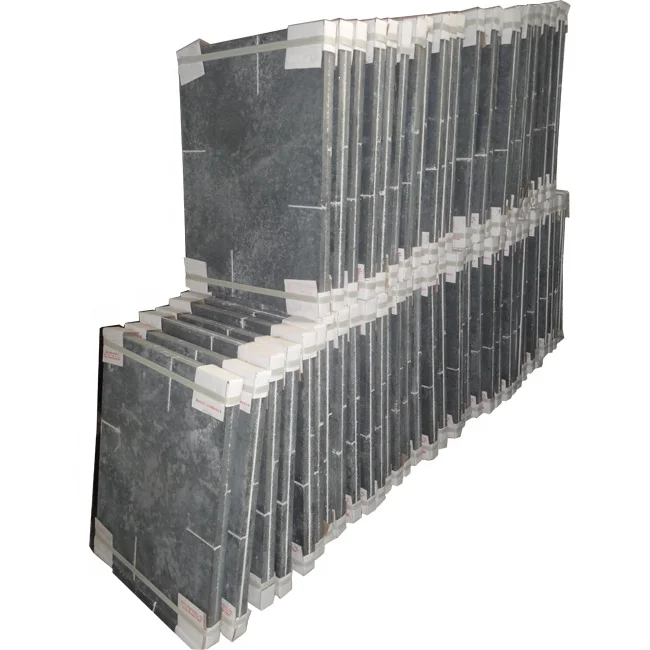

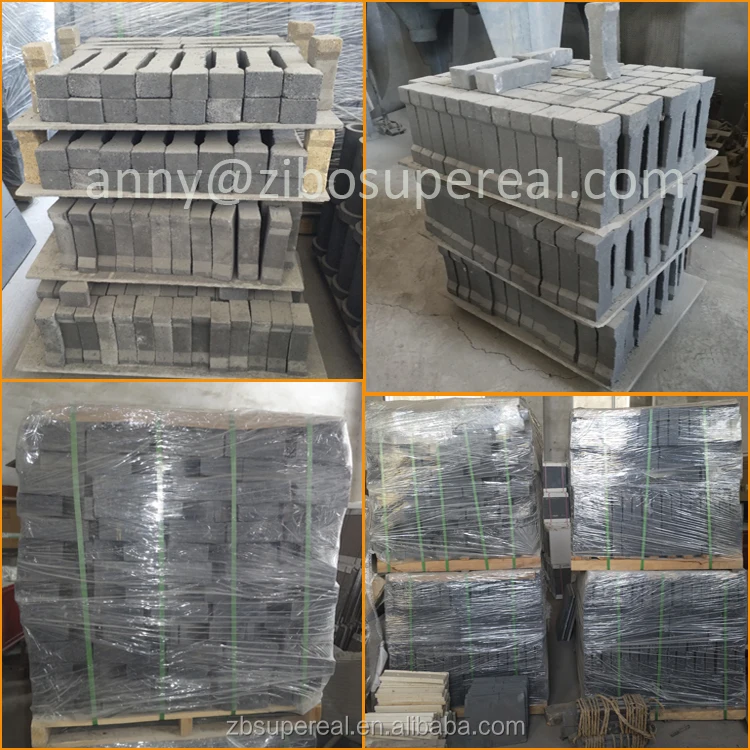

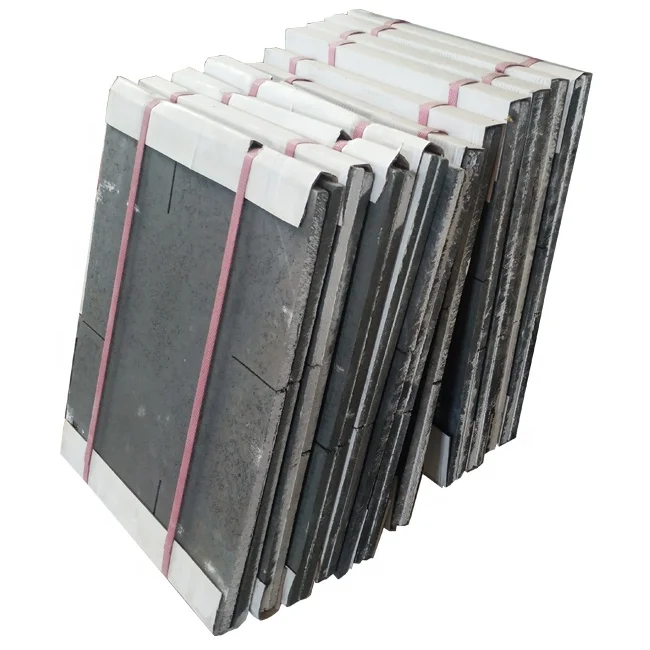

5. Packing of silicon carbide setter plate / sic batts used as silicon carbide kiln shelves
Company Information
Zibo Supereal Industrial Ceramic Co., Ltd is located in Zhangdian Economic Development Zone in Zibo city. Supereal is a high-tech enterprise that produce silicon carbide setter plate / sic batts used as silicon carbide kiln shelves, it has advanced technology and prodcution line.
Our company has a rigorous quality control system to guarantee stable performance and proven quality, our professional inspection team will carry out full course tracking from raw material selection, batching, production process management to semi and finished products test. Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our products have been approved and accepted by clients and users from New Zealand,South Korea, India, Russia, Italy, United Kingdom, USA, the Philippines and etc.
The silicon carbide products have superior properties such as high temperature resistance, wear resistance, corrosion resistance, high bending strength and thermal conductivity. The products are widely used in industrial kilns, desulphurization equipment, as well as other fields including metallurgical industry, electrical industry, chemical and oil industry, iron and steel, ceramic, paper making and mining industry, etc.
We will provide you with high quality products, overall services and reasonable price.
◊Professional:More than ten years of experience in production, more than 5 years of experience in foreign trade export, we will supply prompt technical support on pre- and after sales.
◊ High Quality:Based on the strict adherence to ISO9001-2008 or Industry Standard or other International Standard, our inspection engineers carry out full course tracking in the whole production.
◊ Focus on Details: No matter how small questions or problems shall be replied and help to solve by our members, even for the small orders.
◊ Price &Discount:We can provide competitive price and discount for large quantity.
◊ OEM :Customized designs, sizes and logos are acceptable.
