500kg Cement Ball Mill Small Rock Crusher Plant Price List

 Ball mill is the key equipment for grinding after the crushing process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials.

1. High-efficiency. Our ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%.

2. Simple structure, easy maintenance. Ball mill is mainly composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). Convenient installation and debugging , easy to operate.

3. High processing capacity,obvious continuous operation advantages. The capacity can get 4.6-260 t/h.

4. Wide-range usage. Ball mill as an old grinding equipment in market, the technology is mature and operated steadily.

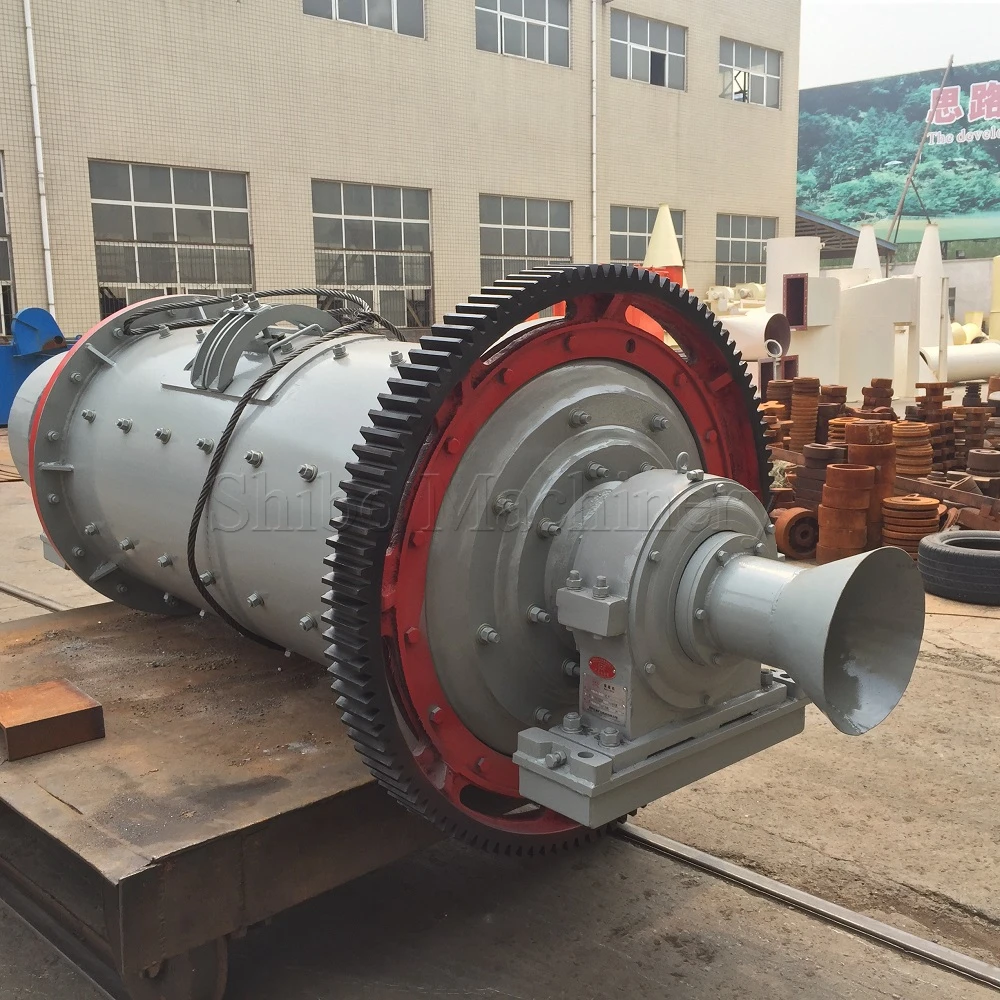

The ball mill is a homitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.



Technical Parameter

Technical Parameter:
Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size((mm)	Capacity(t/h)	Motor power(kw)	Total weight(t)
Φ900 x 1800	36	1.5	≤20	0.075-0.89	0.65 - 2	18.5	5.5
Φ900 x 3000	38	2.7	≤20	0.075-0.89	1.1- 3.5	22	6.7
Φ1200 x 2400	36	3	≤25	0.075-0.6	1.5- 4.8	30	12
Φ1200 x 3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Φ1200 x 4500	36	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Φ1500 x 3000	32.4	7.5	≤25	0.074-0.4	2-5	75	16.8
Φ1500 x 4500	29.7	11	≤25	0.074-0.4	3-6	110	21
Φ1500 x 5700	27	12	≤25	0.074-0.4	3.5-6	130	25.8
Φ1830 x 3000	25.4	11	≤25	0.074-0.4	4-10	130	29
Φ1830 x 4500	25.4	15	≤25	0.074-0.4	4.5-12	155	35.5
Φ1830 x 6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Φ1830 x 7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Φ2100 x 3000	23.7	15	≤25	0.074-0.4	6.5- 36	155 or 180	34.8
Φ2100 x 4500	23.7	24	≤25	0.074-0.4	8- 43	245	42
Φ2100 x 7000	23.7	26	≤25	0.074-0.4	8- 48	280	56.6
Φ2200 x 4500	21.5	27	≤25	0.074-0.4	9- 45	280	51.8
Φ2200 x 6500	21.7	35	≤25	0.074-0.4	14-26	380	60
Φ2200 x 7000	21.7	35	≤25	0.074-0.4	15-28	380	62
Φ2200 x 7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Φ2400 x 3000	21	23	≤25	0.074-0.4	7-50	245	58
Φ2400 x 4500	21	30	≤25	0.074-0.4	8.5-60	320	69
Φ2700 x 4000	20.7	40	≤25	0.074-0.4	12-80	40 0	94
Φ2700 x 4500	20.7	48	≤25	0.074-0.4	12-90	480	102
Φ3200 x 4500	18	65	≤25	0.074-0.4	According to the process conditions	630	137
Φ3600 x 4500	17	90	≤25	0.074-0.4	According to the process conditions	10 00	158
Φ3600 x 6000	17	110	≤25	0.074-0.4	According to the process conditions	1250	175
Φ3600 x 8500	18	131	≤25	0.074-0.4	45.8 - 256	1800	252
Φ4000 x 5000	16.9	121	≤25	0.074-0.4	45 - 208	1500	203
Φ4000 x 6000	16.9	146	≤25	0.074-0.4	65 - 248	1600	218
Φ4000 x 6700	16.9	149	≤25	0.074-0.4	45 - 252	1800	238
Φ4500 x 6400	15.6	172	≤25	0.074-0.4	54 - 306	2000	280
Φ5030 x 6400	14.4	216	≤25	0.074-0.4	68 - 386	2600	320
Φ5030 x 8300	14.4	266	≤25	0.074-0.4	88 - 500	3300	403
Φ5500 x 8500	13.8	338	≤25	0.074-0.4	108 - 615	4500	525



Ball Mill Porject

Contact us







Packaging & Shipping



Packing & Delivery

Contact us

Our Service

Contact us





Pre-sales

*Help customers to choose product.
*Freely send engineers to the working field to plan the installation site and design the best technical production process.
*Design the special product according to the contract.



After-sales

*Send the engineers to guide the installation.
*Install and adjust the equipment for customers.
*Train the operator for customers.
*We also provide the technical service for our customers after the installation.



Company Information



Henan Shibo Machinery Co.,Ltd.

We committed to designing, producing grinding mills, crushers,conveyors, feeding machines, drying and calcinating as well as beneficiation equipments and etc, which are widely applied in electricity, metallurgy, mine and quarry, wharf, granary, chemical industry. Our products have been spreaded all over China, and also exported to European,American, Asian, African countries and enjoyed great popularity among our customers.



Our Factory

Contact us



Client Visit

Contact us



Production Line

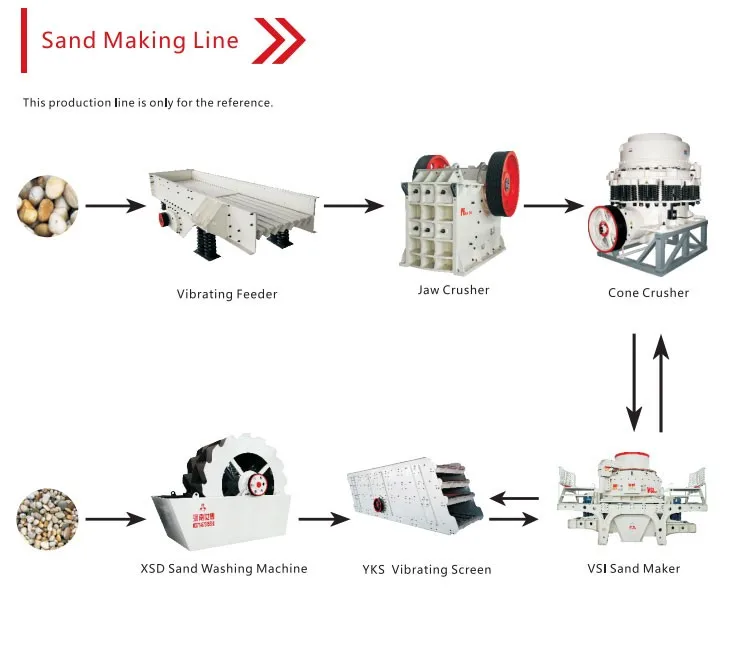

Stone/Sand Production Line

Contact us

The general configuration of equipments are as follows:

1.Vibrating feeder+jaw crusher+impact crusher+belt conveyor+circular vibrating screen.

2.Vibrating feeder+jaw crusher+cone crusher+belt conveyor+circular vibrating screen.

3.Vibrating feeder+jaw crusher+impact crusher+VSI sand making machine+belt conveyor+circular vibrating screen.



Feature of the processing:

1.Because of VSI series Vertical Shaft Impact Crusher self crushing principle,finisher shape is cubic.

2.Reasonable allocation of finished sand,flexible adjustment of product fineness.

3.The rank of manufactured sand is reasonable,fineness modulus is adjustable.

4.Low cost and hot sale.
