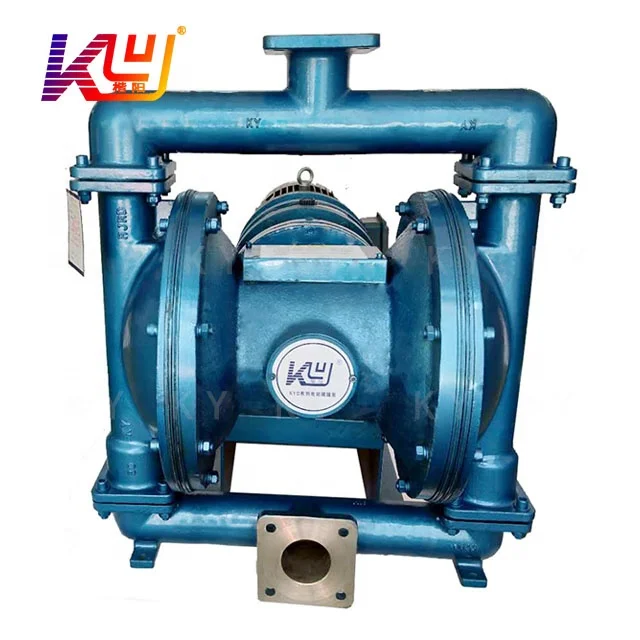

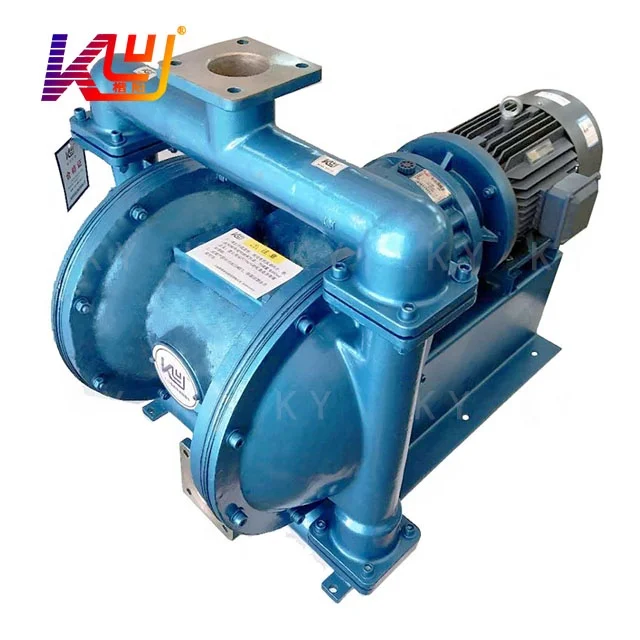

KYD 80Z4 Electric Diaphragm Pump Of Stainless Steel 304/316L High Degree Of Automation Widespread Use
- Category: >>>
- Supplier: Shanghai Kaiyang Pump Industry Manufacture Co. Ltd.
Share on (60816368755):
Product Overview
Description
KYD electric pump
The KYD80 stainless steel electric diaphragm pump is the latest generation of diaphragm pump developed by Shanghai kaiyang pump industry. Our Shanghai Yang electric diaphragm pump including stainless steel 304 stainless steel material and 316 l stainless steel material electric diaphragm pump, diaphragm with strong corrosion resistant resilient teflon F46 or import teflon material, for all kinds of corrosive liquid, with particles of liquid, high viscosity, volatile, flammable, poisonous liquid, it can be smoked light.
The source power of the KYD80 stainless steel electric diaphragm pump is given by Siemens bede motor, which drives the diaphragm plate on the connecting rod shaft of the pump body to and fro by the reducer. The left and right pump cavities are equipped with four single ball valves, and the left and right motion of diaphragm plate leads to regular changes in the volume of pump cavities. Force the four single ball valves to open and close alternately to draw and discharge the fluid.
The unique principle and simple structure of KYD80 type stainless steel electric diaphragm pump have won the unanimous praise of the majority of customers. The main advantages can be summarized as: good performance can replace centrifugal pump, mud pump, impurity pump through large particle impurities, mud, etc.; Stable operation, safe and reliable, low noise; It can run without load, and can absorb by itself without irrigation. Kaiyang pump industry focuses on the development and production of diaphragm pump products, which can be equipped with explosion-proof motor, stepless speed regulation and other functions according to customer requirements.
Stepless speed control: Shanghai kaiyang electric diaphragm pump can be equipped with stepless speed control speed reducer or fixed speed reducer can be made as required. No other equipment can be added in the pump knob directly adjust the pump flow rate. | |||
Double bearing design: the KYD electric diaphragm pump adopts double bearing to fix and drive the pump body, which ensures the stability of the pump and reduces the friction between the accessories.
|
|
Brand motor: the KYD electric diaphragm pump is equipped with Siemens bede motor, which ensures the power stability of the pump and can work continuously. | |
Integral shaft design: the output shaft of the reducer is lengthened and thickened, through the eccentric wheel and bearing directly drive the pump body keel connecting rod shaft, on the one hand reduces the power loss, and on the other hand conveniently solves the problem of easy breaking of the traditional electric diaphragm pump eccentric wheel (the traditional eccentric wheel and the spindle are separated). | |||
| Do not need irrigation water, self-absorption capacity of more than 5 meters | ||
With good properties, particles and mud with diameter below 10 mm can pass through without any effort | |||
As the diaphragm is separated from the driving part, the medium will never leak out. And the pump itself has no shaft seal, the service life is greatly extended | |||
The material of the pump body is rich, and the pump body can be selected according to the different medium. The KYD electric diaphragm pump motor is standard with Siemens baird brand, and can be equipped with explosion-proof motor, energy-saving and environment-friendly motor, frequency conversion motor, stepless speed regulating speed reducer to meet customer requirements to the greatest extent. | |||
1. Peanut butter, pickle, mashed potato, small red sausage, jam, apple pulp, chocolate, etc.
2. Paint, gum and pigment.
3. Sticky liquid, such as adhesive and glue.
4. Various tiles, porcelain, brick ware and ceramic glaze.
5. After the well is drilled, pump the sediment and grouting.
6. All kinds of sewage.
7. Various emulsions and fillers.
8. Oil tanker and barge clean up and suck up the sewage in the warehouse.
9. Hops, fermentation powder, syrup and molasses.
10. Water accumulation in mines, kang channels, tunnels, mineral processing and slag.
11. Cement grout, mortar and various kinds of rubber slurry.
12. All kinds of abrasive, etchant, oil and mud, clean oil and scale liquid.
13. All kinds of highly toxic, flammable and volatile liquids.
14. All kinds of strong acids, strong bases and highly corrosive liquids.
Material selection of pump body | |
|
Common liquid (ph6-8, weak acid-base, such as rainwater, common sewage, oil, etc.) : please use aluminum alloy, cast steel diaphragm pump. |
|
Common alkalinity, high acidity (PH value 3-8), such as low concentration of sulfuric acid or nitric acid, temperature 0-60 degrees: please choose polypropylene electric diaphragm pump |
| Strong alkalinity or strong acidity (PH value 2-9), such as high concentration of sulfuric acid, nitric acid, hydrochloric acid, and so on, low pump outlet pressure: please choose fluorine plastic PVDF electric diaphragm pump |
|
Ordinary acidic, alkaline relatively strong (PH value 5-11), high pressure, high temperature: please use stainless steel electric diaphragm pump |
|
Strong acid, alkali, solvent, temperature 0-120 degrees, high working pressure: please use the steel-lined teflon electric diaphragm pump |
Note: the above is the reference data for the selection of conventional media. In the actual selection, please provide the specific chemical components of the media to our company's customer service. | |
Diaphragm material selection | |
NBR | Carbon disulfide, carbon tetrachloride, oil: oil, diesel, and other temperatures 0-80 degrees: ding qing rubber |
Santoprene | Paint, weak acid, alkali and other special weak corrosive liquid, temperature 0-100 degrees: mountain road rubber |
PU,EPDM | Mortar, sludge, and so on, wear greater normal temperature liquid: ethylene propylene rubber, polyurethane |
Teflon F46 | Sulfuric acid, nitric acid, and other corrosive liquids: teflon F46 |
Teflon | Food, medicine, strong acid, strong alkali or high temperature special corrosivity, high temperature has low: import teflon |
Q1: What is the packaging of your product?
Answer: Standard exports plywood box or carton to be decided according to specific product.
Q2: How about the quality and service of your company?
Answer: We are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.
Q3: What kind of diaphragm pumps do you produce?
Answer: My company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.
Q4: Can your company guarantee our healthy cooperation?
Answer :1.Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services.
2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.
Q5: when is your delivery time?
Answer: Most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
Q6: what brand of motor is your electric diaphragm pump and what voltage is allowed?
Answer: Our electric diaphragm pump standard is equipped with Siemens bede motor, and the voltage is 380V and 660V.
