Product Overview
Description
Product Description
50W 60W RDL corellaser software engrave gravure 3d crystal glass 7050 laser engraving machine

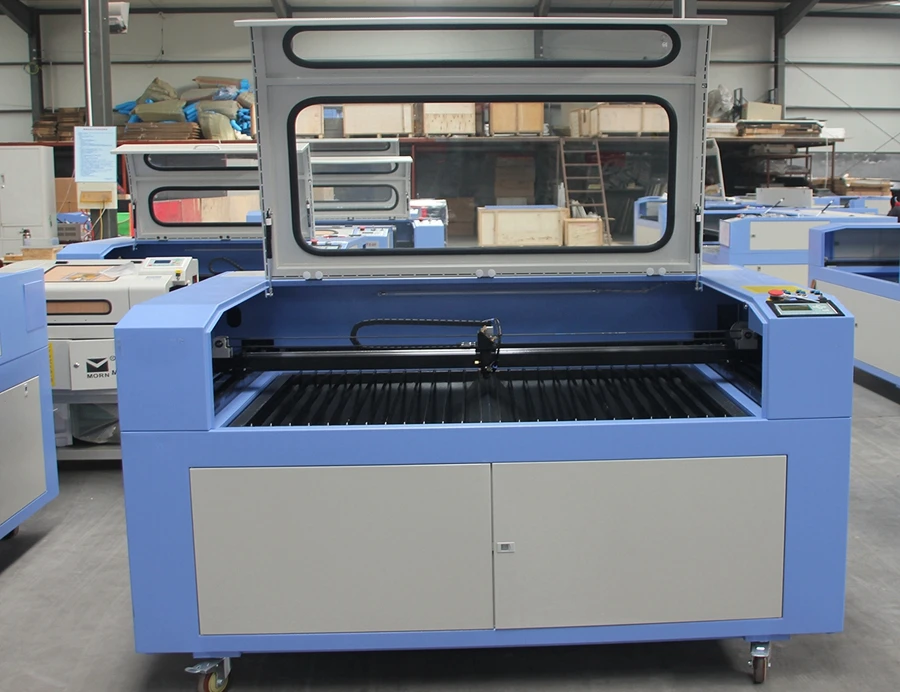

Machine Introduction
laser cutter co2 9060 belong to cover model design with cover protection function which can protect you from laser and smoke harm, the 9060 and 13090 is our hot selling model and many of our agents order 3-4 40'HQ every time .
laser cutter co2 Main Features
1.With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device (Optional Item)
2. Adopt LCD Touch Screen, support USB port and DSP offline control system, can insert U disk to do USB communication.
3. Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
4. Professional Honeycomb and Strip work table, which meet the needs of diversified laser procession;
5.With ball screw type motorized up and down system,which meeting big sheet size processing demand.
6.Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7.Equipped with luxury Consumables, USA Imported Focus Lens and reflect mirror, Chinese Best Quality Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8.Adopt fast speed step motor and driver, litter error, numeral timing, simulation quantum control the laser power, repetition high precision, engrave 1×1mm little English letters perfectly.
9. Red Light Pointer realizes the exact position without laser.
2. Adopt LCD Touch Screen, support USB port and DSP offline control system, can insert U disk to do USB communication.
3. Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
4. Professional Honeycomb and Strip work table, which meet the needs of diversified laser procession;
5.With ball screw type motorized up and down system,which meeting big sheet size processing demand.
6.Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7.Equipped with luxury Consumables, USA Imported Focus Lens and reflect mirror, Chinese Best Quality Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8.Adopt fast speed step motor and driver, litter error, numeral timing, simulation quantum control the laser power, repetition high precision, engrave 1×1mm little English letters perfectly.
9. Red Light Pointer realizes the exact position without laser.
Detailed Images

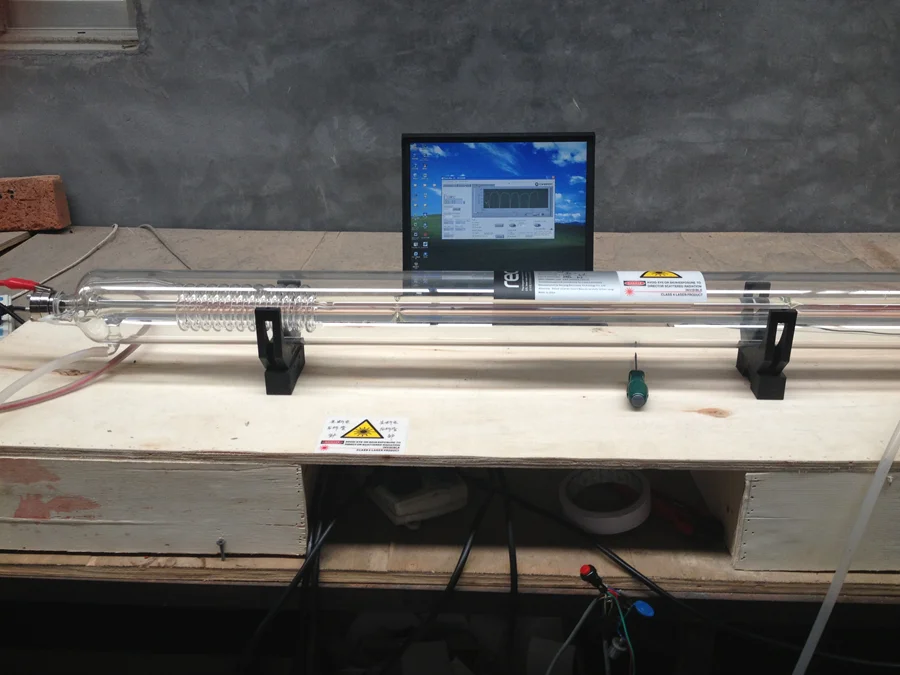

Laser Tube
Top China Brand Glass Sealed Laser Tube,high stability,longer lifetime (10000 hours) and good after sales service
Taiwan Brand Linear Guide Rail
High speed+accuracy+low noise&long lifetime helps laser head move smoothly
Control Panel
English version control panel , easy coperation, support USB offline control and PC control

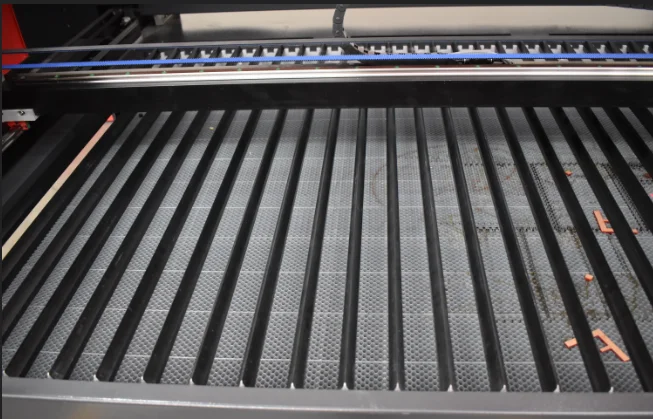

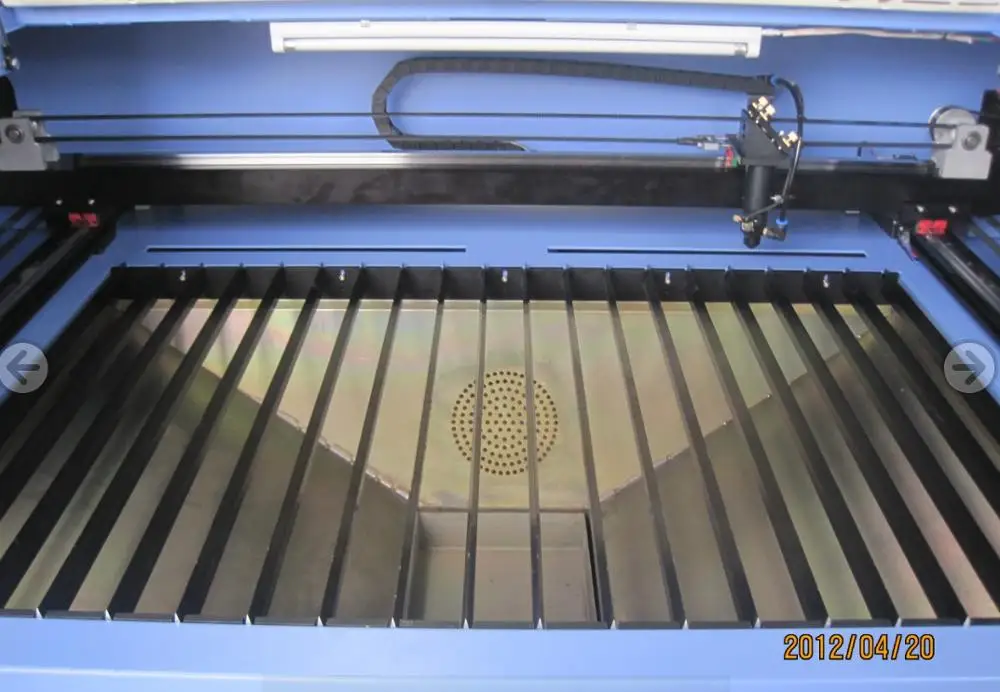

Double Working Table
Equipped with thicken knife+honeycomb
working table to meet different processing materials
Technical Data

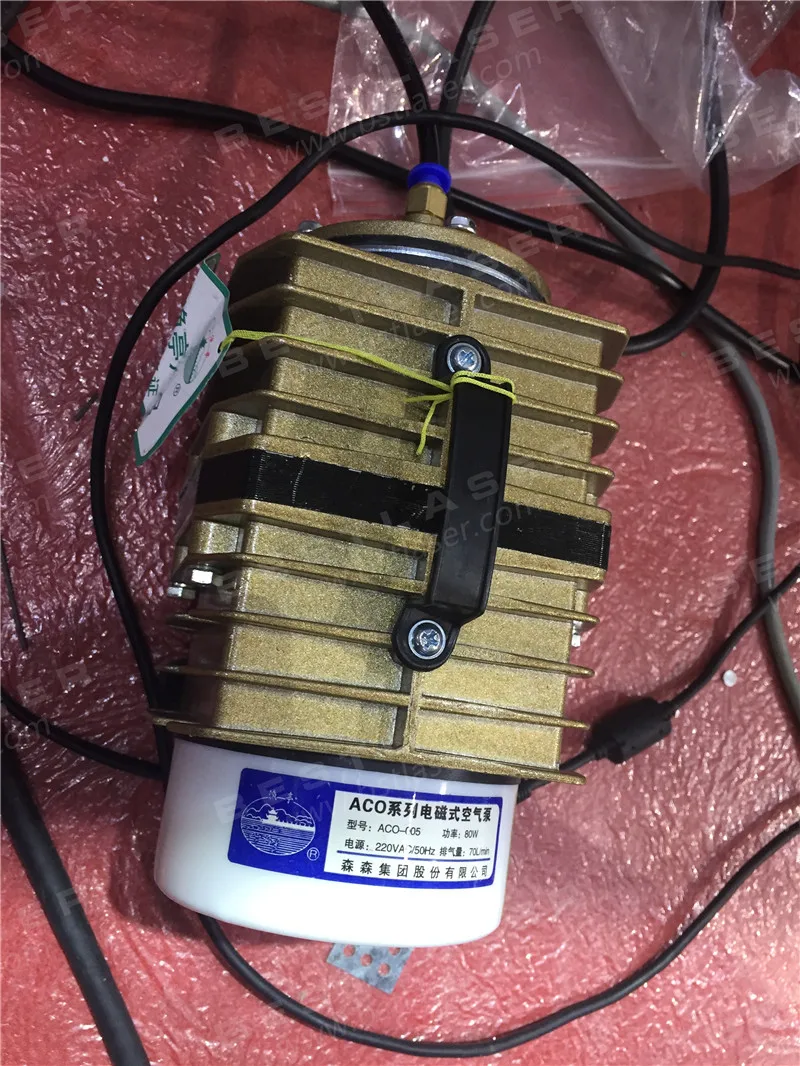

Air Pump
1×Air Pump for Air Assist (for blowing off debris and cooling the lens during the laser engrave or cut)

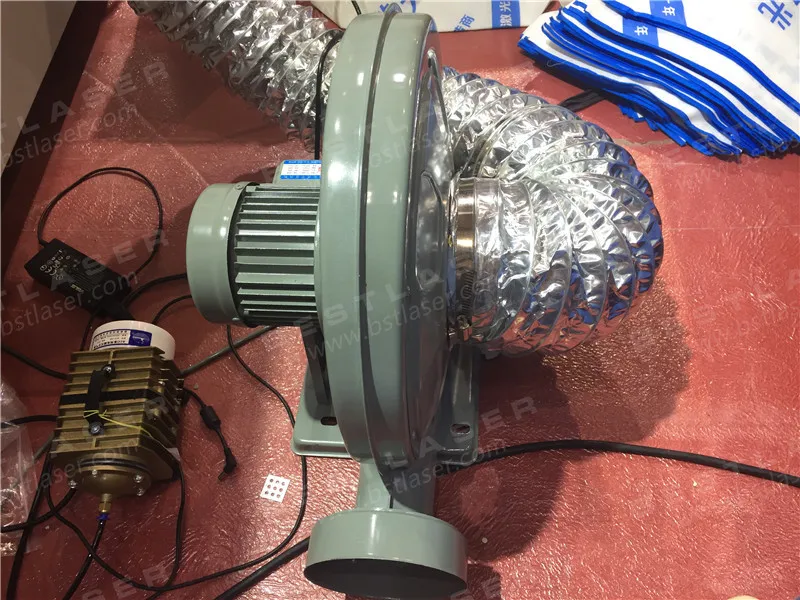

Exhaust Fan
650w bigger power which can extract the cutting dusts and smoke during engraving cutting effectively ,it ensure the
clean air and no air pollution to the environment
Model | Co2 Laser Engraver BE-DK9060 | ||||
Working Area | 900x600mm | ||||
Laser Power | 60W/80W/100W/130W/150w | ||||
Laser Type | Hermetic and Detached Co2 Laser Tube | ||||
Engraving Speed | 0-60000mm/s | ||||
Cutting Speed | 0-10000mm/s | ||||
Cutting thickness | 0-25mm Acrylic (others determined by materials) | ||||
Repeat Location Accuracy | +/-0.0125mm | ||||
Driving mode: | DC0.8A 24V stepper motor | ||||
Position system: | Red dot | ||||
Interface: | USB | ||||
Voltage | AC220V/50HZ or 110V/60HZ or depend on customer | ||||
Machine Power | 900W | ||||
Controlling System | CNC Professional Control System | ||||
Support Graphics Mode | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc. | ||||
Cooling Mode | Circulation Water Cooling and Protection System | ||||
Auxiliary Devices | Exhaust Fan and Exhaust Pipe | ||||
Cutting Platform | Professional Thickening Strip or Honeycomb Work Table | ||||
Power Control Mode | Laser Energy Combining Movement Control System | ||||
Software | Professional Laser Engraving & Cutting Software(Reader Software) | ||||
Operating temperature | 0-45C | ||||
Operating humidity: | 5-95% | ||||
Operation | Detailed Video to teach customer how to operate the machine | ||||
Optional items for Co2 Laser Engraving Cutting Machine
Below parts are optional items for co2 laser machine, you can choose to buy with machine together based on your personal demand and application .
Motorized Up and
Down System
Specially design for thickness of 20mm materials
Rotary System
Rotary Engraving along the circle of cylindrical or column pieces
Vacuum Absorbing
Table
Can absorb soft materials tightly
to working table
CCD Camera System
Auto Nesting+Auto Scanning+Auto position recognition,or cutting printed Picture,like logo, pictures on t-shirt etc
Air conditional Water Chiller CW-5000
For laser tube >100w.
Auto Feeding &
Rolling System
Suitable engraving/cutting on very long work piece, making the whole cloth processing finish one time.
Demo Marking Samples
Application for Laser Cutter Co2
1. Available materials: acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc.
2. Application Industry: advertisement, arts and crafts, toys, car, mechanism, electron, as well as in
trademarks, embroidery, clothing and other industries.
Packing & Delivery
Packaging | ||
Size | 193*143*116cm | |
Weight | 420KG | |
Packaging Details | We have 3 layers package. 1.Outside:we adopt wood craft case. 2.Middle: the machine is covered by foam, to protect the machine from shaking. 3. Inside layer, the machine is covered by thickening plastic bag for waterproof. | |
\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
\t\t\t\t\t\t\t\t\tFAQ for Co2 Laser \t\t\t\t\t\t\t
FAQ for Best Laser Co2 Laser Engraving Cutting Machine
Q1:What material can co2 laser machine apply to ?
A:It can be used for engraving and cutting all non-metal materials like acrylic cutting, acrylic engraving machine, wood cutting, wood engraving, fabric /leather /cloth /textile engraving and cutting . as it's non-contact way so it not bring any harm to materials surface which widely used in the fields of AD, garment industry ,decoration industry ,etc .
Q2 :What's the working size do you supply ?
A:small size laser engraving machine with 300×210mm,600×400mm, 900×600mm, 1300×900mm, 1600×1000mm working areas. Another is flat bed laser size type fabric cutting machine with 1300×1800mm, 1300×2500mm, 1600×2600mm ,1600×2600mm working areas
Q3:What's the laser power for co2 laser engraving machine ?
A:About power , we supply power from 60w-150w
40W-60w :Mainly for engraving
80W-100W:Mainly for engraving and cutting
120w-180w:Mainly for cutting
Q4:What's the laser tube brand do you use and guarantee ?
A:For laser tube above 80w we adopt Top China Brand Reci or EFR brand ((lifetime :10000 hours )
For small power like 50w / 60w we adopt Yongli brand (lifetime :3000-4000 hours ).
Q5:What's the consumables for co2 laser machine ? any parts need to change after some usage ?
A:The only fitting parts and consumable for co2 laser machine is laser tube and mirrors ,
To save shipping fare and urgent usage, we recommend you order some with machine together by sea shipment
Q7:If I don't know how to use the machine, can you teach me?
A:) We offer worldwide installation, training and aftersales services(optional). Our professional and
experienced technicians will come to your local warehouse to install, train or check machine or solve the
aftersales problem.
B:1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone) 3) Remote desktop software (Teamviewer) 4) Demo Video
\t\t\t\t\t\t\t\t\tContact \t\t\t\t\t\t\t
The best way to get a good impression of the various machines is by
testing your products on our systems during a demonstration.
Interested? Let us know! Welcome your inquiry!
