Affordable 300x420mm mini small size tabletop laser engraving machine
- Category: >>>
- Supplier: Wuhan BST LASER Machinery Co. Ltd
Share on (60816458066):
Product Overview
Description

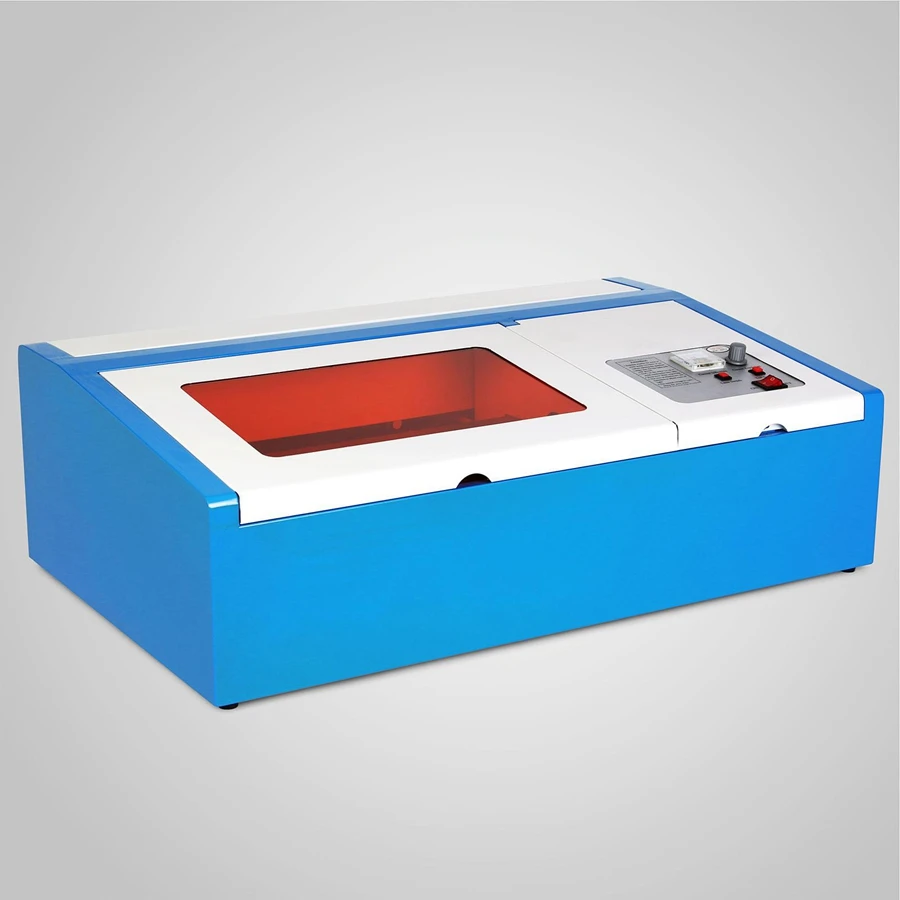

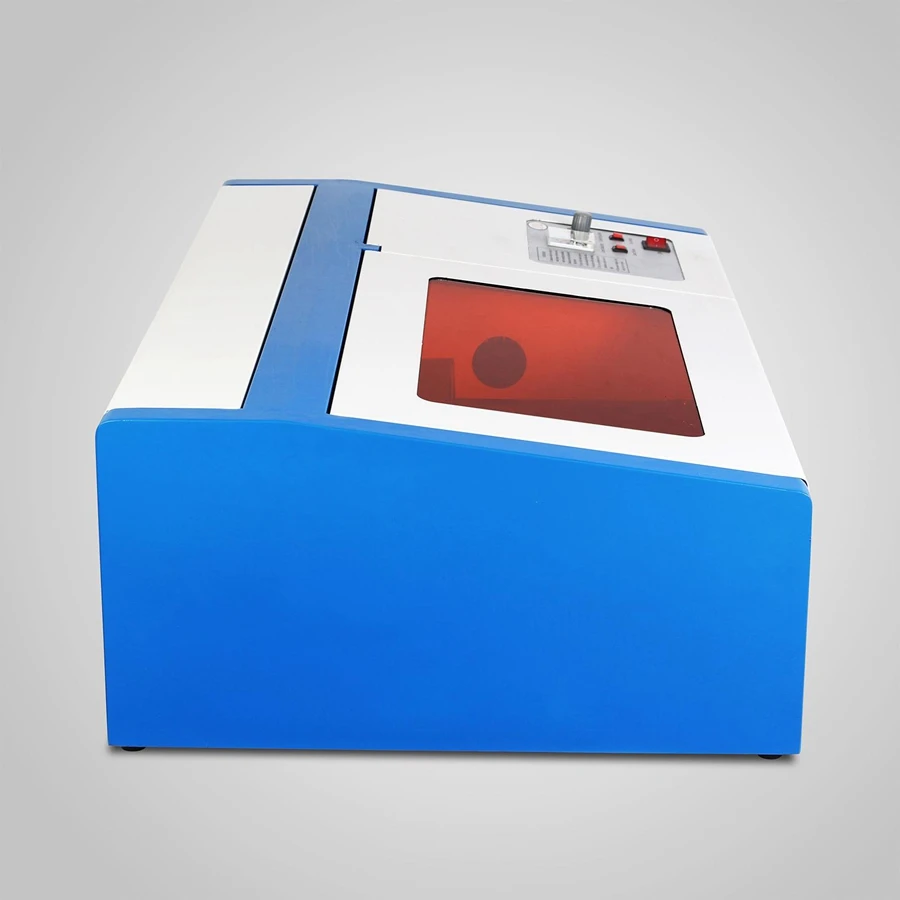

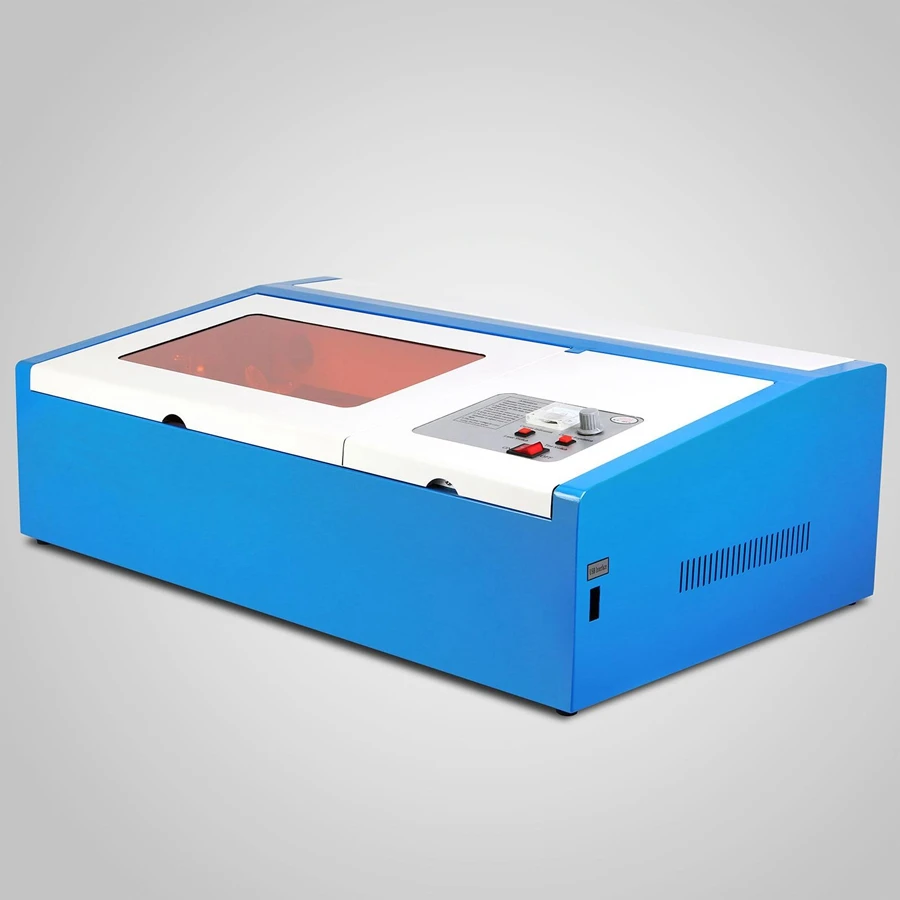

Affordable 300x420mm mini small size tabletop laser engraving machine
Product Description
Main Feature:
1) Working area: 300mm*200mm / 400*400mm / 500*500mm
2) Laser power: 40W/50W
3) Laser type:co2 laser
This 40w co2 laser engraving cutting machine integrates the newest light and compact designe, with high precision and fast speed ,widely used in rubber stamp engraving cutting and personal DIY or hobby design.
Advantages
1)This 40w co2 laser engraving cutting machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.
2)USB Port to Computer.
3)CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
4)Adopt Japan imported mainboard and chip which can control the engraving more precise.
5)Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 Laser Engraver.
6)The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
7)Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.
8)High Precision Stepping motor makes engraving more precise.
9)This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.
Functions

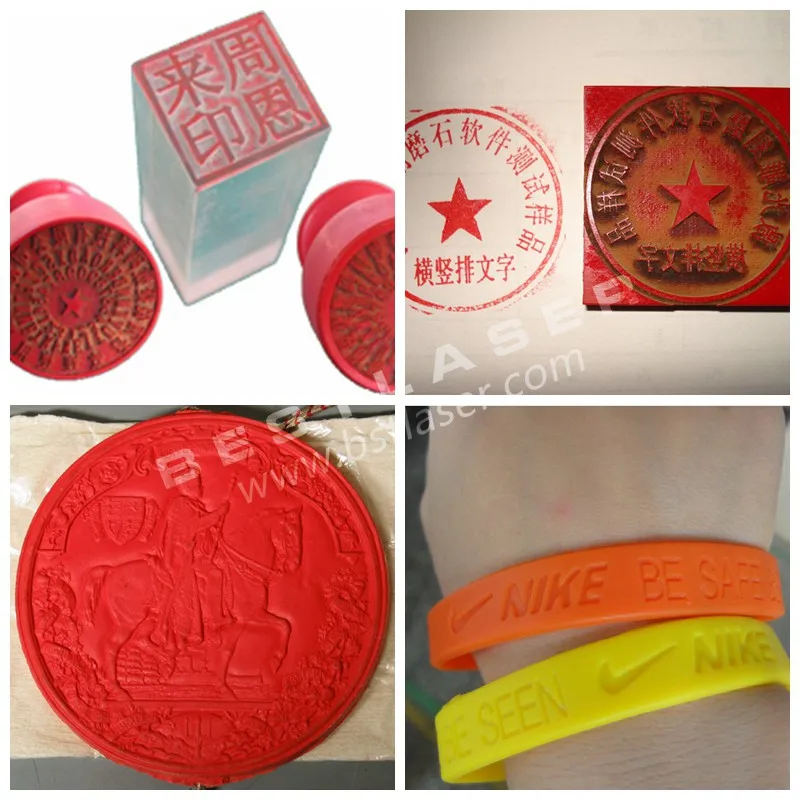

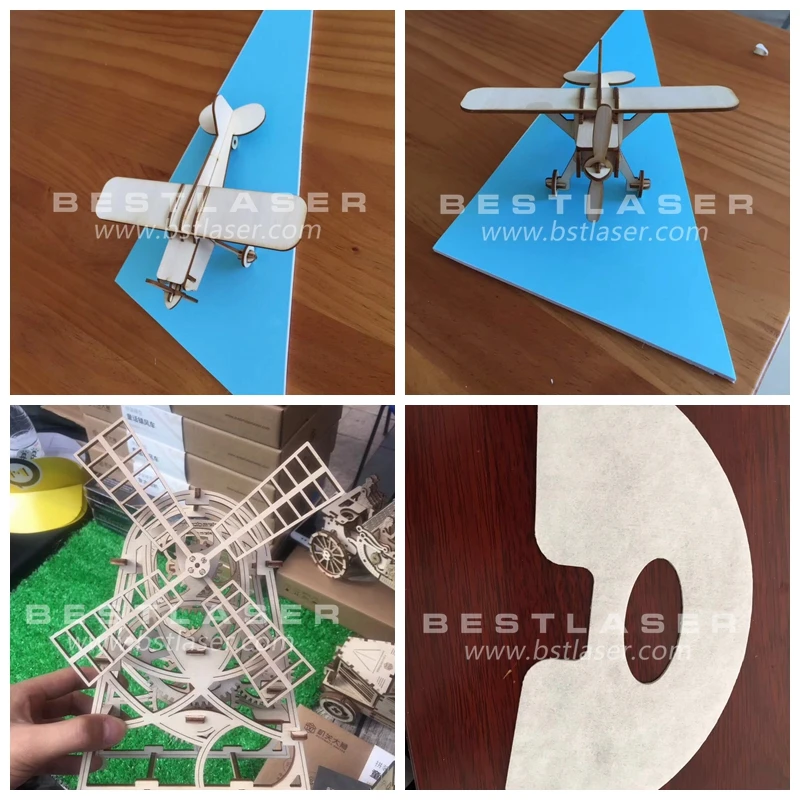

Available Materials | Bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. |
Application Industry | advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries. |
Technical Parameters
Model | BE-DK3020 | BE-DK4040 | BE-DK5040 |
Working Area | 300x200mm (12x8in) | 400x400mm (15.7x15.7in) |
500x400mm (19.7x15.7in)
|
Laser Power | 40W / 50W /60W | ||
Interface to Computer | USB Port | ||
ISO9001 Quality Certification | Yes | ||
Laser Type | Co2 Gas | ||
Tube Trigger Volt | 20KV | ||
Tube Operating Vol | 15KV | ||
Current | 0~22mA | ||
Engraving Speed | 0-13.8 in./s (0-350mm/s) | ||
Cutting Speed | 0-1.38 in./s (0-35mm/s) | ||
Minimum Shaping Character | 0.04 X0.04in (1mm X 1mm) | ||
Resolution Ratio | 0.001 in (0.026mm) / (1000dpi) | ||
Resetting Positioning | ≤0.0004 in (0.01mm) | ||
Motor Type | Stepper Motor | ||
Software Supported | CorelDraw software (both NewlyDraw and NewSeal function) | ||
Power Consumption | ≤250W | ||
Operating Temperature | 32-113F (0-45C) | ||
Graphic Format Supported | BMP/JPG/JPEG/WMF/EMF/PLT | ||
Water Cooling | Water Pump | ||
Recommended Spare Parts/Consumables | Laser Tube, Focal lens,Reflection lens | ||
Product Dimensions | 31.4 X 19.6 X 9.8in.(800x500x250mm) | ||
Product Weight | 38Kgs/67lb (shipping 38kg/80lb) | ||
Power Supply | 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item. | ||
Detailed Images
Packaging & Shipping
Standard plywood case, its compressive strength and bearing quality is better.
1..the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
2.when importing, the plywood case is with fumigation-free, the procedure is simple.
3.Delivery Detail: within 3-5 days after received your payment
Company Information
As 15 years laser machinery manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our laser cutting machine, laser marking machine, laser engraving machine all have got CE certification. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
To be recognized as China's foremost manufacturer and supplier of laser marking, engraving, etching and cutting systems. Dedicated to providing the best-quality equipment and services all over the world. Looking for distributors and users globally!
Buying Guides
To recommend most suitable machine and offering most effective laser machine solution, hope you offer us below info before inqiry :
1. The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
2. The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
3. The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1200*900 mm,...)
4. Do you want to engrave on planar & flat surface or round & curved surface? Our machine can be added with optional items: Up and Down Table + Rotary Fixture, which is specially used for Rotary Engraving along the circle of cylindrical or column work piece.
The best way to get a good impression of the various machines is by
testing your products on our systems during a demonstration.
Interested? Let us know! Welcome your inquiry!
