3. Standard: DIN GB ISO JIS BA ANSI

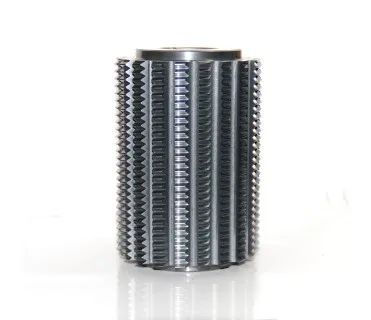

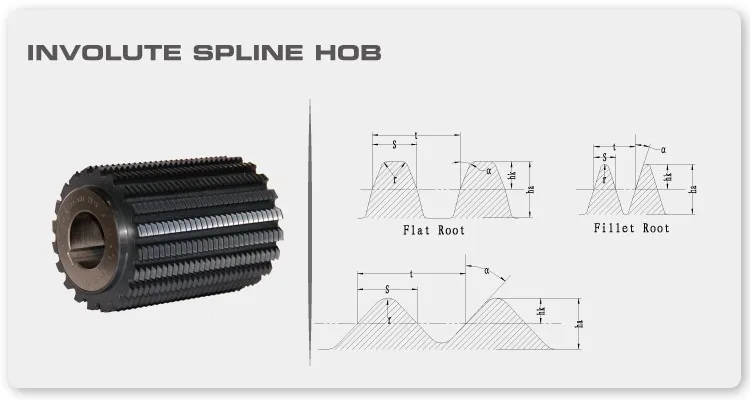

Involute spline hob
DIN GB ISO JIS BA ANSI
Involute spline gear cutting
Commonly used specifications
Dia. Of hole
No. of teeth
BALINIT® A (TiN)
BALINIT® FUTNRA NANO(TiAlN)
Advanced inspection equipment is a necessary tool for precision tool machining.
In 2015, our factory introducedGear Measuring Center Klingelnberg P26.
The machine is used to inspect cylindrical gears, pinion type cutters and shaving cutters, worms and worm wheels, hobs, bevel gears, general dimension, shape, and positional deviations of axially symmetrical workpieces, cam and camshaft measurement and rotor measurement.
Gear shaving cutter detection
Close-up of measuring instrument
Our Inspection Center
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Tell us the module, pressure angle, outside diameter, length, hole diameter, direction of turning and other specifications or send us the drawing sheet;Tell us the material. We offer HSS m2, m35, m42, ASP 2030, 2052;
