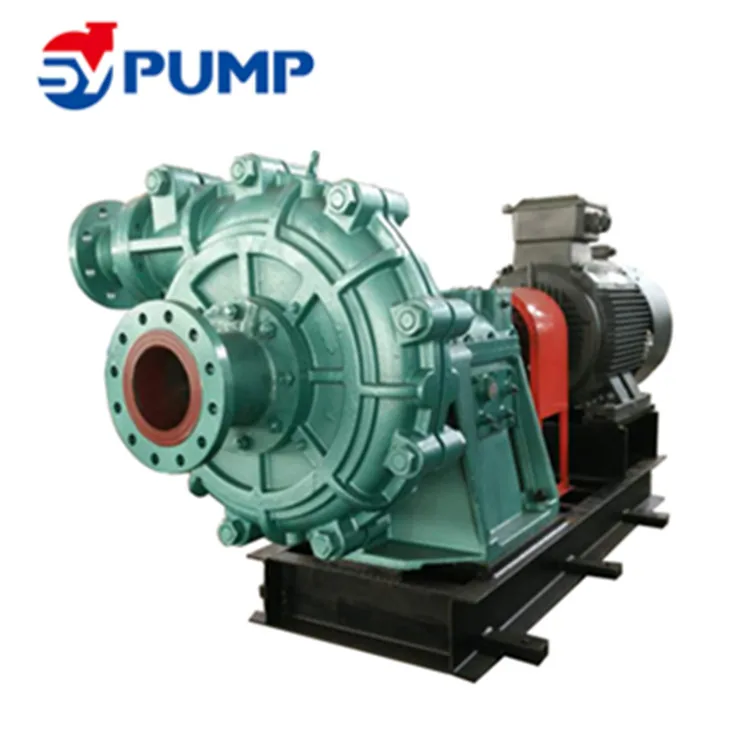

The series ZGB(P) slurry pump is of horizontal, single-stage, single-suction, cantilever, double-casing, centrifugal slurry pump. The pump rotates in clockwise viewed from the drive end.The main technical features are as follows:
♦ CAD modern design , super hydraulic performance, high efficiency and lower abrasive rate;
♦ Wide passage, non-clogging and good performance of NPSH;
♦ Expeller seal combined with packing seal and mechanical seal have be adopted to guarantee the slurry from leakage;
♦ Reliability design ensures long MTBF (mean time between events);
♦ The metric bearing with oil lubrication, reasonable lubrication and cooling systems ensure the bearing to be operated under the low temperature;
♦ The materials of wet parts have the good performance of anti-wearing and anti-corrosion.
♦ The pump can be used for seawater ash-removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrosion;
♦ The pump can be operated in series with multi-stage within permissible pressure.
♦ The permissible maximum working pressure is 3.6MPa.
Capacity:210~1100m3/h Head:to 100m(328ft) Impeller:Closed Type Allowable Max.Power:560kw Allowable Max.Particle Size:60mm

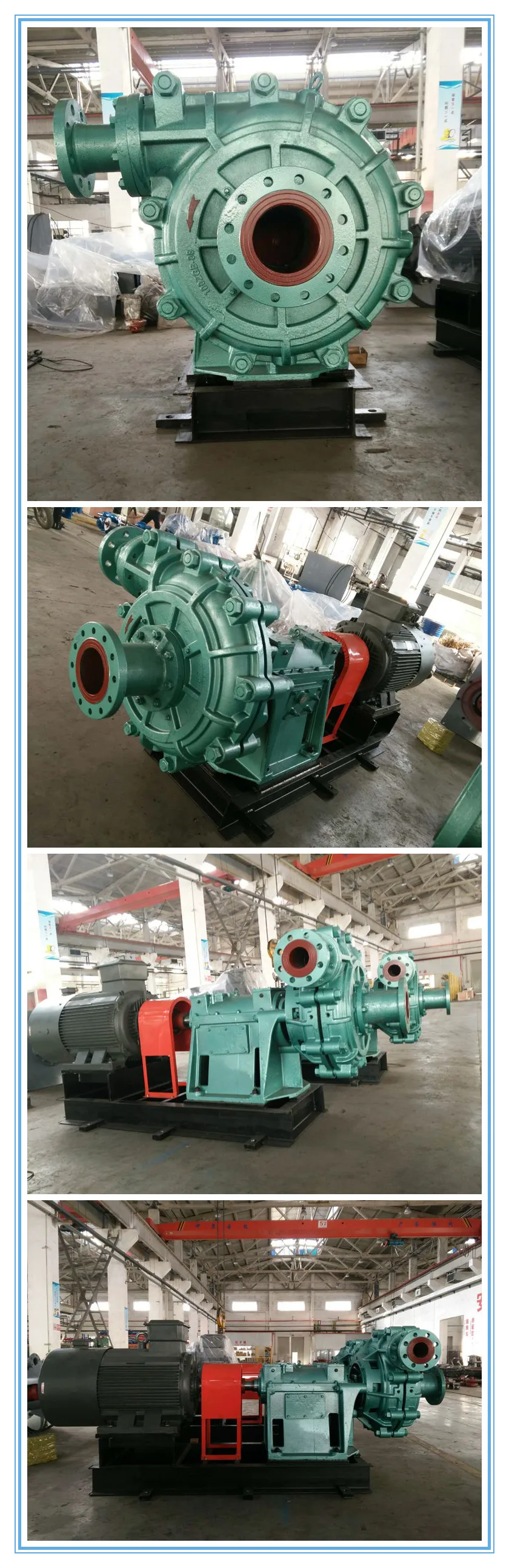

Product Display
Product Application
The type of ZGB and ZGBP pumps have the advantages of reasonable construction, high efficiency, reliable operation and easy maintenance. It can be widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments, especial for removing ash and sludge in electric power station.
Product Parameter

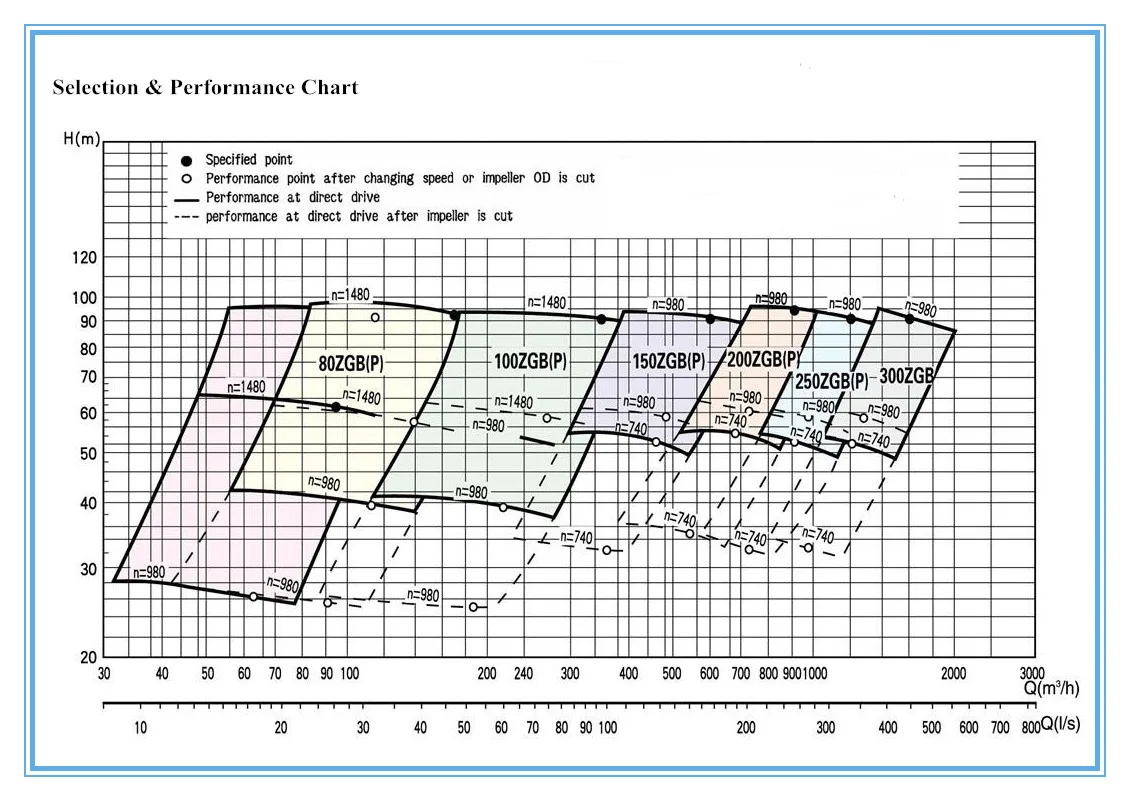

Selection & Performance Chart

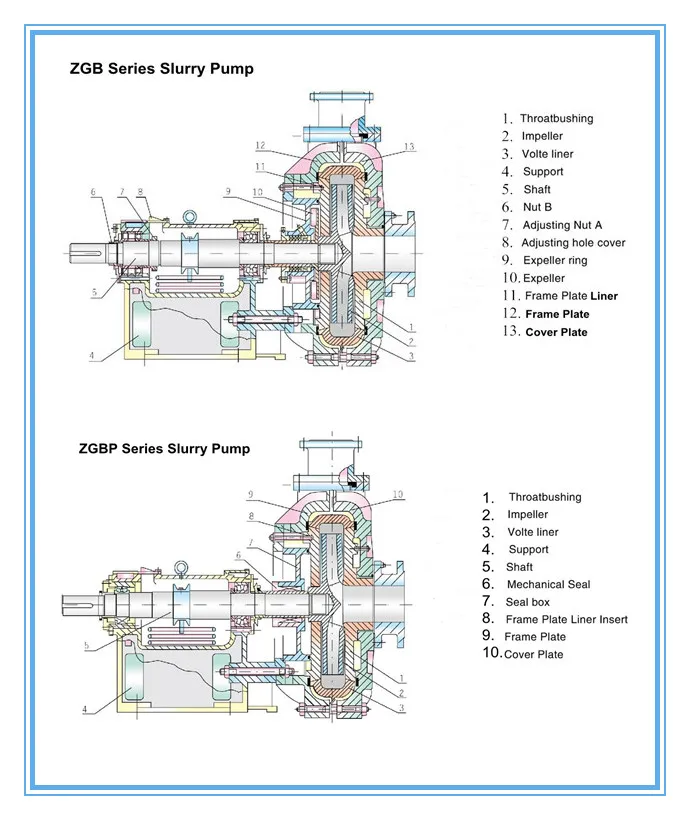

Structural Details
1. The wet parts of ZGB and ZGBP pump at the same outlet diameter can be interchangeable. Their outline installation dimensions are one and the same. For the drive part of the series ZGB(P) slurry pump, the horizontal split frame with oil lubrication and two sets of water cooling systems inside and outside has been adopted. If necessary, cooling water can be supplied.
2. Two kinds of shaft seal—expeller seal combined with packing and mechanical seal have been used for series ZGB(P) slurry pump.
3. The mechanical seal supplied with high pressure sealing water is recommended when the slurry pump is operated in series(two stages and above two stages), and the expeller seal combined with packing is used in single-stage pump.
Shijiazhuang Shiyi Pump Industry Co.,Ltd founded in 2006 which is a big professional high-tech industrial pump manufacturer engaged in researching and manufacturing slurry pumps of wear and corrosion resistant materials and OEM processing.
Our production area covers an area of 40000 square meters, the total production capacity of an annual output is 10000 units (sets), and the annual output of all kinds of high chromium alloy castings is 2000 tons.
The R&D of products adopts CFD and CAPP technology.We use both the resin sand molding and the new foam lost for casting process,the max casting weight is 8-10 tons.
We have two 20 cubic resistance-type heat treatment furnace,and there are 4.2m and 4.5m vertical lathe and other more 20 units machine tools in the machining workshop.
In addition,there are various types of hoisting equipment,metal cutting and welding equipment,impeller level tuning equipment,molding equipment,sandblasting polishing equipment,high pressure test station,high-precision testing equipment, analytical instruments and so on.
