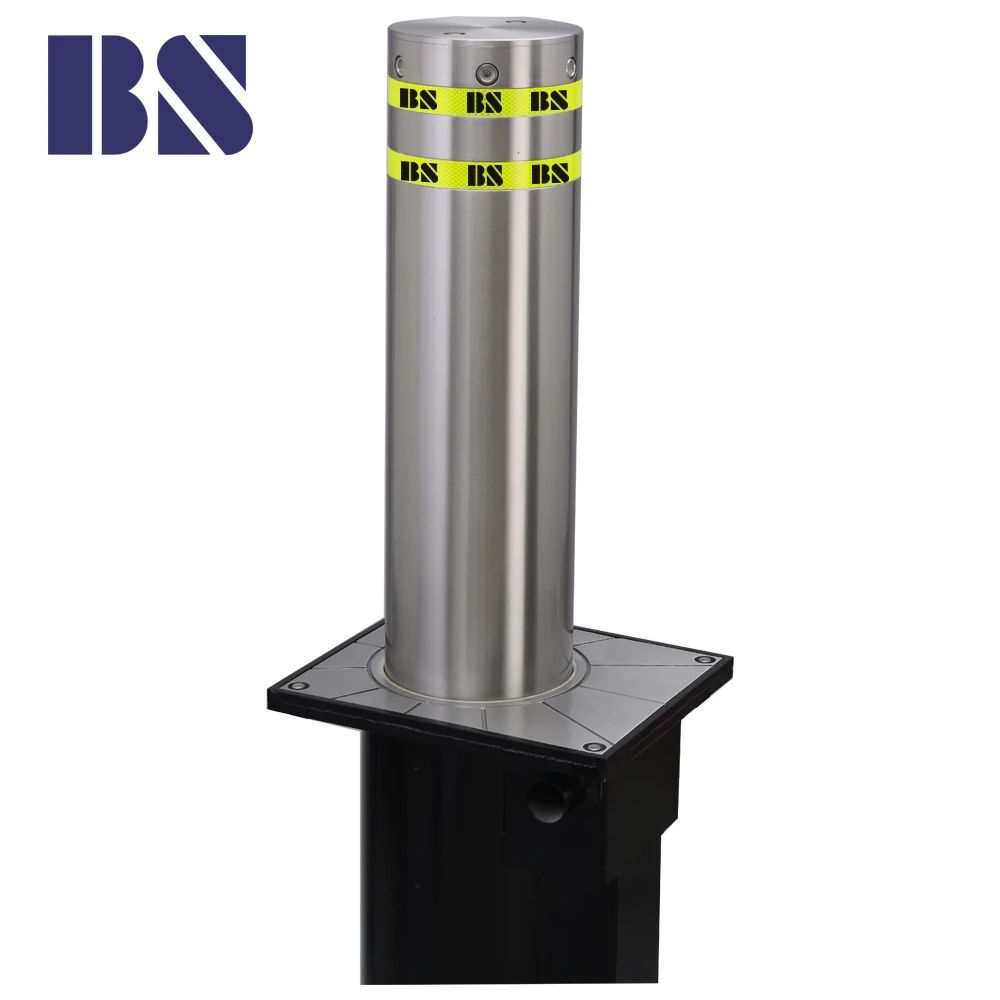

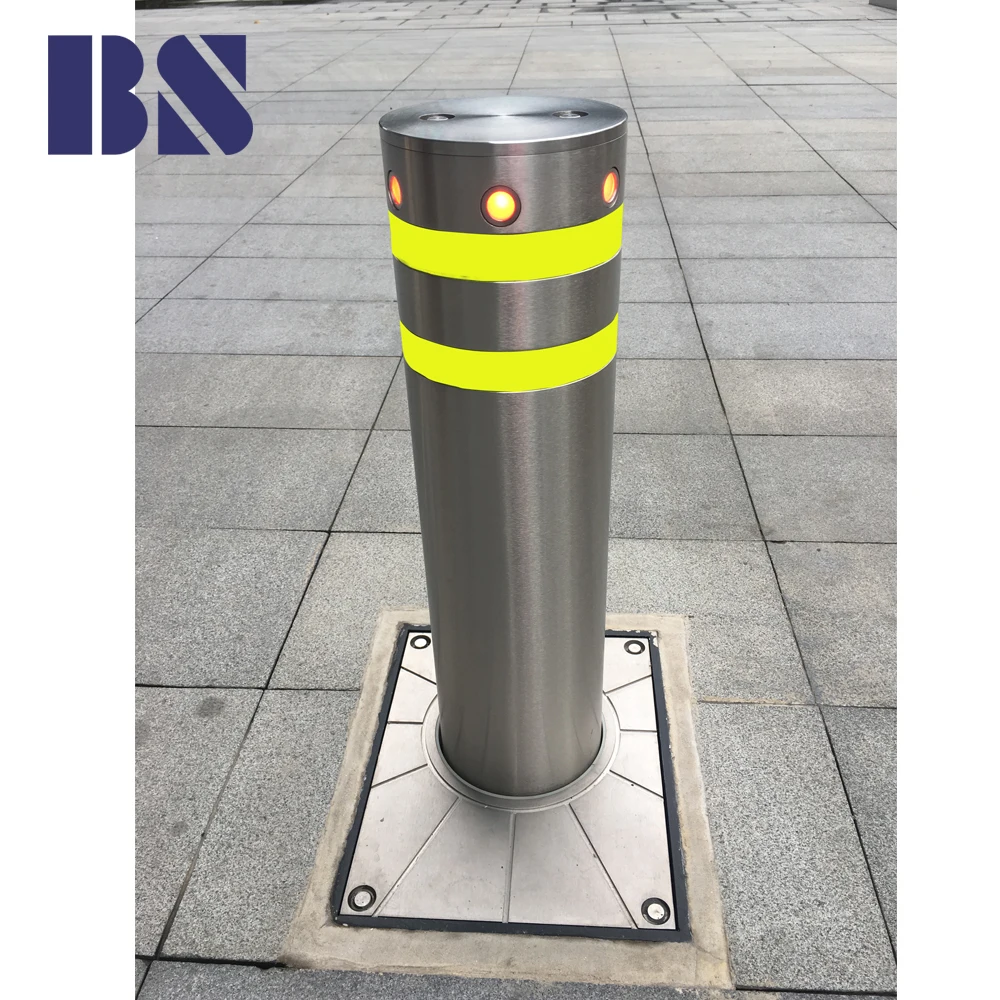

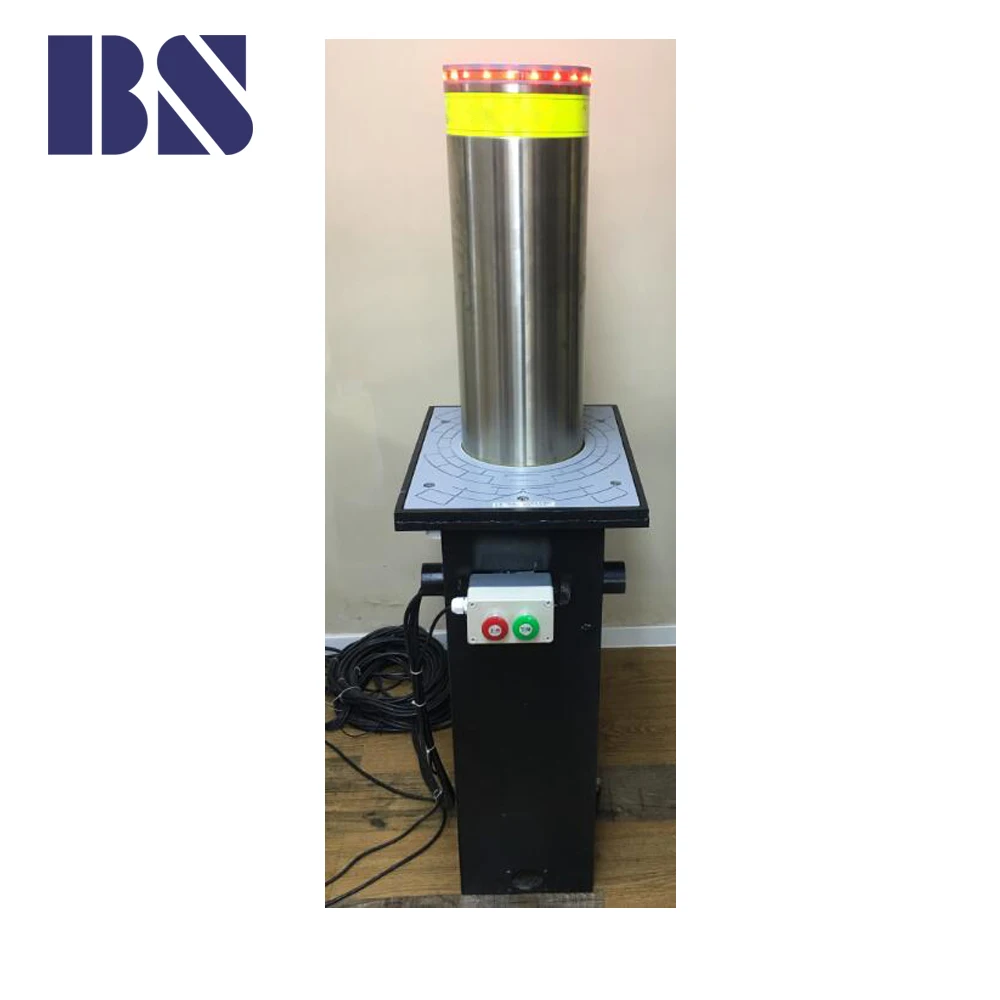

Rising Pneumatic Bollard Automatic Bollard with Band Stainless Steel Bollard

Product Overview

Description

Brief

Pneumatic bollard is used for government, park, prison... for access controlling and security.





Feature





Technical Date

BS Pneumatic Bollard Technical Data
Model	BS-220P4-600
Diameter	220 mm
Block height	600 mm
Embedded height	837 mm
Thickness	6 mm
Material	304 Stainless steel
Surface finish	polish
Color	silver
LED light	with
Buzzer	without
Weight	about 86 kg
Protection	IP 67
Working temperature	(-)15℃-70℃
Working speed	3-6S
Working way	raise and fall automatically
Work frequency	Intensive use>2,000,000 life cycles;           2,000 daily operations (for reference; subject to real one)
Compatability	can work with traffic light, loop detector, card reader system…
Reflector band	1 strip (3M diamond level; 55mm)
Impact Resistence	250,000 J (for reference; depends on the installation environment, using surrounding, using frequency, maintenance...)
Control cabinet	controls bollard go up and down
Accessory	remote, push button, air pipe

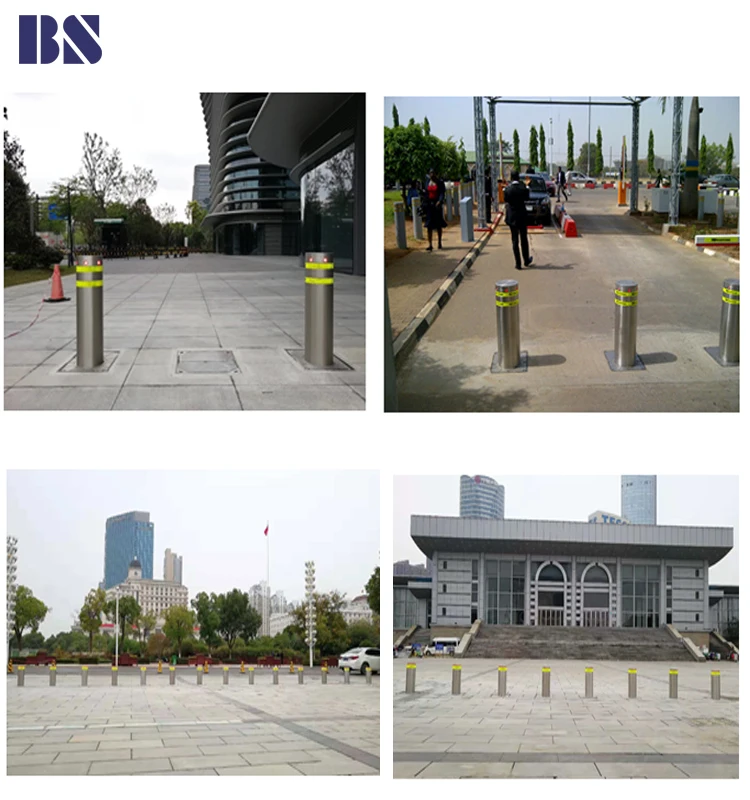

Project Show

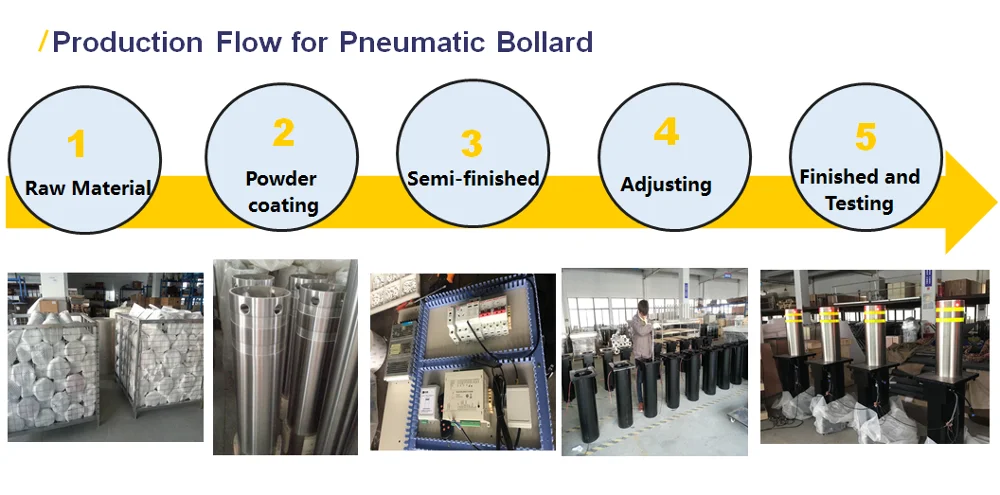

Production







Package

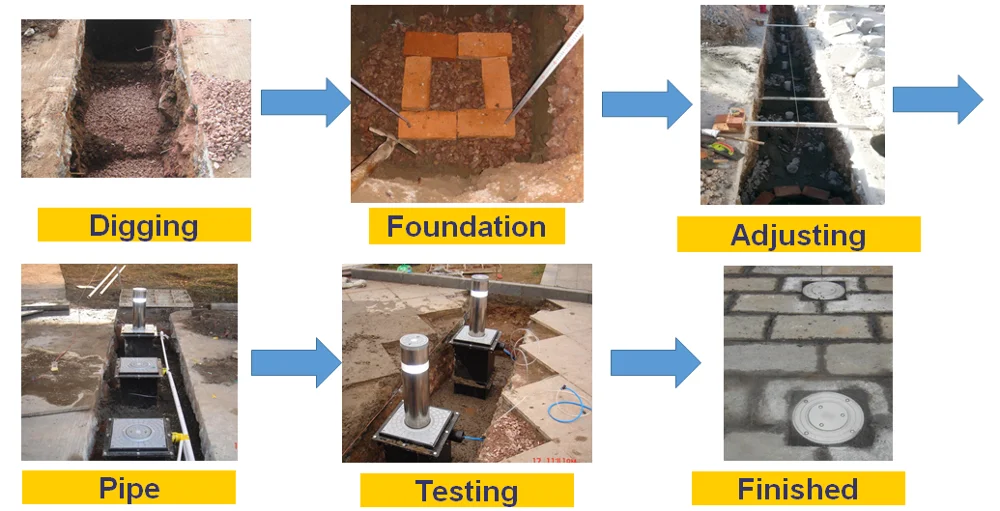

Installation









 Our Factory



Comments by Clients





Q&A



1). Q: Are you a factory or trading company?
Factory; 8,000 square meters; with 11 years experiences in Bollard field.



2). Q: Where is your factory? How can I get there?
Hangzhou; near to Shanghai

About 1 hour from Shanghai to Hangzhou by fast train.



3). Q: Can I get a sample?
Yes. Sample is available.



4). Quality control?

A full quality controlling procedure from pre-production, middle production, aging testing to pre-shipment production….



5). Q: Warranty period?

12 months upon receipt of goods.



6). Q: Spare part?

Wearing spare part list would be offered for review when you place the order



7). Q: Lead time?

30-45 days upon receipt of your payment. Time depends on different products.



8). Q: Payment terms?

50% T/T in advance and balance before shipment.



9). Q: Delivery?

Express delivery; sea freight; air freight.
