Wireless GPRS GSM WIFI Weather Station Wireless ROHS with Rain Gauge Modbus
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (60816577416):
Product Overview
Description
Wireless GPRS GSM WIFI Weather Station Wireless ROHS with Rain Gauge Modbus
Products Description
This automatic weather stations can monitor weather like wind speed, rainfall, temperature, relative humidity, pressure. Also, we can customize solar radiation, soil temperature, soil moisture and other meteorological elements. The device can communicate with the weather center computer through a variety of communication methods (RS485 / 232, GPRS, WIFI, etc.) and transmit the meteorological data to the meteorological database for statistical analysis and processing.
Name | Unit | Quantity | Remarks | |||
Sensor | ||||||
Air temperature sensor | pcs | 1 | Built-in anti-rain and anti-UV corrosion of the veranda, measuring air temperature, humidity, atmospheric pressure | |||
Air humidity sensor | pcs | 1 | ||||
Atmospheric pressure | pcs | 1 | ||||

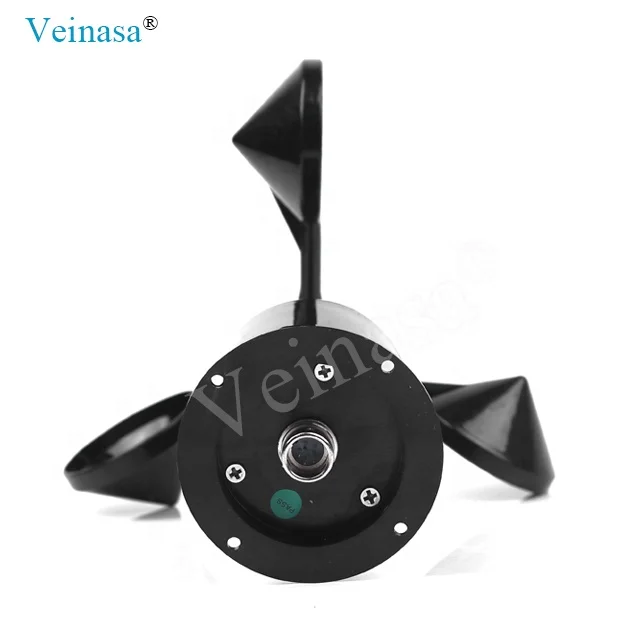

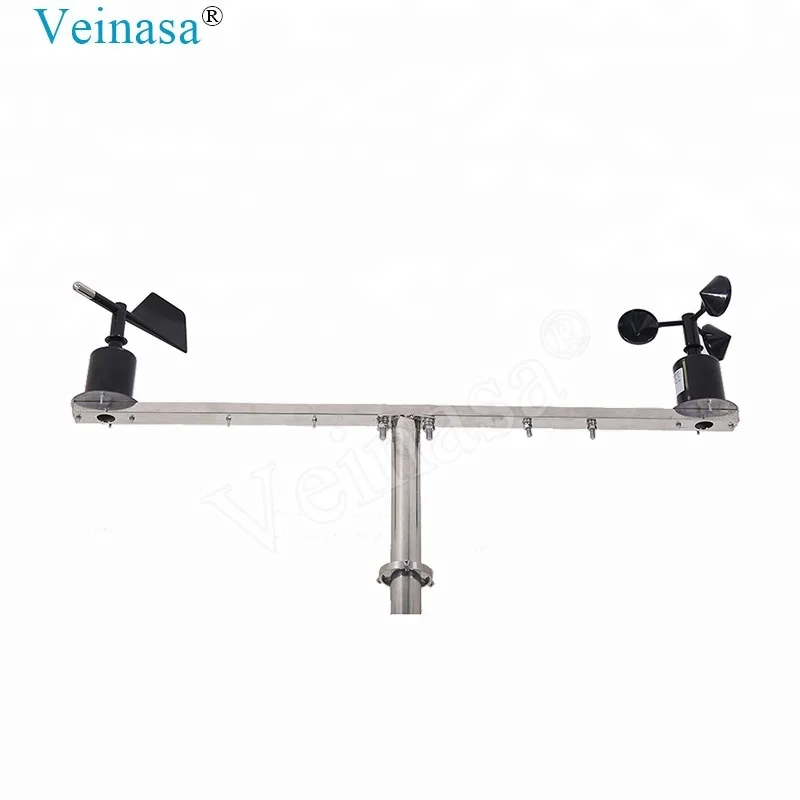

Wind speed sensor | pcs | 1 | Wind cup style, measuring the size of wind speed level | |||
Wind direction sensor | pcs | 1 | Tail-wing style , measuring the direction of the wind | |||
Meteorological data collector | ||||||

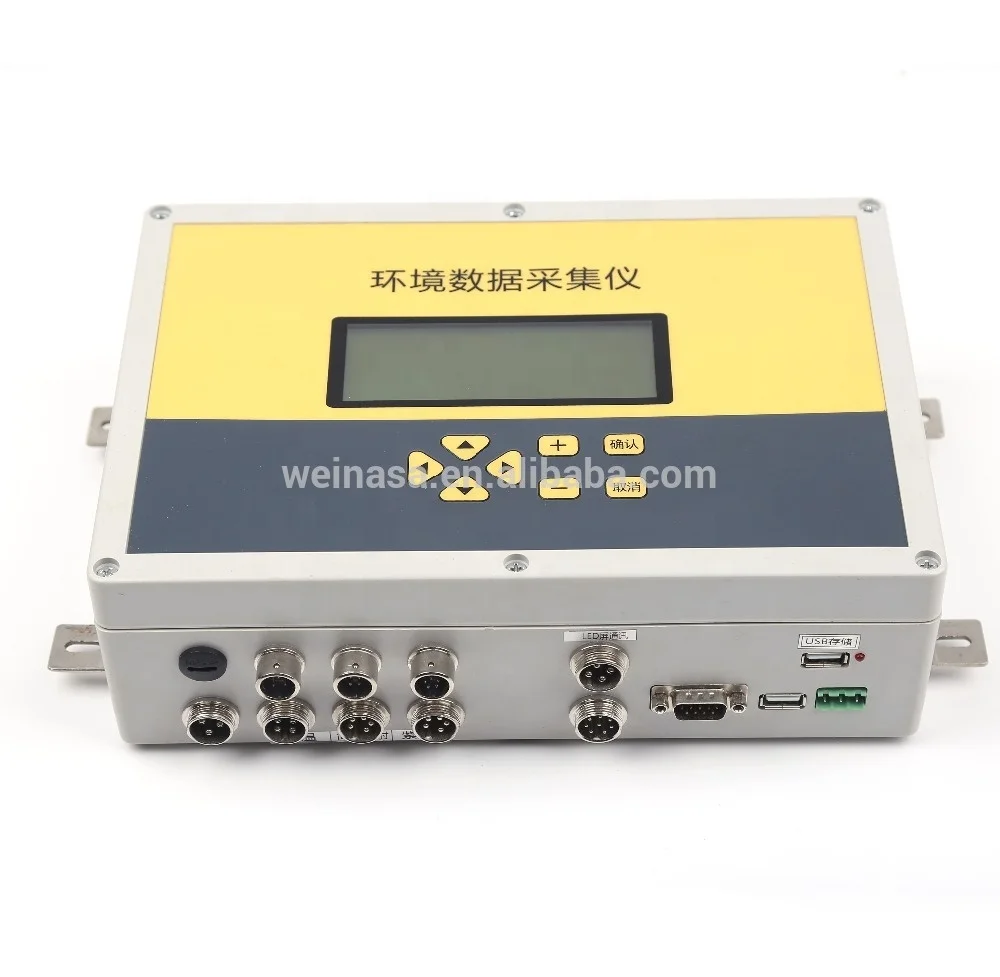

Meteorological data collector and software | set | 1 | Multichannel port, LCD display, timing storage, parameter setting, power-down protection. Complete sets of special software (query, analysis, download and other functions) | |||
Power supply system | ||||||
220V power supply | set | 1 | 220V power supply | |||
Communication system | ||||||
GPRS | set | 1 | GPRS module | |||
Mounting bracket attachment | ||||||
2 .5 meters | set | 1 | 2.5 m triangular stainless steel bracket | |||
Standard weather main chassis | set | 1 | Built-in partitions, fixed plate, external locks, waterproof | |||
Other accessories | set | 1 | Venetian boxes, cross arm, sensor bracket and other hardware | |||

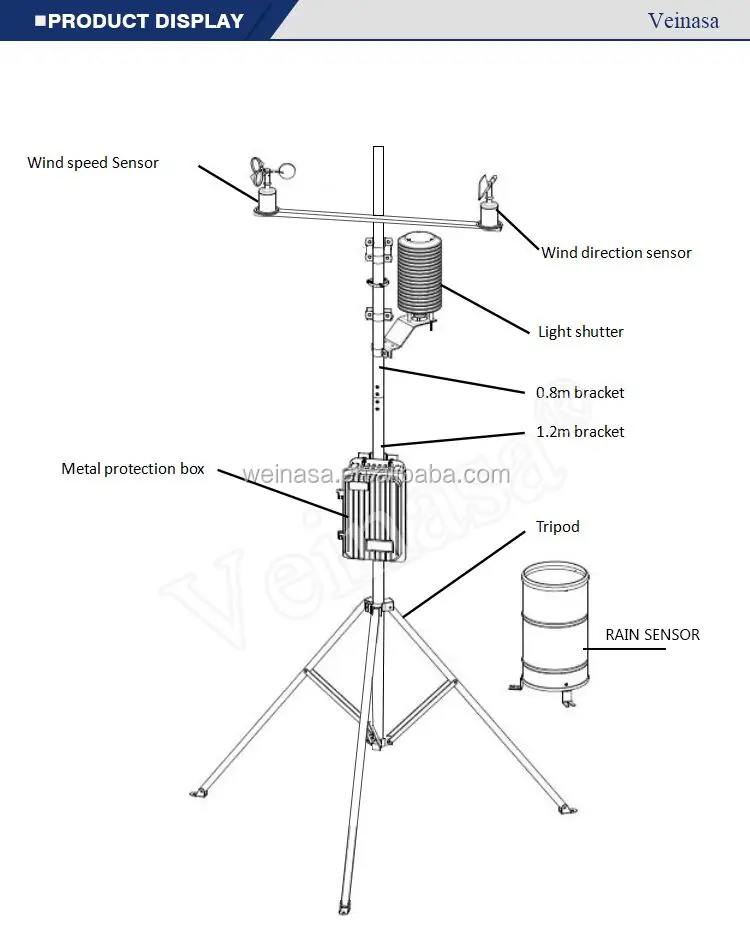

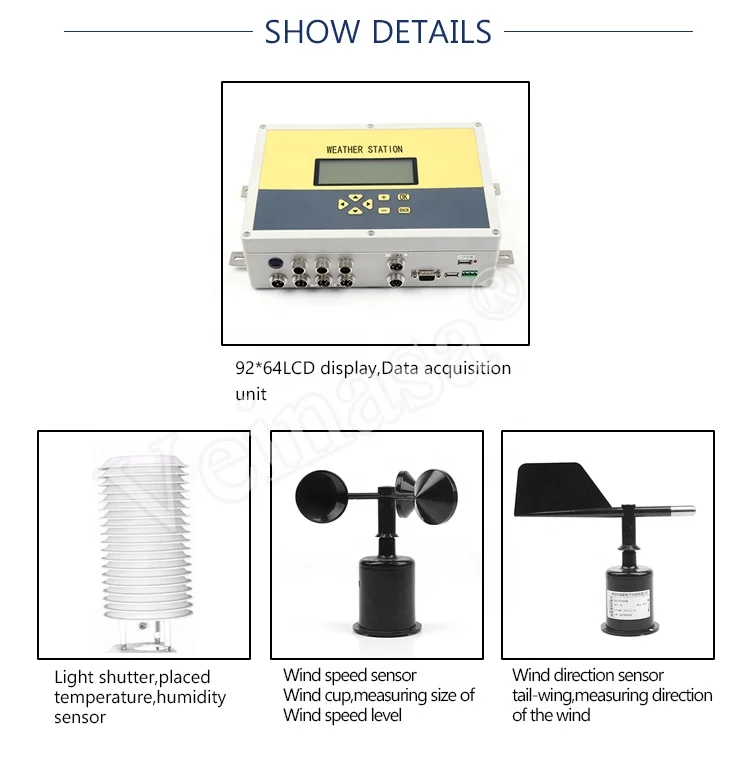

Product Display
1. Easy to install and low maintenance
2. According to client’s requirement, automatic weather station can configure different sensors
2. According to client’s requirement, automatic weather station can configure different sensors
Core Advantage
The key benefits of automated measurements include:
I. All current weather readings can be seen from indoors, at a glance and at any time
II. AWS stations can automatically record maximum and minimum values for a range of weather parameters through each day and keep
track, for example, of total monthly and yearly rainfall
III. A data logger and PC can be readily linked to the station so that all weather data is automatically logged
I. All current weather readings can be seen from indoors, at a glance and at any time
II. AWS stations can automatically record maximum and minimum values for a range of weather parameters through each day and keep
track, for example, of total monthly and yearly rainfall
III. A data logger and PC can be readily linked to the station so that all weather data is automatically logged
Application case
We provide our client with both standard and custom solutions. Some examples of our available weather station systems include:
1.Roadway Advance Warning Stations
2.Level Stations
3.Rain Gauge Stations
4.Soil health station
5.Solar power station
1.Roadway Advance Warning Stations
2.Level Stations
3.Rain Gauge Stations
4.Soil health station
5.Solar power station
More Products
Related Products
Company Information
Contact us
FAQ
Q: Which parameters can this set of weather station(meteorological station) measure?
A. This model only measures air temperature and relative humidity, wind speed and direction and rainfall. It's our hot sale one and has special offer, but we can customize for you if other sensors needed.
Q: Do you have cloud/web platform?
A: Yes, we have English cloud/web platform. We'll add it if relative functions needed, such as real-time monitoring and send alarm, etc.
Q: Can you provide technical support?
A: Yes, we usually will provide remote technical support for after-sale service via email, phone, video call, etc.
Q: Can you provide service like installation and training for tender requirements?
A: Yes, if needed, we can dispatch our professional technicians to install and make training at your local place. We have related expierence before.
Q: What's the lifetime of main parts?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report issued by
professional testing institute.
Q: May I have detailed installation video?
A: Yes, we have specific installation video as per brackets(tower) of different height.
If needed, we can send it to learn about the automatic weather station, or learn how to install after receiving goods.
Q: How can I read data?
A: First, you can read data on he LDC screen of data logger. Second, you can install our included software to read, inquire and download data. We have detailed manual for you.
Q: What kind of power supply we could choose?
A: Basically AC220v, also can use solar panel as power supply, but battery not supplied because of strict international transportation requirement.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
Product packaging & shipping
