kraft paper bag making machine Automatic paper bag making machine with creasing

Product Overview

Description

MODEL:KL-220



1,The characteristics of the product

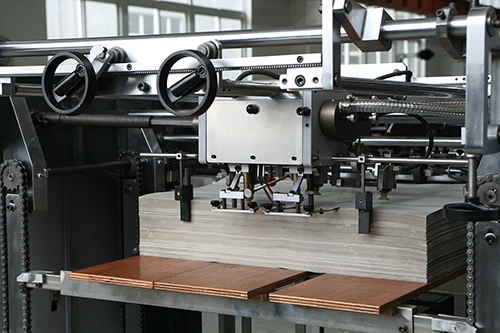

KL-220 type automatic paper bag machine is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.Its technique process is about:the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device and then make one-side glue,folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line,open bottom,make glue and press togther and finally output finished bag products.

2,Shorten the cycle time

   We set new standards to cut down the cycle time .Rapid cycle time improves capacity and lower production cost.KORO machine is one of the fastest ones among its like products.

3,Minimum wear and cost

   Our engineering expertise and the long service life of our equipment guarantee higher capacity and lower cost while at the same time increase the output of quality products and reduce the unit cost.

4,High Quality

 1)Reduce Power

3.7KW

 For the power consumption,the main motor of KORO paper bag making machine is only 3.7kw,which is much lower than similar machines 10-20kw.Our machine is with the characteristics of reducing power consumption,paper sving costs,creating profits and more environmental protection.

2)Fastening

12.9Grades

   High-end devices for the machine,even for each bolt,which using 12.9grades high strength bolts of more stess and more impact resistance.



3) Cooperation

    NHK,SCHNEIDER,OMRON,MISIMI ETC.

    From bearings to electrical apparatus,KORO company all use the international well –know high-quality brands,such as NHK,SCHNEIDER ETC.The machine performatce is more stable,mor efficient.



5,The applicable paper materials

Kraft paper,art paper,white paperboard and grey paperboard etc(including laminting paper

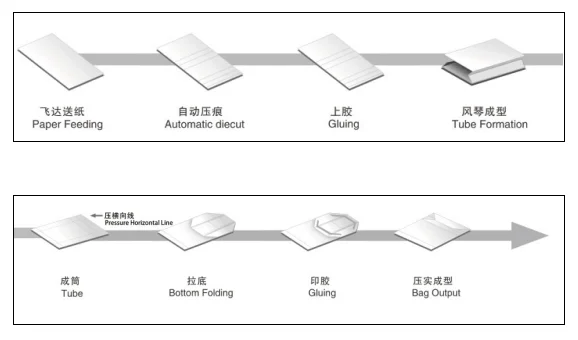

6,Work procedure

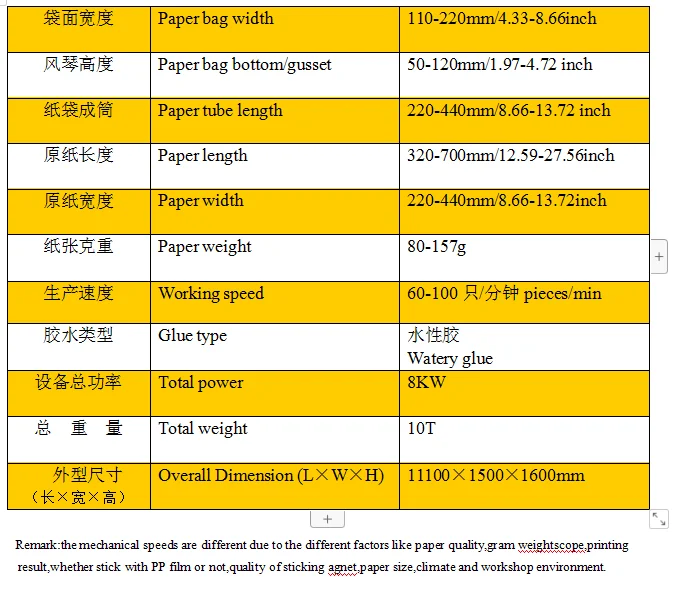

6.Main Technical Parameters
