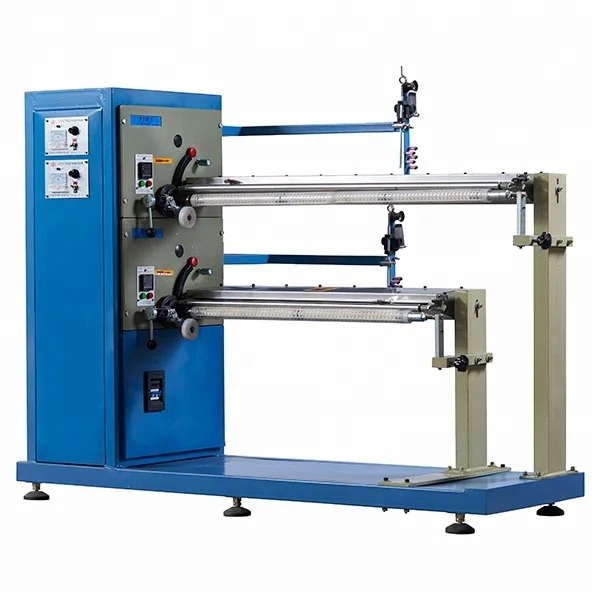

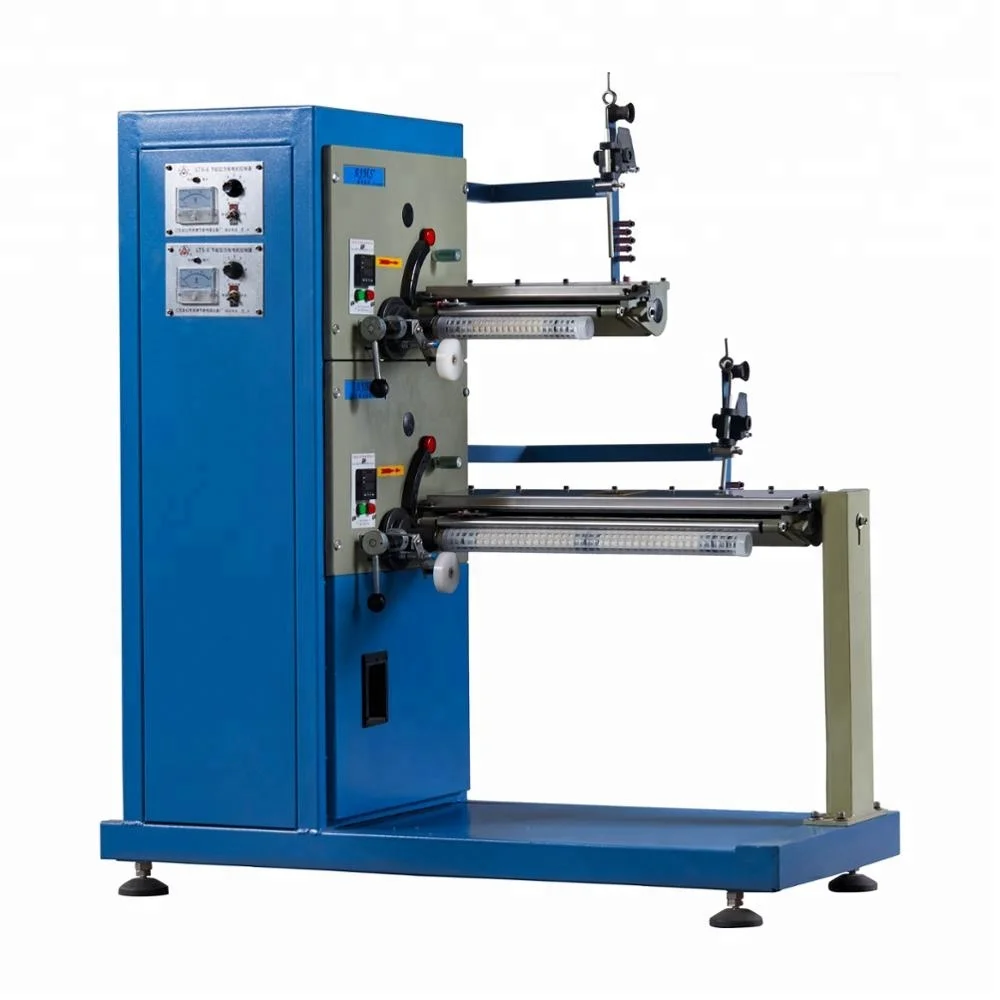

Wuxi AJMS 2020 New CE Approved PP String Wound Filter Cartridge Machine

Product Overview

Description

Machine application

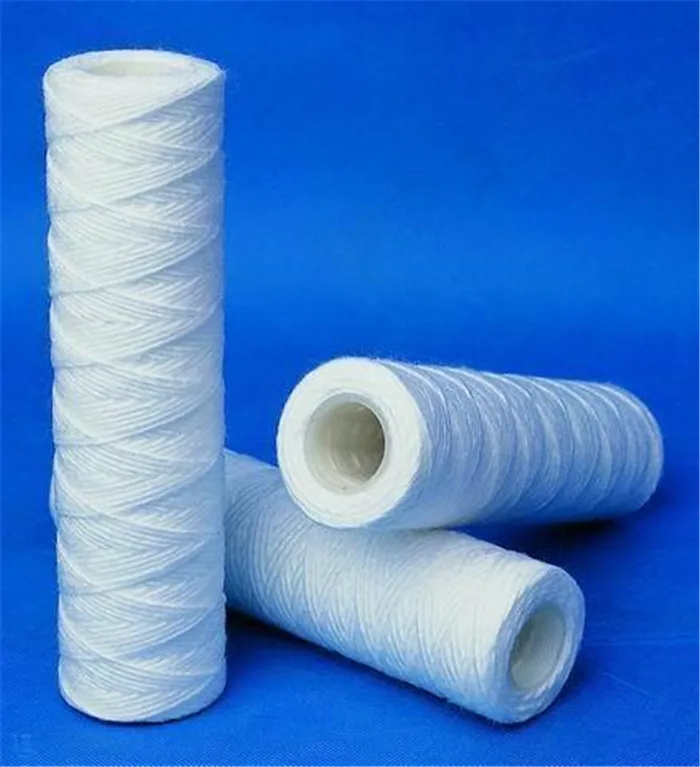

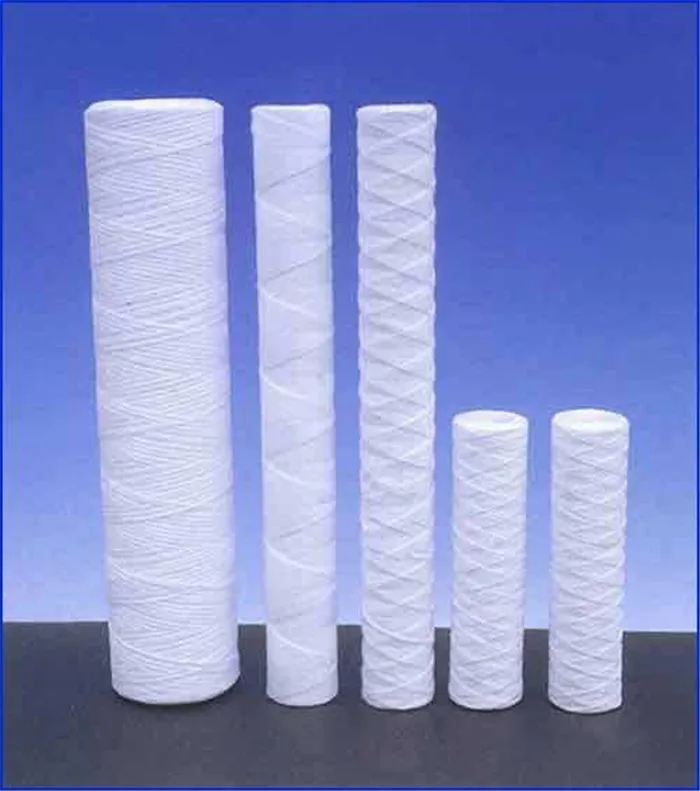

PP String Wound Filter Cartridge Machine is mainly used in the fields of water purification, Beverage, foodstuff, chemical, greases, pharmacies, electronics, environmental protection etc, it’s a dedicated machine for the winding of different yarns. This machine features novel design, high speed, low noise, high productivity, and good yarn forming ability. When the yarn full buzzer alarms, the machine will stop automatically. This machine has many advantage as such as easy operation; convenient and pick yarn change , low energy consumption.



Technical parameters

Winding line speed: 40-280m/min, constant line speed is available according to product requirements

Max. winding dia.: 200 mm(a diameter slightly above 200mm is available on client’s request)

Connecting cable: 4×1.5mm R.S.J.MP

Power supply: Our default voltage is three-phase 380V/50HZ, one-phase 220V/50HZ. There will be extra fee if you change the voltage

Motor power: 180W/Spindle,280W/Spindle

Motor speed: 2800r/min

Winding Frame Material: Polypropylene, stainless steel etc., on customer’s request

Winding Frame Inside Dia.: 10,12,14,16,18,20,26,28,29,30,32,40,65mm etc

Winding Reciprocation Stroke: It’s generally

5"(125+2mm)      10"(250+4mm)         20"(500+8mm)

30"(750+12mm)       40"(1000+16mm)     50"(1250+20mm)

60"(1500+24mm)     70"(1750+28mm)     80"(2000+32mm)

90"(2250+36mm)     100"(2500+40mm)

(Other reciprocation strokes are to be available to some degree on client’s request)

Single spindle panel sizes: (W×H)390×308mm.



Machine merits

1  the torque motor direct drive the yarn winding shaft,constant winding running

2  the machine speed is easy to regulate; wound yarn’s degree of tension and winding pattern can be easily regulated; the tension to the yarn is automatically set to a constant value

3  Good material using,double layer Nylon cam,long life using

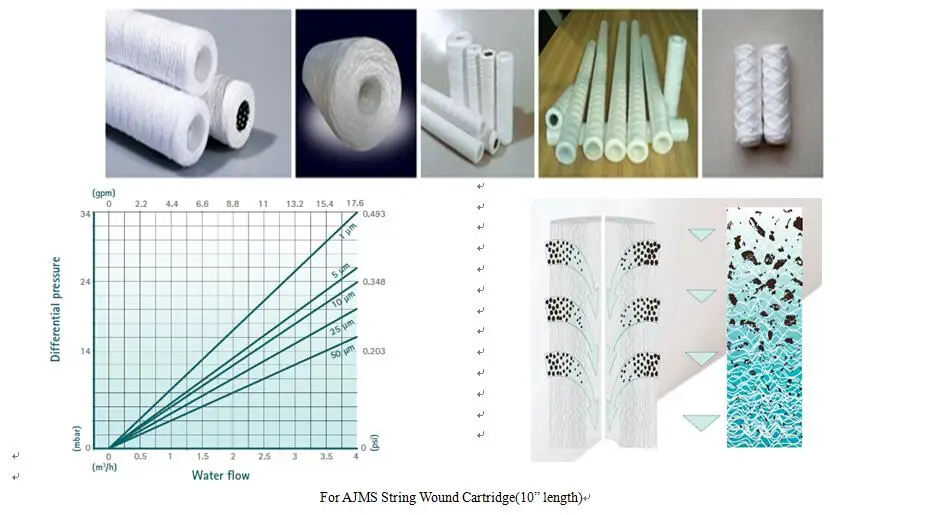

Pressure Drop

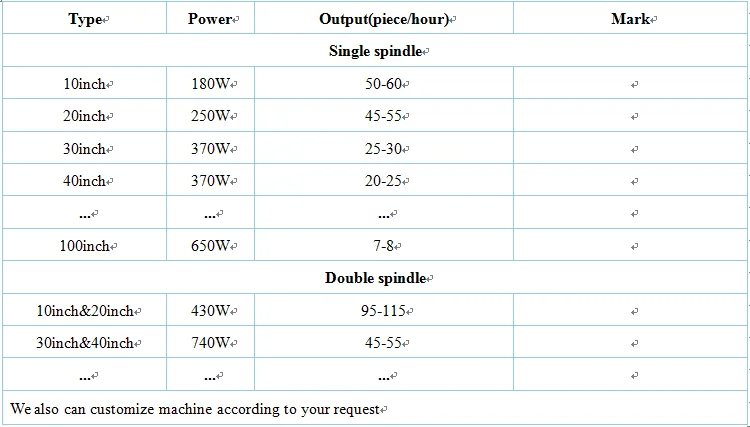

We supply:(single spindle and double spindles for your choose)

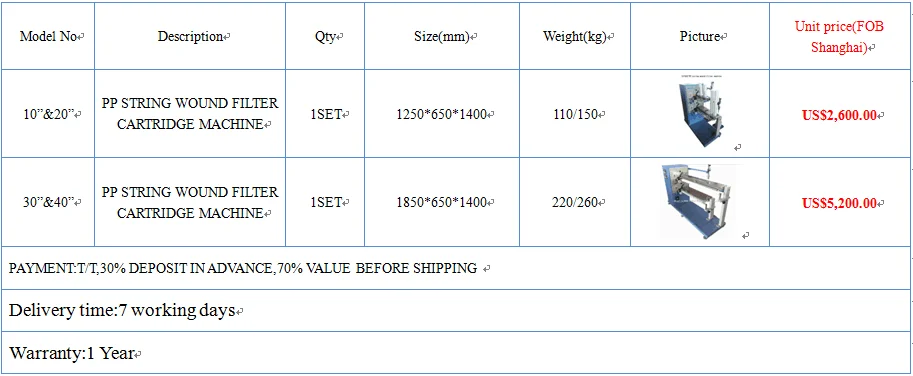

Quotation
