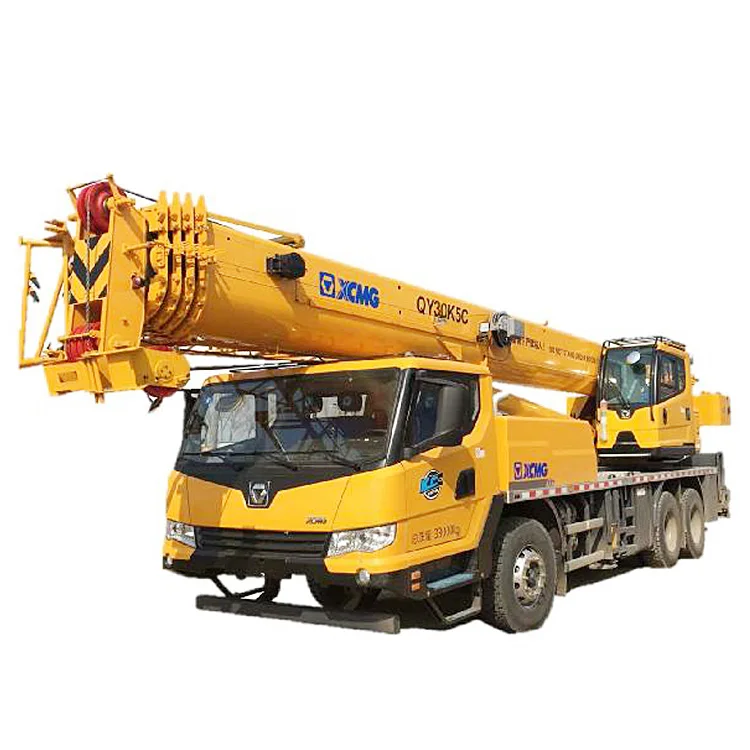

QY30K5C Pilot Control Chinese Construction


XCM G 30 ton hydraulic mobile truck crane for Sale









































Product Description





1. Designed and manufactured by XCM G, with all covered walking surface, anti-torsion box structure and optimal load-bearing structure design, made of imported high strength steel.




2. SC9DF300.1Q5, in-line six-cylinder water-cooled EFI diesel engine, rated power 221kW /2200rpm, max. torque 1250Nm / 1400rpm, the national V emissionstandards. Fueltank capacity:320L


3. FAST manually mechanical control,9-speedavailable,synchronizer is equipped.

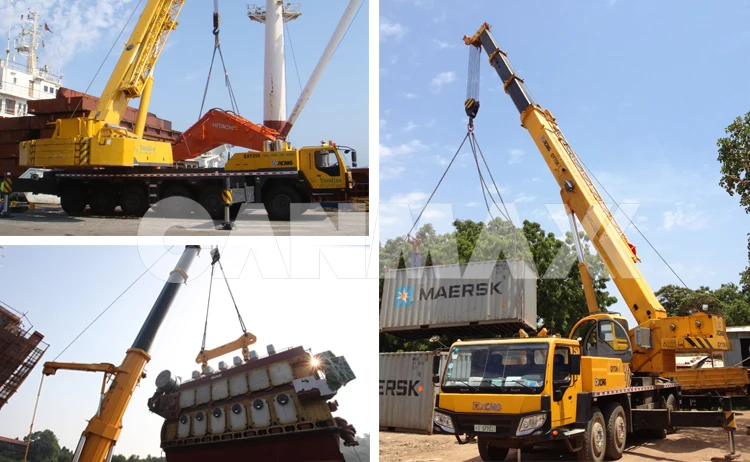

truck crane changjing








Main Parameter










































































































Description


Unit


Parameter value


Overall length


mm


12850


Overall width


mm


2550


Overall Height


mm


3480


Wheel Base


mm


4500+1350


Track


mm


2059/2074/1834


Total vehicle mass in travel configuration


kg


33000


Axle load


1st axle


kg


7400


2nd axle


12800


Engine Model


SC9DF300.1Q5


Engine rated power


kw/(r/min)


221/2200


Engine rated torque


N.m/(r/min)


1250/1400


Max. travel speed


km/h


≥90


Min. turning diameter


m


≤21


Min. ground clearance


mm


250


Max. grade ability


%


≥40


Approach angle


°


11


Departure angle


°


13.5


Braking distance (at 30 km/h, full load )


m


≤10
